| Specification |
Details |

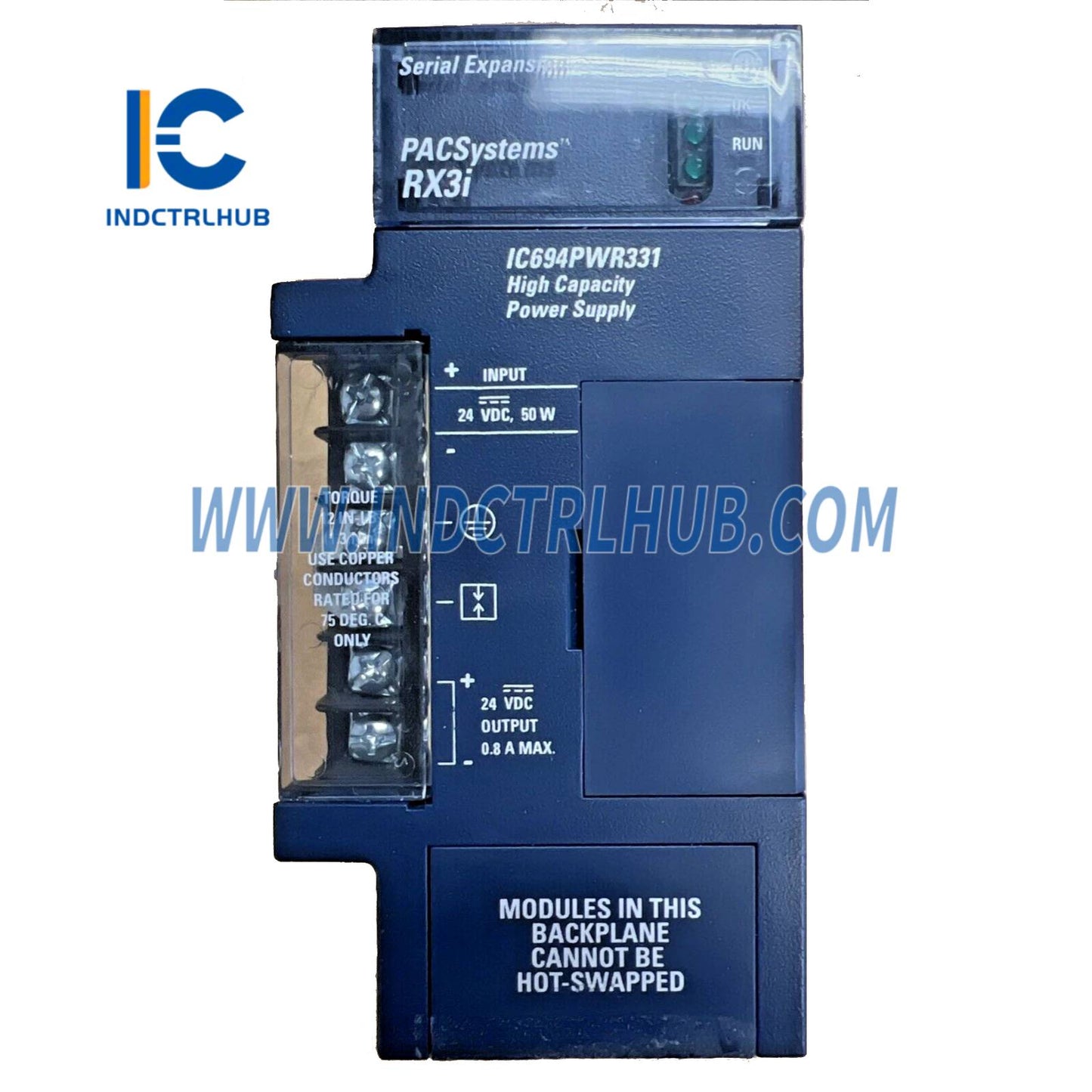

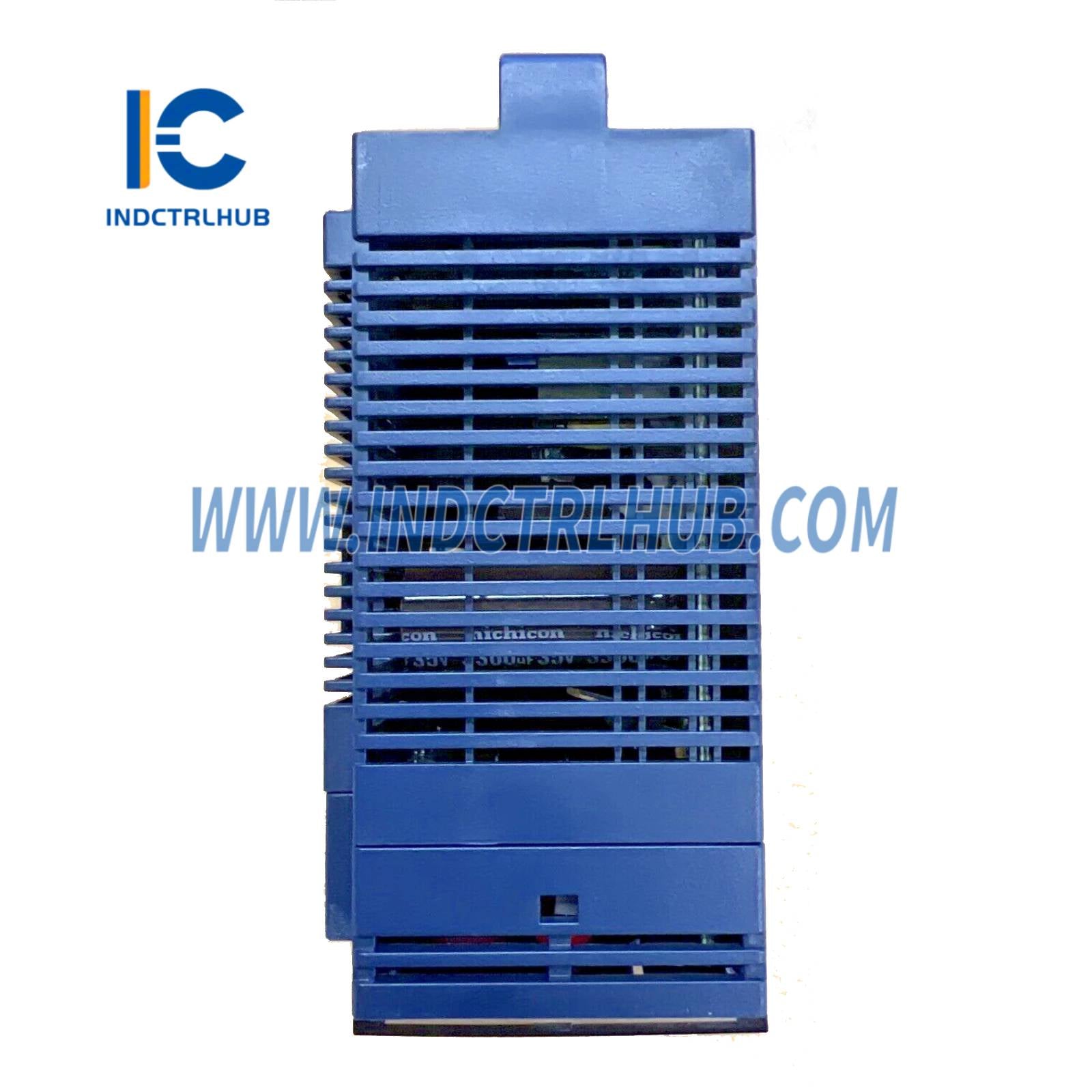

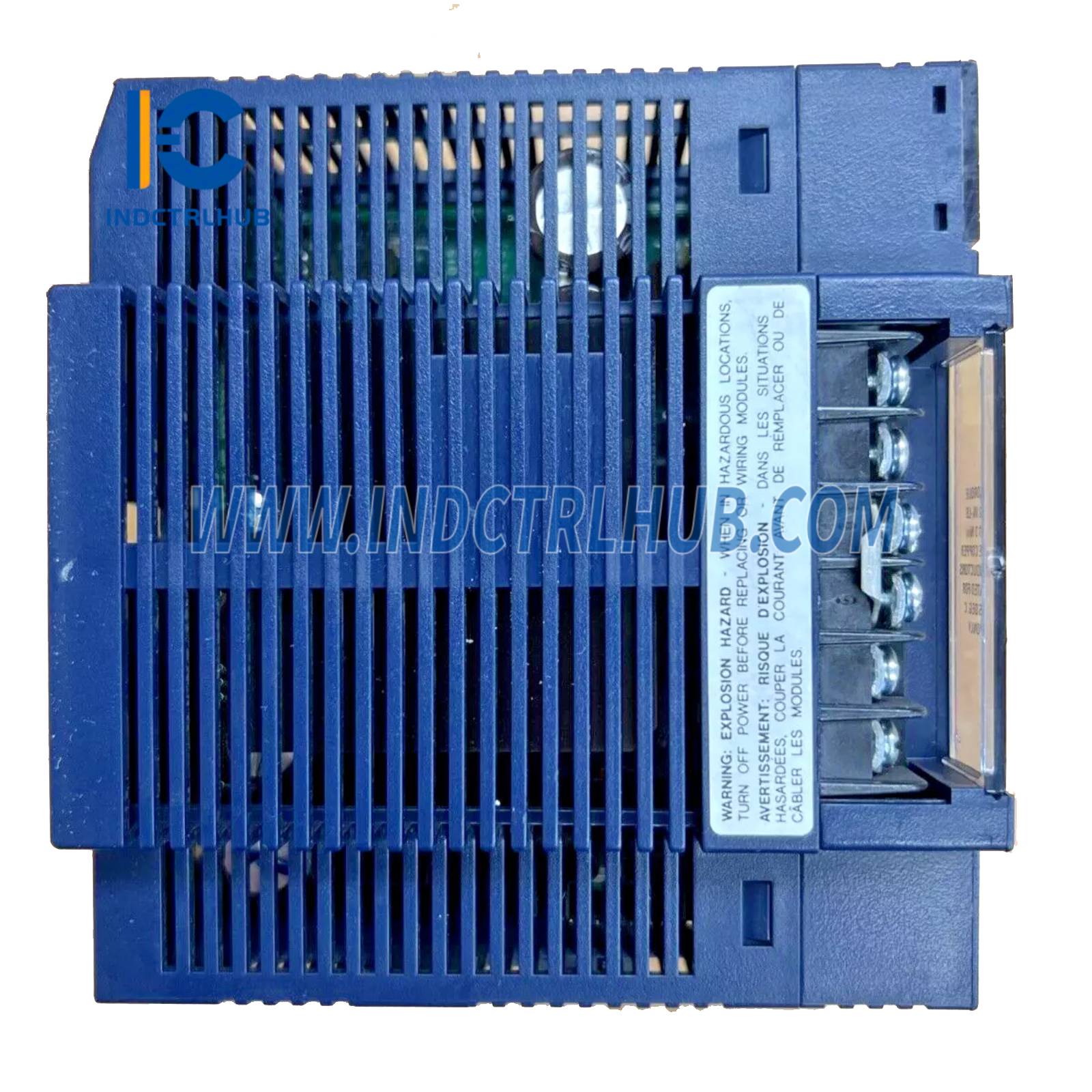

| Model |
IC694PWR331 |
| Series |
RX3i PACSystems |
| Type |
High-Capacity Power Supply Module |
| Input Voltage |
12–30 VDC, 24 VDC nominal (18 VDC minimum for startup) |
| Input Power |
50 W maximum |
| Inrush Current |
4 A peak for 100 ms |
| Output Power |
30 W total: 30 W at 5 VDC, 15 W at 24 VDC relay, 20 W at 24 VDC isolated |
| Output Voltages |
+5 VDC (6.0 A max), +24 VDC relay (0.625 A max), +24 VDC isolated (0.833 A max) |
| Current Rating |
5 A |
| Holdup Time |
10 ms |
| Protection |
Overcurrent (internal fuse: Bussman GMC-5-R or 44A724627-114), short-circuit |

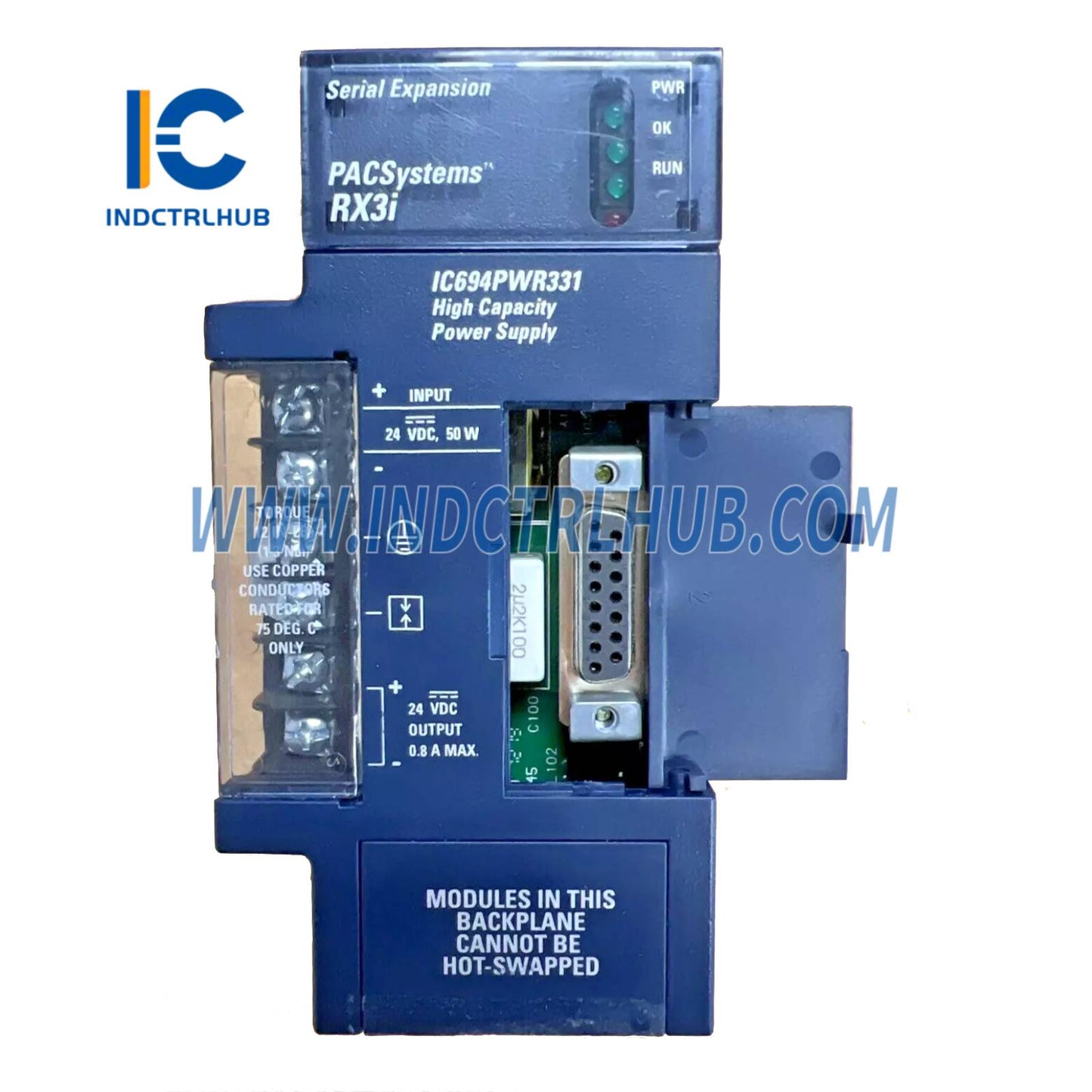

| LED Indicators |
PWR (power status), OK (PLC operation), RUN (CPU running) |
| Conductors |
Copper, rated at 75°C minimum |
| Operating Temperature |
0°C to +60°C (32°F to +140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Weight |
0.5 kg (1.1 lbs) |
| Dimensions |
12.4 x 12.2 x 5.3 cm (4.9 x 4.8 x 2.1 in) |

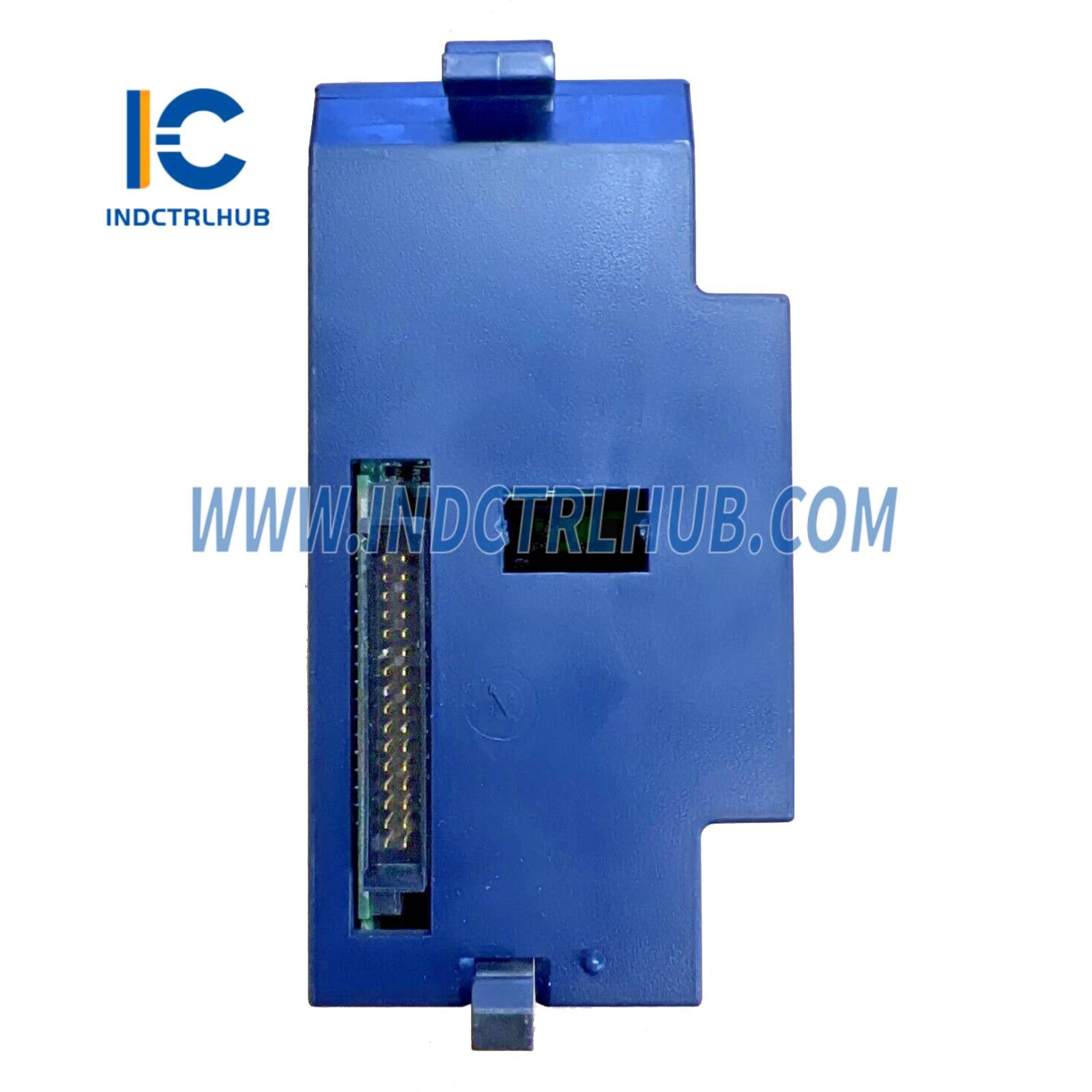

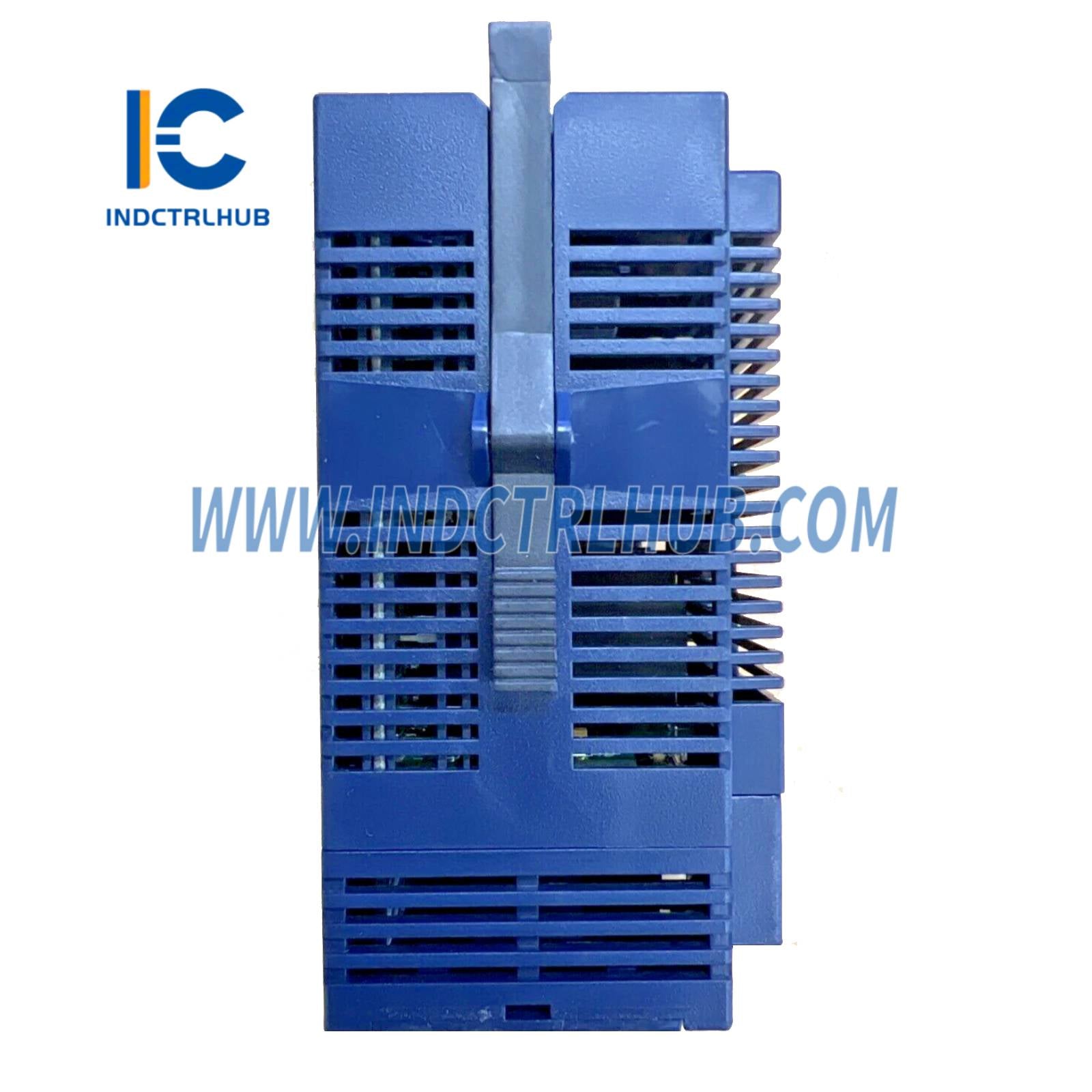

| Mounting |
Plugs into power supply slot of RX3i serial expansion backplane (e.g., IC694CHS392) |

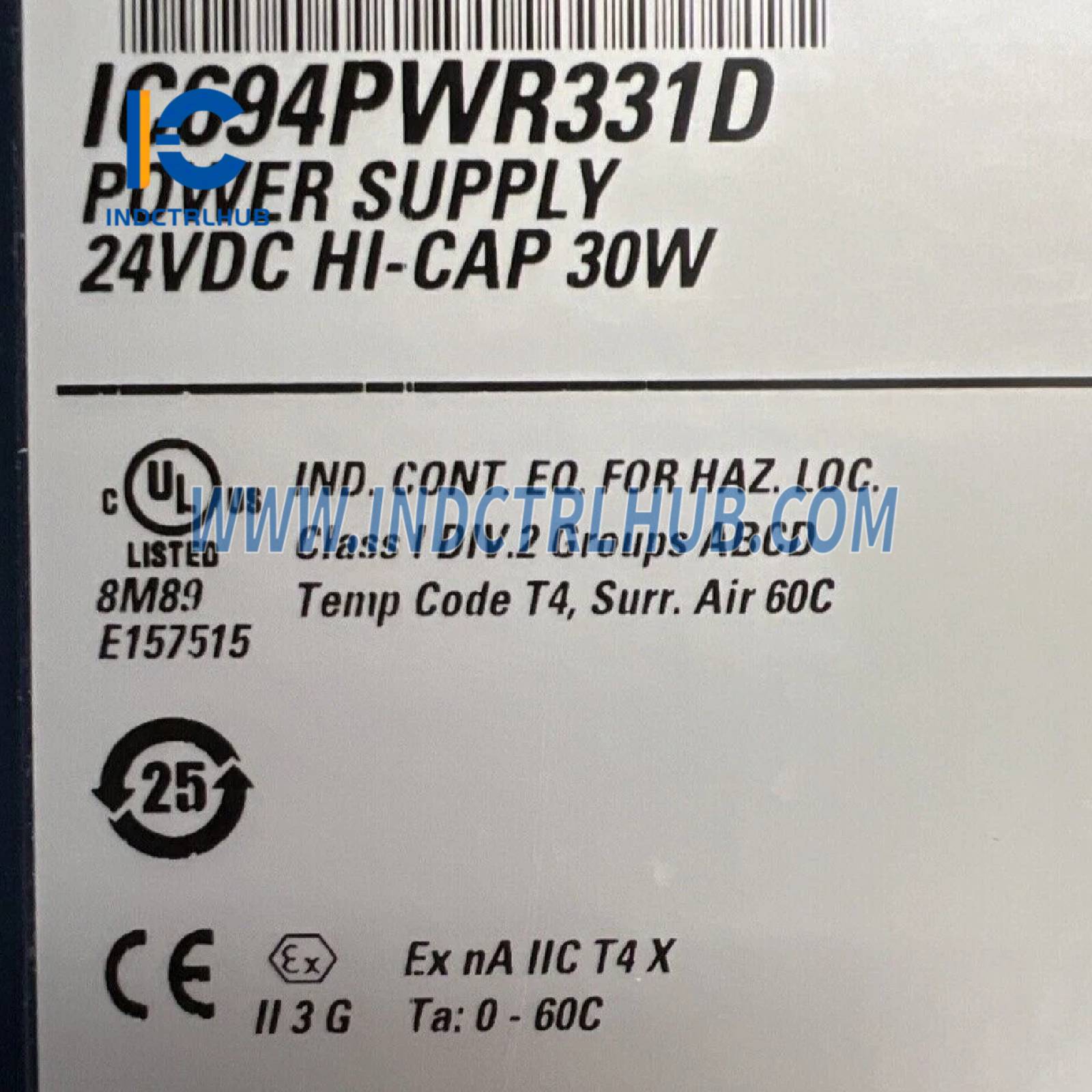

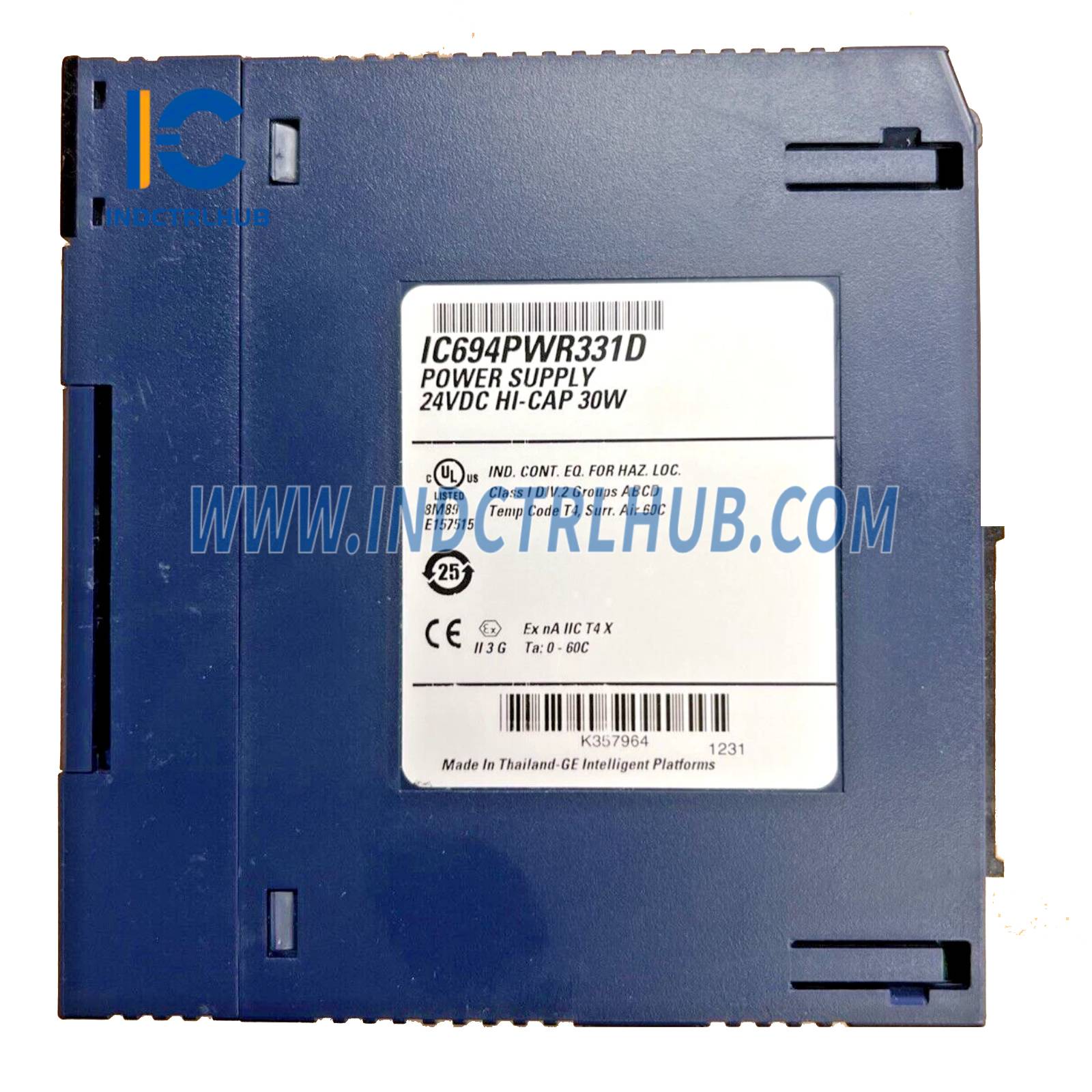

| Certifications |
CE, UL, Class I Div 2 |
| Compatibility |
All RX3i CPUs, RX3i serial expansion backplanes, Proficy Machine Edition |
