Product Description
Product Overview

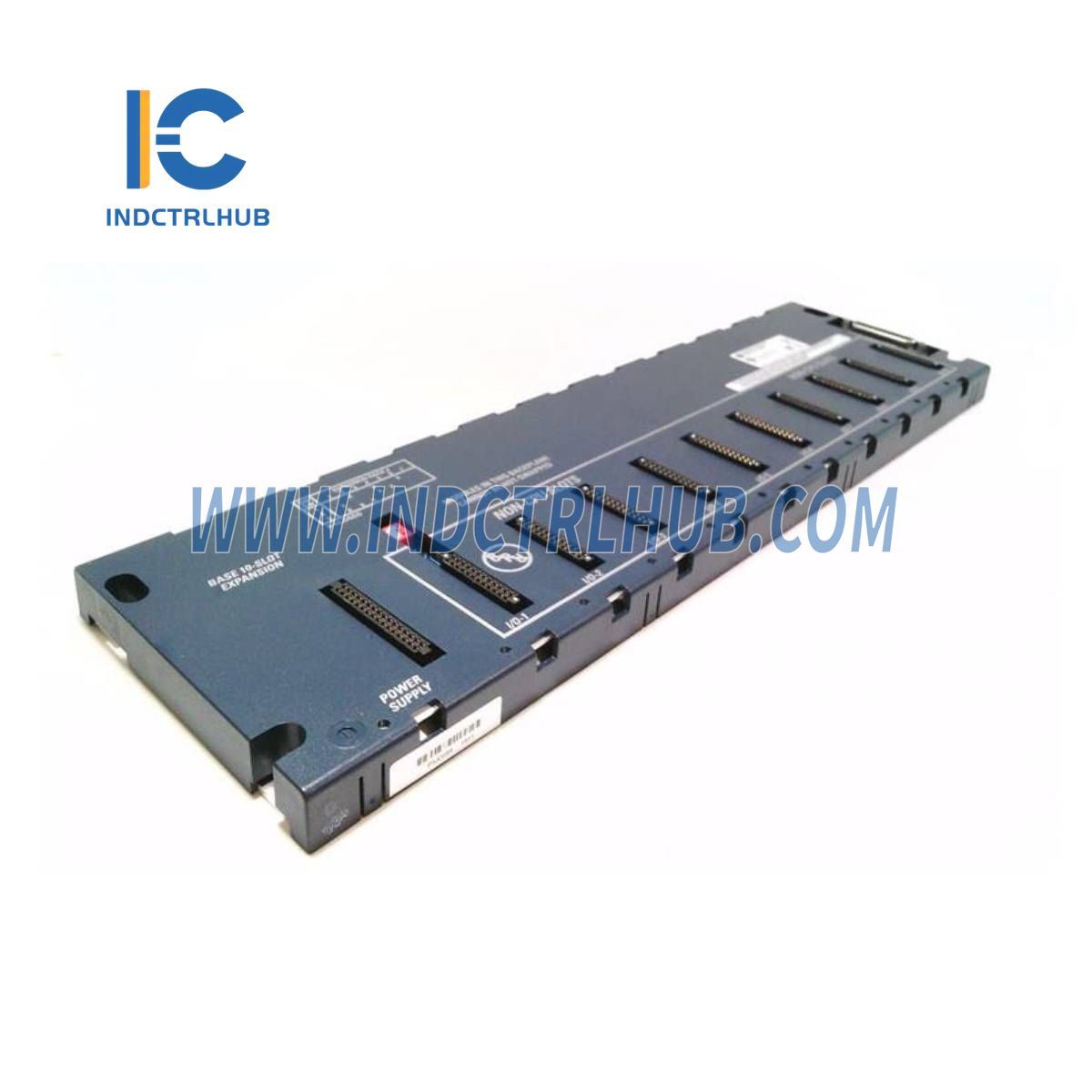

The General Electric IC694CHS392 is a Serial Expansion Standard I/O Backplane from the GE Fanuc RX3i PACSystems Series, designed to extend the capacity of an RX3i Programmable Automation Controller (PAC) by providing additional slots for I/O modules in industrial automation systems. Manufactured by GE, now under Emerson Automation Solutions following the 2019 acquisition of GE Intelligent Platforms, this 10-slot backplane supports high-speed serial communication and is compatible with standard RX3i I/O modules. It is suited for applications in manufacturing, power generation, and process control, offering flexible expansion up to 50 feet from the main rack via an I/O expansion cable.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric (GE) / Emerson Automation Solutions |
| Series | RX3i PACSystems |
| Model/Part Number | IC694CHS392 |
| Description | Serial Expansion Standard I/O Backplane |
| Number of Slots | 10 |
| Backplane Support | High-Speed Serial Only |
| Maximum Distance | 50 ft (15.24 m) |
| Internal Power Used | 150 mA at 5 V DC |
| Dimensions | 17.44 in x 5.59 in x 5.12 in (44.3 cm x 14.2 cm x 13.0 cm) |
| Operating Temperature | 0 °C to +60 °C (32 °F to +140 °F) |
| Weight | 1.45 kg (3.2 lb) |
