GE IC693PWR321 Series 90-30 Power Supply Module
GE IC693PWR321 Series 90-30 Power Supply Module
Manufacturer: General Electric
Product No.: IC693PWR321
Condition:1000 in stock
Product Type: Series 90-30 Power Supply Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Electric IC693PWR321 Series 90-30 Power Supply Module
- Manufacturer: General Electric (now under Emerson Automation)
- Series: Series 90-30
- Model/Part Number: IC693PWR321
- Description: Standard 30W Power Supply Module with 120/240 VAC or 125 VDC input for Series 90-30 PLC systems
Overview
- The General Electric IC693PWR321 is a standard 30W power supply module from the Series 90-30 Programmable Logic Controller (PLC) platform, originally manufactured by GE Fanuc and now managed by Emerson Automation. Designed for industrial automation, it provides power to the Series 90-30 backplane, supporting CPUs, I/O modules, and other components. It accepts 120/240 VAC or 125 VDC input and is suitable for applications in manufacturing, process control, and industrial systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC693PWR321 |
| Series | Series 90-30 |
| Type | Power Supply Module |
| Input Voltage | 100_240 VAC (nominal 120/240 VAC, 50/60 Hz), 125 VDC |
| Input Voltage Range | 85_264 VAC, 100_300 VDC |
| Input Power | 90 VA (AC), 50 W (DC) |
| Inrush Current | 4 A peak for 250 ms |
| Output Power | 30 W total: 15 W at 5 VDC, 15 W at 24 VDC relay, 20 W at 24 VDC isolated |
| Output Voltages | +5 VDC (3.0 A max), +24 VDC relay (0.625 A max), +24 VDC isolated (0.833 A max) |
| Holdup Time | 20 ms (AC), 10 ms (DC) |
| Protection | Internal fuse (not field-replaceable), overvoltage, overcurrent |

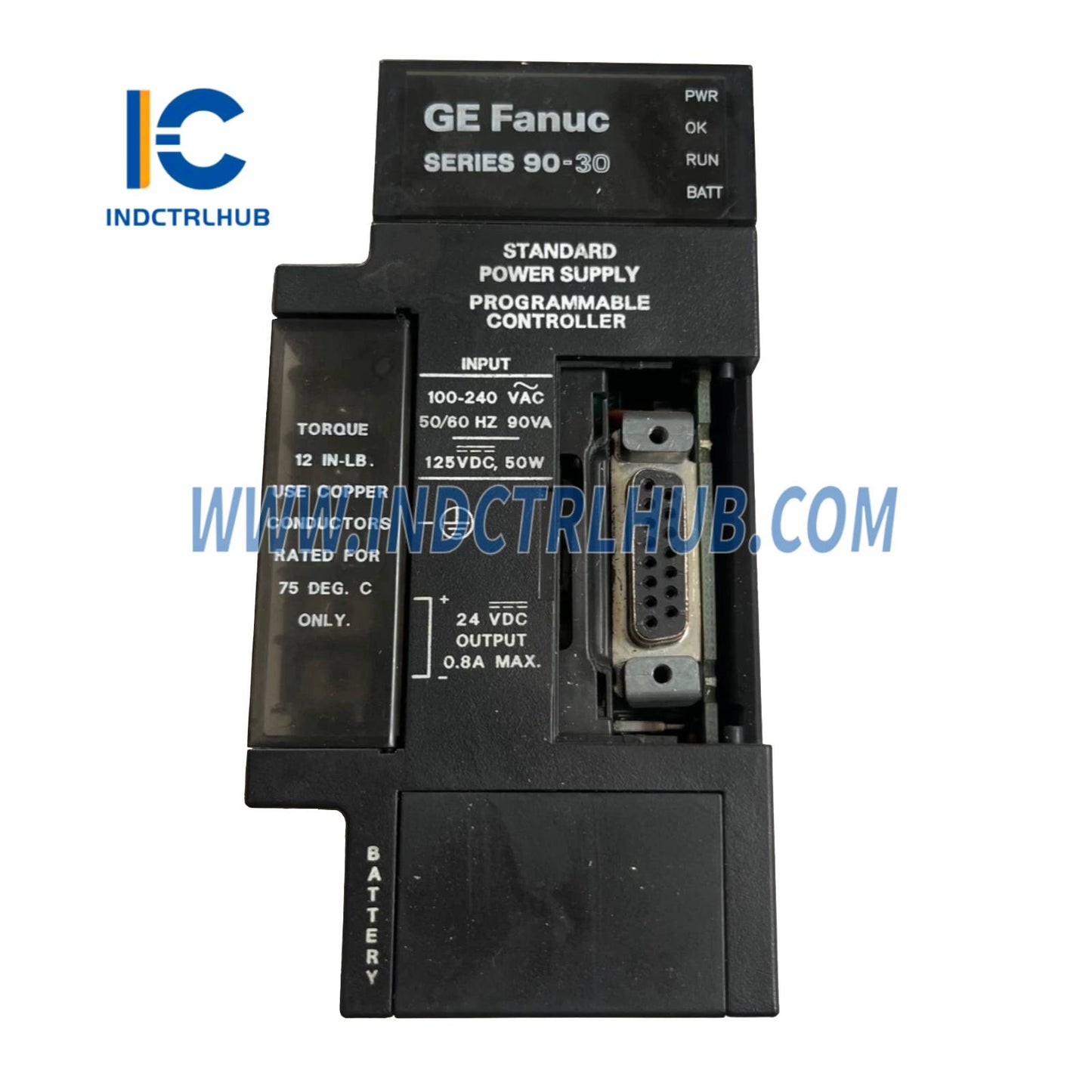

| LED Indicators | PWR (power status), OK (PLC operation), RUN (CPU running), BATT (battery status) |
| Serial Port | RS-485 (SNP protocol for programming/monitoring) |
| Battery | Supports lithium battery (IC693ACC301) for RAM and clock |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Weight | 0.5 kg (1.1 lbs) |
| Dimensions | 12.4 x 12.2 x 5.3 cm (4.9 x 4.8 x 2.1 in) |
| Mounting | Plugs into power supply slot of Series 90-30 5 or 10-slot baseplate |
| Certifications | CE, UL, Class I Div 2 |
| Compatibility | Series 90-30 CPUs and I/O modules, Logicmaster, Proficy Machine Edition |
_
