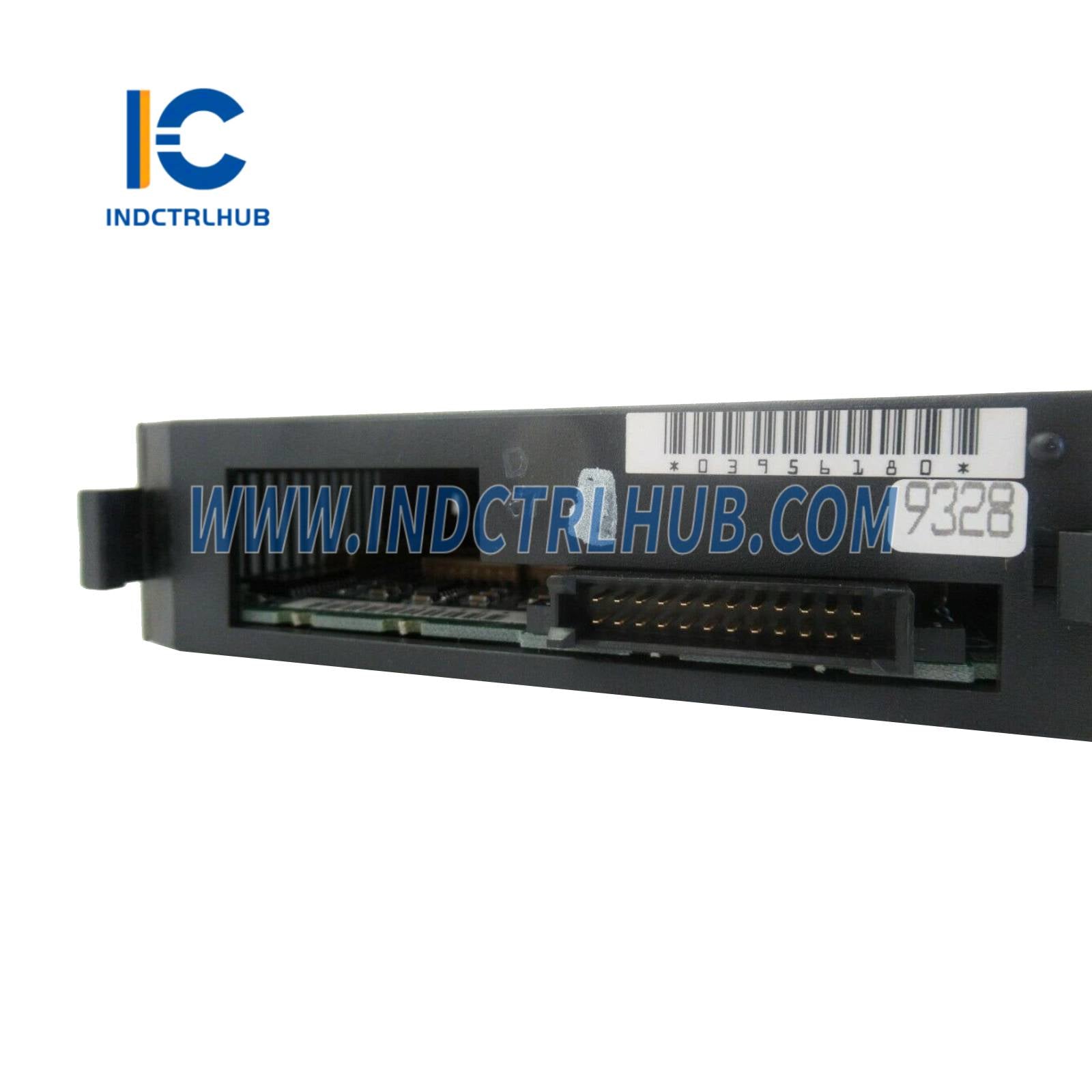

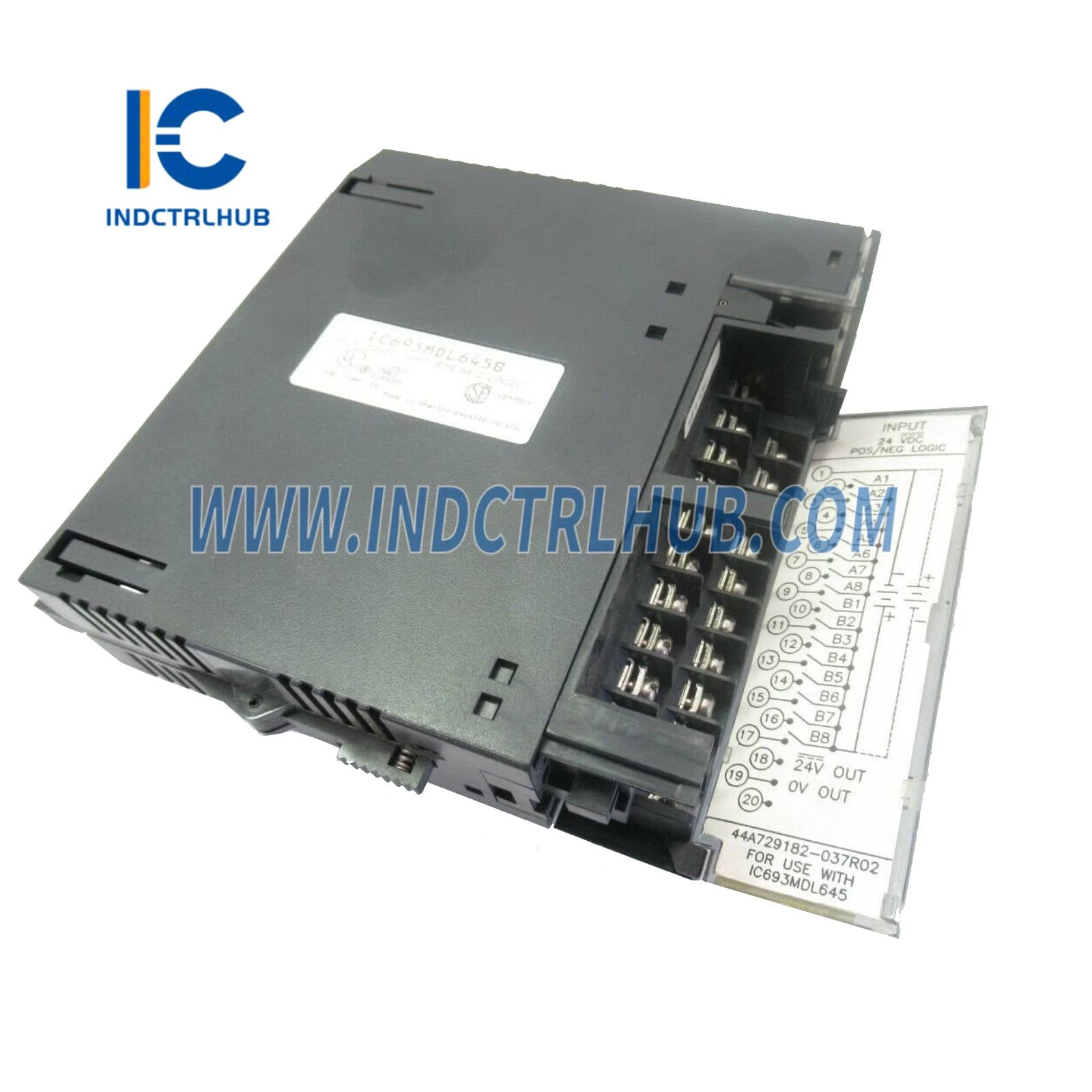

| Specification |
Details |
| Model |
IC693MDL645 |
| Series |
Series 90-30 |
| Type |
Discrete Input Module |
| Input Channels |
16 (one group with a single common) |
| Input Logic |
Positive or negative logic |
| Rated Voltage |
24 VDC |
| Input Voltage Range |
0 to +30 VDC |
| Input Current |
7 mA typical at rated voltage |
| On-State Voltage |
11.5 to 30 VDC |
| Off-State Voltage |
0 to +5 VDC |
| On-State Current |
3.2 mA minimum |
| Off-State Current |
1.1 mA maximum |
| Response Time |
7 ms typical (ON/OFF) |
| Power Consumption |
80 mA at 5 VDC (all inputs ON) from backplane; 125 mA at 24 VDC from isolated backplane or user-supplied power |
| Isolation |
1500 VAC (field-to-logic), 250 VAC continuous |

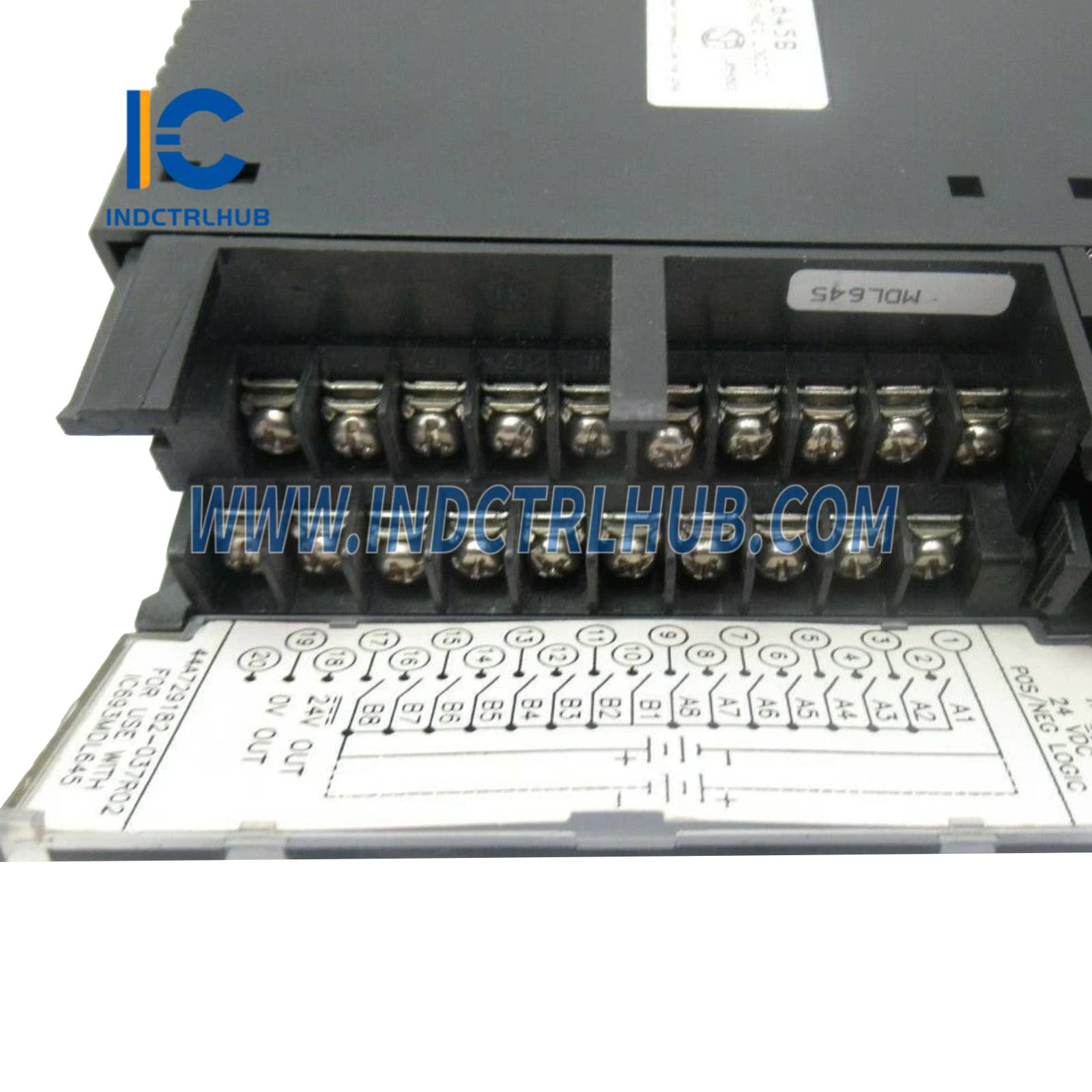

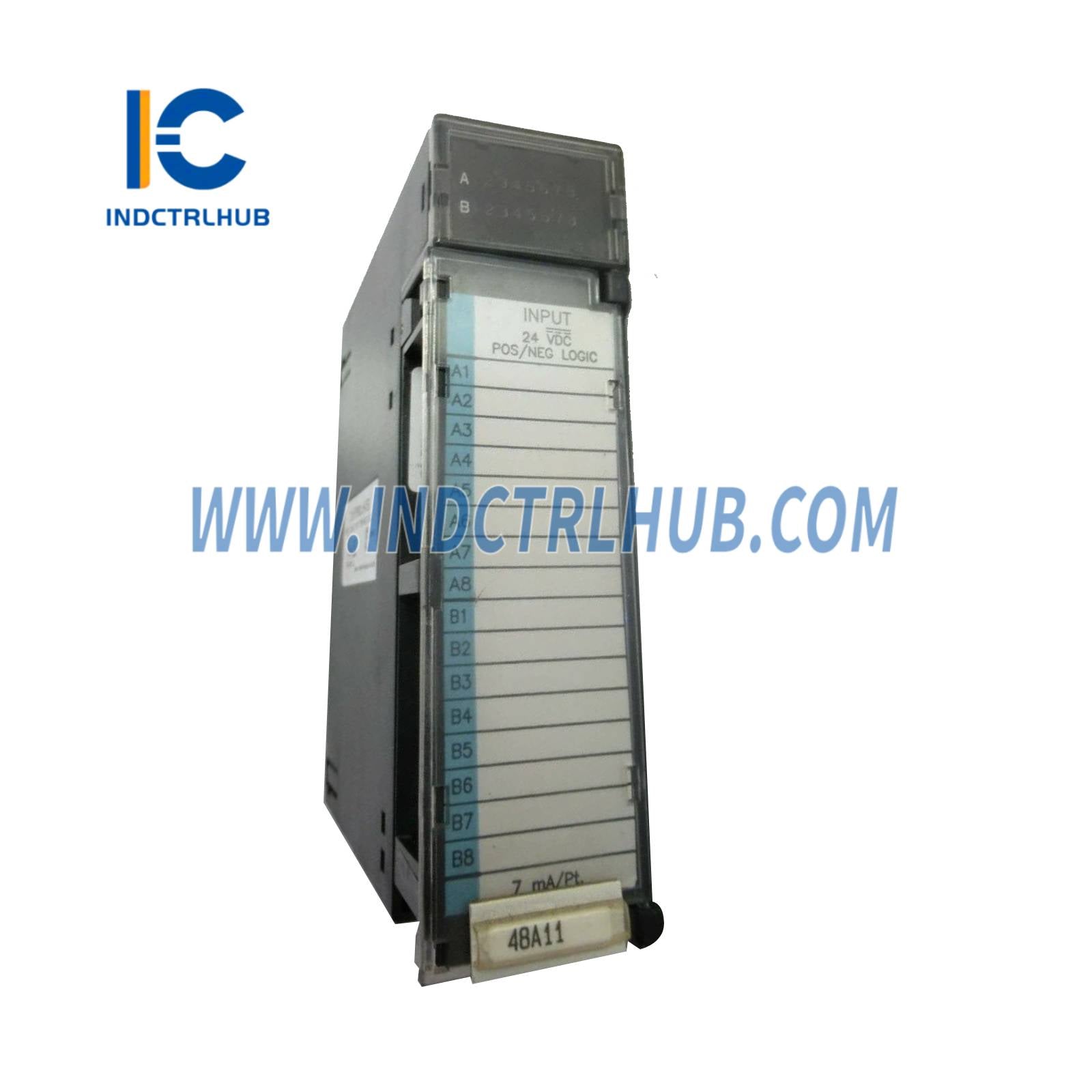

| LED Indicators |
16 green LEDs (A1–A8, B1–B8) for ON/OFF status, one per point |
| Data Size |
16 bits of discrete input data (%I) |
| Operating Temperature |
0°C to +60°C (32°F to +140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Weight |
0.4 kg (0.88 lbs) |
| Dimensions |
12.4 x 12.2 x 5.3 cm (4.9 x 4.8 x 2.1 in) |
| Mounting |
Plugs into any I/O slot of a Series 90-30 5 or 10-slot baseplate |
| Certifications |
CE, UL, Class I Div 2 |
| Compatibility |
Series 90-30 PLCs, Logicmaster, Proficy Machine Edition |
