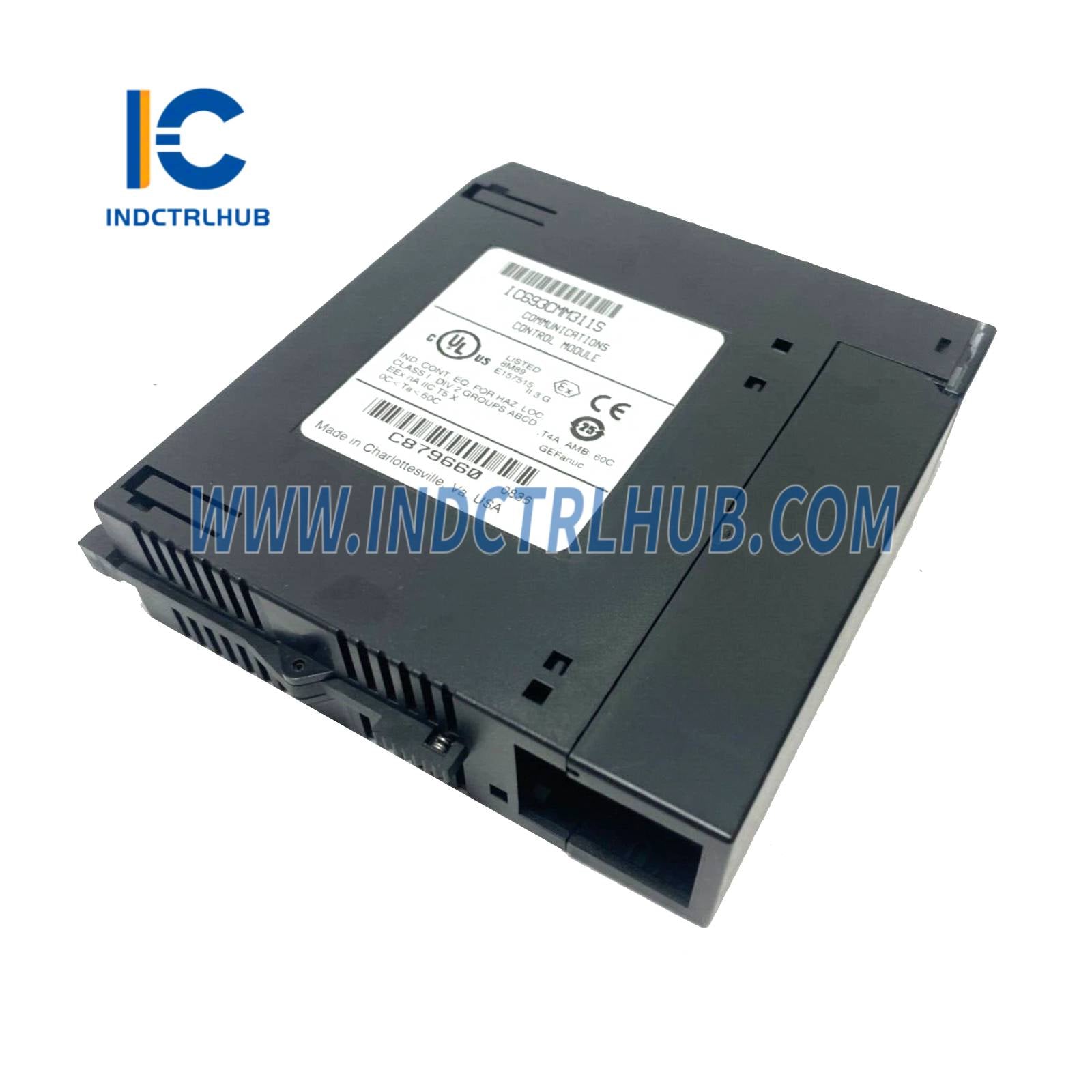

| Specification |
Details |
| Model |
IC693CMM311S |
| Series |
Series 90-30 |
| Type |
Communications Coprocessor Module (CCM) |
| Communication Ports |
2 serial ports: Port 1 (RS-232), Port 2 (RS-232/RS-422/RS-485) |
| Port Connectors |
25-pin D-shell (both ports wired to a single connector) |
| Supported Protocols |
CCM, SNP, Modbus RTU |
| Baud Rates |
Up to 19.2 kbps (protocol-dependent) |
| Power Consumption |
400 mA at 5 VDC from backplane |

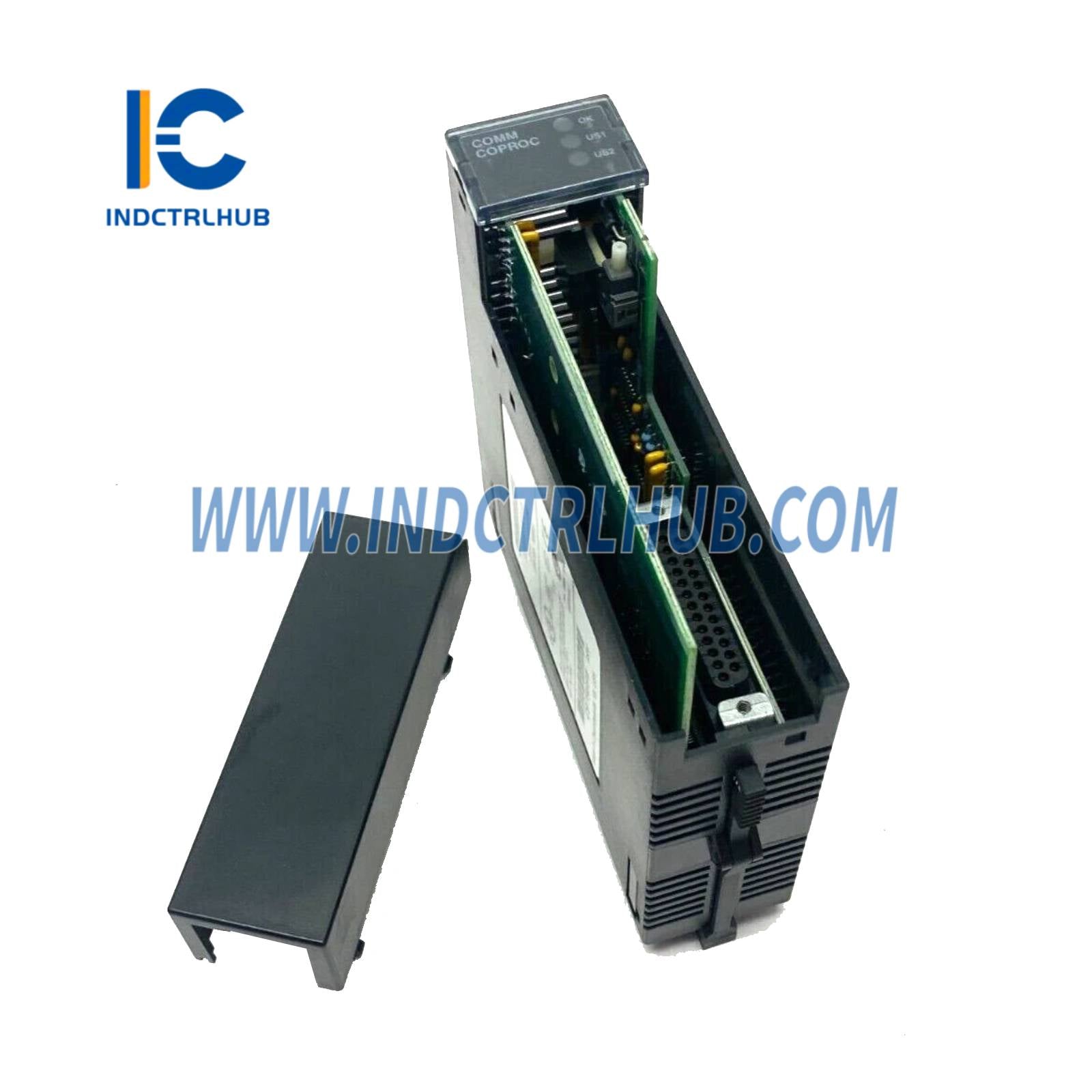

| LED Indicators |
MODULE OK, PORT1 (US1), PORT2 (US2) for data activity |
| Reset Feature |
Pushbutton for restart/reset (re-initializes with Soft Switch Data settings) |
| Module Support |
Up to 4 modules with CPU 331 or higher (not compatible with embedded CPUs 311, 313, 323) |
| Isolation |
1500 VAC (field-to-logic) |
| Operating Temperature |
0°C to +60°C (32°F to +140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Weight |
0.4 kg (0.88 lbs) |
| Dimensions |
12.4 x 12.2 x 5.3 cm (4.9 x 4.8 x 2.1 in) |

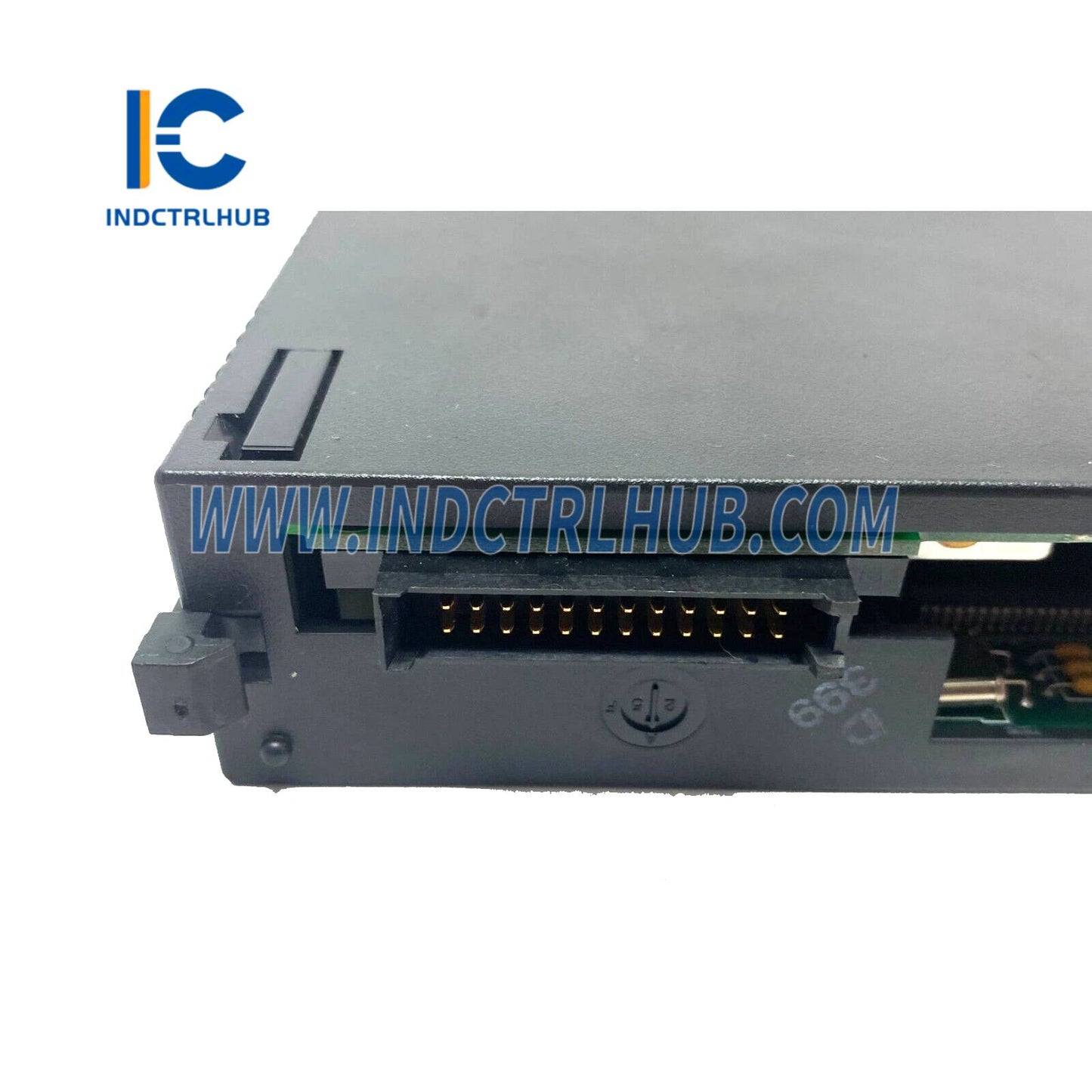

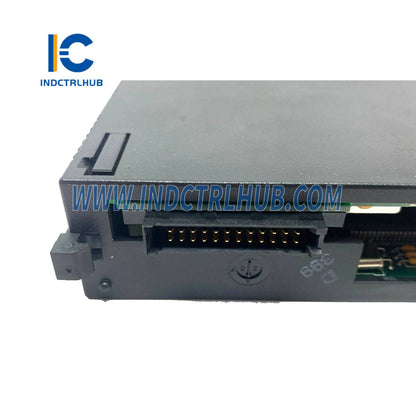

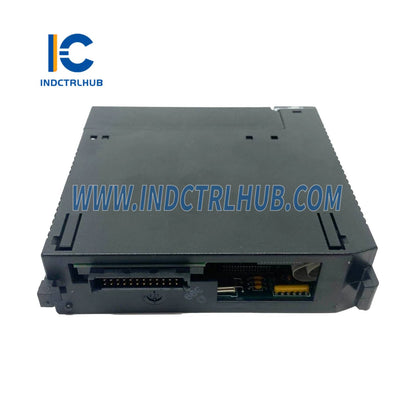

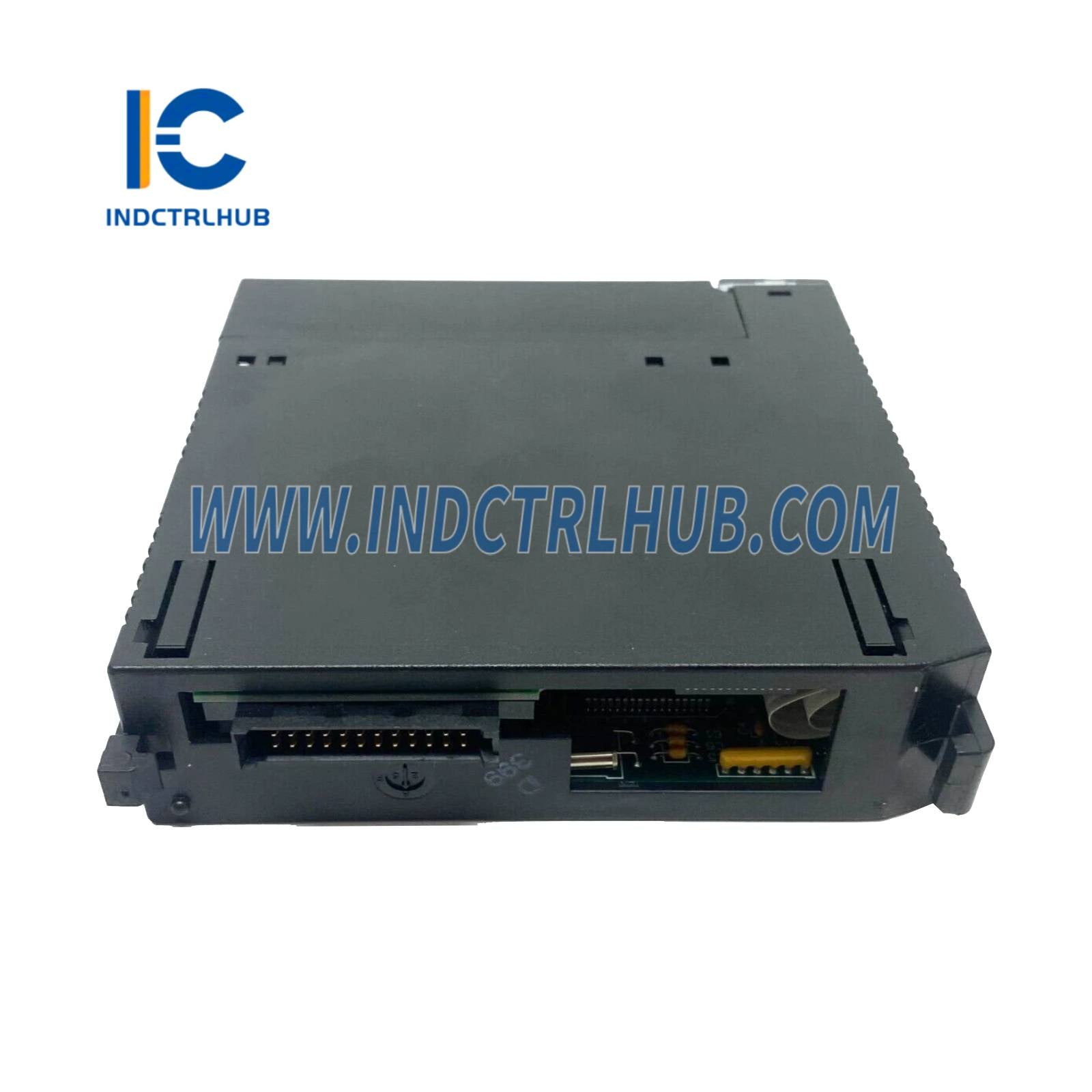

| Mounting |
Plugs into Series 90-30 PLC baseplate (any slot except CPU slot) |

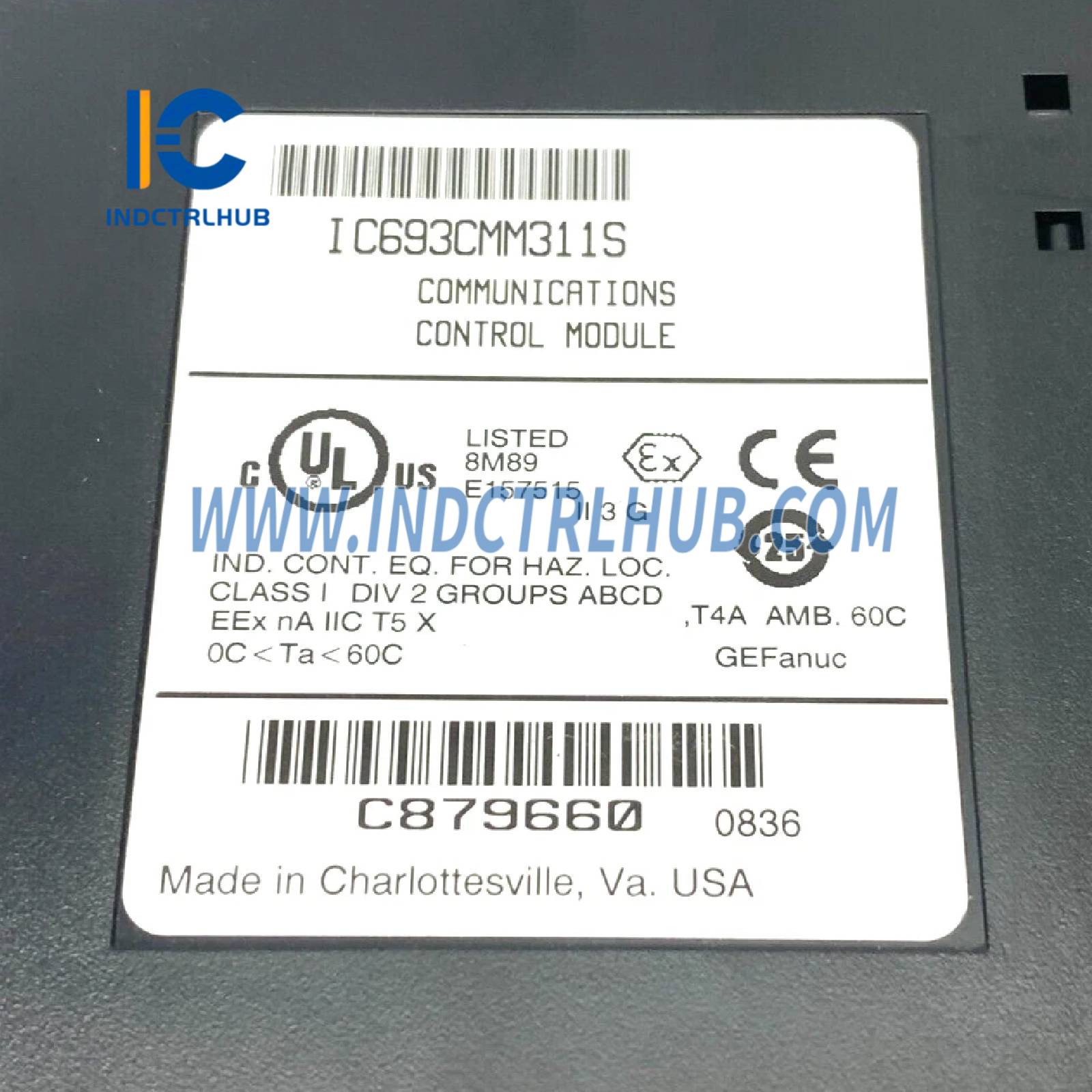

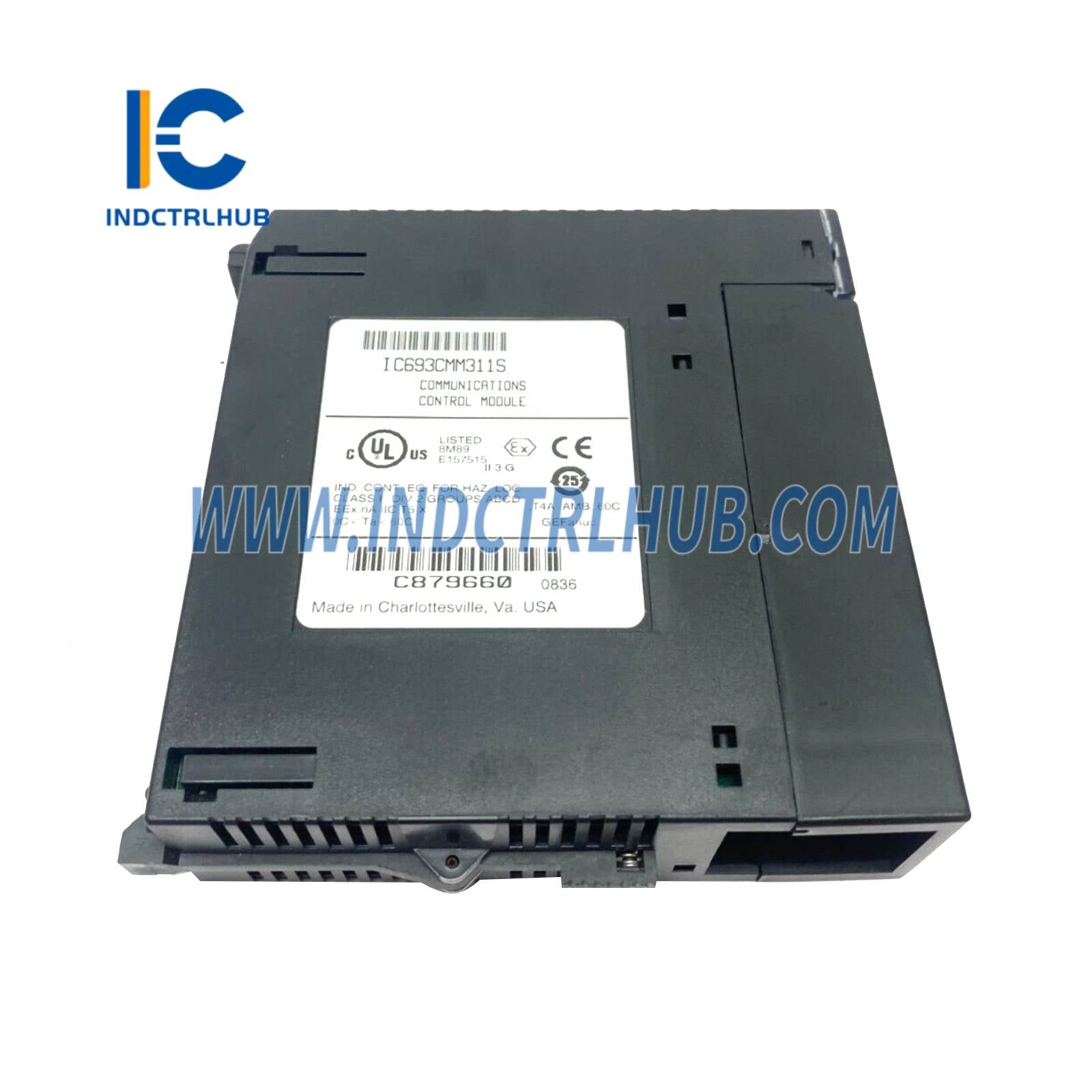

| Certifications |
CE, UL, Class I Div 2 |
| Compatibility |
Modular Series 90-30 CPUs (331 or higher), Logicmaster, Proficy Machine Edition |
