GE IC693ALG391 Series 90-30 Analog Output Module

Quantity

General Electric IC693ALG391 Series 90-30 Analog Output Module

Manufacturer: General Electric (now under Emerson Automation)
Series: Series 90-30
Model/Part Number: IC693ALG391
Description: 2-Channel Analog Current Output Module for industrial automation systems

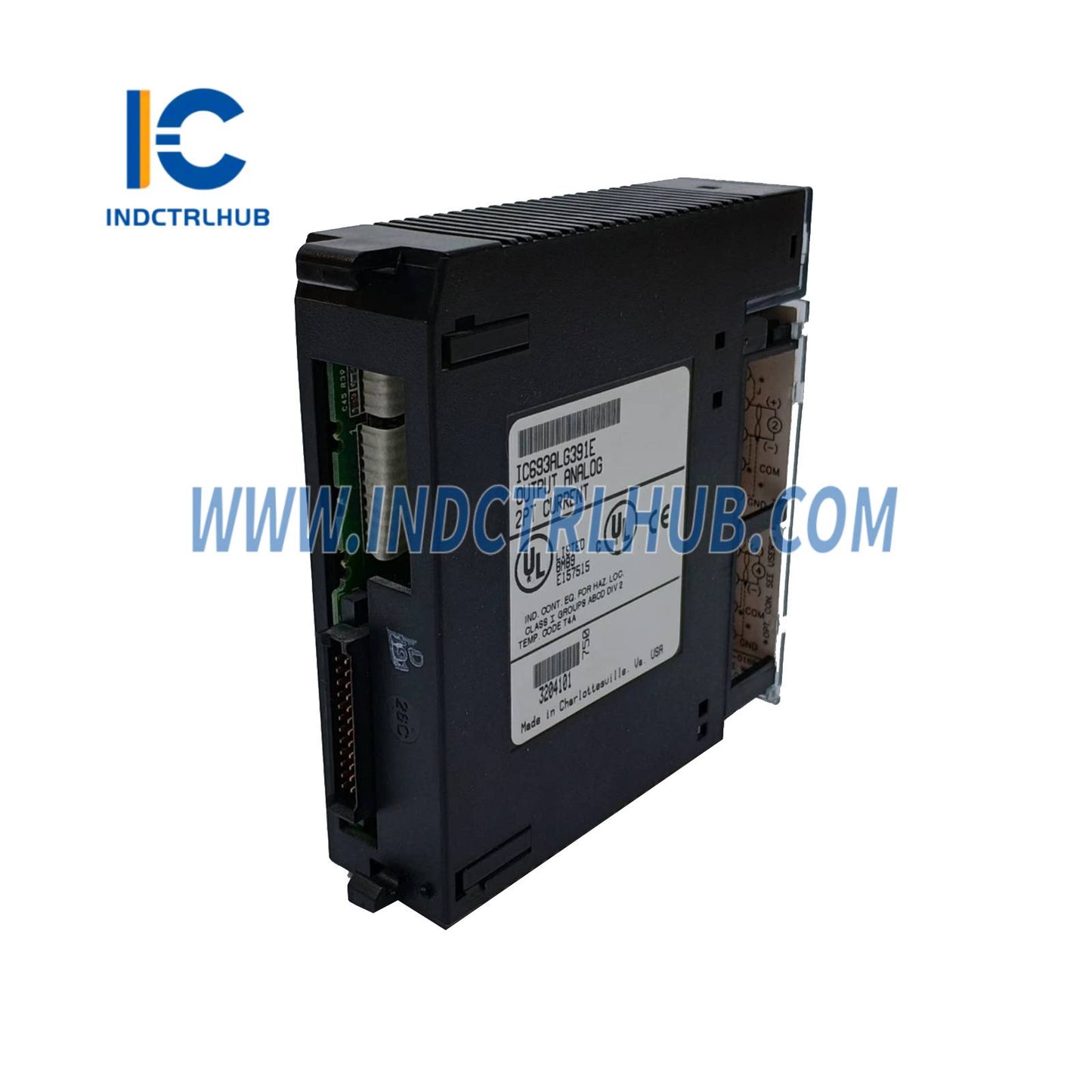

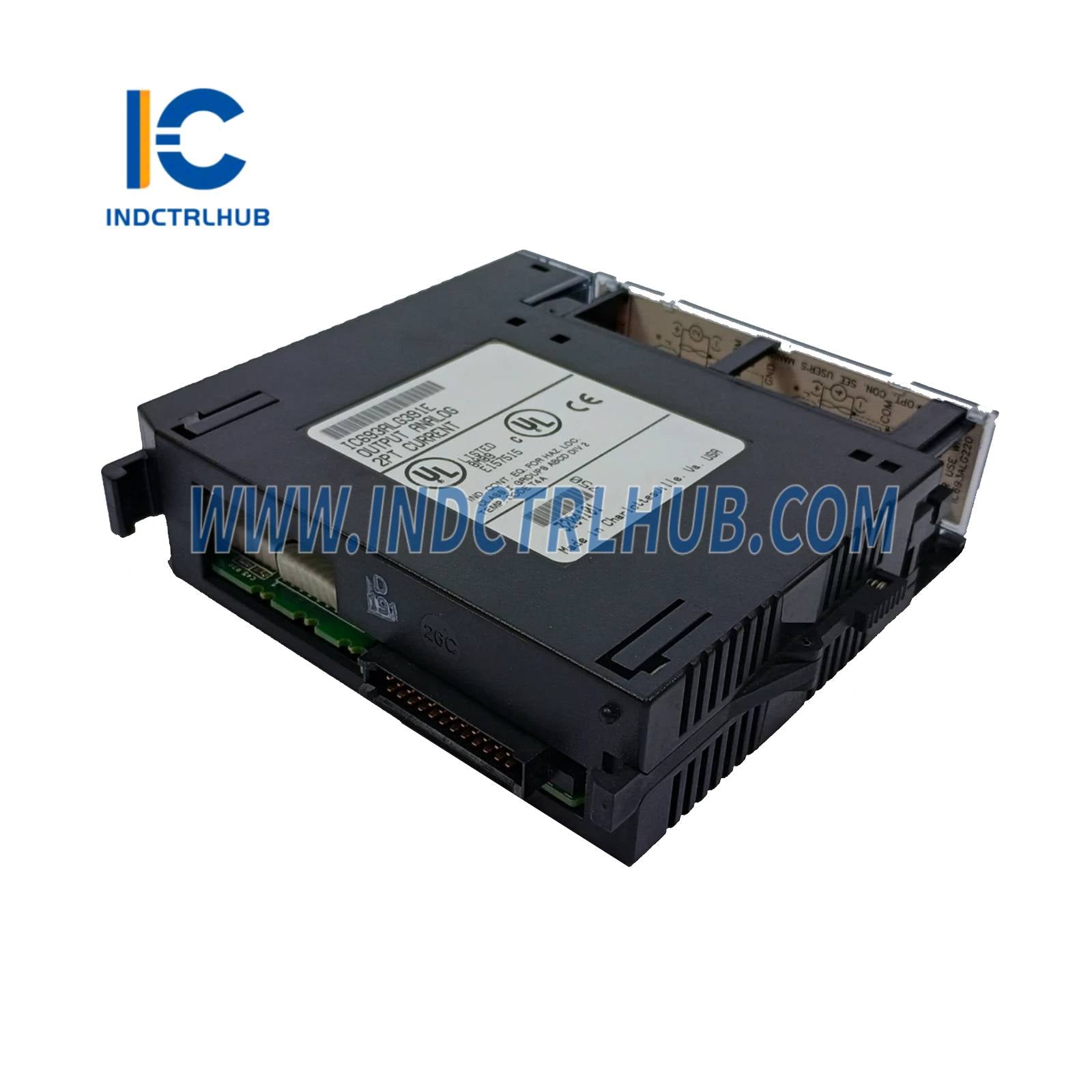

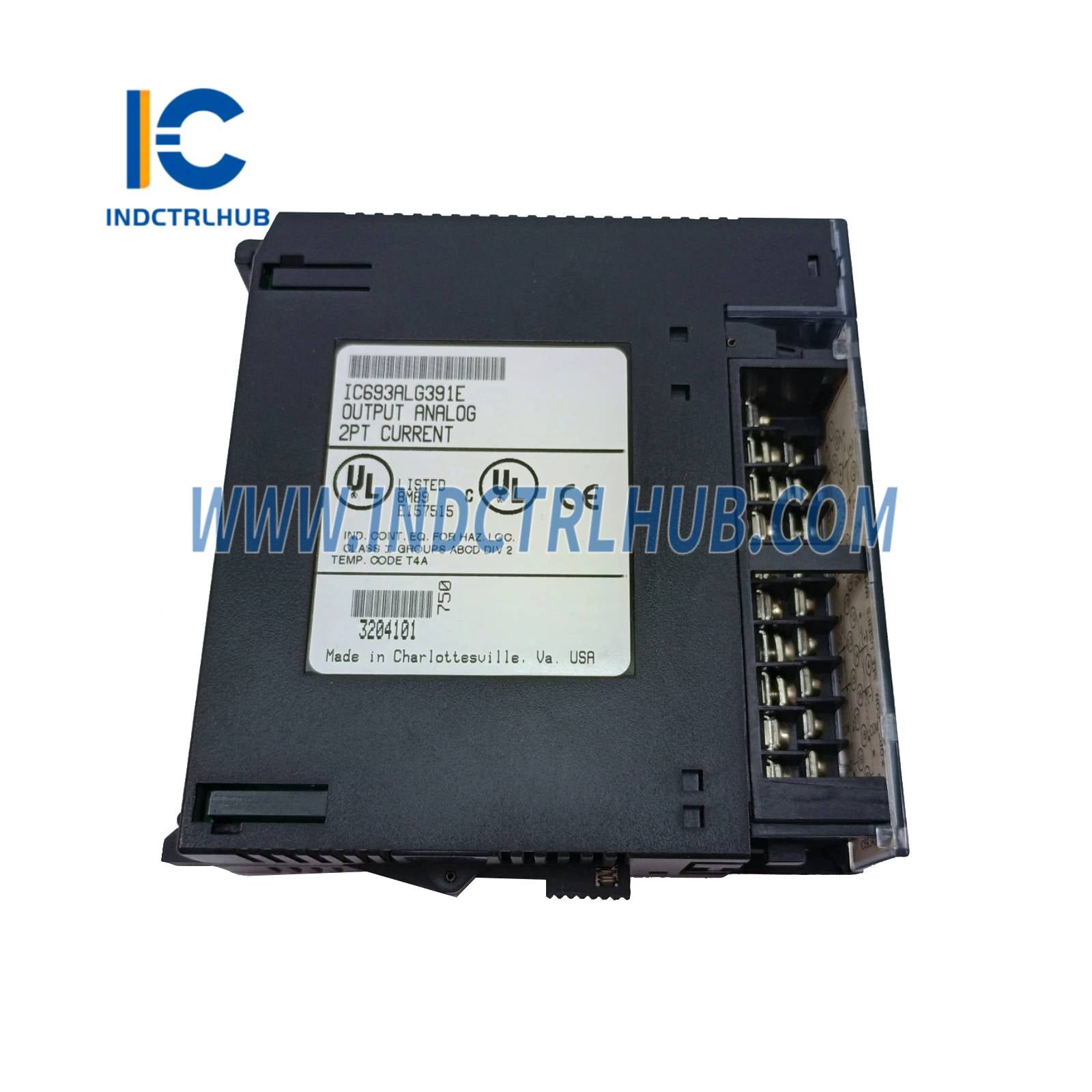

The General Electric IC693ALG391 is a 2-channel analog current output module from the Series 90-30, originally manufactured by GE Fanuc and now managed by Emerson Automation. Designed for industrial automation, it converts 12-bit binary data into analog current outputs, supporting 0–20 mA or 4–20 mA ranges. It is ideal for controlling devices like valves, actuators, and variable frequency drives in applications such as process control, manufacturing, and industrial systems.

Specification	Details
Model	IC693ALG391
Series	Series 90-30
Type	Analog Current Output Module
Channels	2 single-ended
Output Current Range	0–20 mA, 4–20 mA (configurable per channel)
Resolution	12 bits; 4 µA (4–20 mA), 5 µA (0–20 mA)
Accuracy	±0.1% of full scale at 25°C; ±0.4% over full temperature range
Update Rate	5 ms (both channels, approximate, application-dependent)
Maximum Output Load	5 mA (2 kΩ min resistance, 2000 pF max capacitance)
Isolation	1500 VAC (field-to-logic), 250 VAC continuous
Power Consumption	30 mA from 5 VDC backplane; 215 mA from 24 VDC (isolated backplane or user-supplied)
External Power Supply	20–30 VDC, 24 VDC nominal (user-supplied, optional)
Diagnostics	Open wire detection (current mode)
LED Indicators	OK (module status), USER (user power supply status)
Operating Temperature	0°C to +60°C (32°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% (non-condensing)
Weight	0.4 kg (0.88 lbs)
Dimensions	12.4 x 12.2 x 5.3 cm (4.9 x 4.8 x 2.1 in)
Mounting	Plugs into Series 90-30 PLC baseplate (5 or 10 slots)
Certifications	CE, UL, Class I Div 2
Compatibility	Series 90-30 PLCs, Logicmaster, Proficy Machine Edition

Manufacturer: General Electric (now under Emerson Automation)
Series: Series 90-30
Model/Part Number: IC693ALG391
Description: 2-Channel Analog Current Output Module for industrial automation systems

The General Electric IC693ALG391 is a 2-channel analog current output module from the Series 90-30, originally manufactured by GE Fanuc and now managed by Emerson Automation. Designed for industrial automation, it converts 12-bit binary data into analog current outputs, supporting 0–20 mA or 4–20 mA ranges. It is ideal for controlling devices like valves, actuators, and variable frequency drives in applications such as process control, manufacturing, and industrial systems.

Specification	Details
Model	IC693ALG391
Series	Series 90-30
Type	Analog Current Output Module
Channels	2 single-ended
Output Current Range	0–20 mA, 4–20 mA (configurable per channel)
Resolution	12 bits; 4 µA (4–20 mA), 5 µA (0–20 mA)
Accuracy	±0.1% of full scale at 25°C; ±0.4% over full temperature range
Update Rate	5 ms (both channels, approximate, application-dependent)
Maximum Output Load	5 mA (2 kΩ min resistance, 2000 pF max capacitance)
Isolation	1500 VAC (field-to-logic), 250 VAC continuous
Power Consumption	30 mA from 5 VDC backplane; 215 mA from 24 VDC (isolated backplane or user-supplied)
External Power Supply	20–30 VDC, 24 VDC nominal (user-supplied, optional)
Diagnostics	Open wire detection (current mode)
LED Indicators	OK (module status), USER (user power supply status)
Operating Temperature	0°C to +60°C (32°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% (non-condensing)
Weight	0.4 kg (0.88 lbs)
Dimensions	12.4 x 12.2 x 5.3 cm (4.9 x 4.8 x 2.1 in)
Mounting	Plugs into Series 90-30 PLC baseplate (5 or 10 slots)
Certifications	CE, UL, Class I Div 2
Compatibility	Series 90-30 PLCs, Logicmaster, Proficy Machine Edition
