Product Description

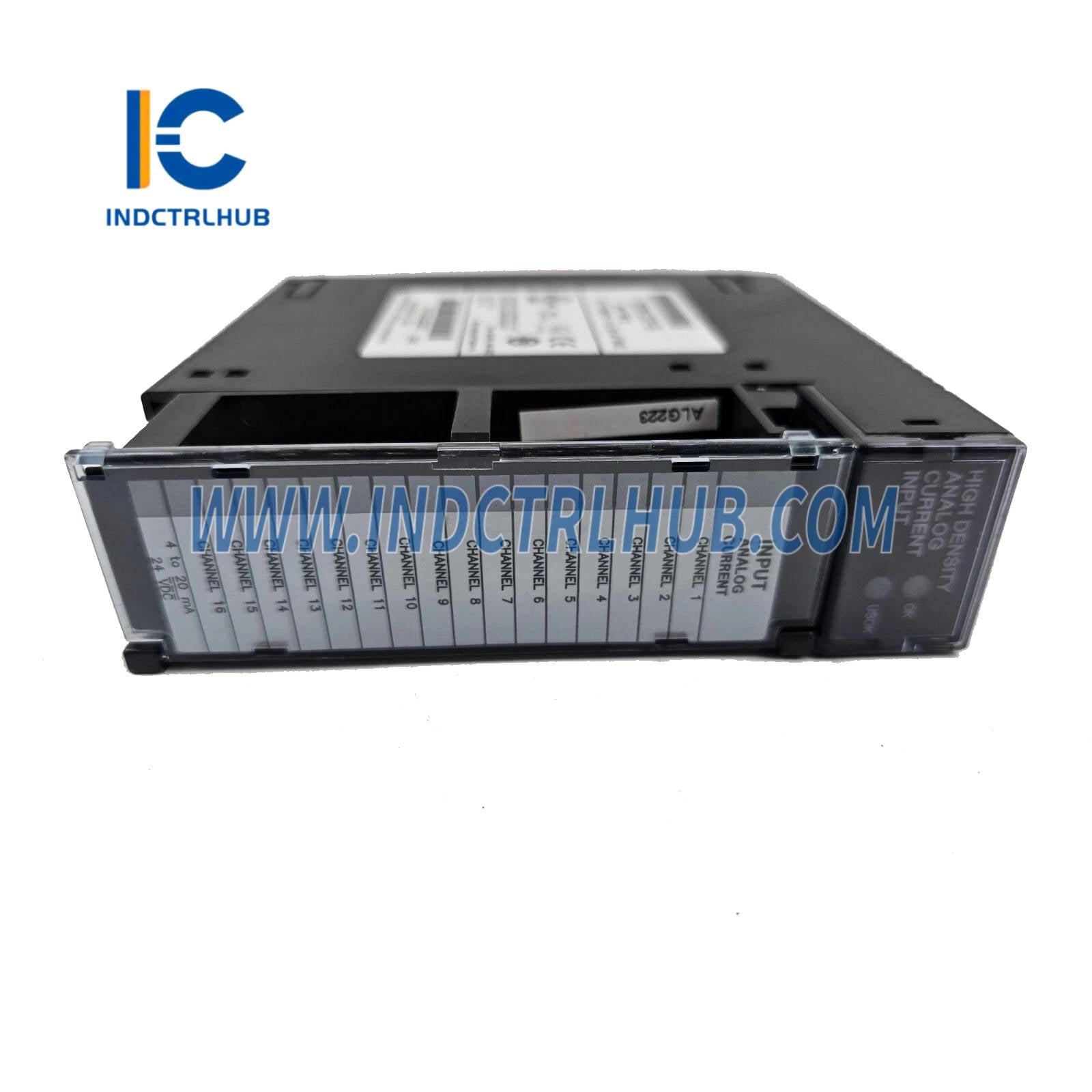

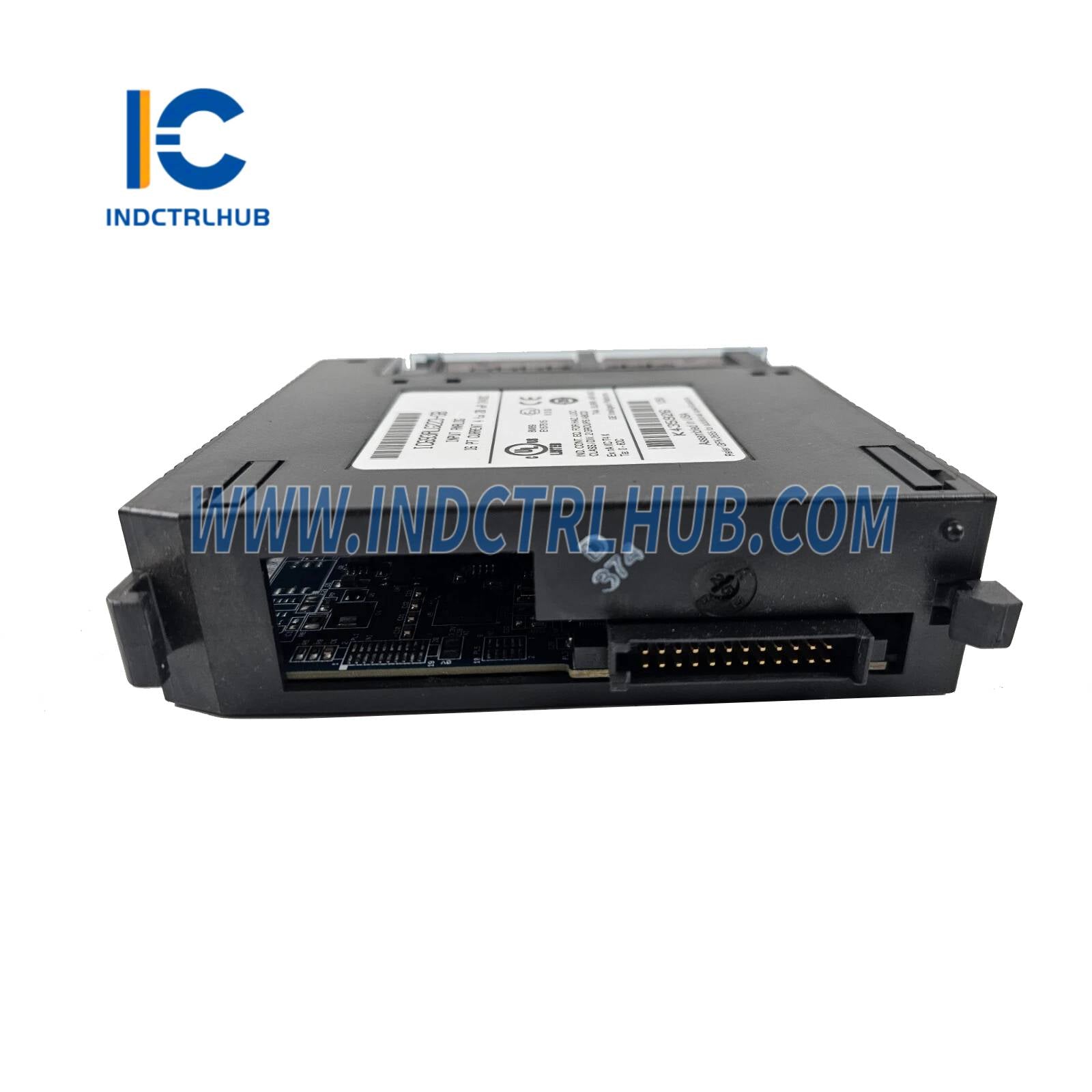

General Electric IC693ALG223 Analog Input Module
Product Overview
- Description: The General Electric IC693ALG223 is a high-resolution analog input module designed for use with GE Fanuc Series 90-30 PLC systems.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Series 90-30 |
| Model/Part Number | IC693ALG223 |
| Model Type | Analog Input Module |
| Function | Processes analog voltage/current input signals for PLC control |
| Display | LED indicators (status, power) |
| Inputs | 16 single-ended or 8 differential analog inputs (0–10 V, ±10 V, 0–20 mA, 4–20 mA) |
| Outputs | Digital data to Series 90-30 PLC |
| Communication Interfaces | Series 90-30 backplane interface |
| Signal Conditioning | Internal analog-to-digital conversion and isolation |
| Accuracy | ±0.25% of full scale at 25°C |
| Resolution | 12 bits plus sign (13 bits total) |
| Redundancy | Non-redundant |
| Diagnostics | LED status indicators, fault reporting to PLC |
| Compatibility | GE Fanuc Series 90-30 PLC systems |
| Power Supply | 5 VDC (from Series 90-30 backplane), 24 VDC (external for current loops) |
| Power Consumption | 120 mA at 5 VDC, 70 mA at 24 VDC max |
| Environmental Specifications | Operating Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in PLC rack) |
| Dimensions | 130 mm (H) x 35 mm (W) x 100 mm (D) |
| Weight | 0.3 kg |
| Mounting | Plugs into Series 90-30 PLC rack |
| Certifications | CE, UL, cULus, RoHS |
