Product Description

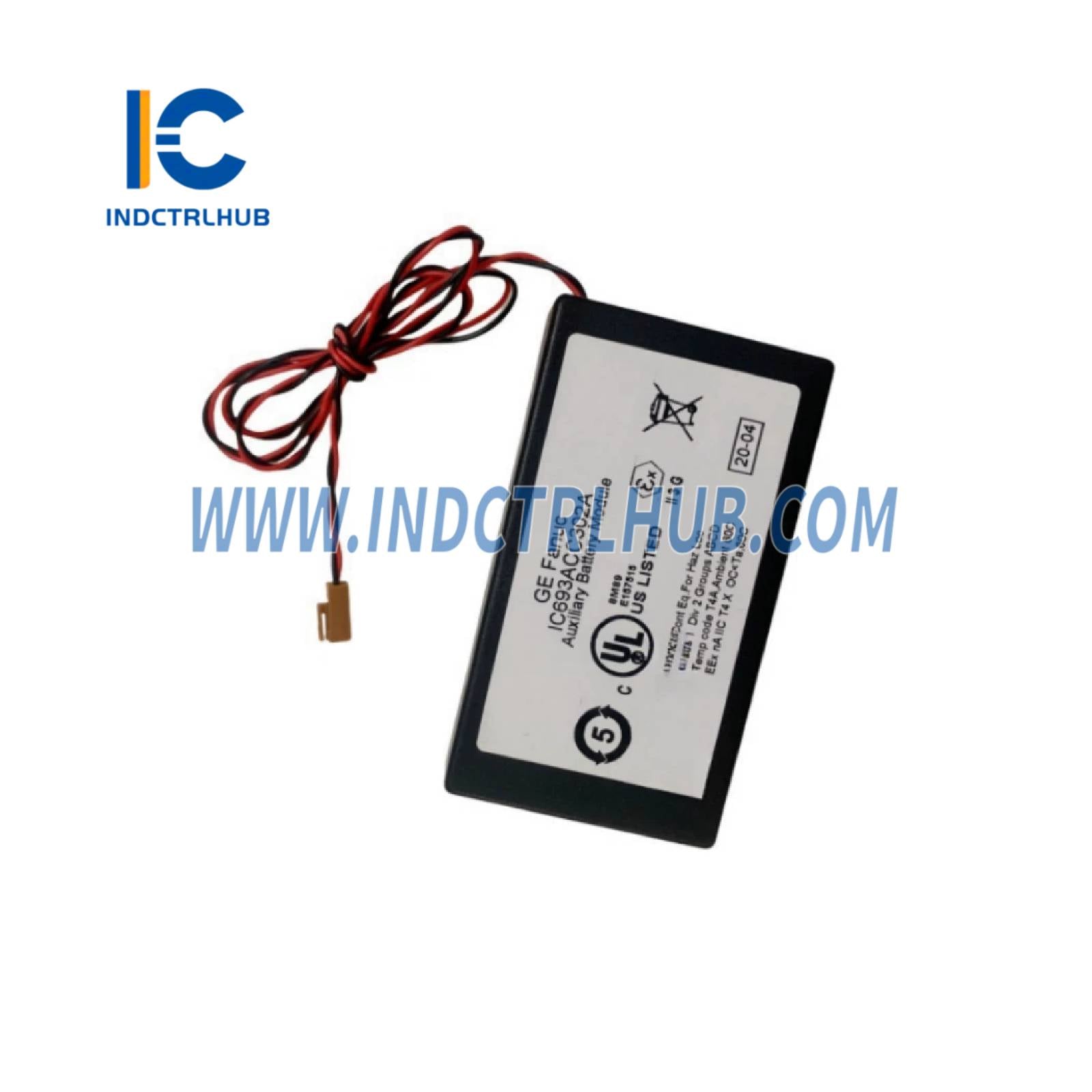

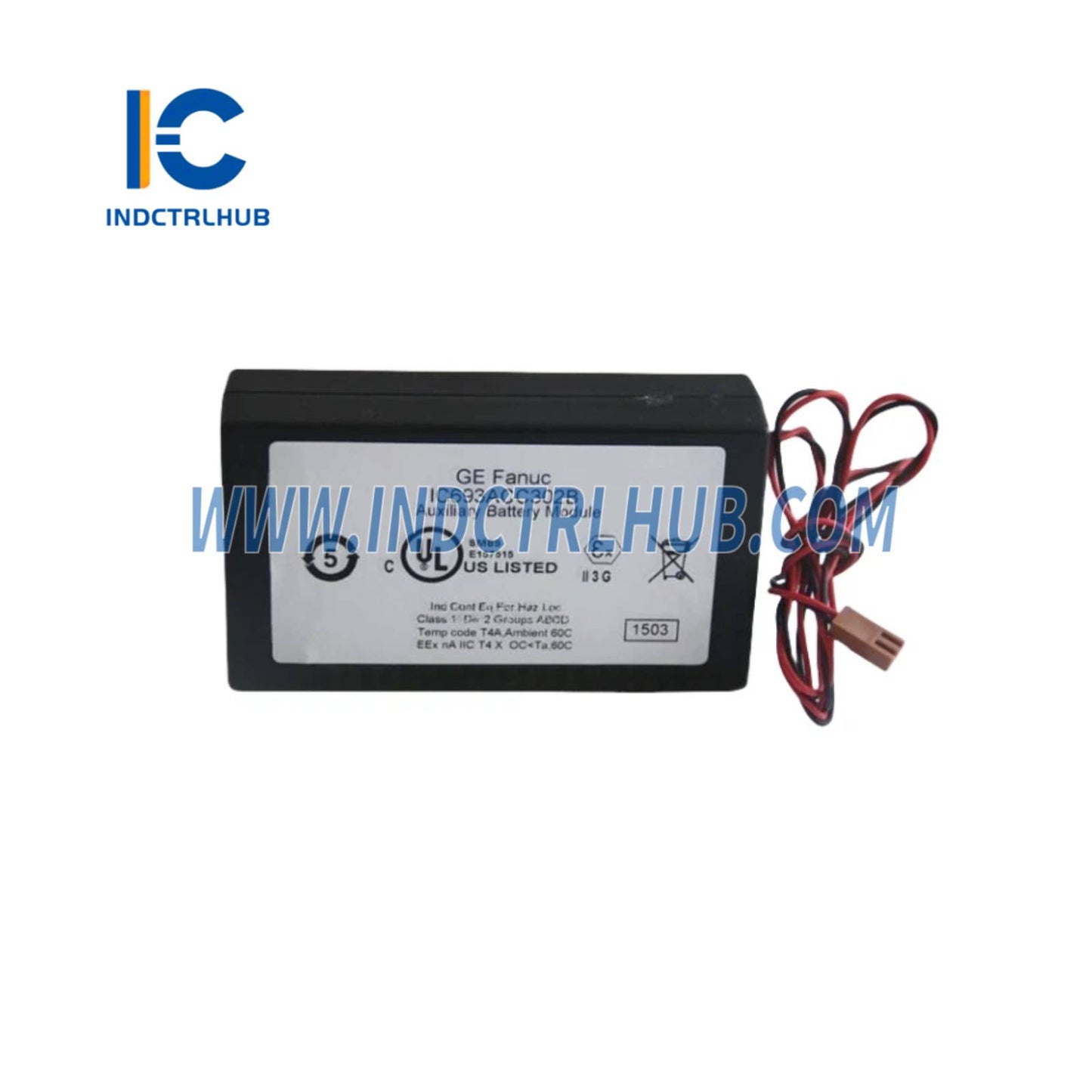

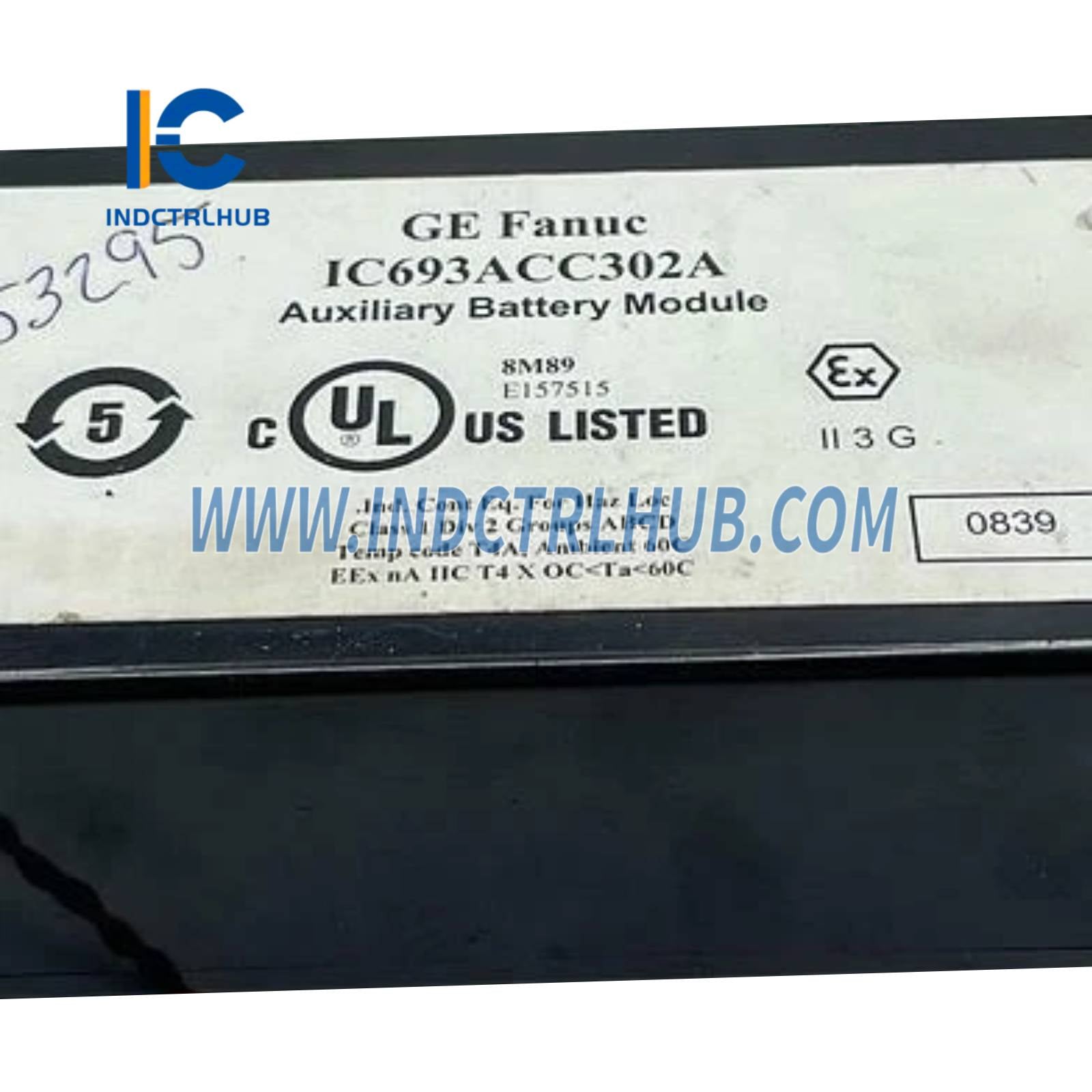

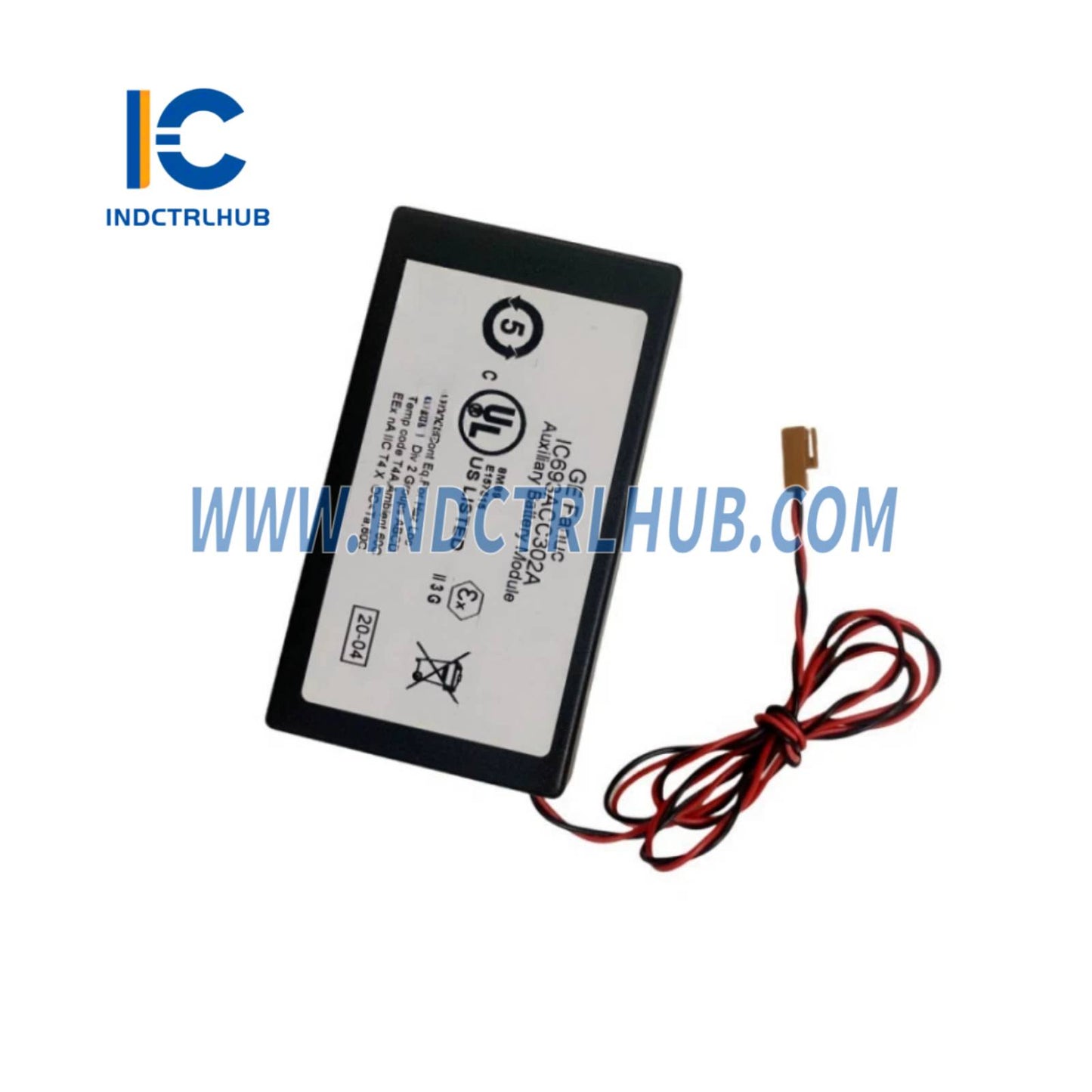

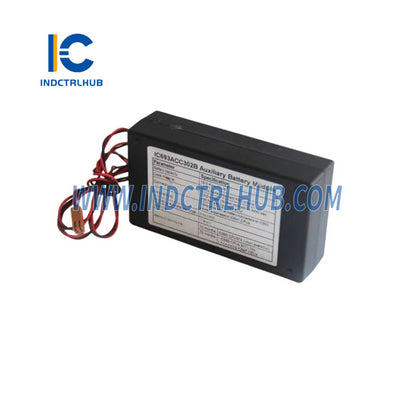

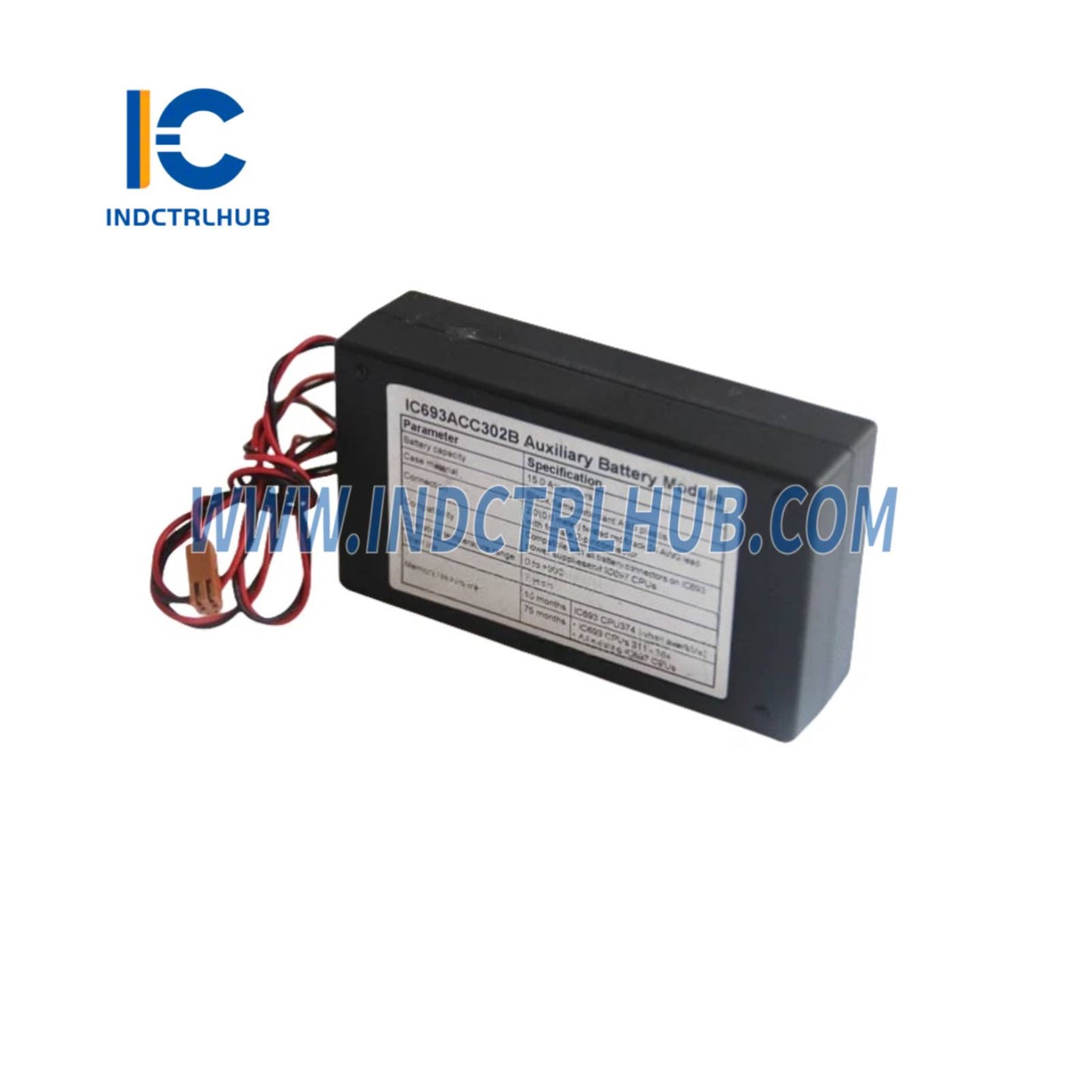

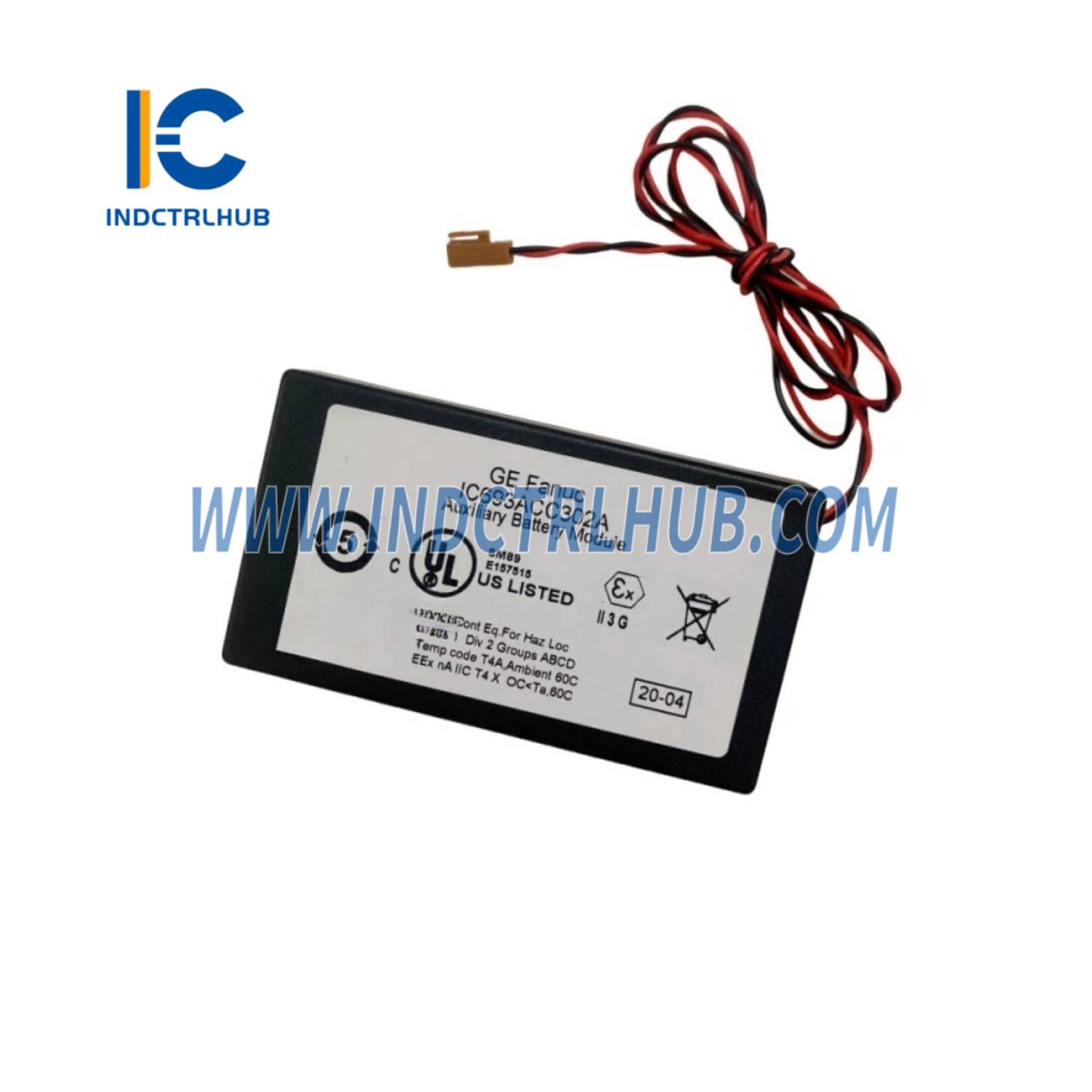

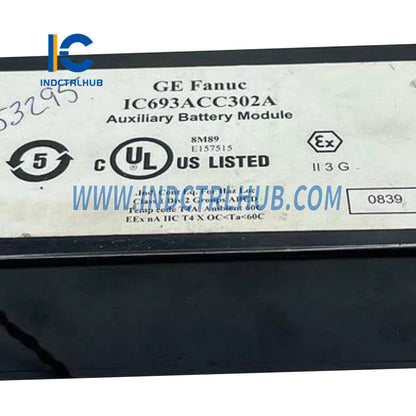

General Electric IC693ACC302 High Capacity Battery Pack
Product Overview
- Description: The General Electric IC693ACC302 is a high-capacity battery pack designed for use with GE Fanuc Series 90-30 PLC systems.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Series 90-30 |
| Model/Part Number | IC693ACC302 |
| Model Type | High Capacity Battery Pack |
| Function | Provides backup power for PLC RAM memory |
| Display | None |
| Inputs | Not applicable |
| Outputs | 3 VDC (to PLC CPU) |
| Communication Interfaces | None |
| Signal Conditioning | Not applicable |
| Accuracy | Not applicable |
| Redundancy | Non-redundant |
| Diagnostics | Low battery warning via PLC software |
| Compatibility | GE Fanuc Series 90-30 PLC CPUs |
| Battery Type | Lithium (non-rechargeable) |
| Battery Capacity | 15,000 mAh (nominal) |
| Shelf Life | 10 years (unpowered, at 25°C) |
| Service Life | 5–7 years (typical, under normal operation) |
| Power Consumption | Minimal (microampere range for memory retention) |
| Environmental Specifications | Operating Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (plastic housing, mounted externally) |
| Dimensions | 100 mm (H) x 50 mm (W) x 30 mm (D) |
| Weight | 0.15 kg |
| Mounting | External, connects via cable to Series 90-30 CPU |
| Certifications | CE, UL, RoHS |
