GE IC670MDL640 Field Control Discrete Input Module

Quantity

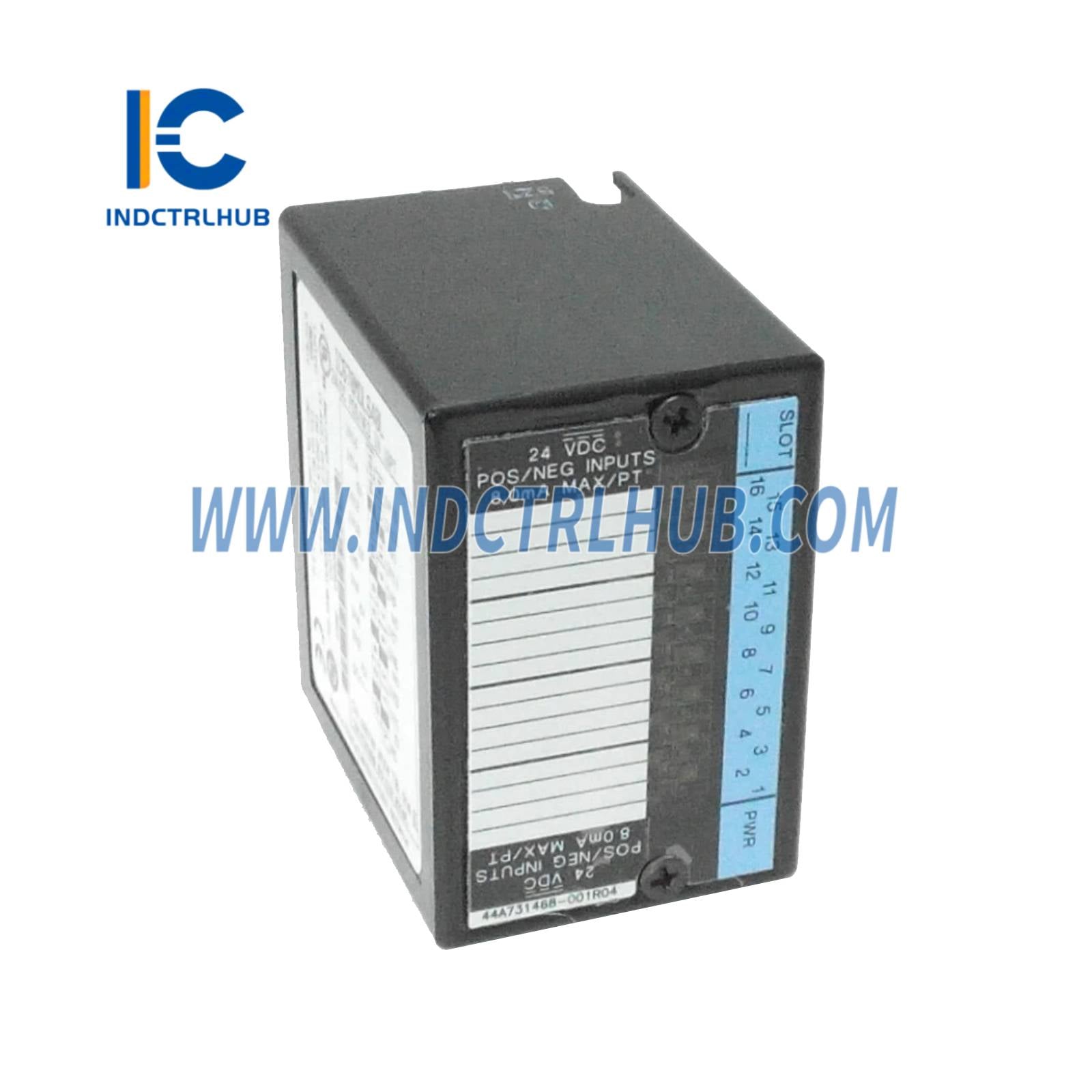

General Electric IC670MDL640 Field Control Discrete Input Module

Manufacturer: General Electric (now under Emerson Automation)
Series: Field Control
Model/Part Number: IC670MDL640
Description: 16-Point Discrete Input Module with 24 VDC positive/negative logic for industrial automation systems

The General Electric IC670MDL640 is a 16-point discrete input module from the Field Control series, originally manufactured by GE Fanuc and now managed by Emerson Automation. Designed for industrial automation, it provides 16 discrete inputs in a single group, supporting both positive and negative logic configurations. It is ideal for interfacing with sensors, switches, and other digital devices in applications such as process control, manufacturing, and industrial systems. The module integrates with a Bus Interface Unit (BIU) for distributed I/O operations.

Specification	Details
Model	IC670MDL640
Series	Field Control
Type	Discrete Input Module
Input Channels	16, single group
Input Logic	Positive or negative logic
Input Voltage	0–30 VDC, 24 VDC nominal
User Input Current	7.5 mA per point at 24 VDC
On-State Current	3.0–8.0 mA
Off-State Current	0–1.5 mA
Response Time	6 ms typical, 10 ms max (ON/OFF)
Power Consumption	75 mA typical from BIU (all points ON), 83 mA max
External Power Supply	24 VDC required for input devices
Internal Power	5 VDC from BIU for logic
Isolation	1500 VAC (field-to-logic), 250 VAC continuous

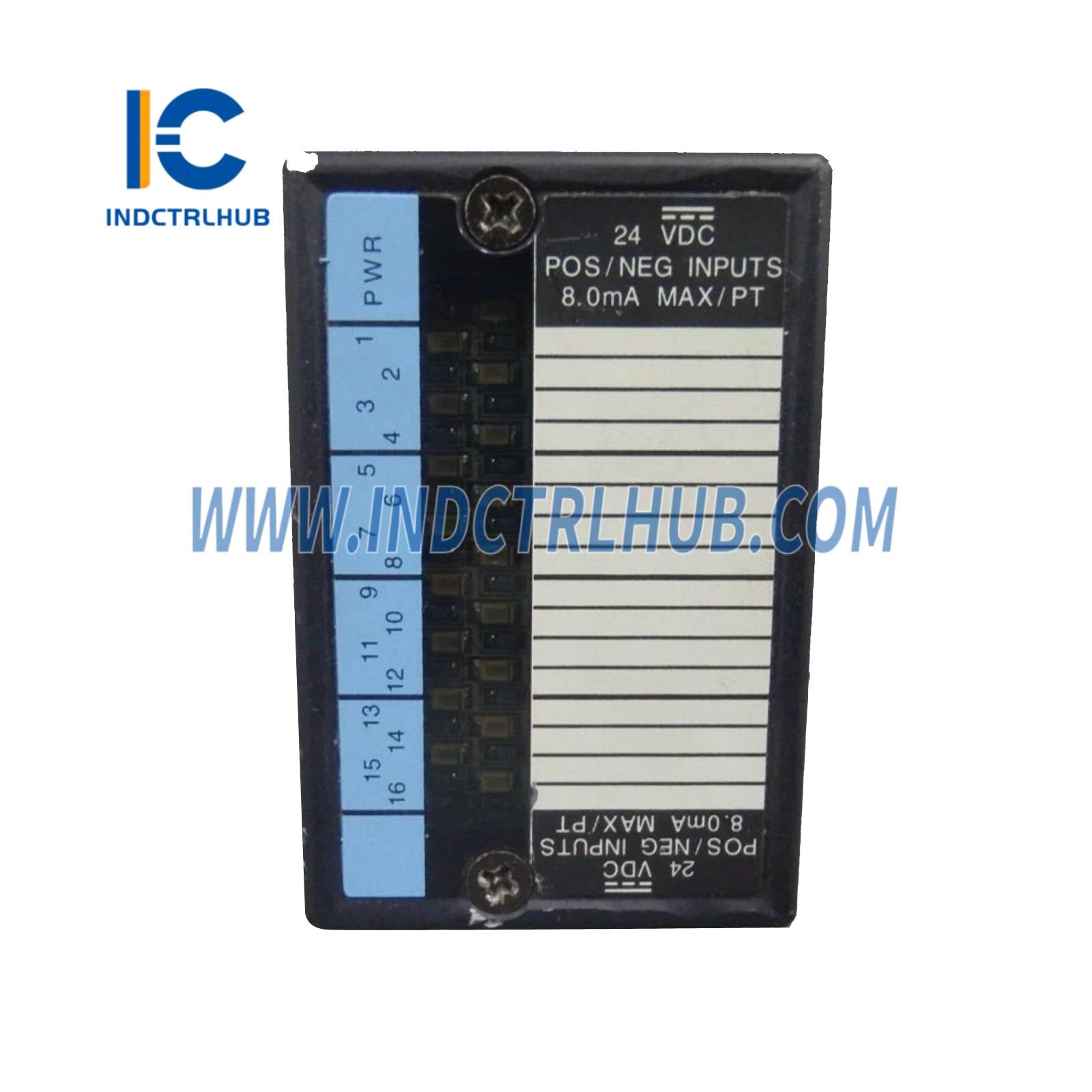

LED Indicators	One green LED per point for ON/OFF status, PWR LED for field and backplane power
Data Size	16 bits of discrete input data
Operating Temperature	0°C to +55°C (32°F to +131°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% (non-condensing)
Weight	0.3 kg (0.66 lbs)
Dimensions	13.3 x 8.6 x 3.9 cm (5.24 x 3.39 x 1.54 in)
Mounting	DIN rail, requires terminal block (e.g., IC670TBM002)
Certifications	CE, UL, Class I Div 2
Compatibility	Field Control BIU, GE Series 90-30, 90-70, and other Genius bus controllers
