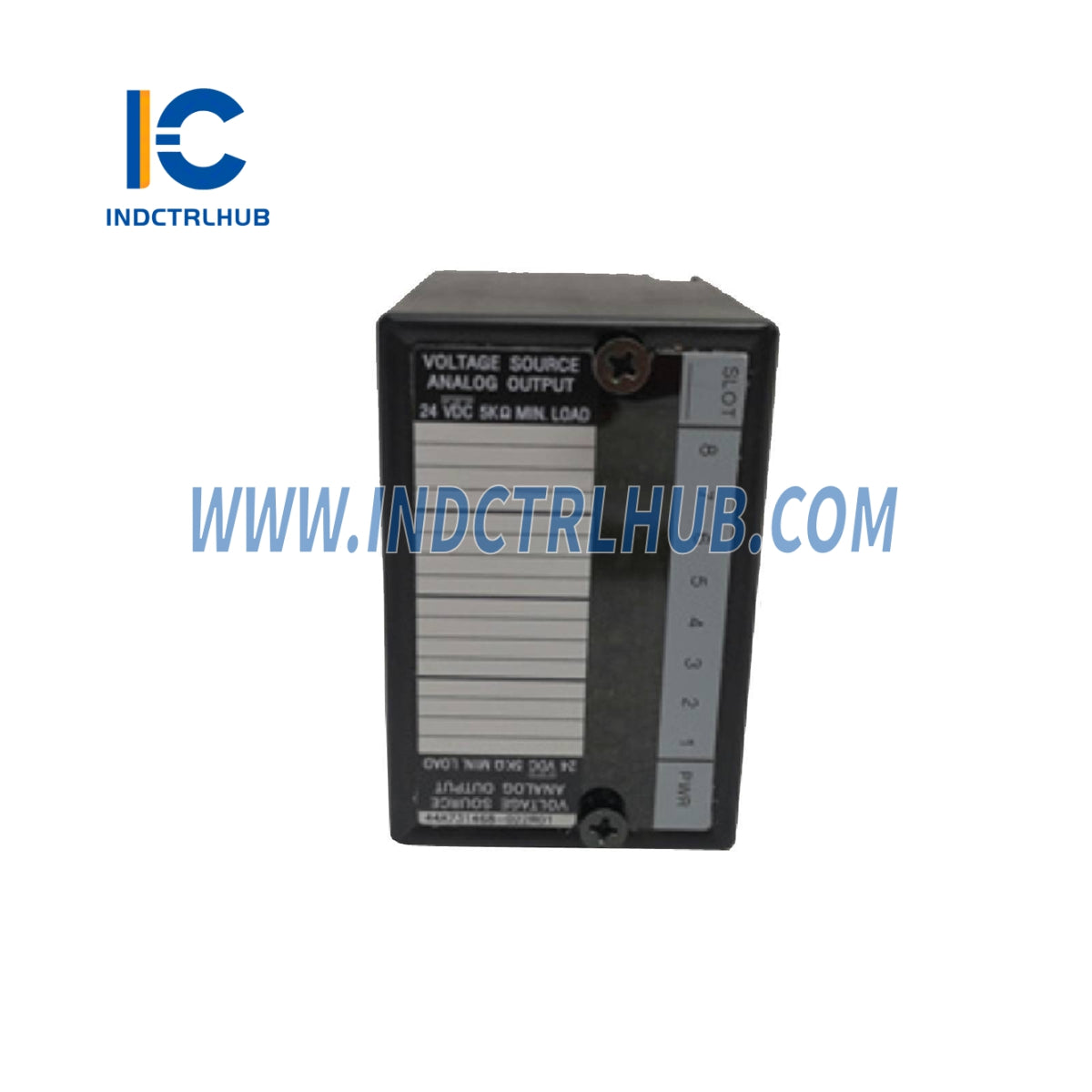

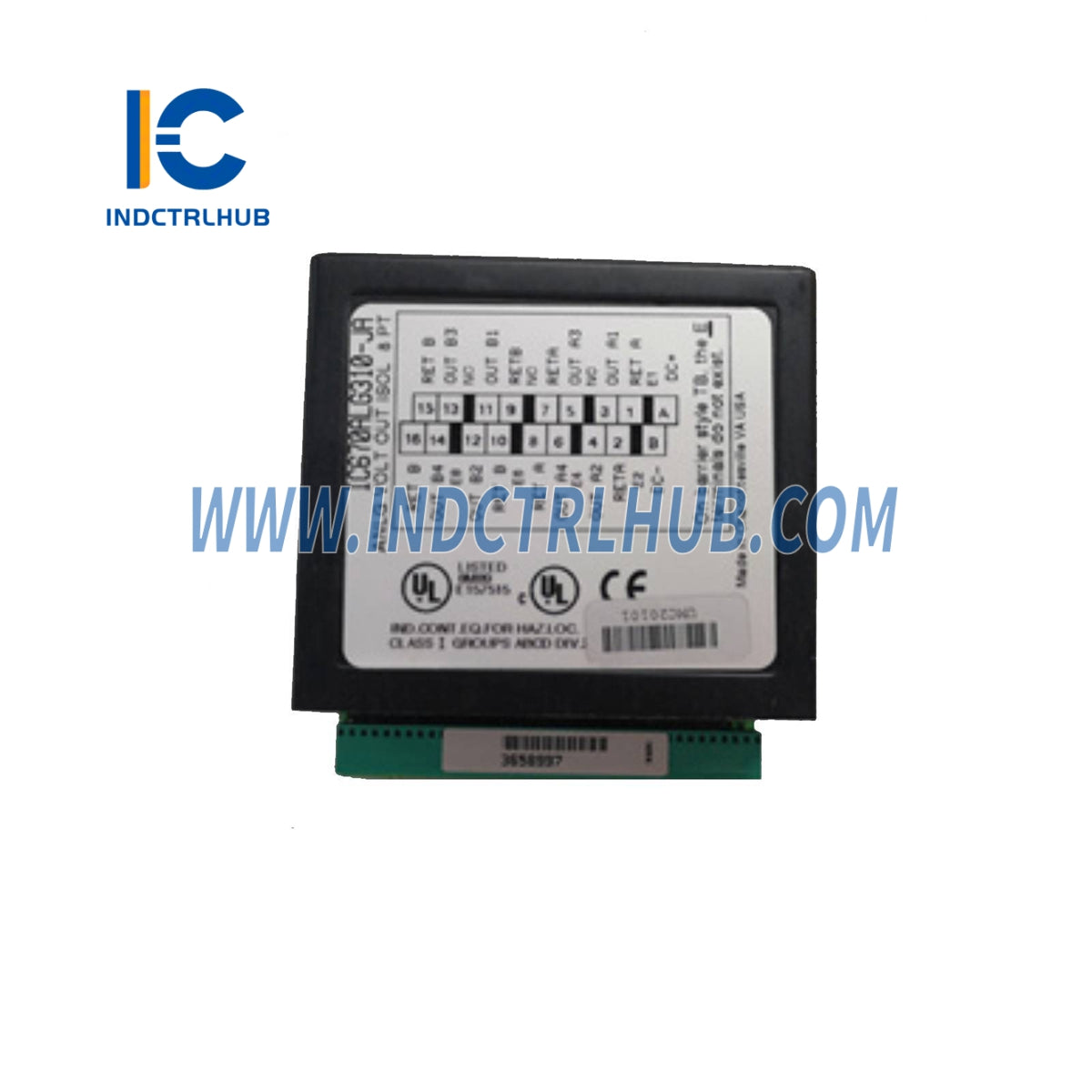

Product Description
🔹 Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
General Electric (GE Fanuc) |
|
Model/Part Number |
IC670ALG310 |
|
Description |
Analog Output Module for the GE Fanuc Field Control System, offering 8 isolated voltage outputs for precision analog control |
|
Key Features |
8 voltage-source channels, 14-bit resolution, isolated outputs, configurable scaling, diagnostics, Genius Field Bus compatible |
🔹 Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
IC670ALG310 |
|
Product Type |
Analog Output Module |
|
Series |
Field Control (Genius Series) |
|
Number of Channels |
8 single-ended, individually isolated outputs |
|
Output Voltage Range |
-10 VDC to +10 VDC |
|
Over/Under Range |
±50 mV beyond rated voltage range |
|
Resolution |
14 bits (approx. 1.25 mV per count) |
|
Power Supply |
External 18–30 VDC, draws 170 mA from Field Bus |
|
Operating Temperature |
0°C to 60°C (32°F to 140°F) |
|
Weight |
Approx. 0.3 kg (0.66 lbs) |
🔹 External Connection Options
|
Connection Type |
Details |
|---|---|
|
Supported Connections |
Interfaces with Genius BIU (Bus Interface Unit) via backplane; external 18–30 VDC power via terminal block |
🔹 Functional Features
|
Feature |
Details |
|---|---|
|
Signal Conversion |
Converts digital data to analog output in the ±10 VDC range |
|
Diagnostics |
Monitors over/under range, loss of power, and calibration errors; alarms configurable |
|
Channel Configuration |
Each output channel can be enabled/disabled individually using a handheld monitor or BIU |
|
Data Handling |
Outputs: 0–8 words; Inputs: 0–3 bytes status; 0–2 bytes for alarm clearing |
🔹 Model and Configuration
|
Category |
Details |
|---|---|
|
Base Model |
IC670ALG310 |
|
Configuration |
Standard version; compatible with BIU revision 2.0 or later; configuration through handheld monitor |
