Product Description

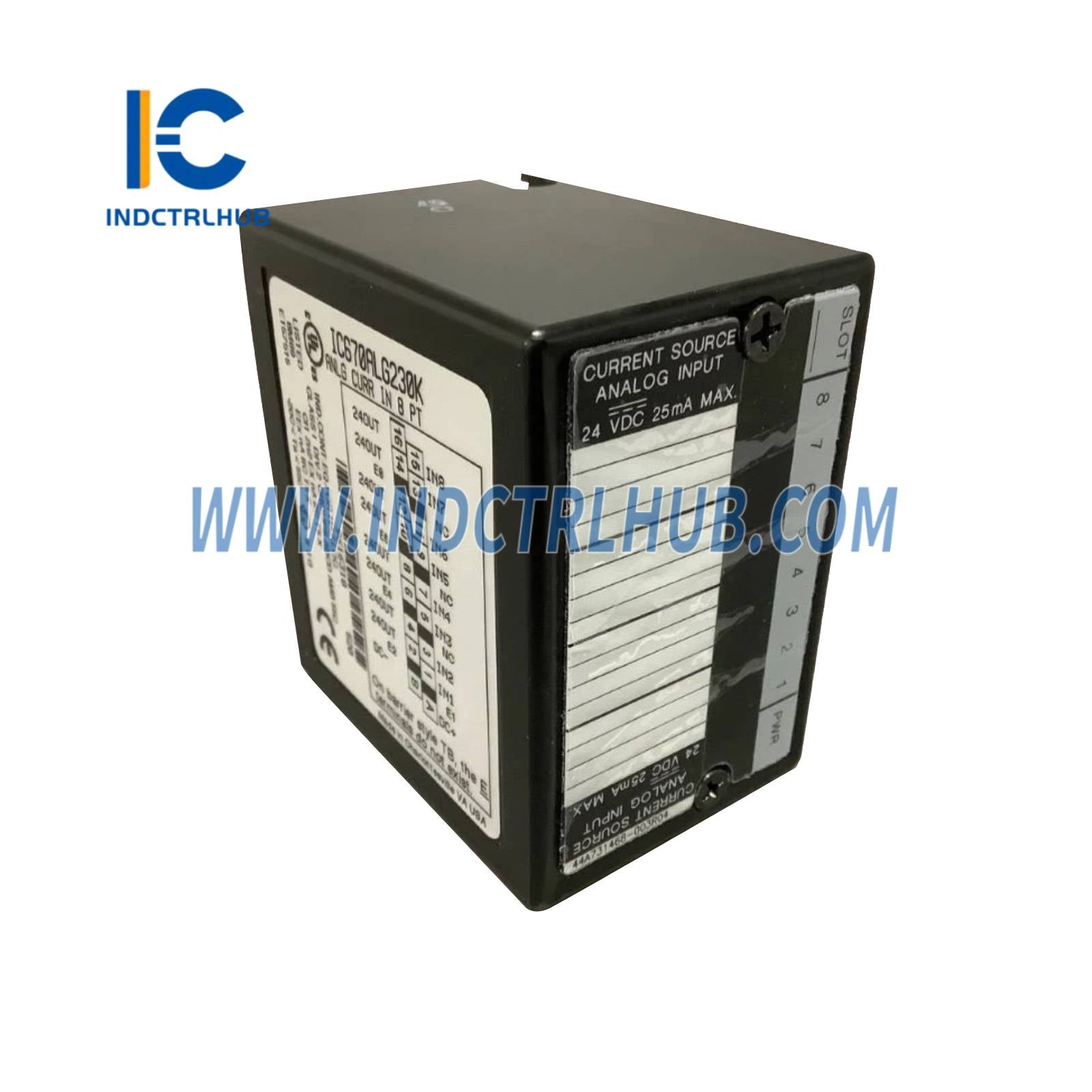

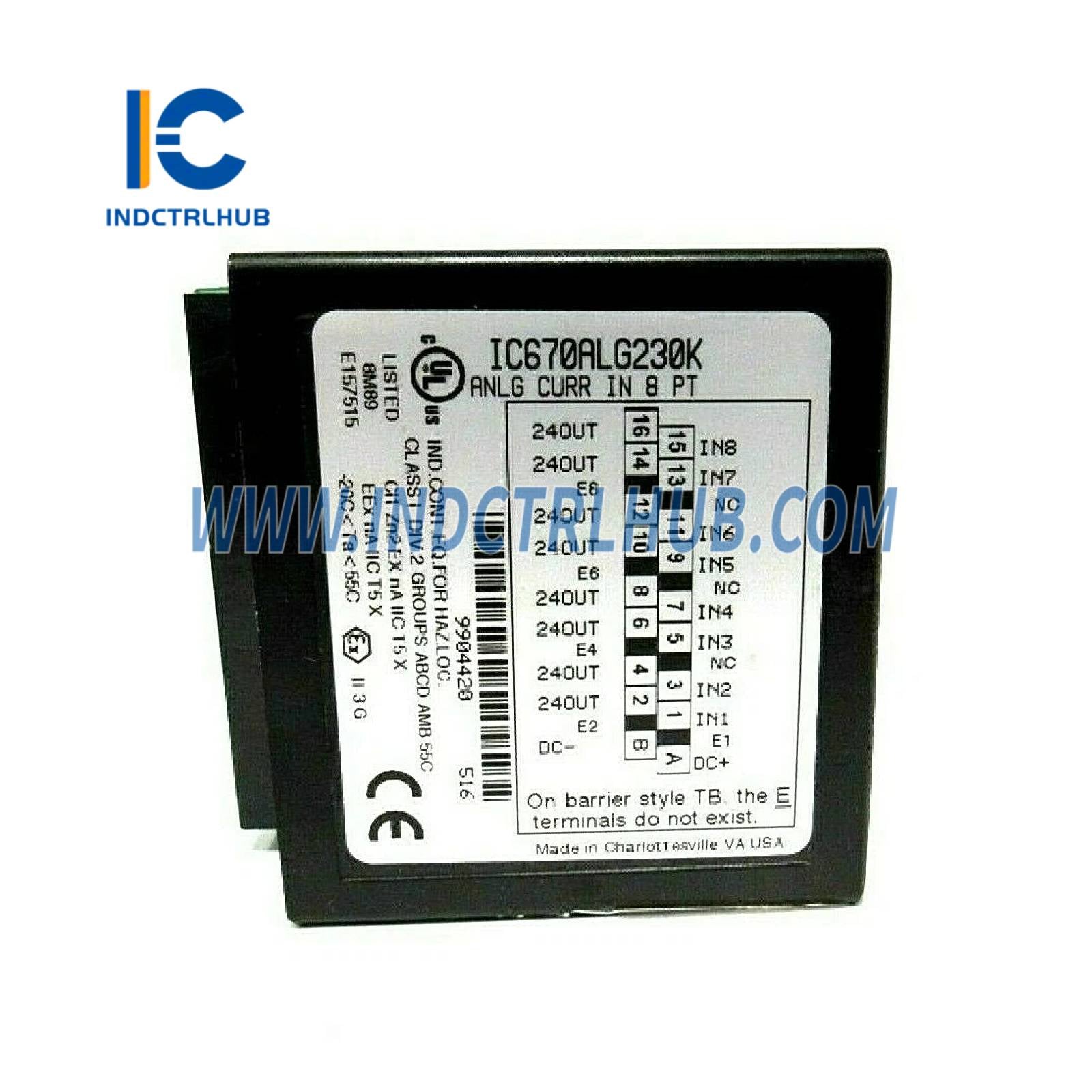

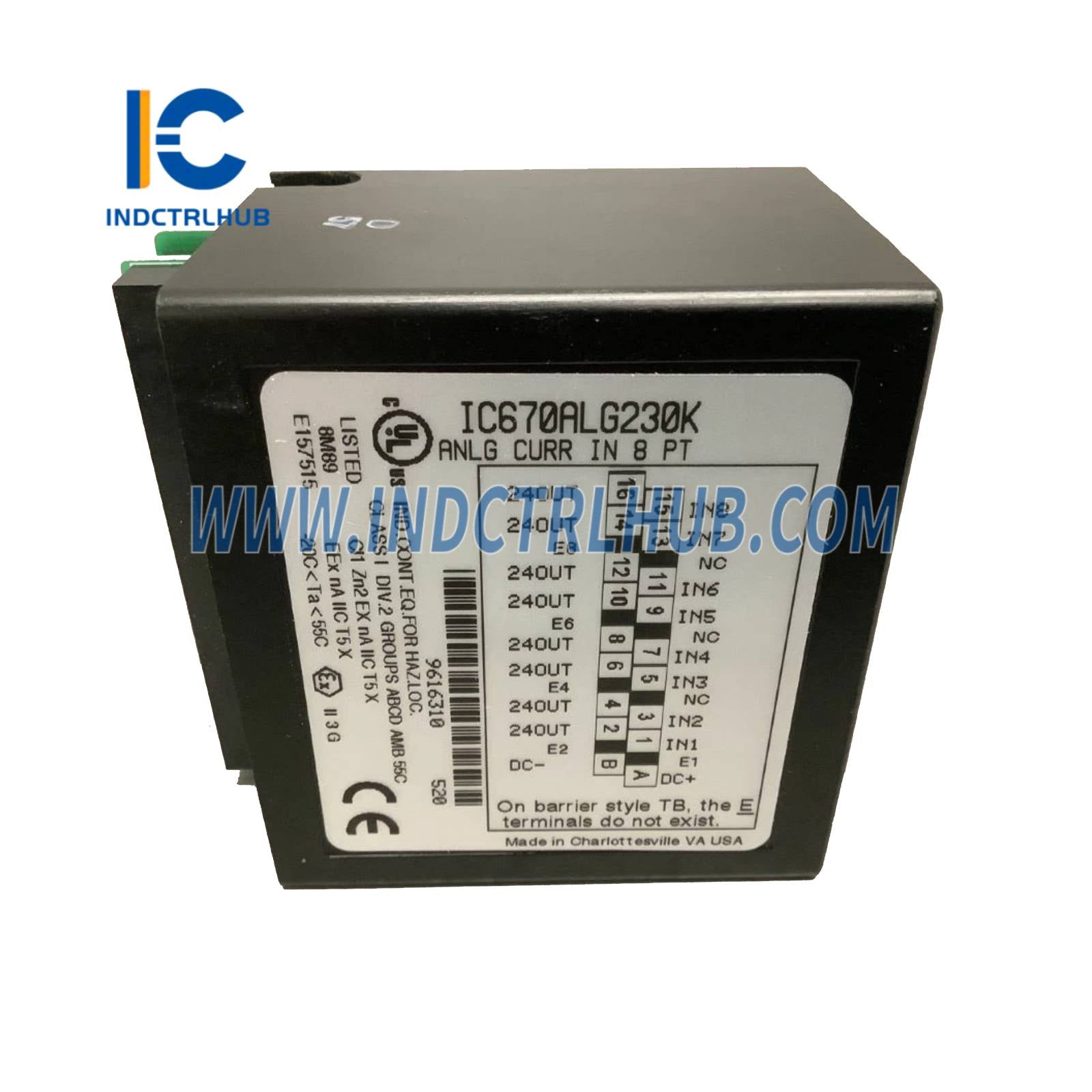

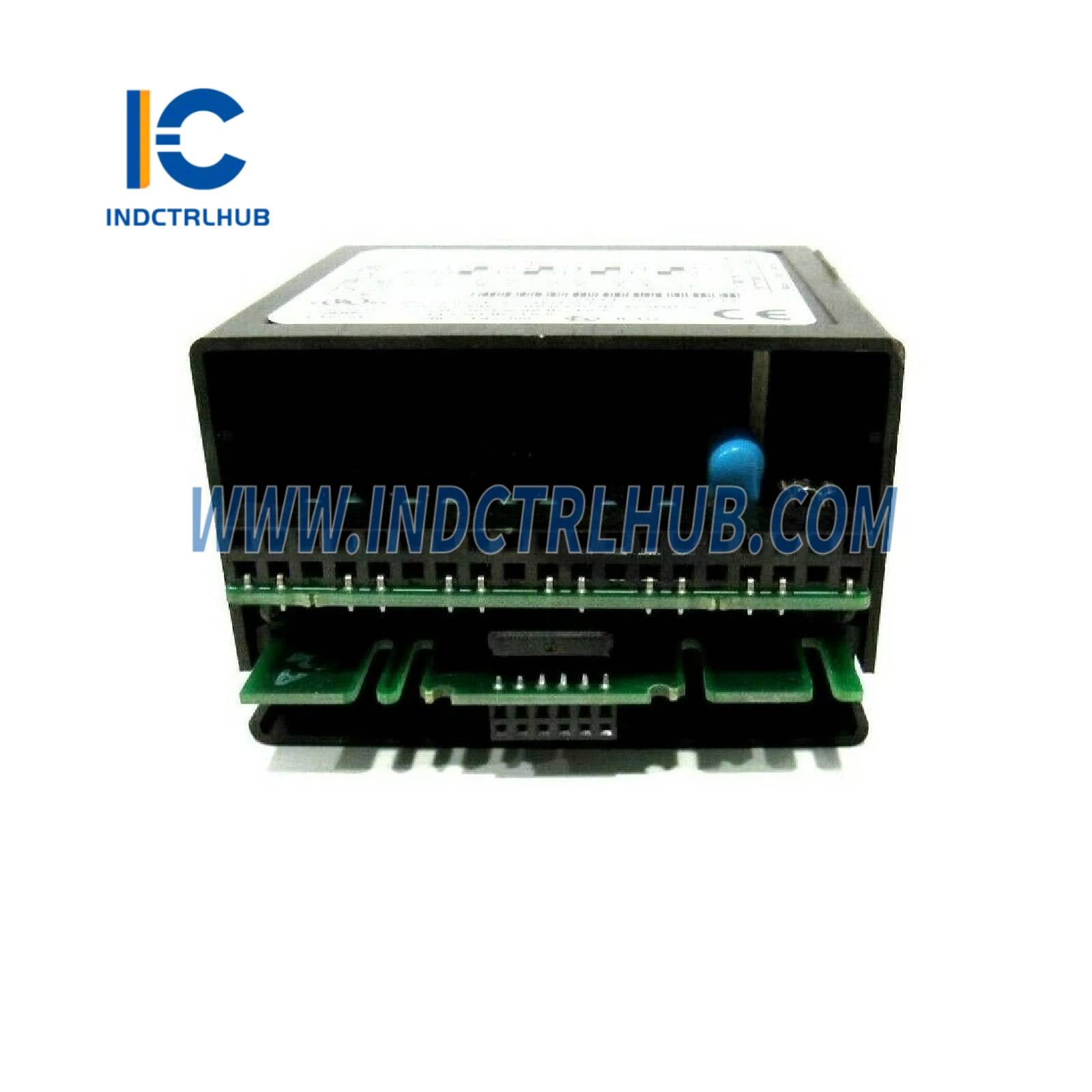

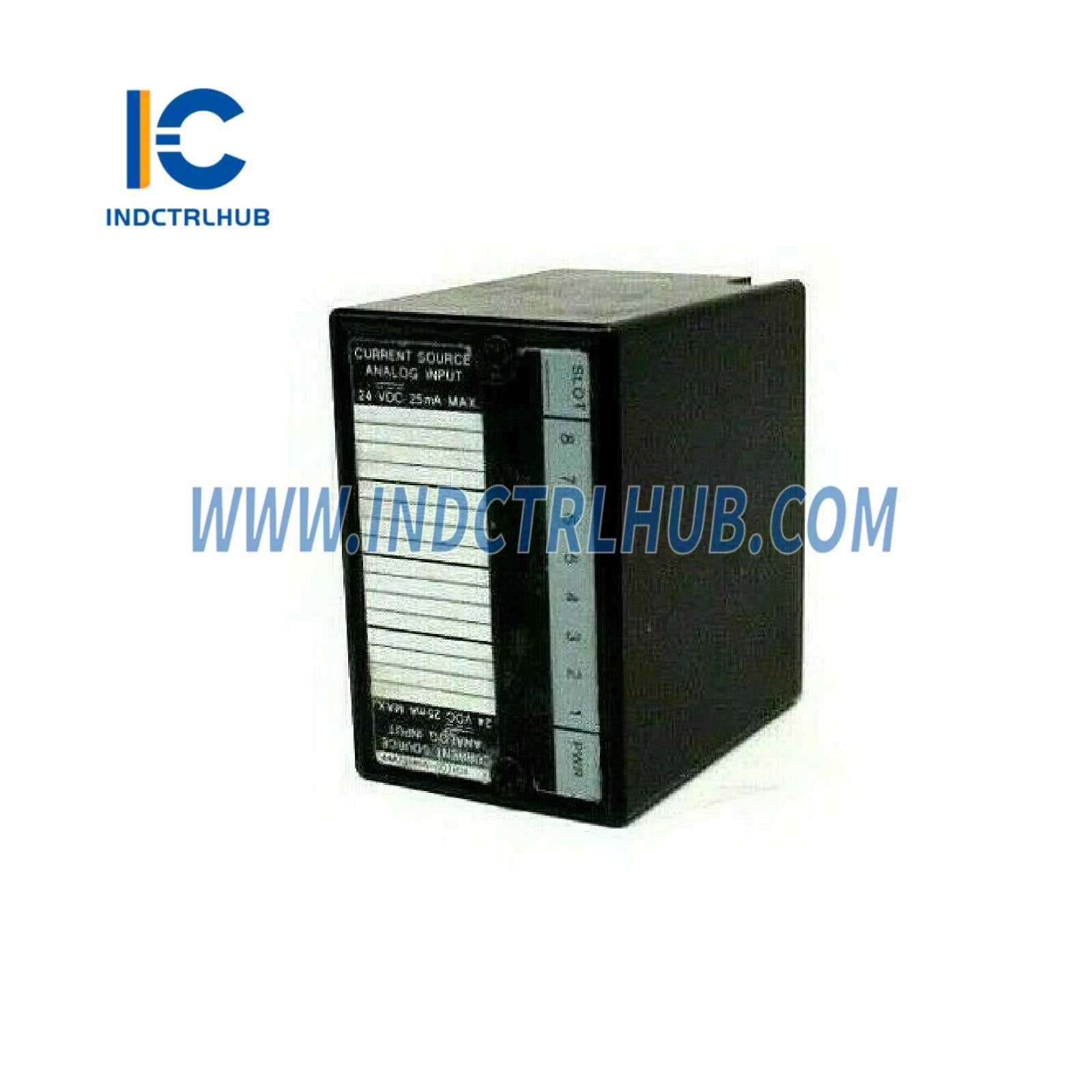

General Electric IC670ALG230K Analog Input Module
Product Overview
- Description: The General Electric IC670ALG230K is an analog input module designed for use with GE Fanuc Field Control systems.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | Field Control |
| Model/Part Number | IC670ALG230K |
| Model Type | Analog Input Module |
| Function | Processes analog current input signals for control systems |
| Display | LED indicators (status, power) |
| Inputs | 8 single-ended analog inputs (0–20 mA, 4–20 mA) |
| Outputs | Digital data to Field Control bus interface unit |
| Communication Interfaces | Field Control bus (via bus interface unit) |
| Signal Conditioning | Internal analog-to-digital conversion and filtering |
| Accuracy | ±0.2% of full scale at 25°C |
| Redundancy | Non-redundant |
| Diagnostics | LED status indicators, fault reporting to control system |
| Compatibility | GE Fanuc Field Control systems |
| Power Supply | 24 VDC (from Field Control bus interface unit or external) |
| Power Consumption | 50 mA at 24 VDC max |
| Environmental Specifications | Operating Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in Field Control terminal block) |
| Dimensions | 110 mm (H) x 50 mm (W) x 70 mm (D) |
| Weight | 0.3 kg |
| Mounting | DIN-rail or panel mount in Field Control terminal block |
| Certifications | CE, UL, cULus, RoHS |
