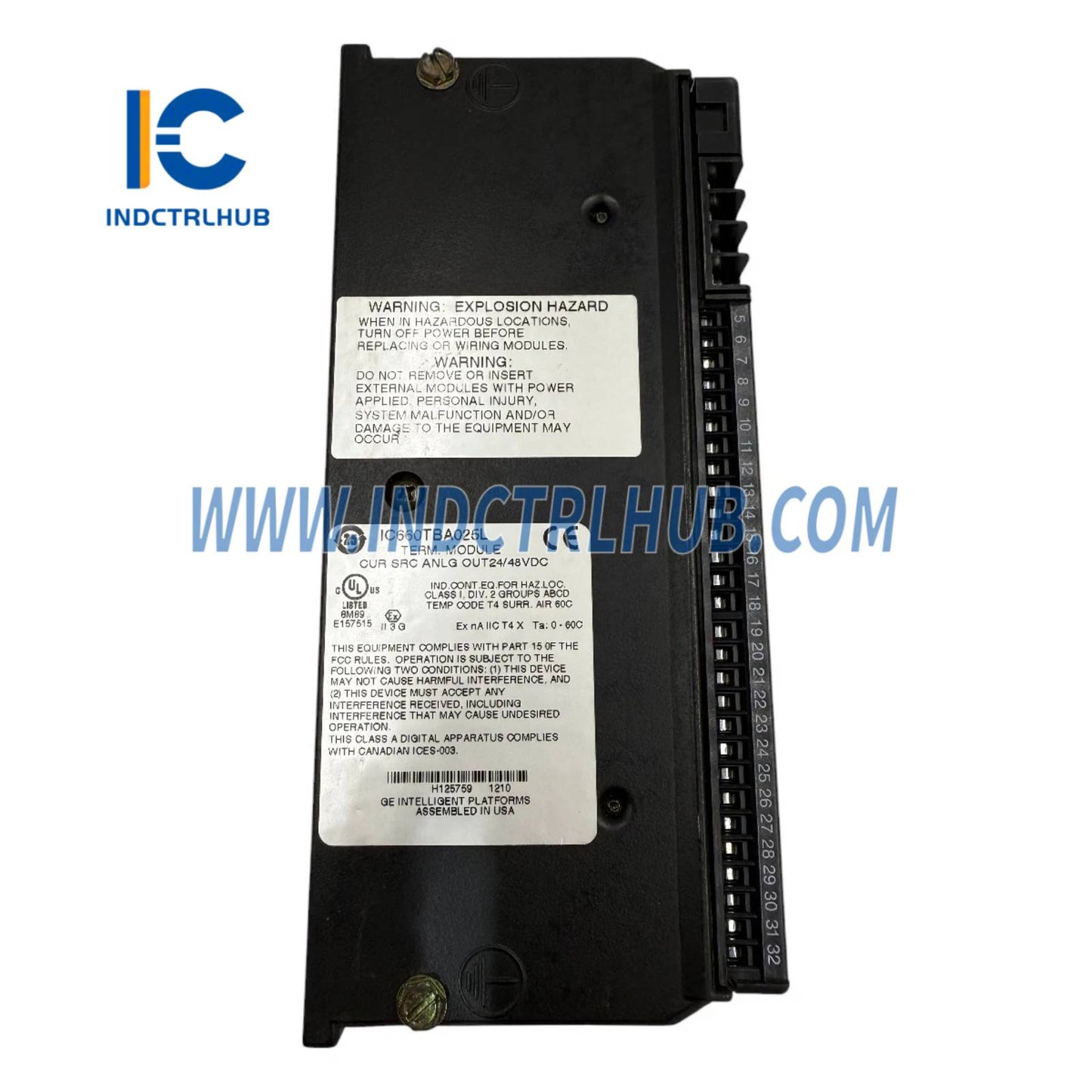

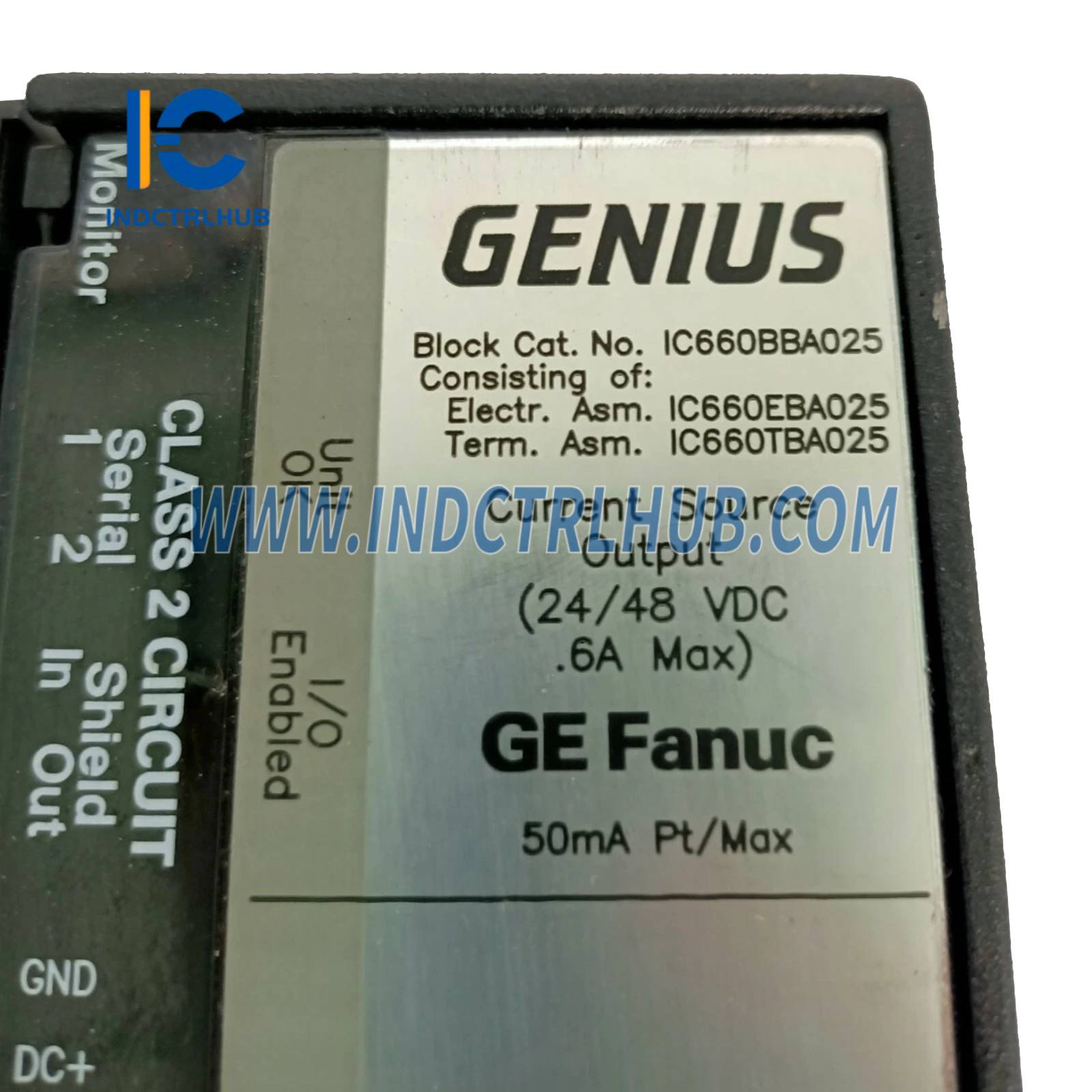

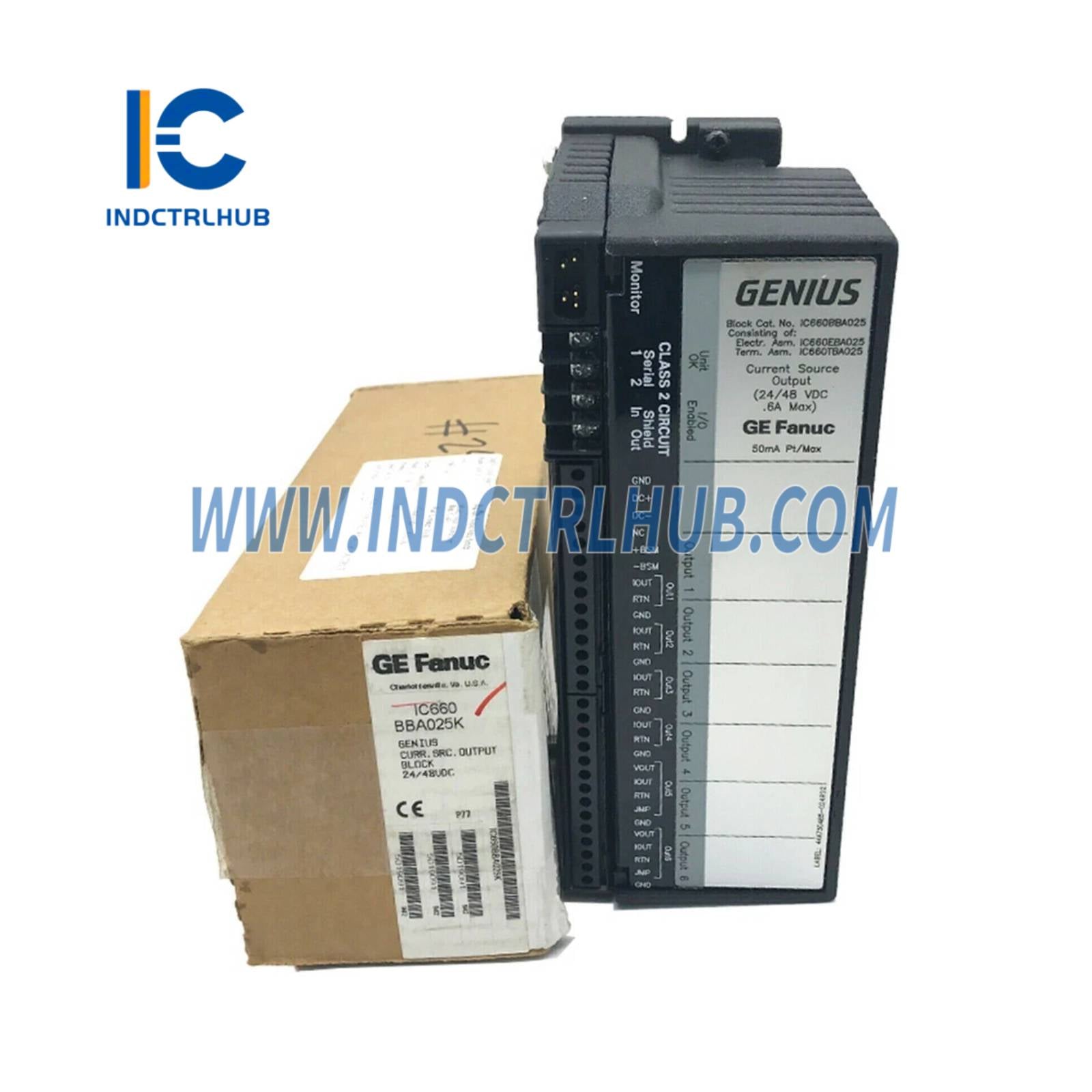

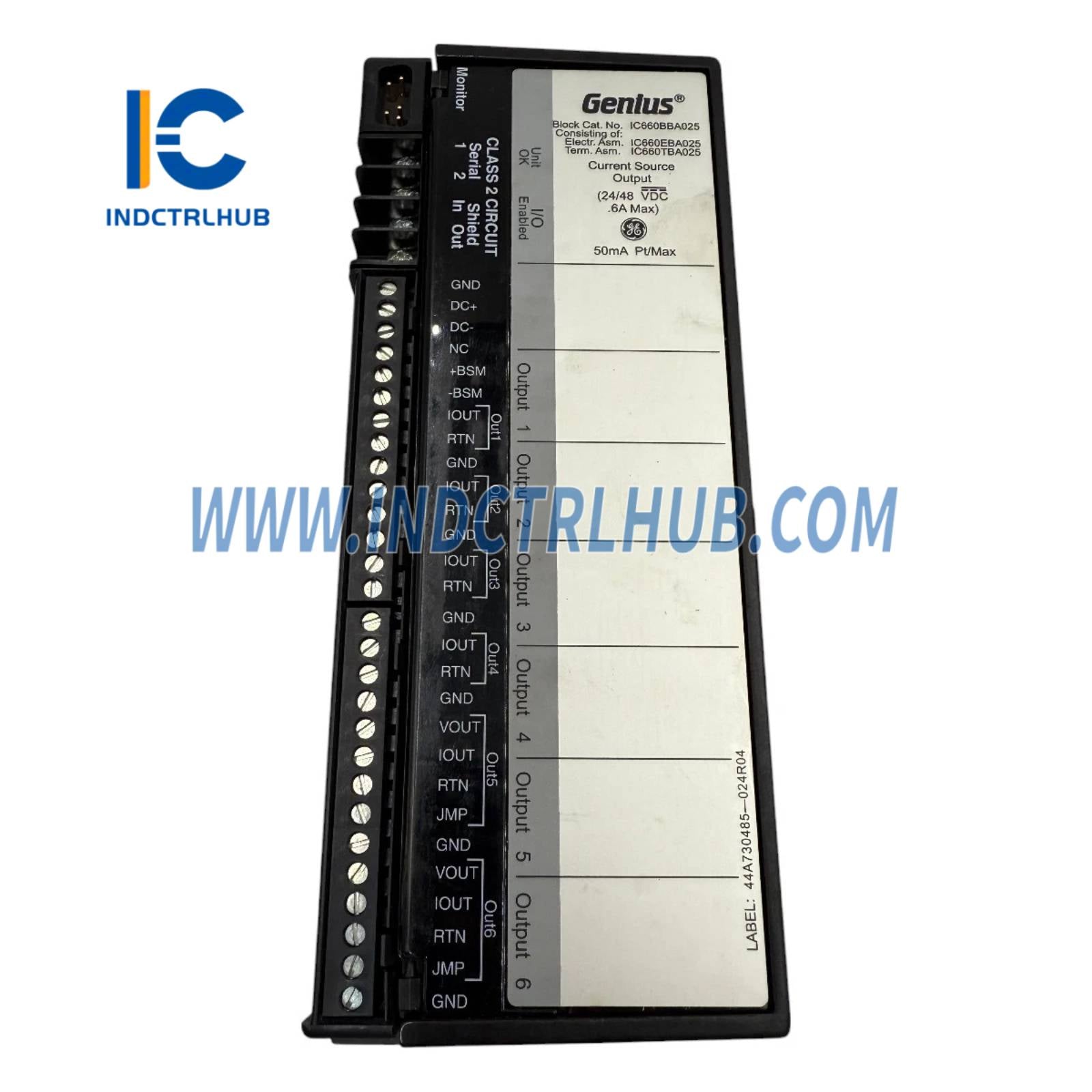

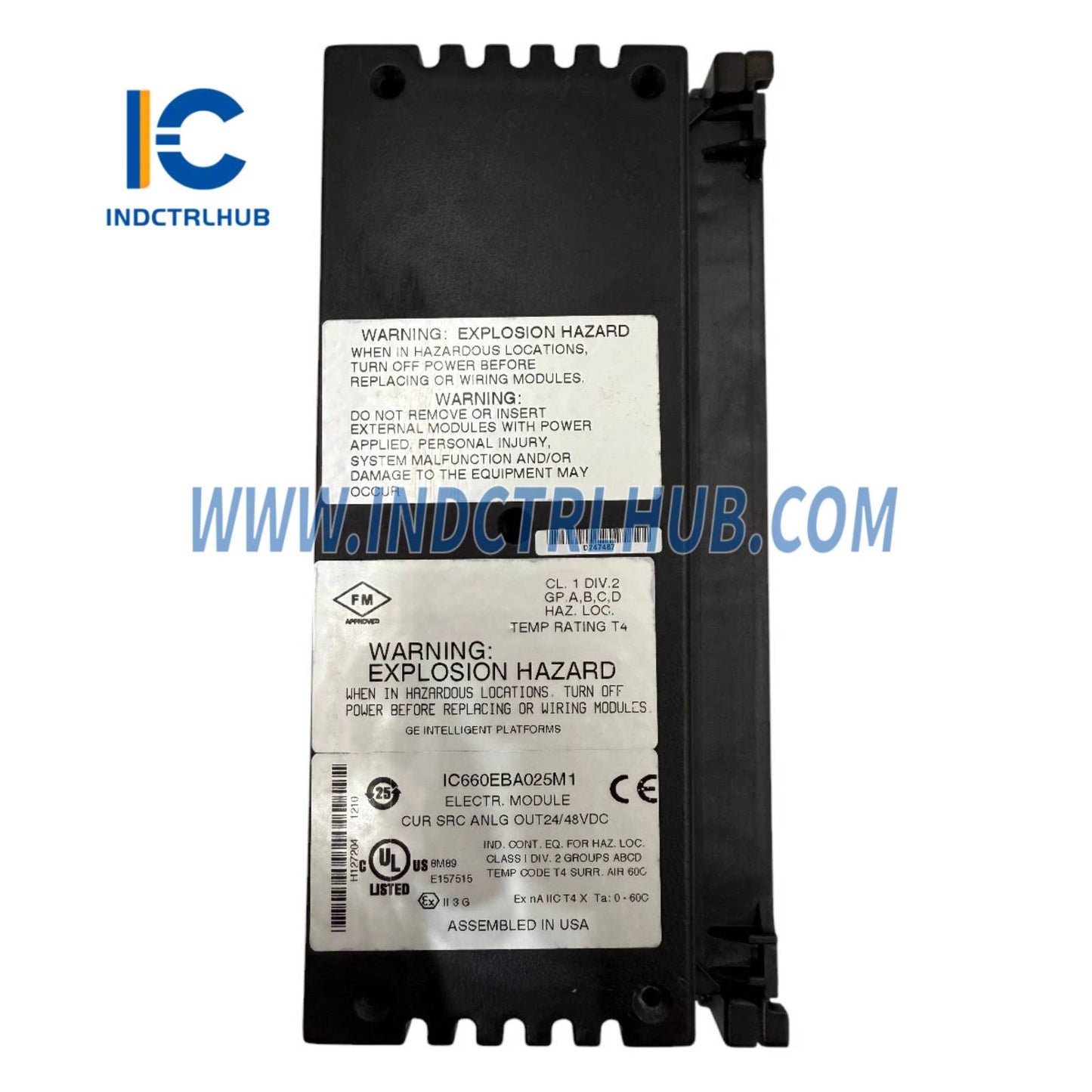

GE IC660BBA025 Genius I/O Block

Quantity

General Electric IC660BBA025 Genius I/O Block

Manufacturer: General Electric (now under Emerson Automation)
Series: Genius I/O
Model/Part Number: IC660BBA025
Description: 6-Channel Current-Source Analog Output Block for industrial automation systems

The General Electric IC660BBA025 is a current-source analog output block from the Genius I/O series, originally manufactured by GE Fanuc and now managed by Emerson Automation. Designed for industrial automation, it provides six isolated current output channels for precise control of analog devices such as valves, actuators, and variable frequency drives in applications like process control, manufacturing, and industrial systems. It interfaces with PLCs or other controllers via the Genius bus for distributed I/O operations.

Specification	Details
Model	IC660BBA025
Series	Genius I/O
Type	Current-Source Analog Output Block
Output Channels	6 isolated current outputs
Output Current Range	0–24 mA (default 4–20 mA)
Resolution	12 bits (6 µA per count)
Accuracy	±0.15% of full scale at 25°C
Update Time	3 ms per channel
Power Supply	18–56 VDC, 600 mA max at 24 VDC
Power Consumption	12 W max
Isolation	1500 VAC (channel-to-channel, channel-to-bus)
Communication	Genius bus (serial, supports 153.6 kbaud standard/extended, 76.8 kbaud, 38.4 kbaud)
Diagnostics	Overrange, underrange, feedback error, open loop, CPU redundancy
LED Indicators	UNIT OK, I/O ENABLED
Operating Temperature	0°C to +60°C (32°F to +140°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Relative Humidity	5% to 95% (non-condensing)
Weight	1.8 kg (4 lbs)
Dimensions	22.4 x 8.9 x 10 cm (8.8 x 3.5 x 3.9 in)
Mounting	Panel mount, requires terminal assembly (IC660TBA025)
Certifications	UL, CUL, CE, Class I Div 2
Compatibility	GE Series 90-30, 90-70, PACSystems, VersaMax, and other Genius bus controllers

Manufacturer: General Electric (now under Emerson Automation)
Series: Genius I/O
Model/Part Number: IC660BBA025
Description: 6-Channel Current-Source Analog Output Block for industrial automation systems

The General Electric IC660BBA025 is a current-source analog output block from the Genius I/O series, originally manufactured by GE Fanuc and now managed by Emerson Automation. Designed for industrial automation, it provides six isolated current output channels for precise control of analog devices such as valves, actuators, and variable frequency drives in applications like process control, manufacturing, and industrial systems. It interfaces with PLCs or other controllers via the Genius bus for distributed I/O operations.

Specification	Details
Model	IC660BBA025
Series	Genius I/O
Type	Current-Source Analog Output Block
Output Channels	6 isolated current outputs
Output Current Range	0–24 mA (default 4–20 mA)
Resolution	12 bits (6 µA per count)
Accuracy	±0.15% of full scale at 25°C
Update Time	3 ms per channel
Power Supply	18–56 VDC, 600 mA max at 24 VDC
Power Consumption	12 W max
Isolation	1500 VAC (channel-to-channel, channel-to-bus)
Communication	Genius bus (serial, supports 153.6 kbaud standard/extended, 76.8 kbaud, 38.4 kbaud)
Diagnostics	Overrange, underrange, feedback error, open loop, CPU redundancy
LED Indicators	UNIT OK, I/O ENABLED
Operating Temperature	0°C to +60°C (32°F to +140°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
Relative Humidity	5% to 95% (non-condensing)
Weight	1.8 kg (4 lbs)
Dimensions	22.4 x 8.9 x 10 cm (8.8 x 3.5 x 3.9 in)
Mounting	Panel mount, requires terminal assembly (IC660TBA025)
Certifications	UL, CUL, CE, Class I Div 2
Compatibility	GE Series 90-30, 90-70, PACSystems, VersaMax, and other Genius bus controllers
