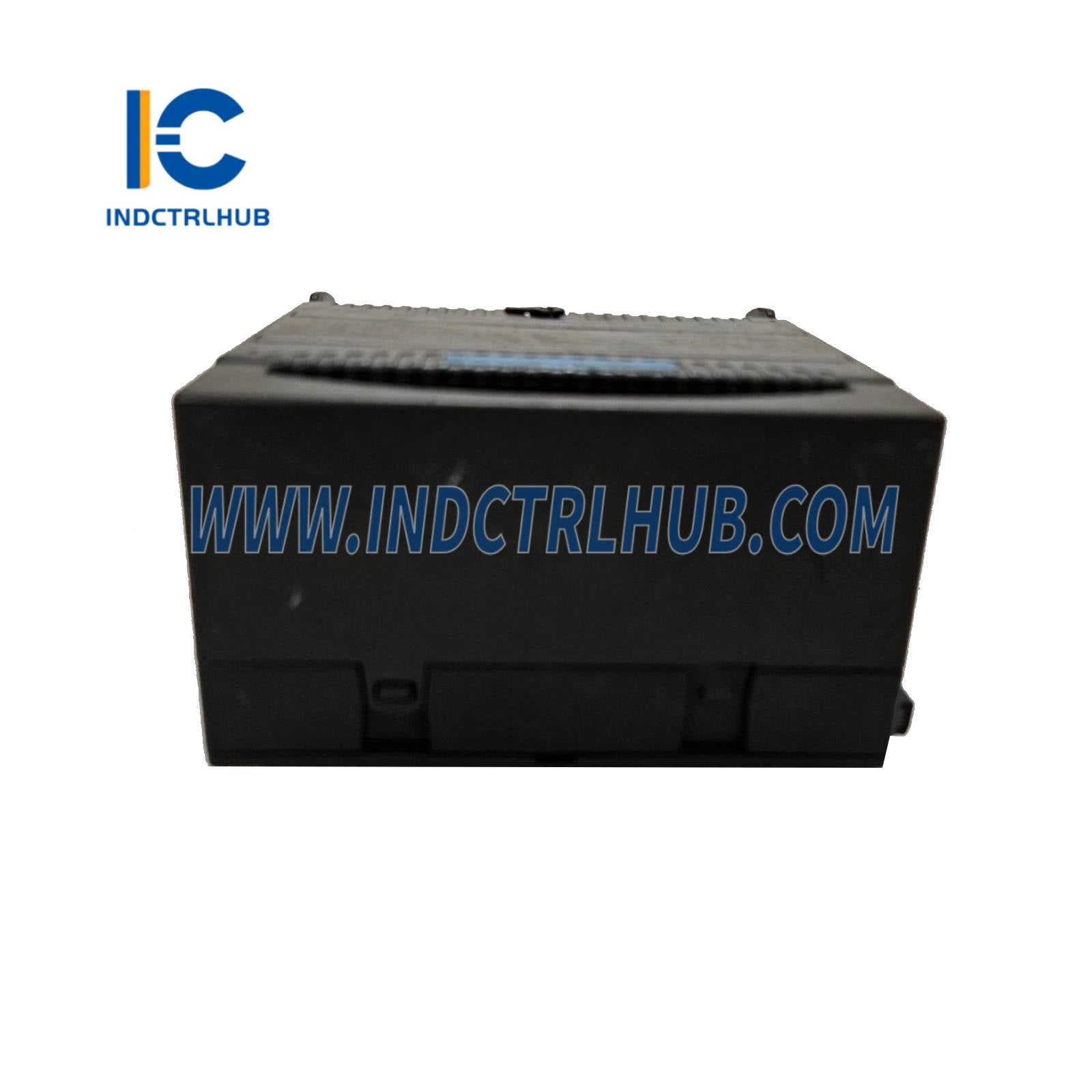

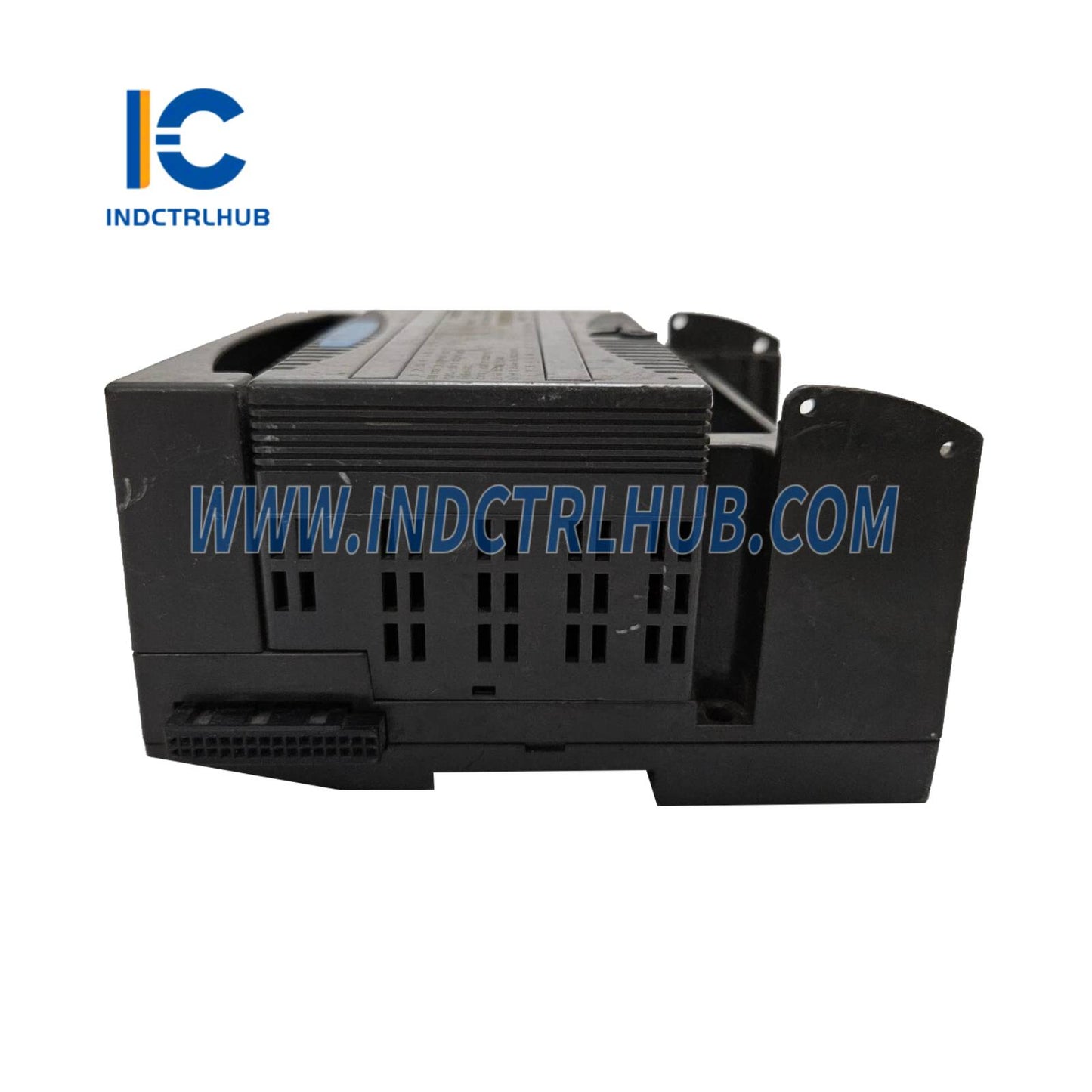

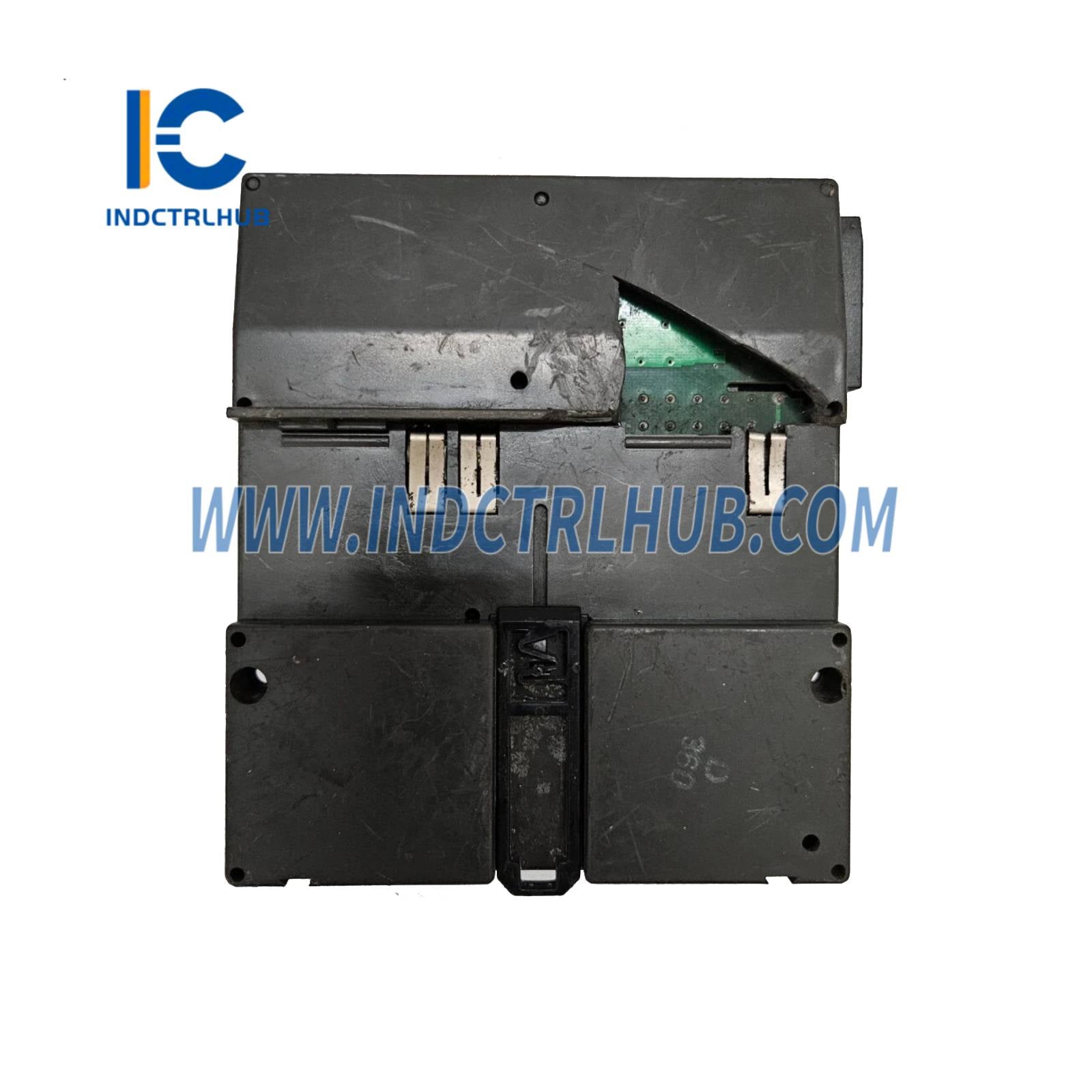

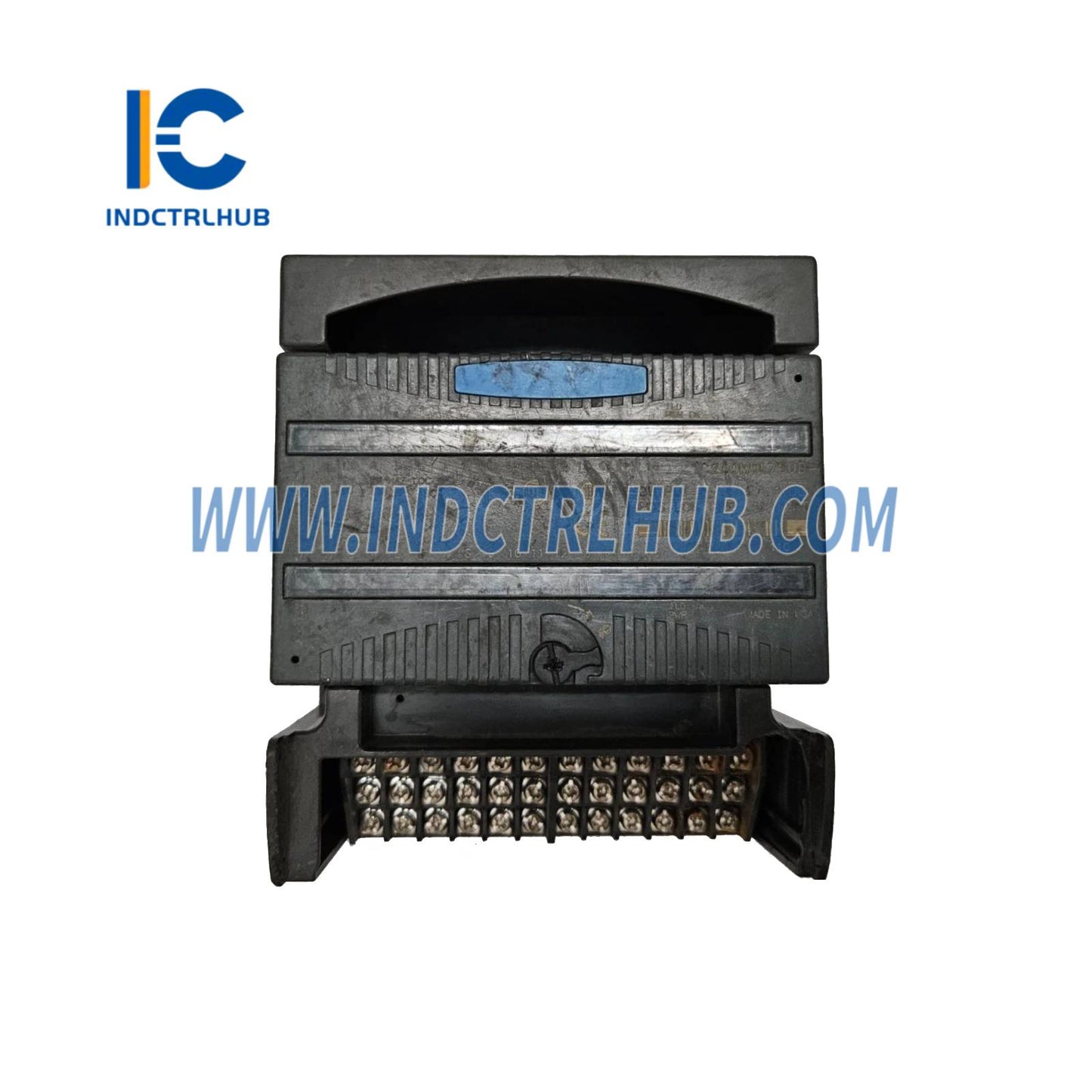

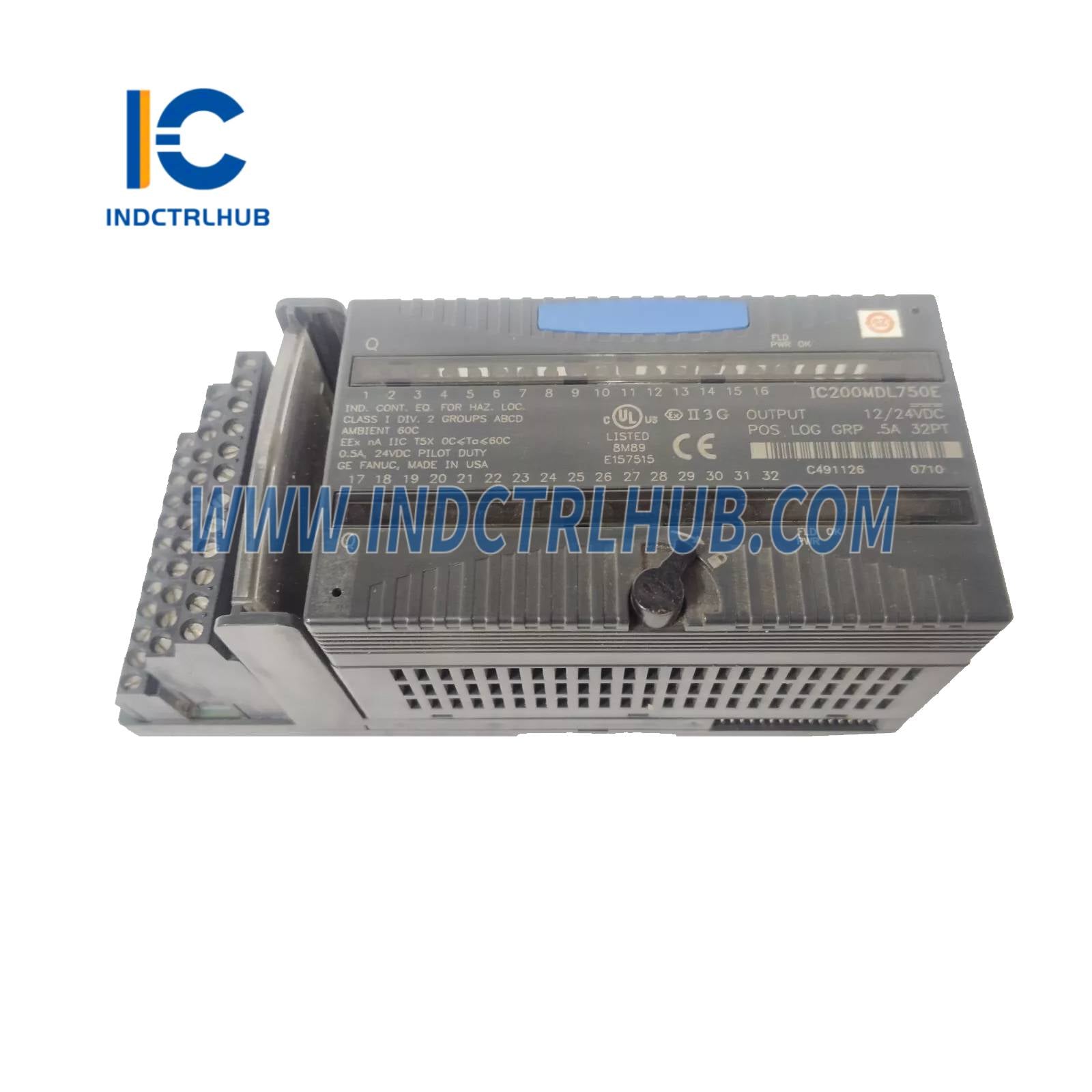

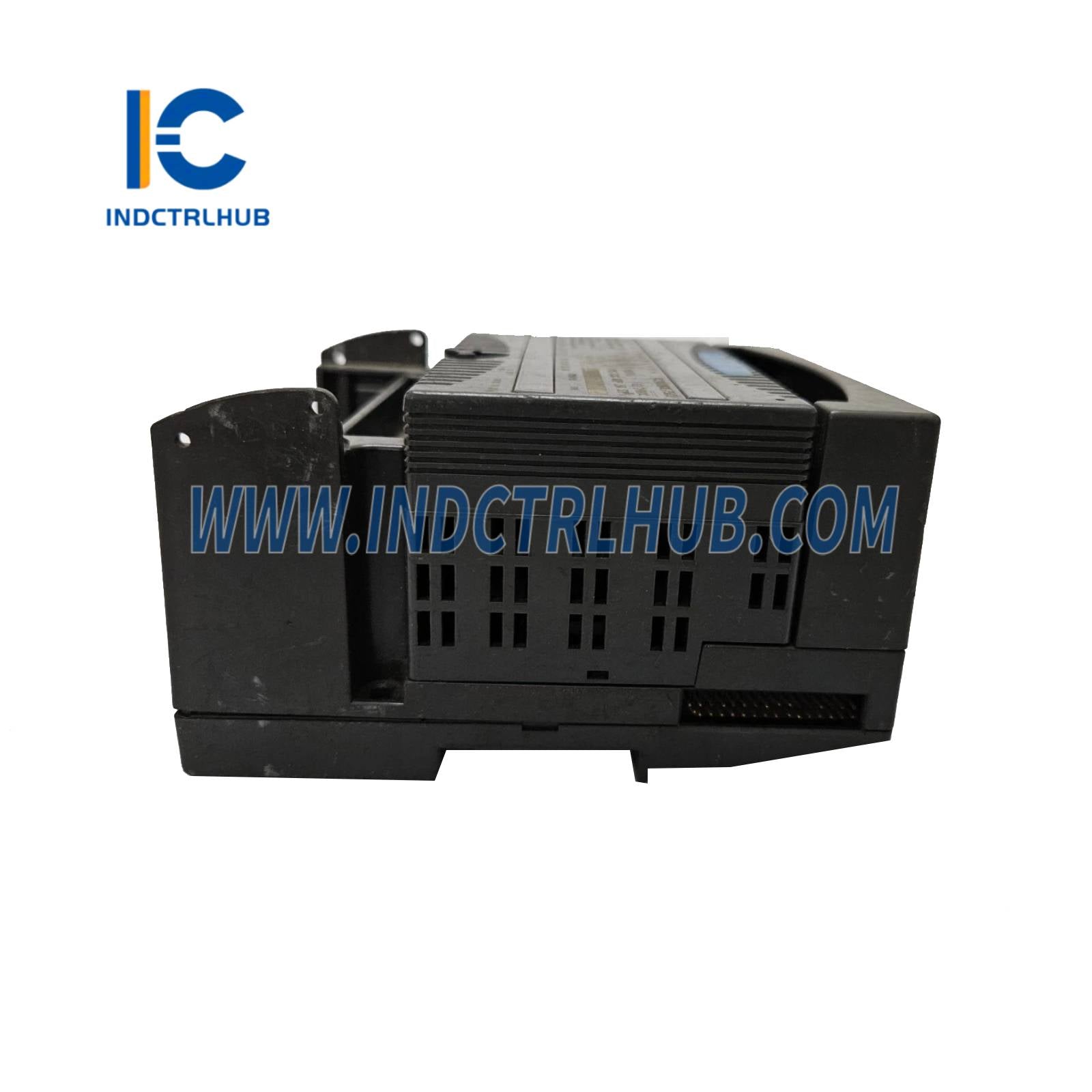

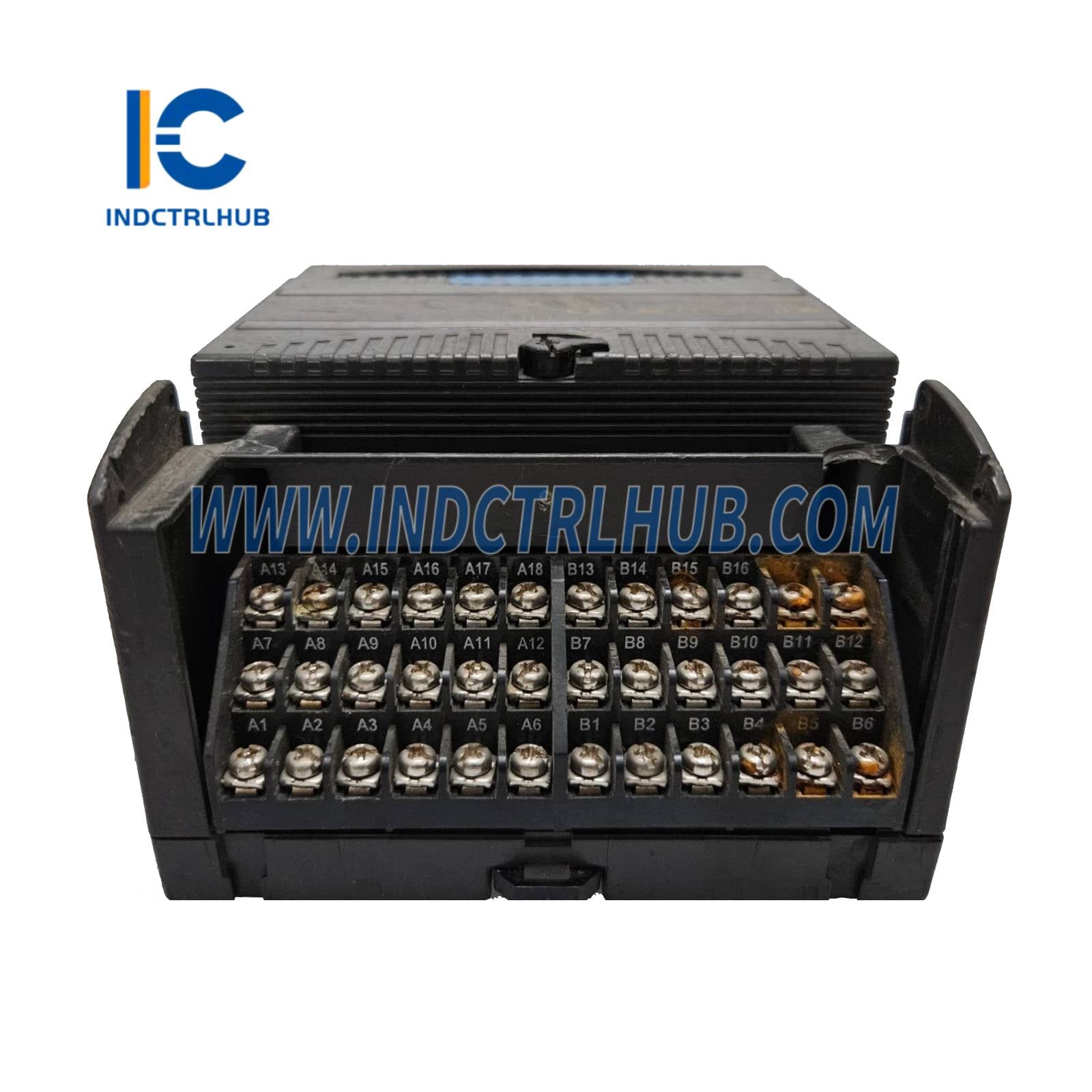

GE IC200MDL750L VersaMax Discrete Output Module

GE IC200MDL750L VersaMax Discrete Output Module

  • Manufacturer: General Electric

  • Product No.: IC200MDL750L

  • Condition:1000 in stock

  • Product Type: VersaMax Discrete Output Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Electric IC200MDL750L VersaMax Discrete Output Module

  • Manufacturer: General Electric (now under Emerson Automation)
  • Series: VersaMax
  • Model/Part Number: IC200MDL750L
  • Description: 32-Point Discrete Output Module with 24 VDC positive logic for industrial automation systems

Overview

  • The General Electric IC200MDL750L is a 32-point discrete output module from the VersaMax series, originally manufactured by GE Fanuc and now managed by Emerson Automation. Designed for industrial automation, it features 32 positive logic outputs at 24 VDC, organized in two groups of 16, suitable for controlling devices like relays, solenoids, and indicators in applications such as manufacturing, process control, and industrial systems. The "-L" revision indicates a specific firmware or hardware update.

Technical Specifications

Specification Details
Model IC200MDL750L
Series VersaMax
Type Discrete Output Module
Output Channels 32, organized in 2 isolated groups of 16
Output Logic Positive logic (source)
Output Voltage 12–24 VDC, 24 VDC nominal
Output Current 0.5 A per point max; 8 A total per group at 40°C, 4 A at 60°C
Inrush Current 4.2 A for 10 ms
Output Voltage Drop 0.3 V max
Output Leakage Current 0.5 mA at 30 VDC
Response Time 0.2 ms ON, 1.0 ms OFF
Backplane Current Consumption 90 mA max at 5 VDC
External Power Supply 12–24 VDC, user-supplied for output loads
Isolation 1500 VAC (field-to-backplane, group-to-group), 250 VAC continuous
LED Indicators One green LED per point for ON/OFF status, OK LED for backplane power
Data Size 32 bits of discrete output data
Operating Temperature 0°C to +60°C (32°F to +140°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Relative Humidity 5% to 95% (non-condensing)
Weight 0.3 kg (0.66 lbs)
Dimensions 11 x 5 x 6.6 cm (4.3 x 2 x 2.6 in), excluding carrier
Mounting DIN rail or panel mount on VersaMax carrier (e.g., IC200CHS002, IC200CHS022)
Certifications CE, UL, Class I Div 2
Compatibility VersaMax PLCs, Network Interface Units (NIUs)



View full details

Product Description

General Electric IC200MDL750L VersaMax Discrete Output Module

  • Manufacturer: General Electric (now under Emerson Automation)
  • Series: VersaMax
  • Model/Part Number: IC200MDL750L
  • Description: 32-Point Discrete Output Module with 24 VDC positive logic for industrial automation systems

Overview

  • The General Electric IC200MDL750L is a 32-point discrete output module from the VersaMax series, originally manufactured by GE Fanuc and now managed by Emerson Automation. Designed for industrial automation, it features 32 positive logic outputs at 24 VDC, organized in two groups of 16, suitable for controlling devices like relays, solenoids, and indicators in applications such as manufacturing, process control, and industrial systems. The "-L" revision indicates a specific firmware or hardware update.

Technical Specifications

Specification Details
Model IC200MDL750L
Series VersaMax
Type Discrete Output Module
Output Channels 32, organized in 2 isolated groups of 16
Output Logic Positive logic (source)
Output Voltage 12–24 VDC, 24 VDC nominal
Output Current 0.5 A per point max; 8 A total per group at 40°C, 4 A at 60°C
Inrush Current 4.2 A for 10 ms
Output Voltage Drop 0.3 V max
Output Leakage Current 0.5 mA at 30 VDC
Response Time 0.2 ms ON, 1.0 ms OFF
Backplane Current Consumption 90 mA max at 5 VDC
External Power Supply 12–24 VDC, user-supplied for output loads
Isolation 1500 VAC (field-to-backplane, group-to-group), 250 VAC continuous
LED Indicators One green LED per point for ON/OFF status, OK LED for backplane power
Data Size 32 bits of discrete output data
Operating Temperature 0°C to +60°C (32°F to +140°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Relative Humidity 5% to 95% (non-condensing)
Weight 0.3 kg (0.66 lbs)
Dimensions 11 x 5 x 6.6 cm (4.3 x 2 x 2.6 in), excluding carrier
Mounting DIN rail or panel mount on VersaMax carrier (e.g., IC200CHS002, IC200CHS022)
Certifications CE, UL, Class I Div 2
Compatibility VersaMax PLCs, Network Interface Units (NIUs)
