Product Description
Product Overview

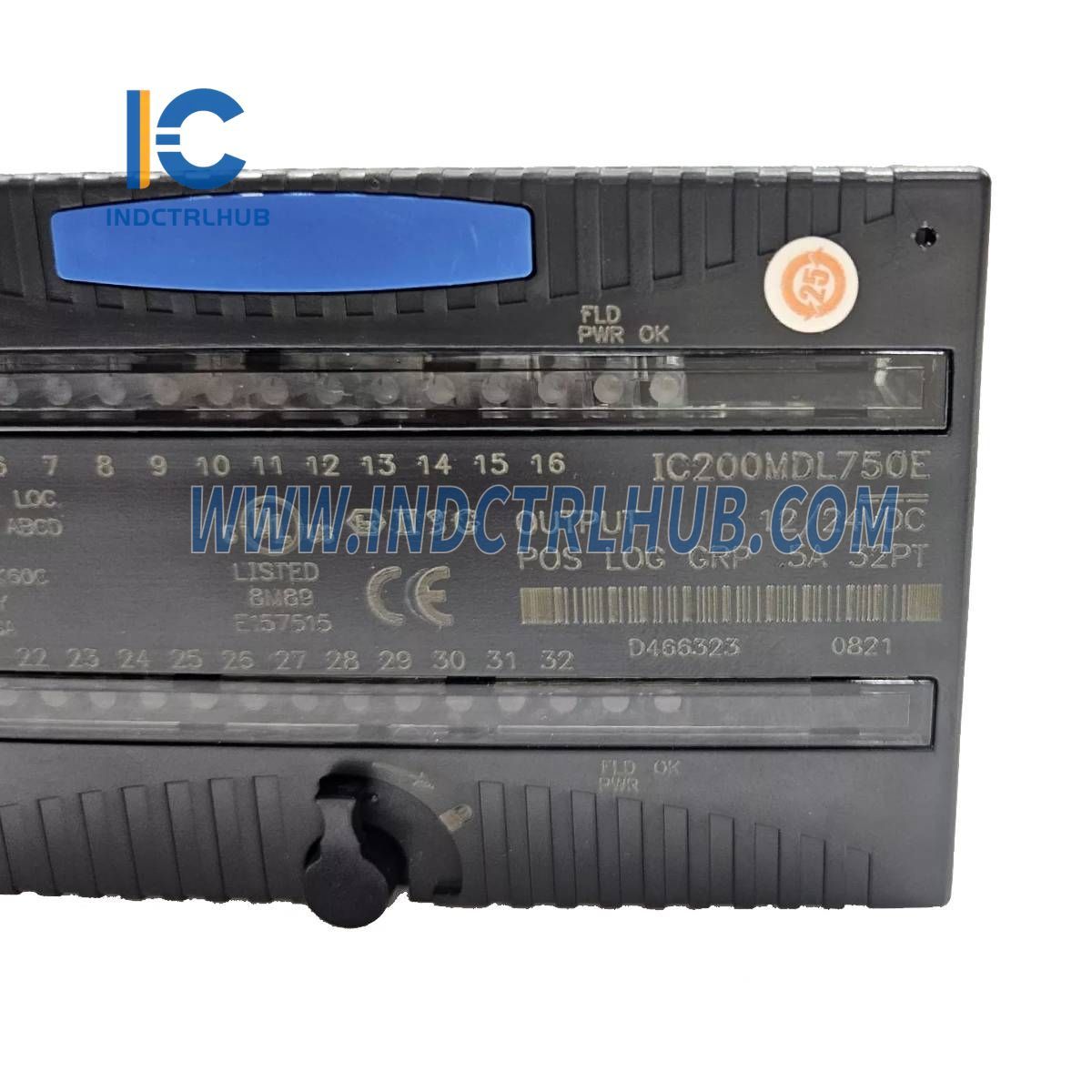

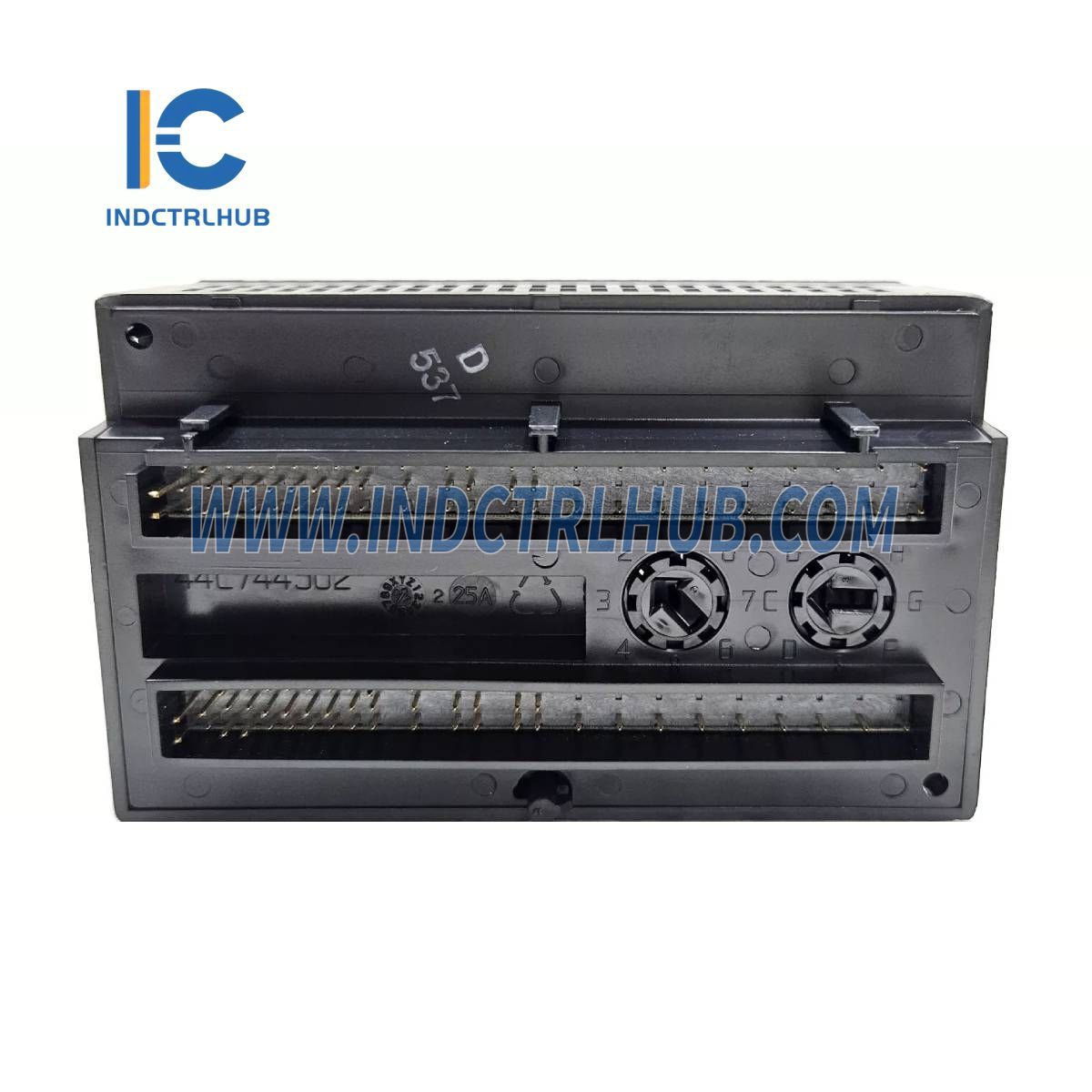

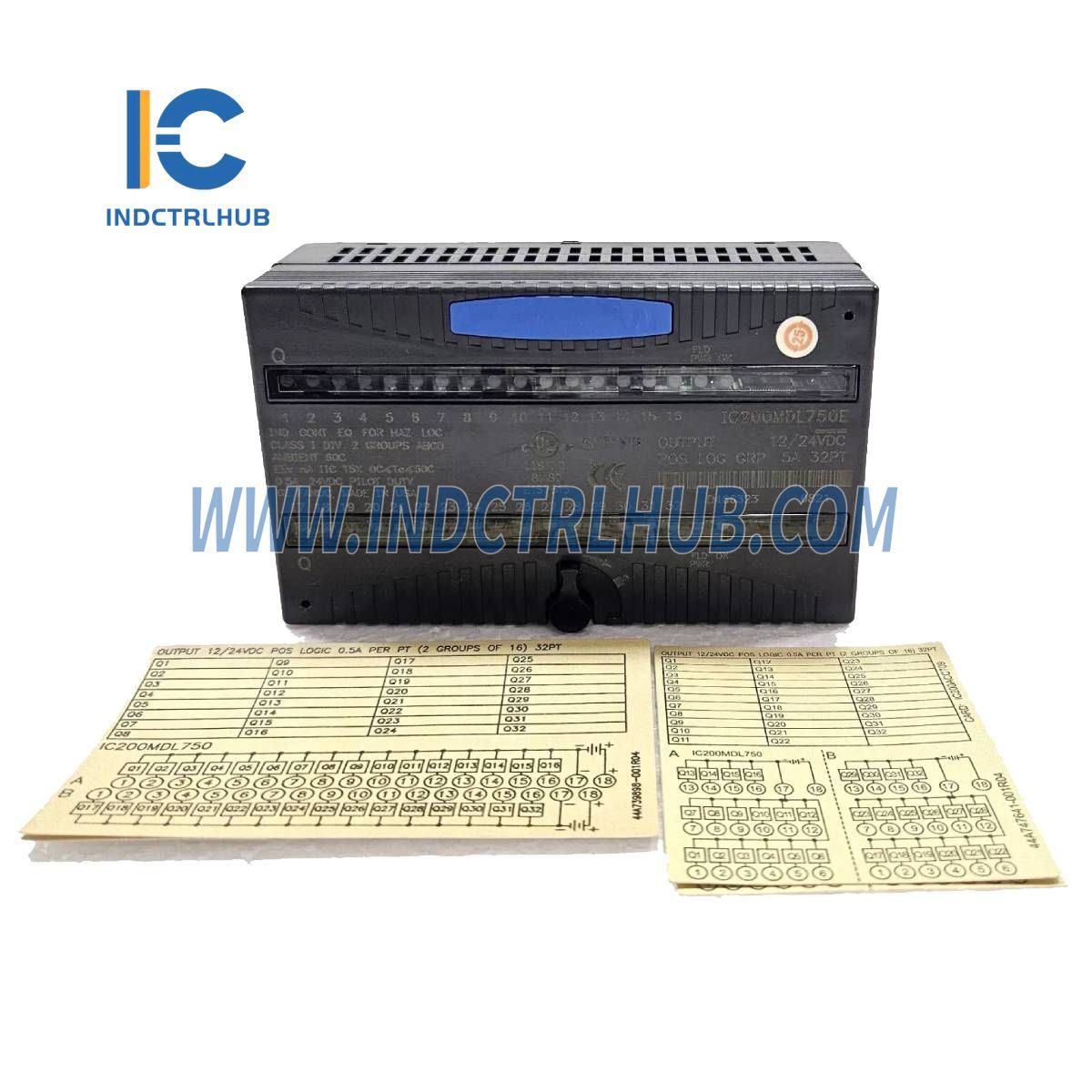

The General Electric IC200MDL750 is a VersaMax Discrete Output Module designed for industrial automation applications. It provides 32 discrete output channels organized in two groups of 16, using a positive logic wiring configuration. This module is used to control electrical loads such as solenoid valves, relay coils, and pilot lamps in distributed I/O systems.
Technical Specifications
The IC200MDL750 has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model | IC200MDL750 |
| Manufacturer | General Electric |
| Description | VersaMax Discrete Output Module |
| Number of Outputs | 32 (2 groups of 16 channels each) |
| Output Type | Positive Logic (Sourcing) |
| Nominal Voltage | 12/24 VDC |
| Output Voltage Range | 10.2 - 30 VDC |
| Output Current | 0.5 A per point |
| Backplane Current Consumption | 90 mA maximum at 5 VDC |
| Response Time | 0.2 ms (ON), 1 ms (OFF), maximum |
| Output Leakage Current | 0.5 mA at 30 VDC |
| Weight | 0.907 kg |
