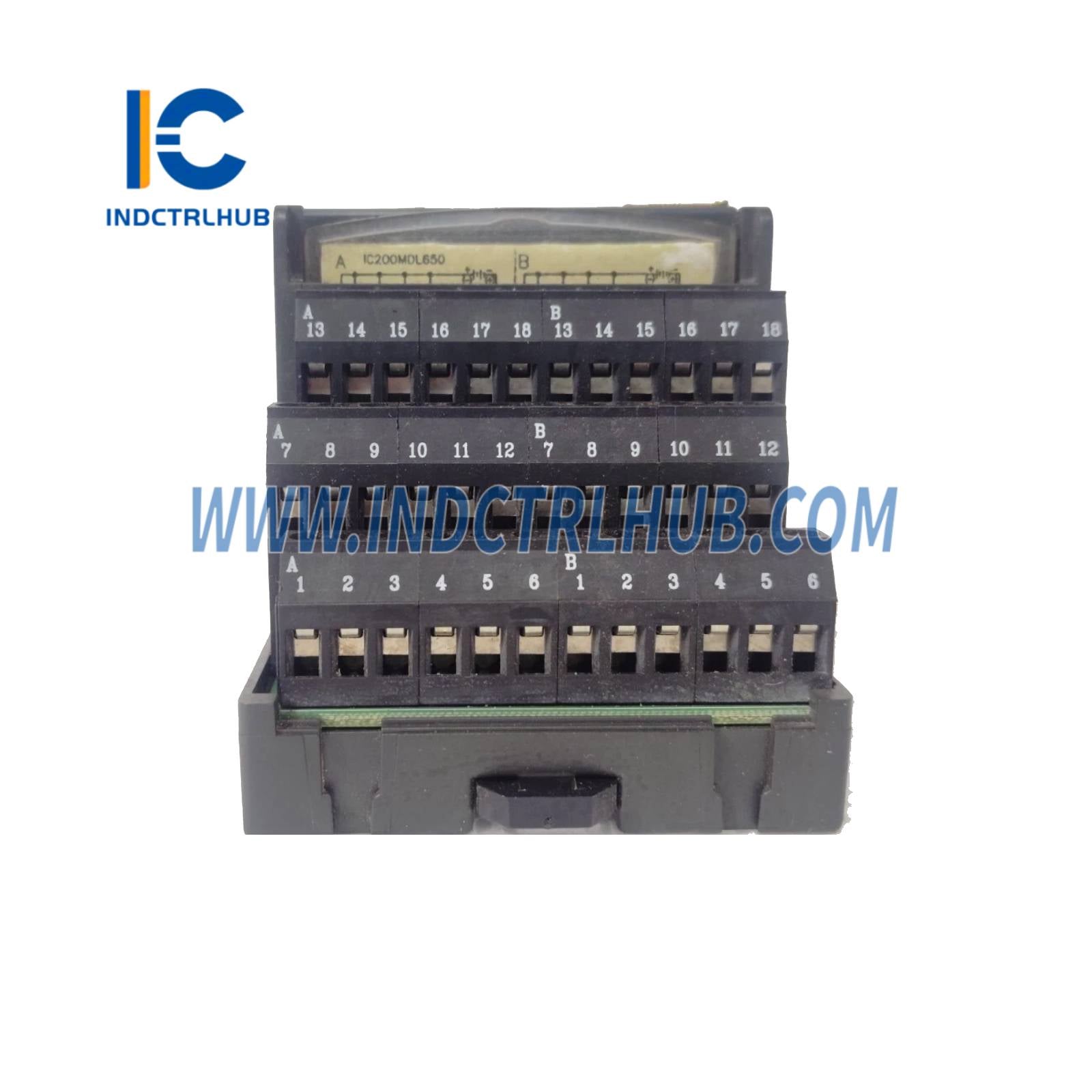

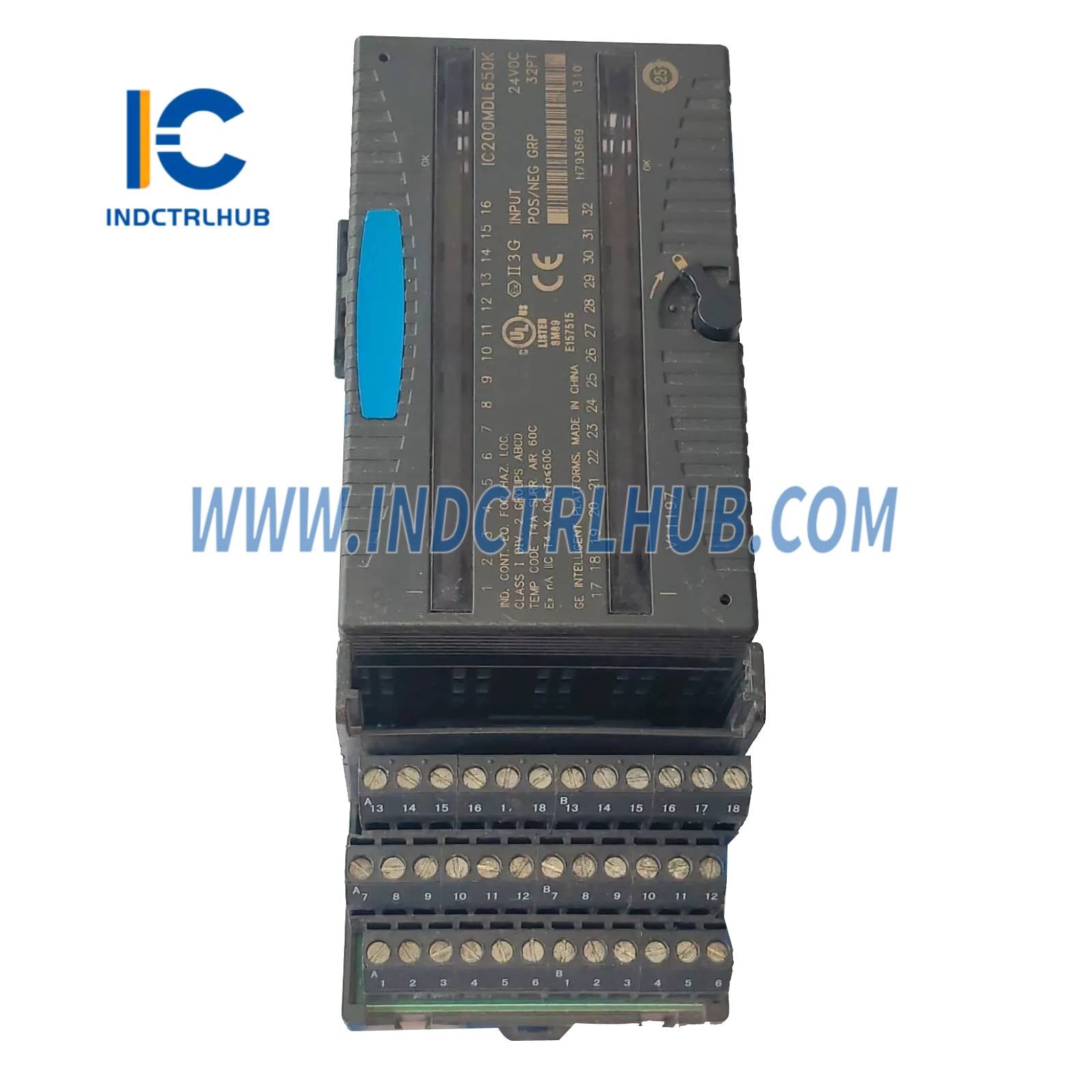

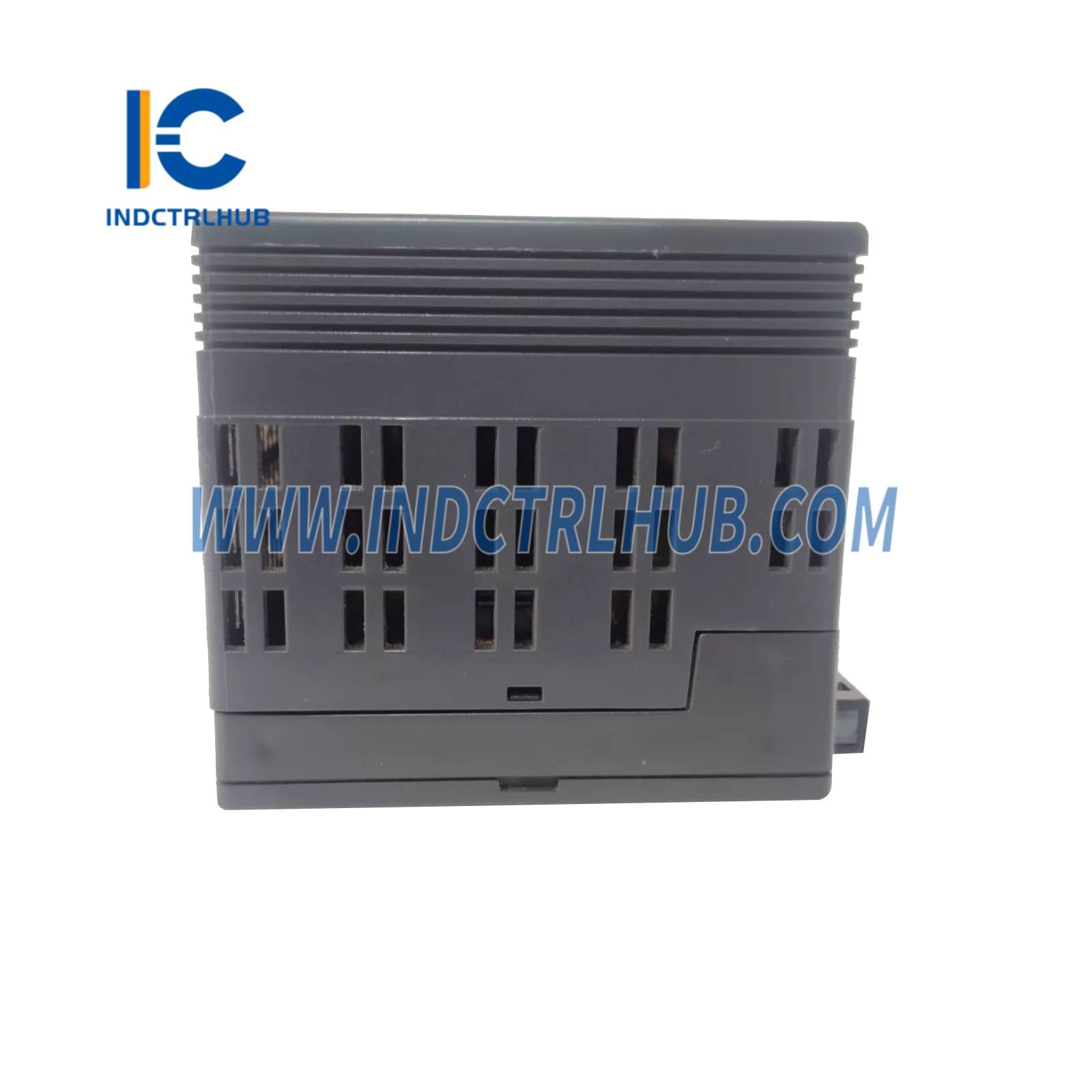

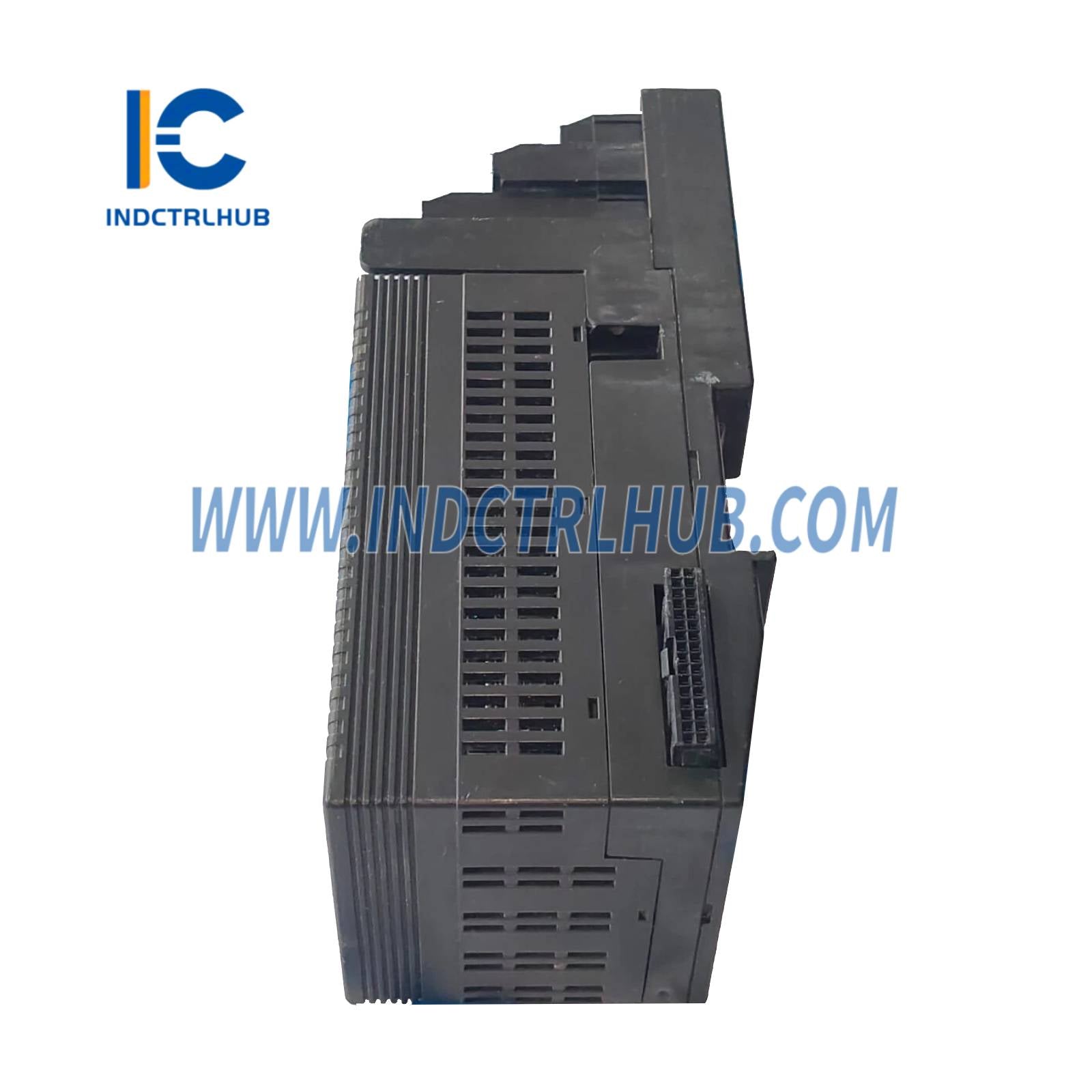

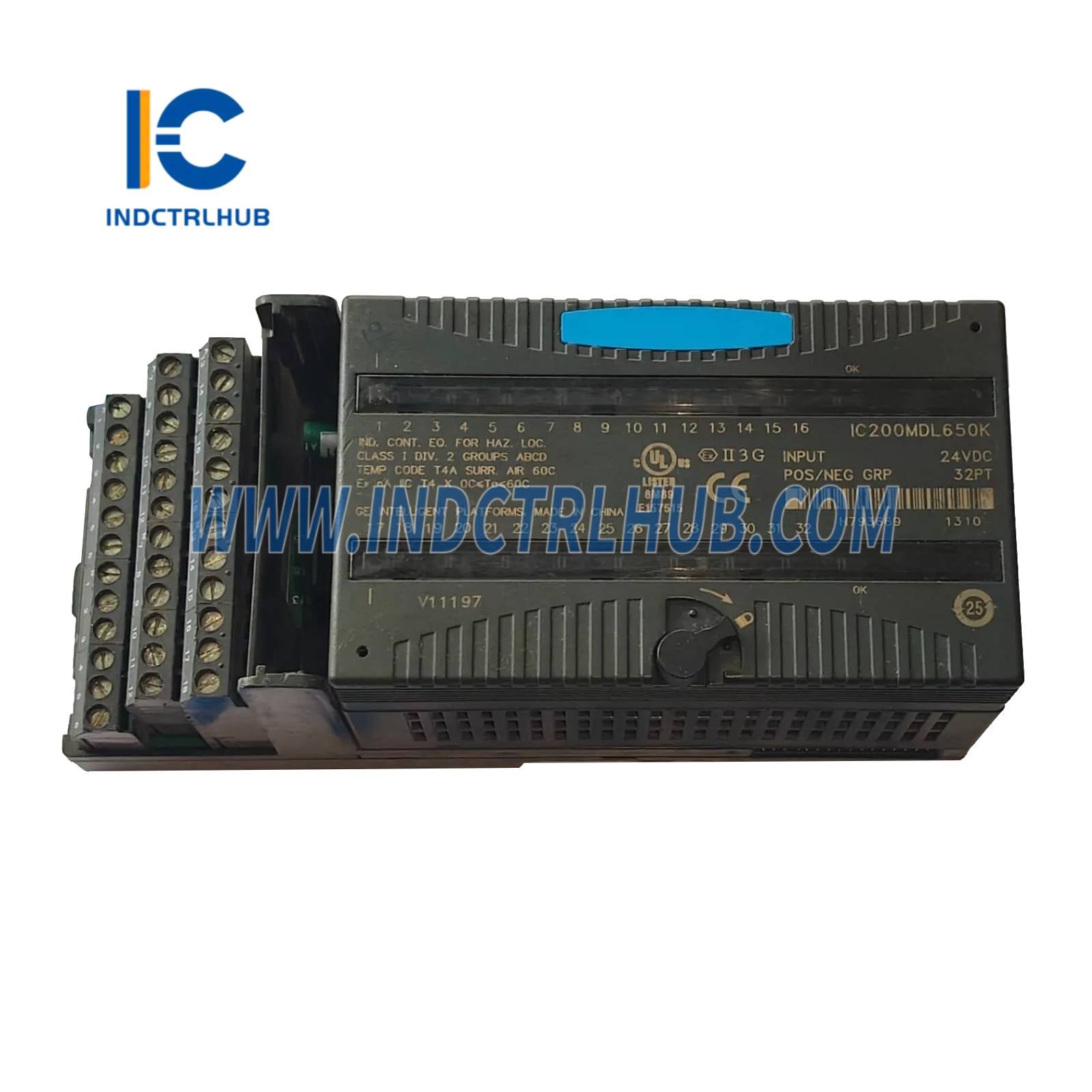

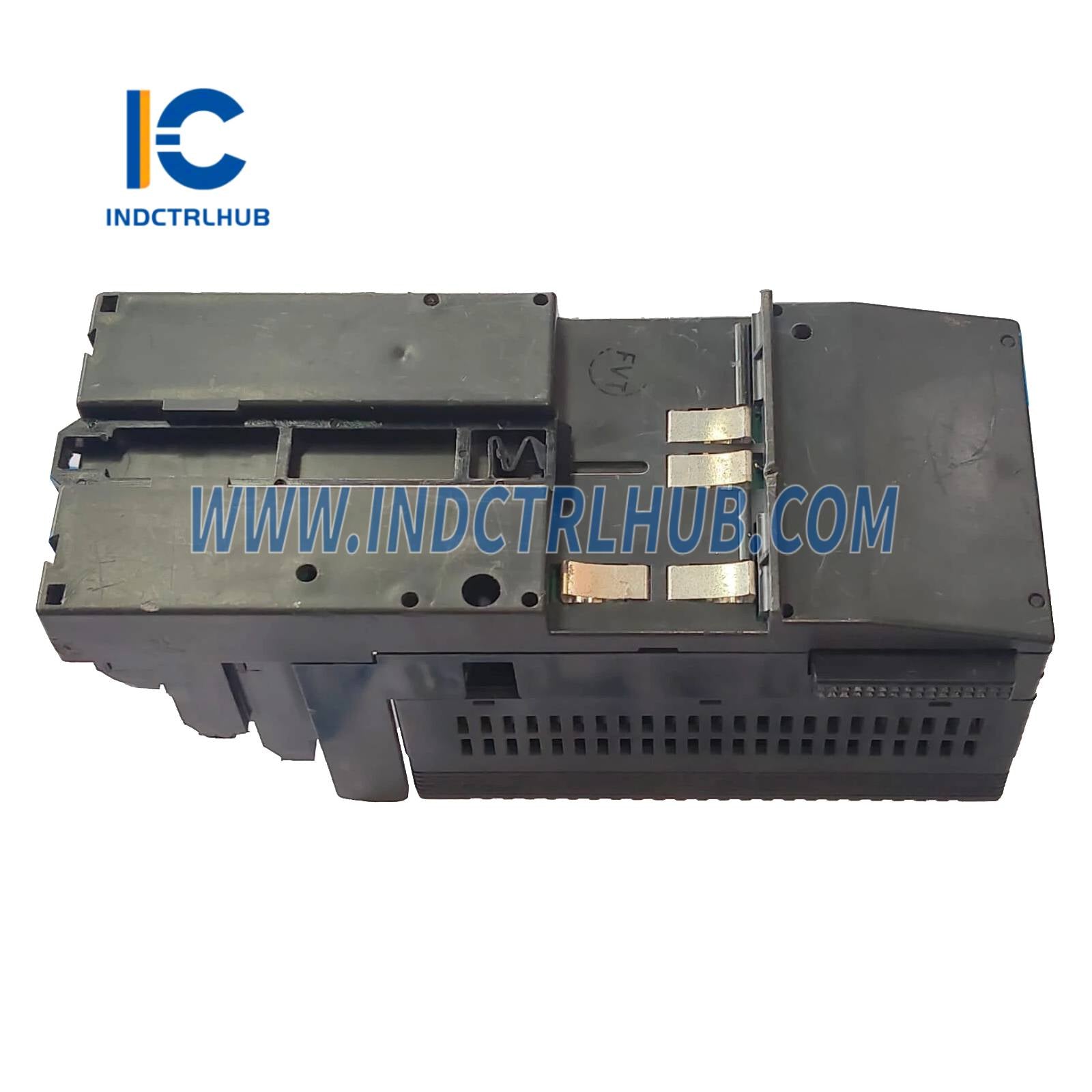

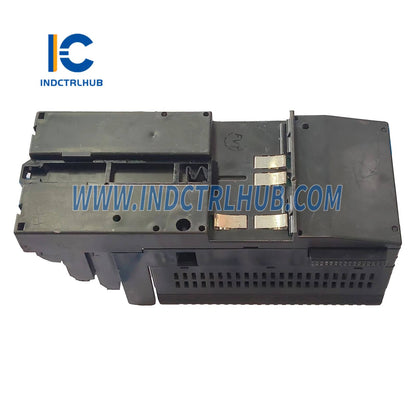

GE IC200MDL650K VersaMax Discrete Input Module

Quantity

General Electric IC200MDL650K VersaMax Discrete Input Module

Manufacturer: General Electric (now under Emerson Automation)
Series: VersaMax
Model/Part Number: IC200MDL650K
Description: 32-Point Discrete Input Module with 24 VDC positive/negative logic for industrial automation systems

The General Electric IC200MDL650K is a 32-point discrete input module from the VersaMax series, originally manufactured by GE Fanuc and now managed by Emerson Automation. Designed for industrial automation, it provides 32 discrete inputs organized in four groups of eight, supporting both positive and negative logic configurations. It is ideal for interfacing with sensors, switches, and other digital devices in applications like manufacturing, process control, and industrial systems. The "-K" revision indicates a specific firmware or hardware update.

Specification	Details
Model	IC200MDL650K
Series	VersaMax
Type	Discrete Input Module
Input Channels	32, organized in 4 groups of 8
Input Logic	Positive or negative logic (negative logic requires version IC200MDL650C or higher)
Input Voltage	0–30 VDC, 24 VDC nominal
On-State Current	2.0–5.5 mA
Off-State Current	0–0.5 mA
Input Response Time	0.5 ms default, software-configurable
Backplane Current Consumption	50 mA max at 5 VDC
Power Supply	Powered by backplane, no external power required
Isolation	1500 VAC (field-to-backplane), 250 VAC continuous; no point-to-point isolation
LED Indicators	One green LED per point for ON/OFF status, OK LED for backplane power
Data Size	32 bits of discrete input data
Operating Temperature	0°C to +60°C (32°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% (non-condensing)
Weight	0.3 kg (0.66 lbs)
Dimensions	11 x 5 x 6.6 cm (4.3 x 2 x 2.6 in), excluding carrier
Mounting	DIN rail or panel mount on VersaMax carrier (e.g., IC200CHS002, IC200CHS022)
Certifications	CE, UL, Class I Div 2
Compatibility	VersaMax PLCs, Network Interface Units (NIUs)

Manufacturer: General Electric (now under Emerson Automation)
Series: VersaMax
Model/Part Number: IC200MDL650K
Description: 32-Point Discrete Input Module with 24 VDC positive/negative logic for industrial automation systems

The General Electric IC200MDL650K is a 32-point discrete input module from the VersaMax series, originally manufactured by GE Fanuc and now managed by Emerson Automation. Designed for industrial automation, it provides 32 discrete inputs organized in four groups of eight, supporting both positive and negative logic configurations. It is ideal for interfacing with sensors, switches, and other digital devices in applications like manufacturing, process control, and industrial systems. The "-K" revision indicates a specific firmware or hardware update.

Specification	Details
Model	IC200MDL650K
Series	VersaMax
Type	Discrete Input Module
Input Channels	32, organized in 4 groups of 8
Input Logic	Positive or negative logic (negative logic requires version IC200MDL650C or higher)
Input Voltage	0–30 VDC, 24 VDC nominal
On-State Current	2.0–5.5 mA
Off-State Current	0–0.5 mA
Input Response Time	0.5 ms default, software-configurable
Backplane Current Consumption	50 mA max at 5 VDC
Power Supply	Powered by backplane, no external power required
Isolation	1500 VAC (field-to-backplane), 250 VAC continuous; no point-to-point isolation
LED Indicators	One green LED per point for ON/OFF status, OK LED for backplane power
Data Size	32 bits of discrete input data
Operating Temperature	0°C to +60°C (32°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% (non-condensing)
Weight	0.3 kg (0.66 lbs)
Dimensions	11 x 5 x 6.6 cm (4.3 x 2 x 2.6 in), excluding carrier
Mounting	DIN rail or panel mount on VersaMax carrier (e.g., IC200CHS002, IC200CHS022)
Certifications	CE, UL, Class I Div 2
Compatibility	VersaMax PLCs, Network Interface Units (NIUs)
