Product Description

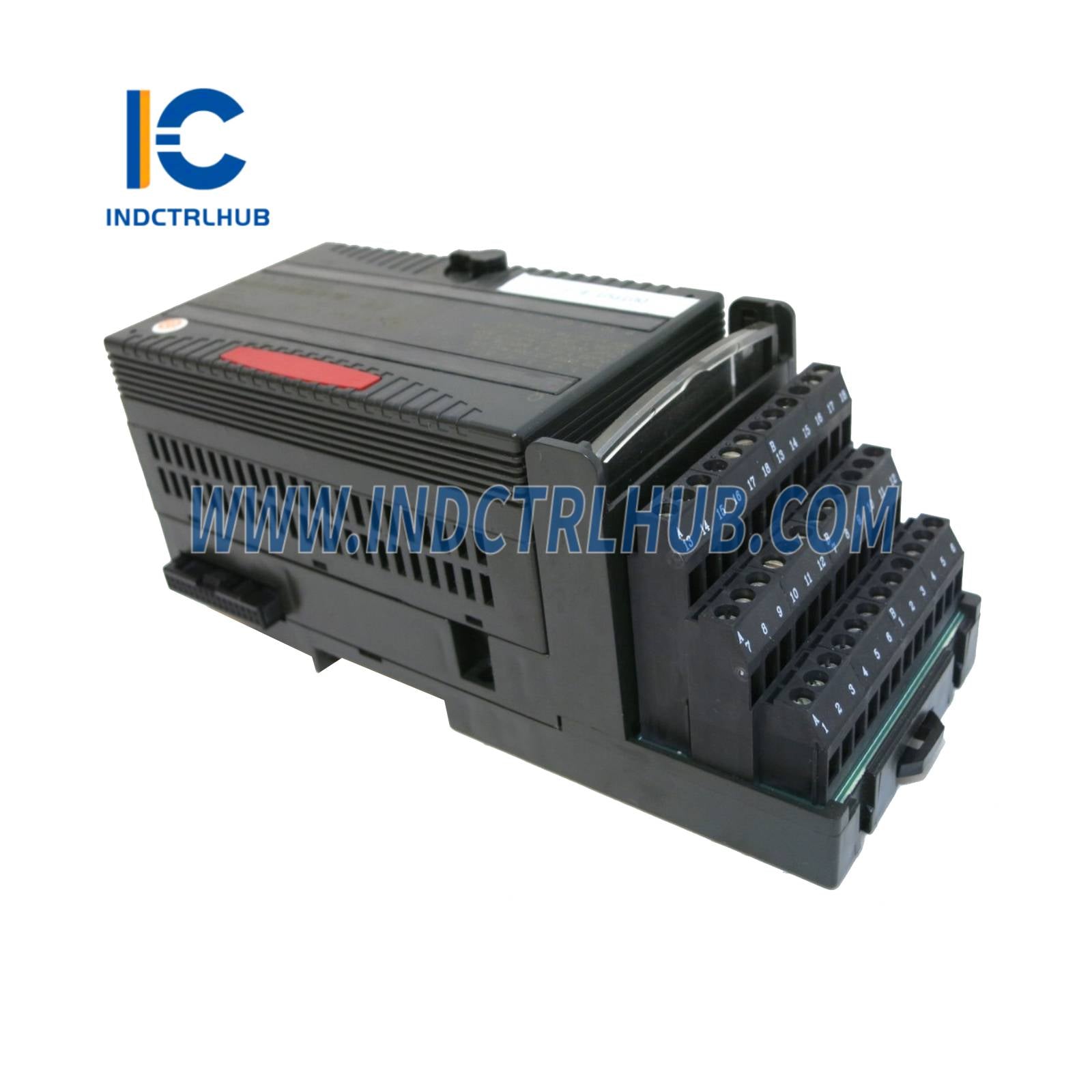

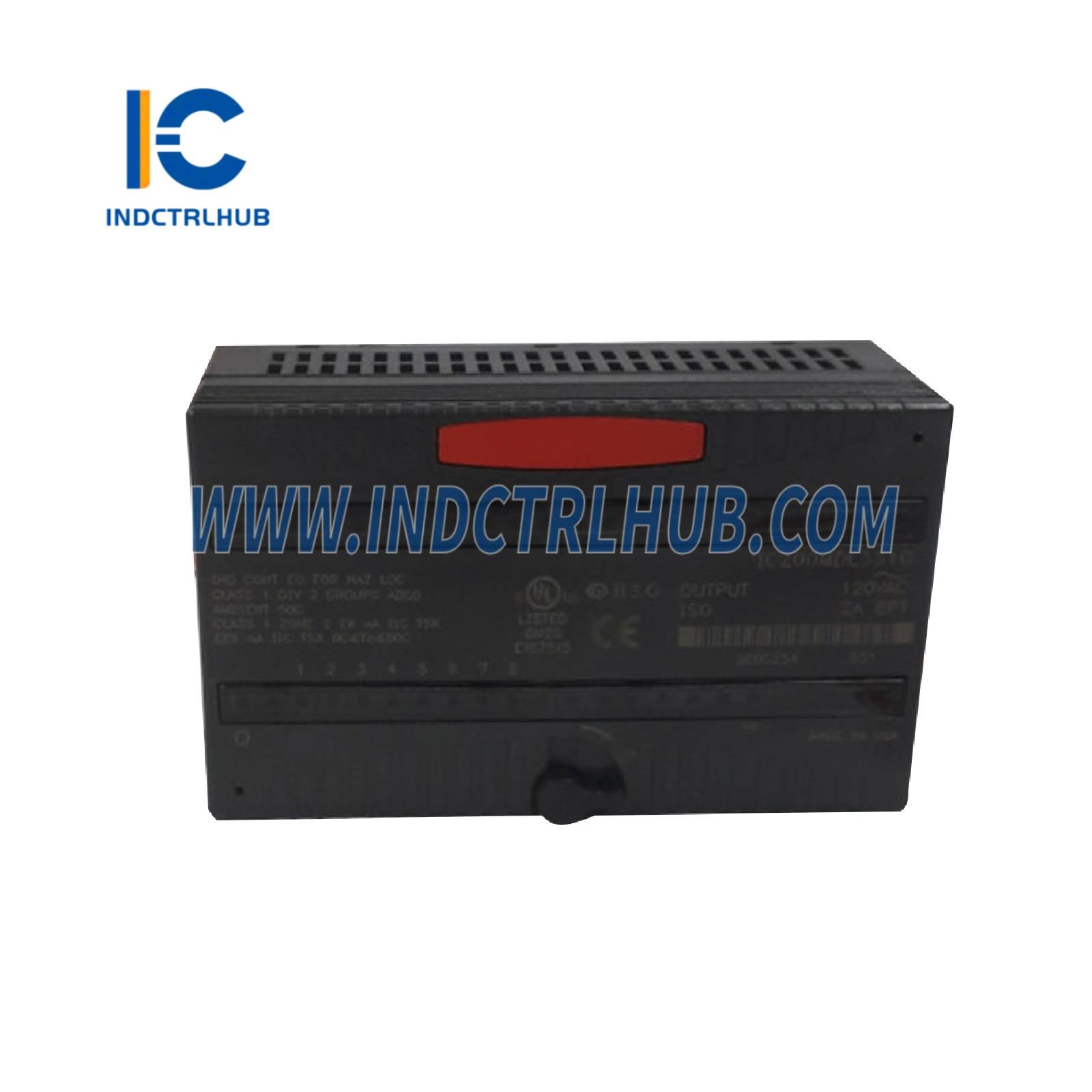

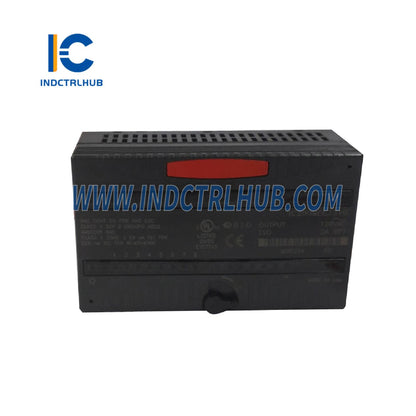

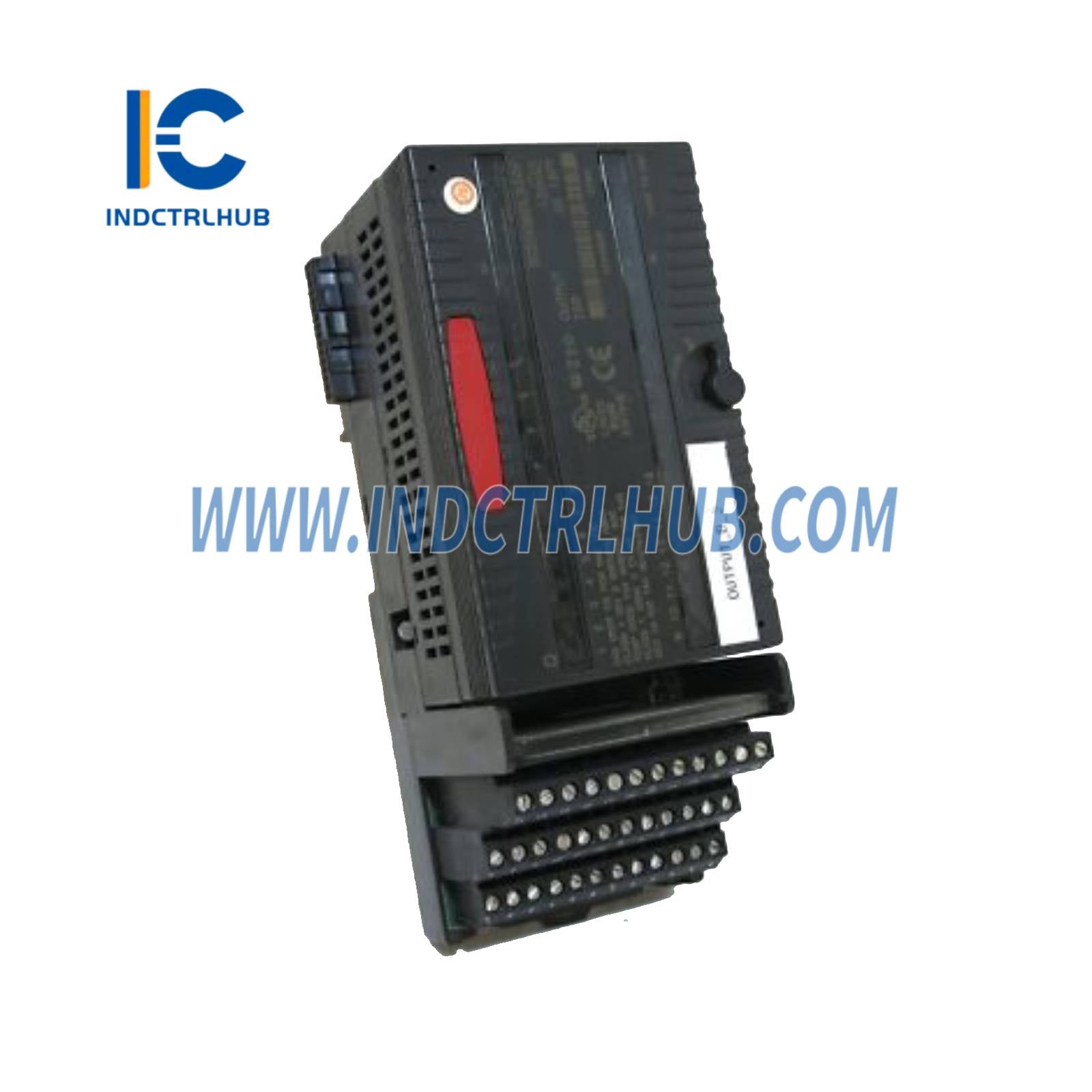

General Electric IC200MDL331G Discrete Output Module
Product Overview
- Description: The General Electric IC200MDL331G is a discrete output module designed for use with GE Fanuc VersaMax PLC systems.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | VersaMax |
| Model/Part Number | IC200MDL331G |
| Model Type | Discrete Output Module |
| Function | Controls external devices via discrete output signals |
| Display | LED indicators (status, power, output state) |
| Inputs | Digital data from VersaMax PLC |
| Outputs | 8 isolated AC outputs (120/240 VAC, 2 A per point) |
| Communication Interfaces | VersaMax backplane interface |
| Signal Conditioning | Internal signal isolation |
| Accuracy | Not applicable |
| Redundancy | Non-redundant |
| Diagnostics | LED status indicators, fault reporting to PLC |
| Compatibility | GE Fanuc VersaMax PLC systems |
| Power Supply | 5 VDC (from VersaMax backplane), 120/240 VAC (external for outputs) |
| Power Consumption | 70 mA at 5 VDC max |
| Environmental Specifications | Operating Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in PLC rack) |
| Dimensions | 110 mm (H) x 50 mm (W) x 66 mm (D) |
| Weight | 0.2 kg |
| Mounting | DIN-rail or panel mount in VersaMax rack |
| Certifications | CE, UL, cULus, RoHS |
