| Specification |
Details |

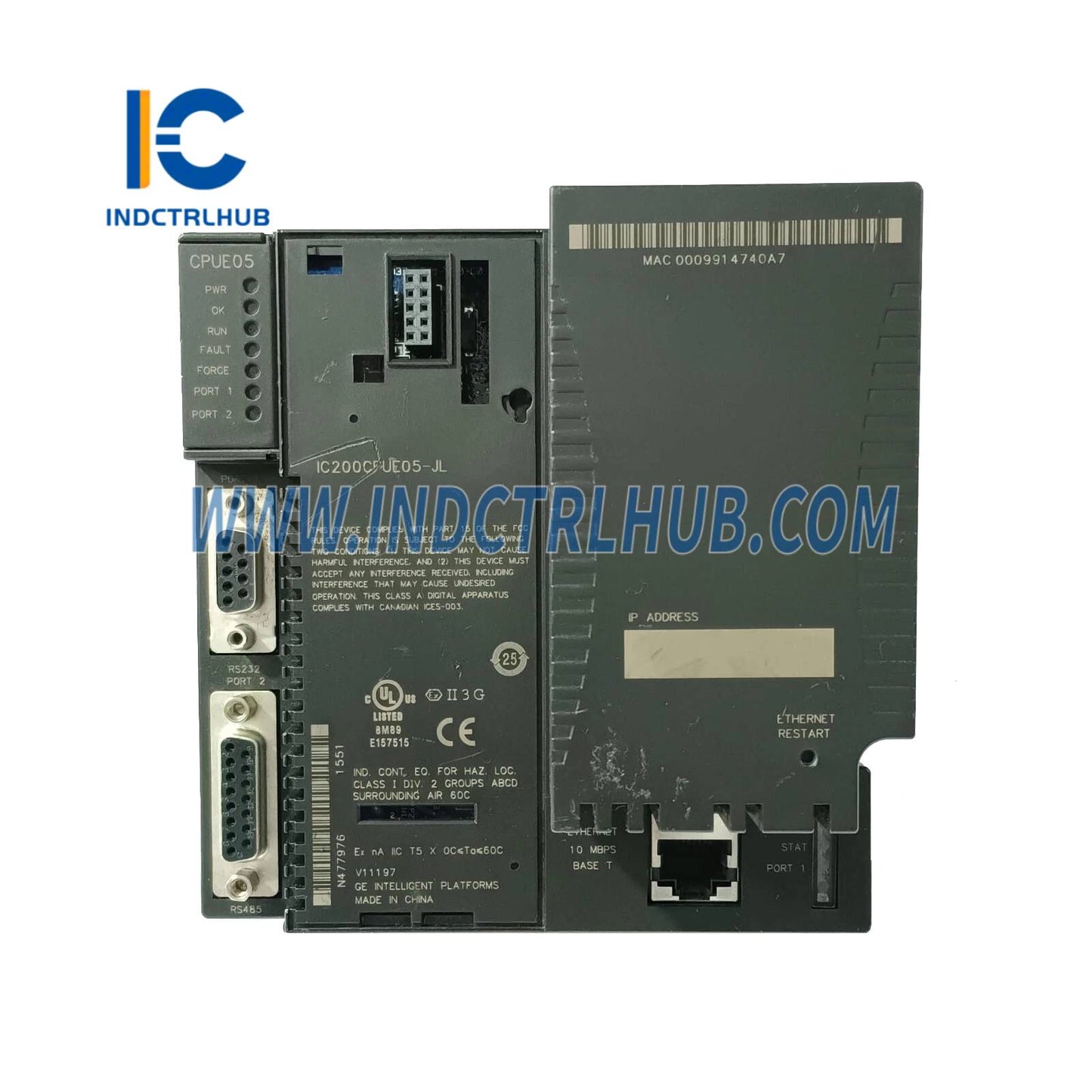

| Model |
IC200CPUE05 |
| Series |
VersaMax |
| Type |
CPU Module |
| Processor |
High-performance microprocessor |
| User Memory |
128 KB (64 KB logic, 64 KB data) |
| I/O Capacity |
2048 I/O points max; supports up to 8 I/O racks |
| Serial Ports |
2 (Port 1: RS-232, Port 2: RS-485; both support SNP, RTU, Serial I/O) |
| Ethernet Interface |
Built-in 10BaseT RJ-45 port (SRTP client/server, Modbus TCP) |
| Boolean Execution Speed |
0.8 ms/K |
| Program Storage |
Flash memory (non-volatile) |
| Real-Time Clock |
Yes |
| Power Consumption |
220 mA from 5 V bus |
| Power Supply Requirement |
5 VDC via VersaMax backplane |
| LED Indicators |
PWR, OK, RUN, BATT, FAULT, SYS, PORT1, PORT2, Ethernet status |
| Battery Backup |
IC200ACC403 (for RAM and clock) |
| Supported Protocols |
SNP, Modbus RTU, Modbus TCP, SRTP |
| Operating Temperature |
0°C to +60°C (32°F to +140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Weight |
0.4 kg (0.88 lbs) |
| Dimensions |
11 x 6.6 x 5 cm (4.3 x 2.6 x 2 in) |
| Mounting |
Plugs into VersaMax CPU slot on DIN rail or panel |
| Certifications |
CE, UL, Class I Div 2 |
| Software Compatibility |
Proficy Machine Edition, VersaPro |
