Product Description

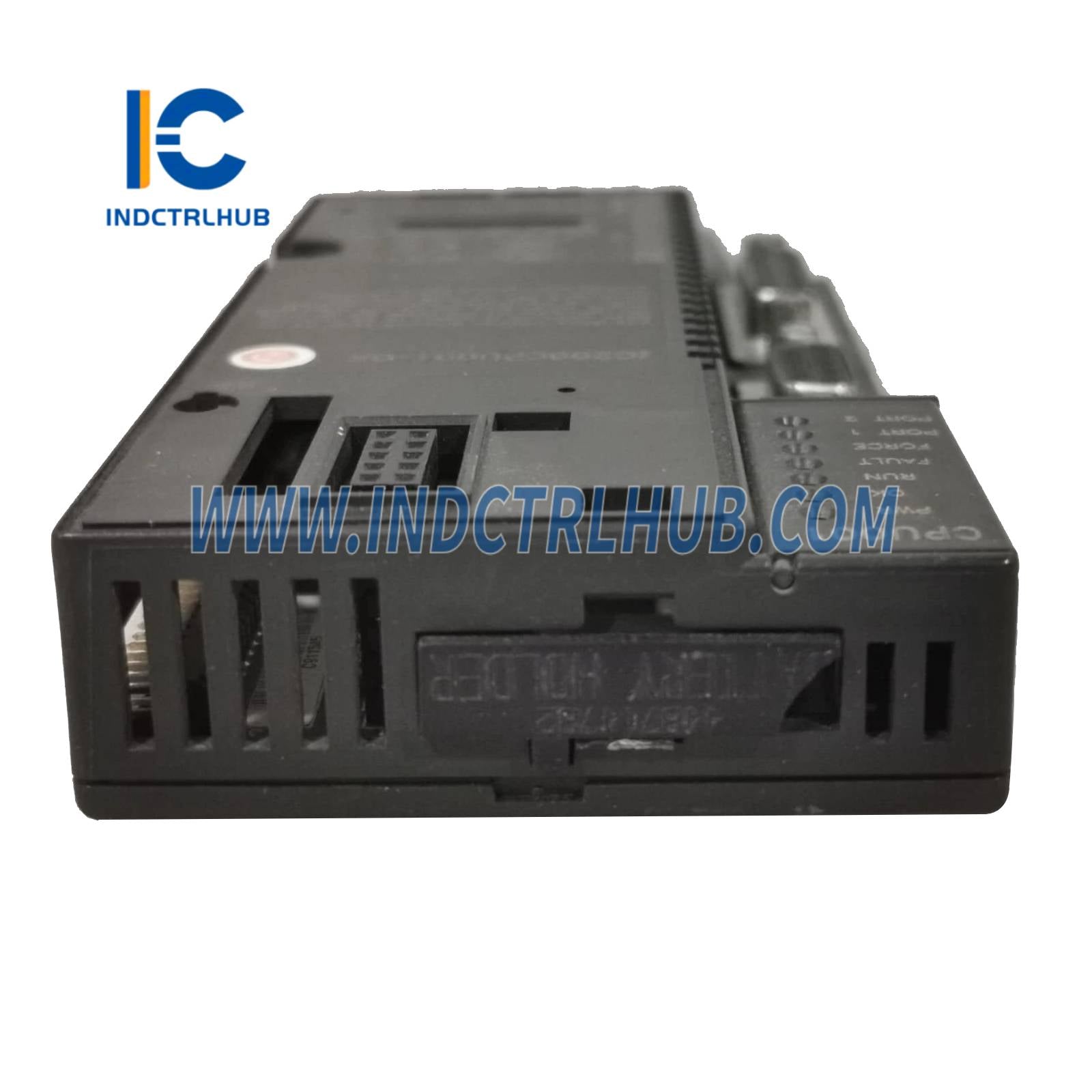

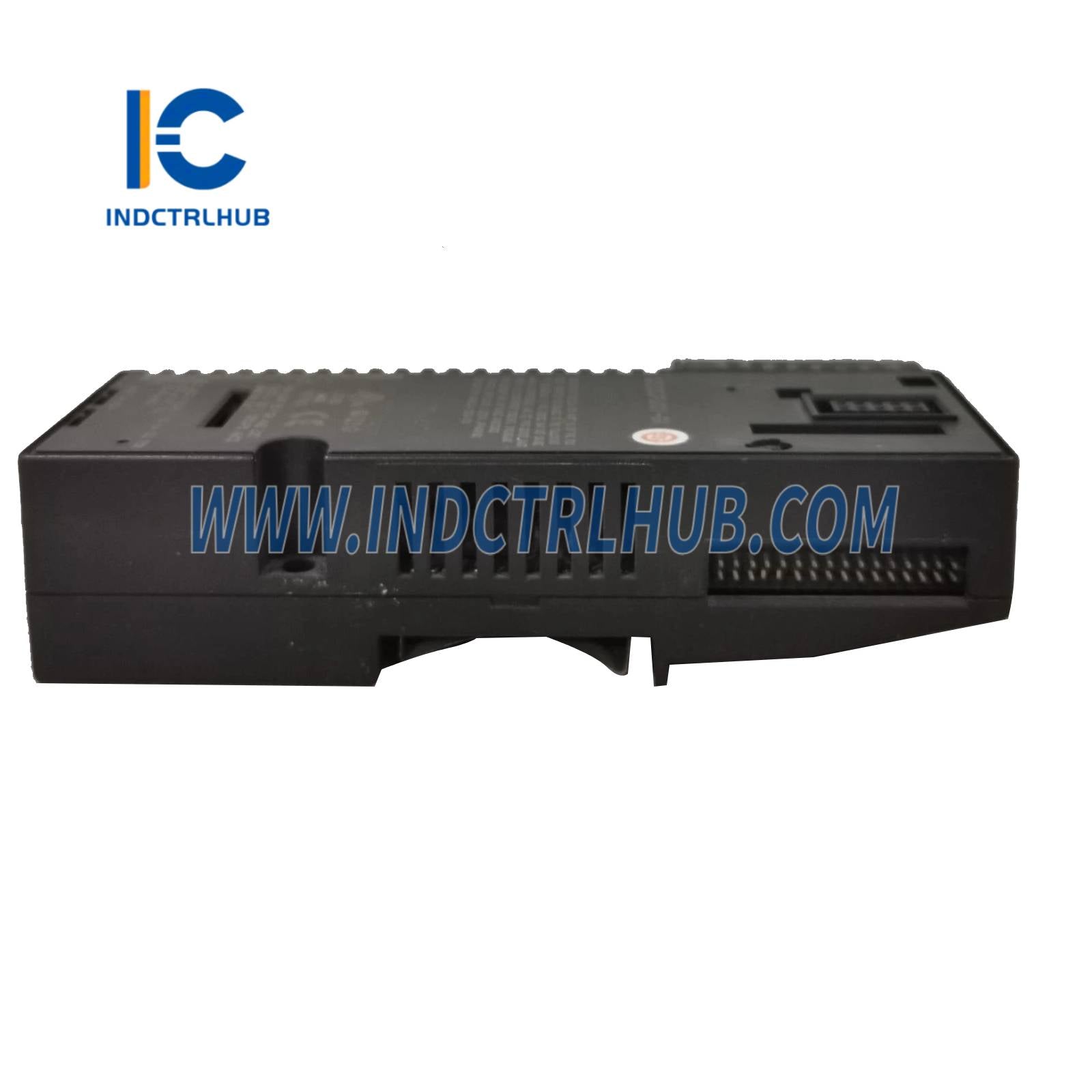

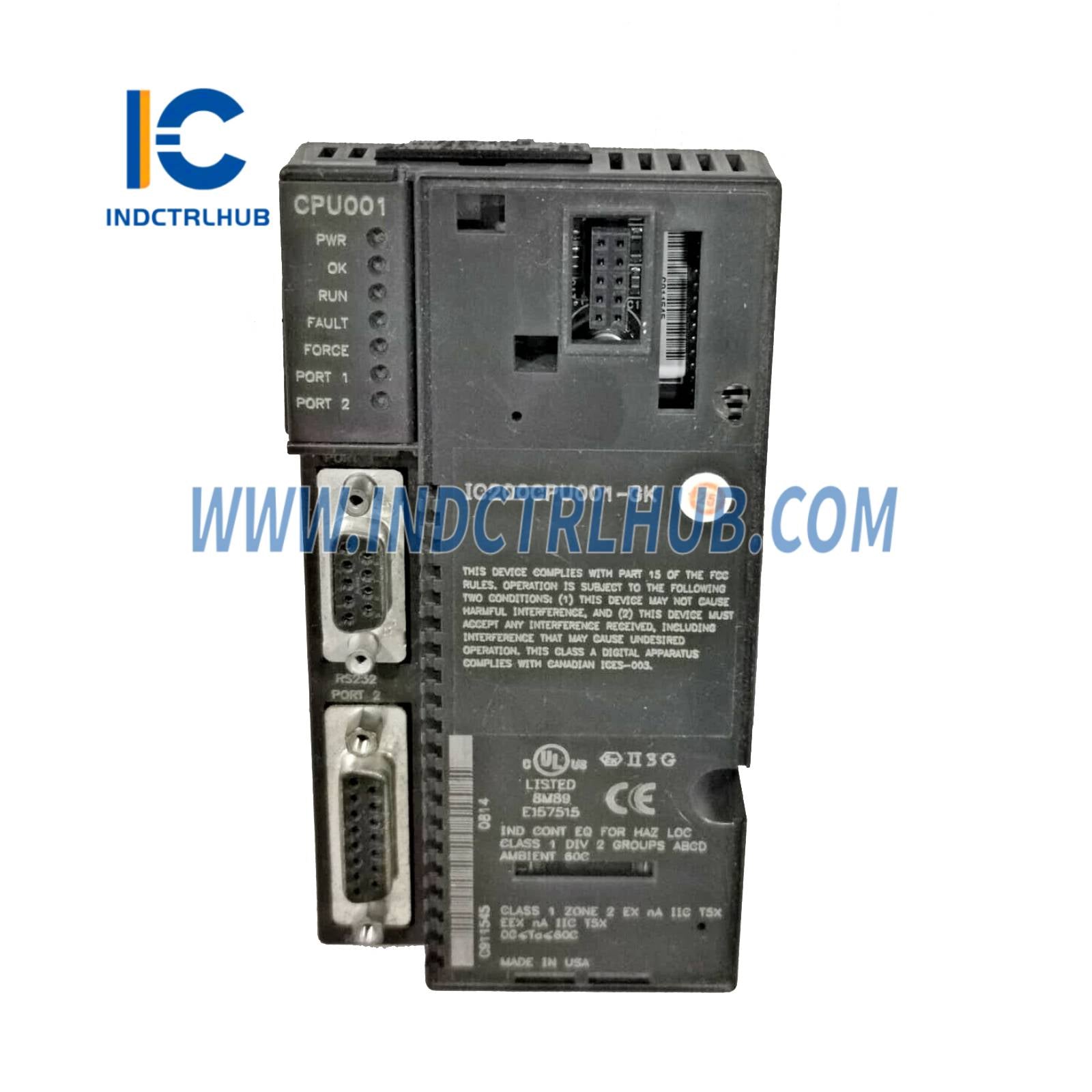

General Electric IC200CPU001-GK VersaMax CPU Module
Product Overview
- Description: The General Electric IC200CPU001-GK is a central processing unit (CPU) module designed for use with GE Fanuc VersaMax PLC systems. It serves as the main controller for executing user programs, managing I/O operations
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | VersaMax |
| Model/Part Number | IC200CPU001-GK |
| Model Type | CPU Module |
| Function | Executes control logic, manages I/O, and handles communication |

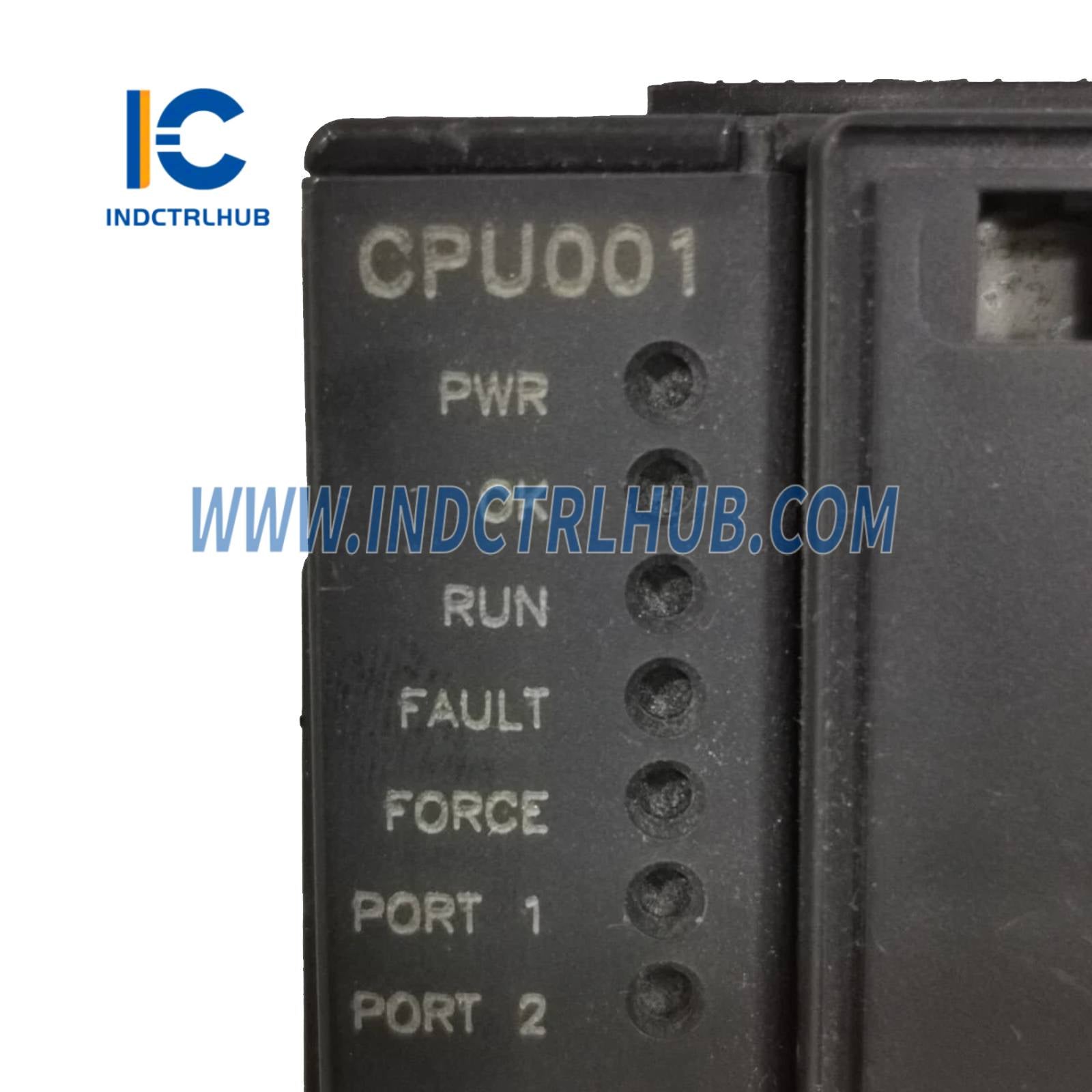

| Display | LED indicators (power, status, communication) |
| Inputs | Data from VersaMax I/O modules |
| Outputs | Control signals to VersaMax I/O modules |
| Communication Interfaces | RS-232, RS-485 (Modbus RTU), VersaMax backplane |
| Signal Conditioning | Not applicable |
| Accuracy | Not applicable |
| Redundancy | Non-redundant |
| Diagnostics | LED status indicators, fault reporting, program diagnostics |
| Compatibility | GE Fanuc VersaMax PLC systems |
| Processor | 16-bit microprocessor |
| Memory | 34 KB user memory (program and data) |
| Scan Time | 0.5 ms per 1 KB of logic |
| Power Supply | 5 VDC (from VersaMax backplane) |
| Power Consumption | 250 mA at 5 VDC max |
| Environmental Specifications | Operating Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in PLC rack) |
| Dimensions | 110 mm (H) x 50 mm (W) x 66 mm (D) |
| Weight | 0.25 kg |

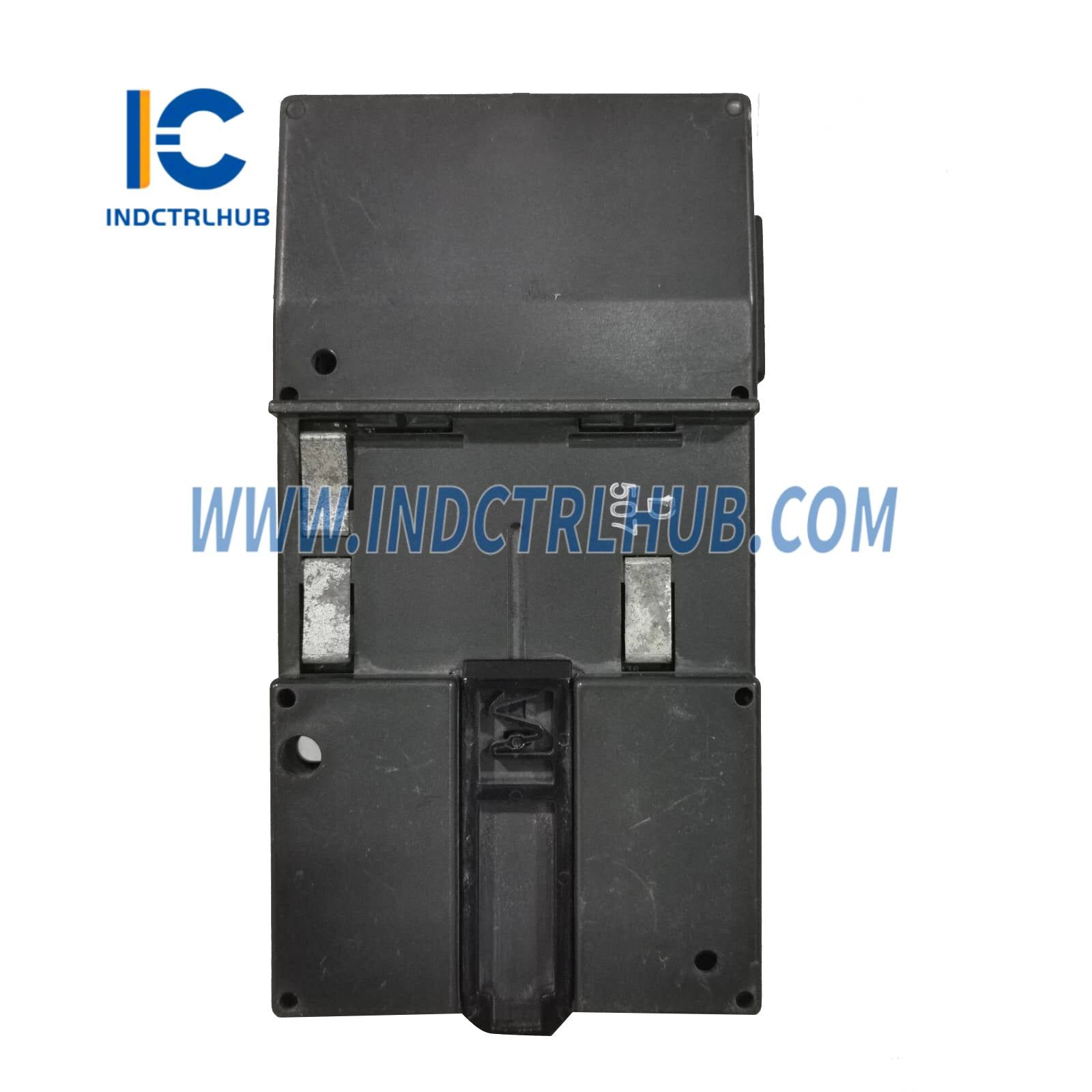

| Mounting | DIN-rail or panel mount in VersaMax rack |

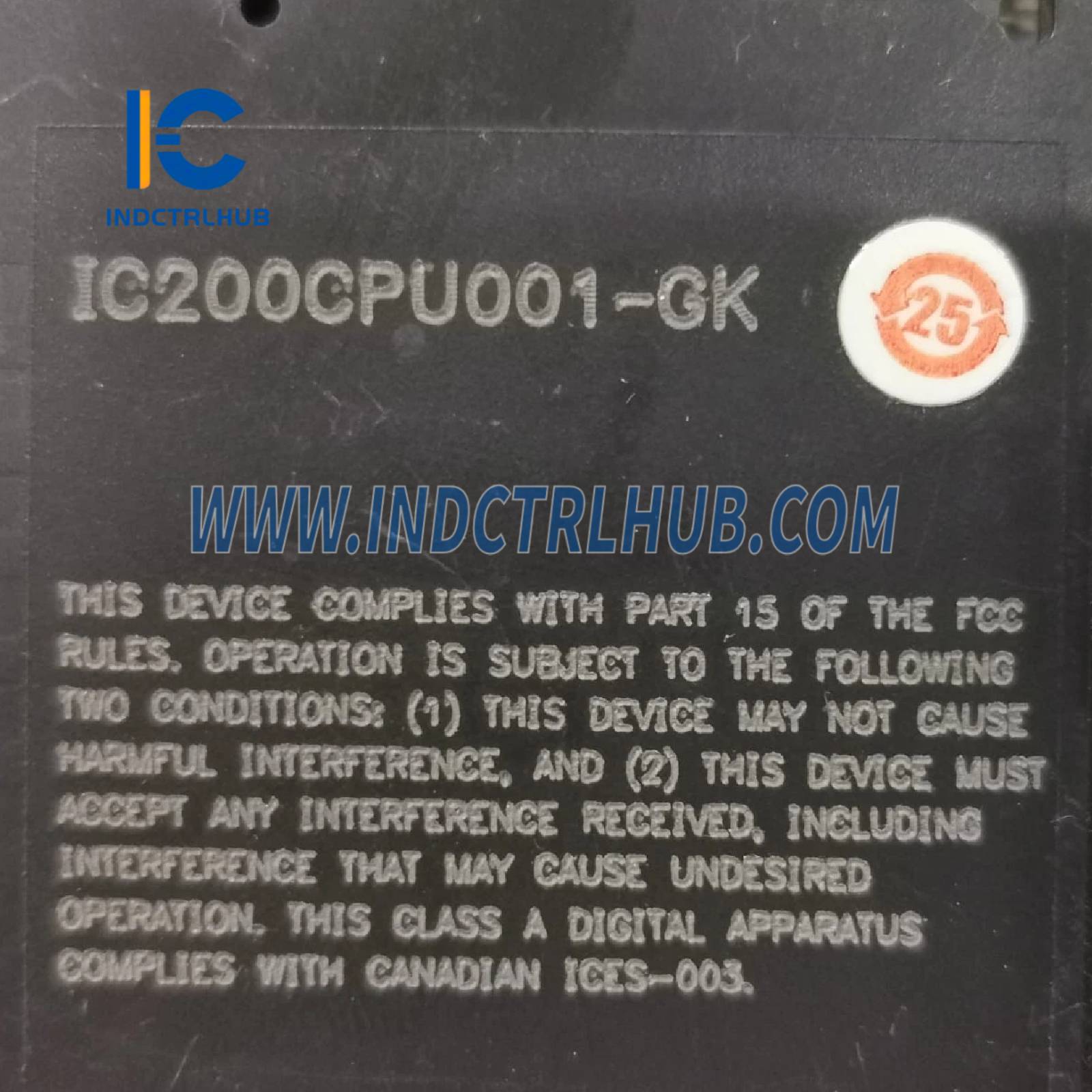

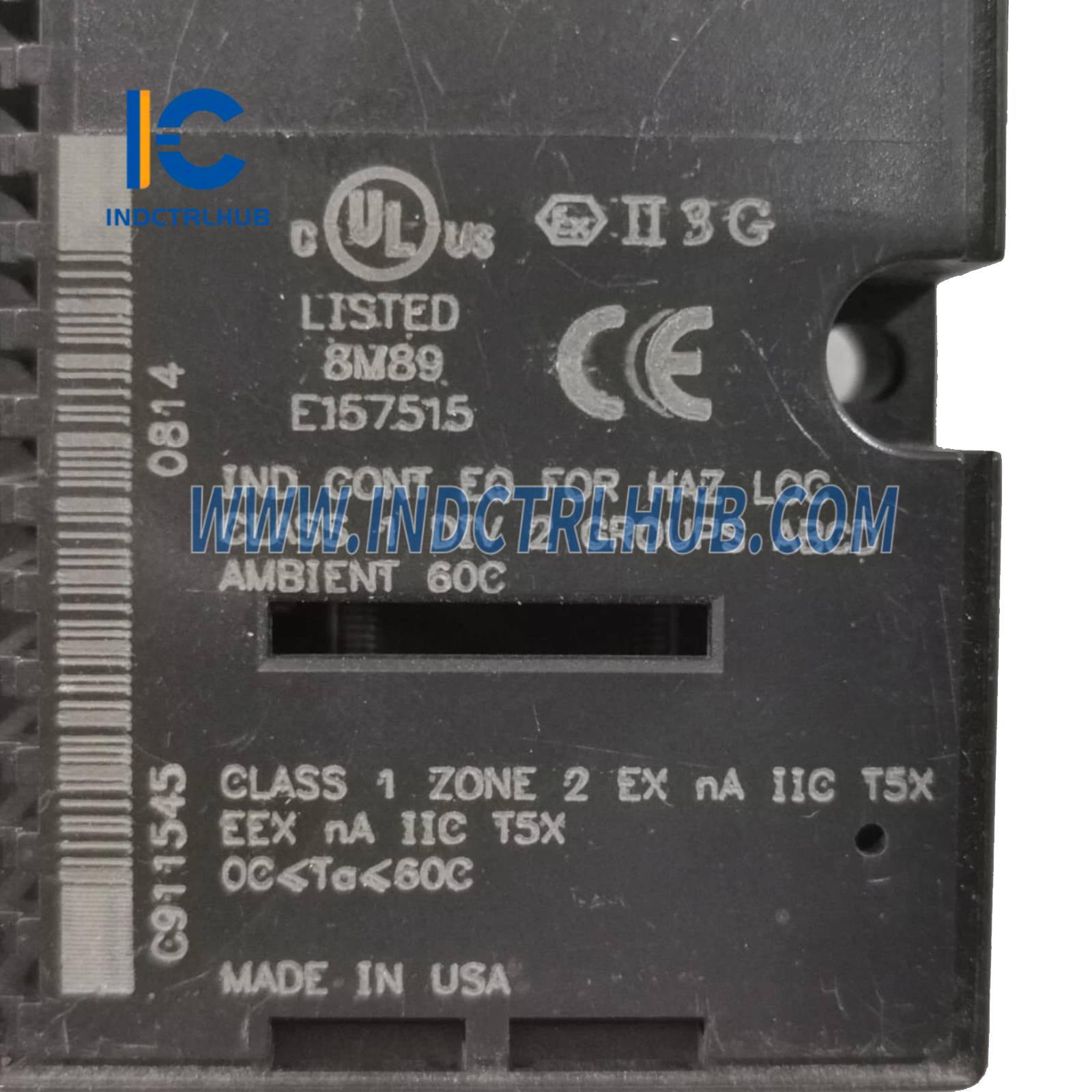

| Certifications | CE, UL, cULus, RoHS |
