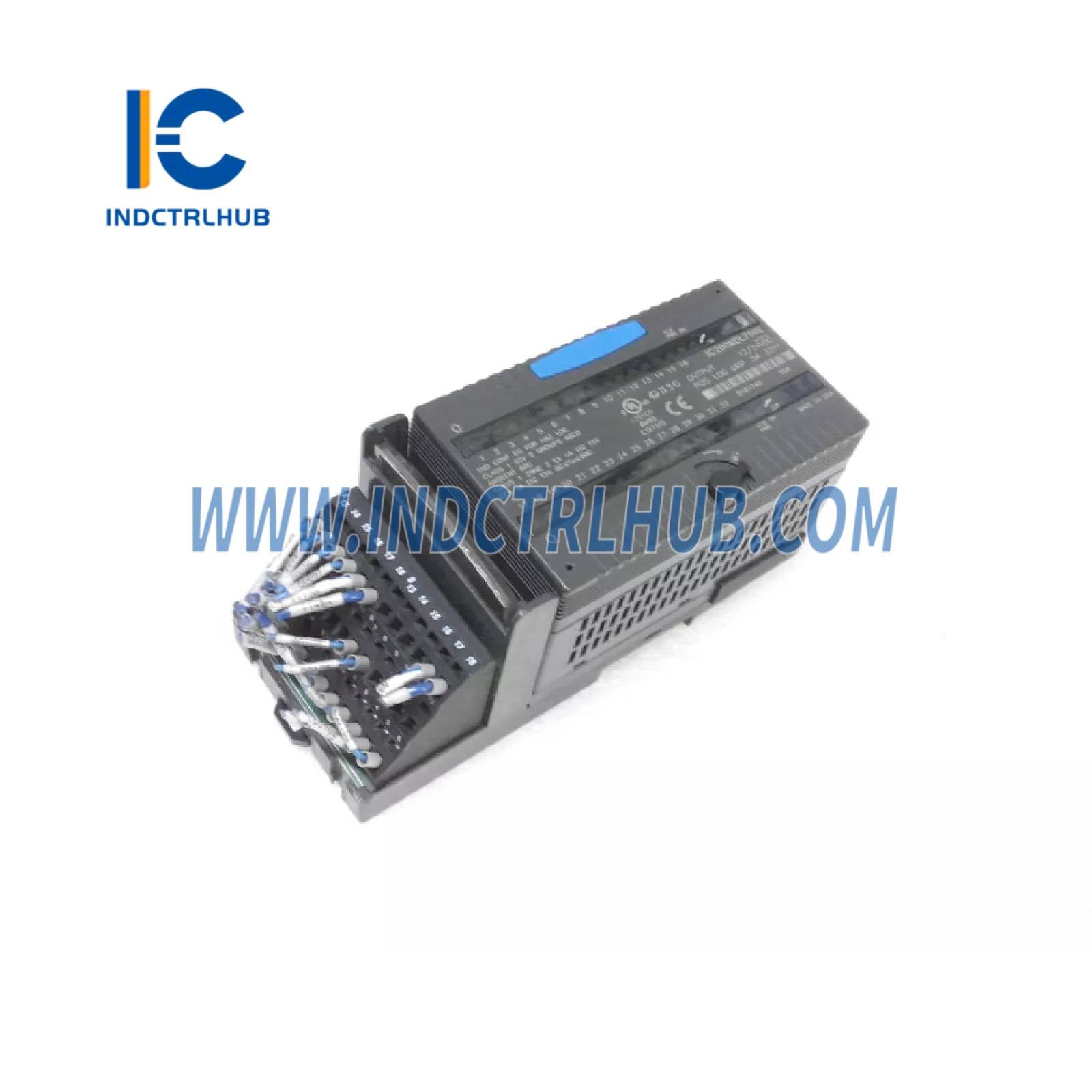

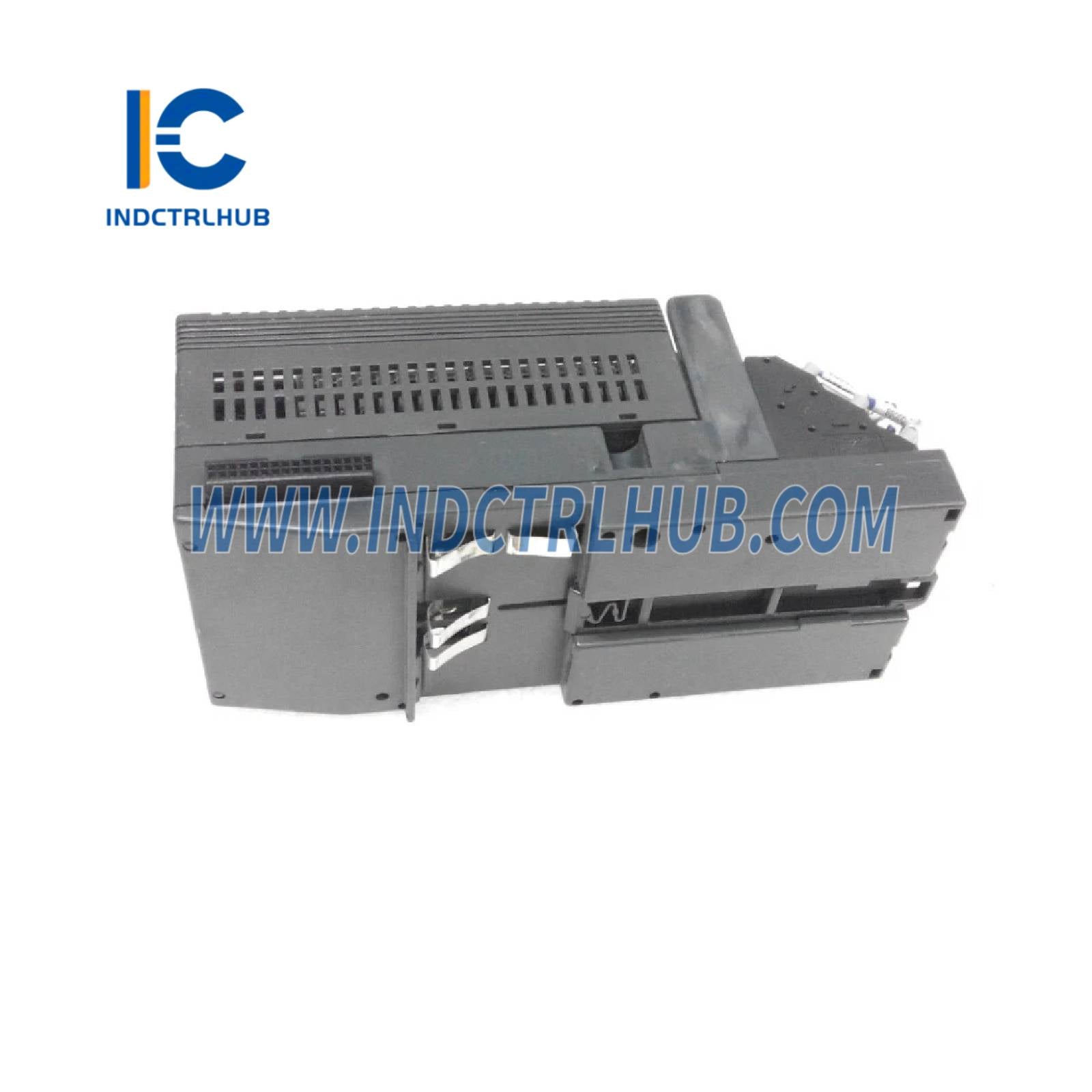

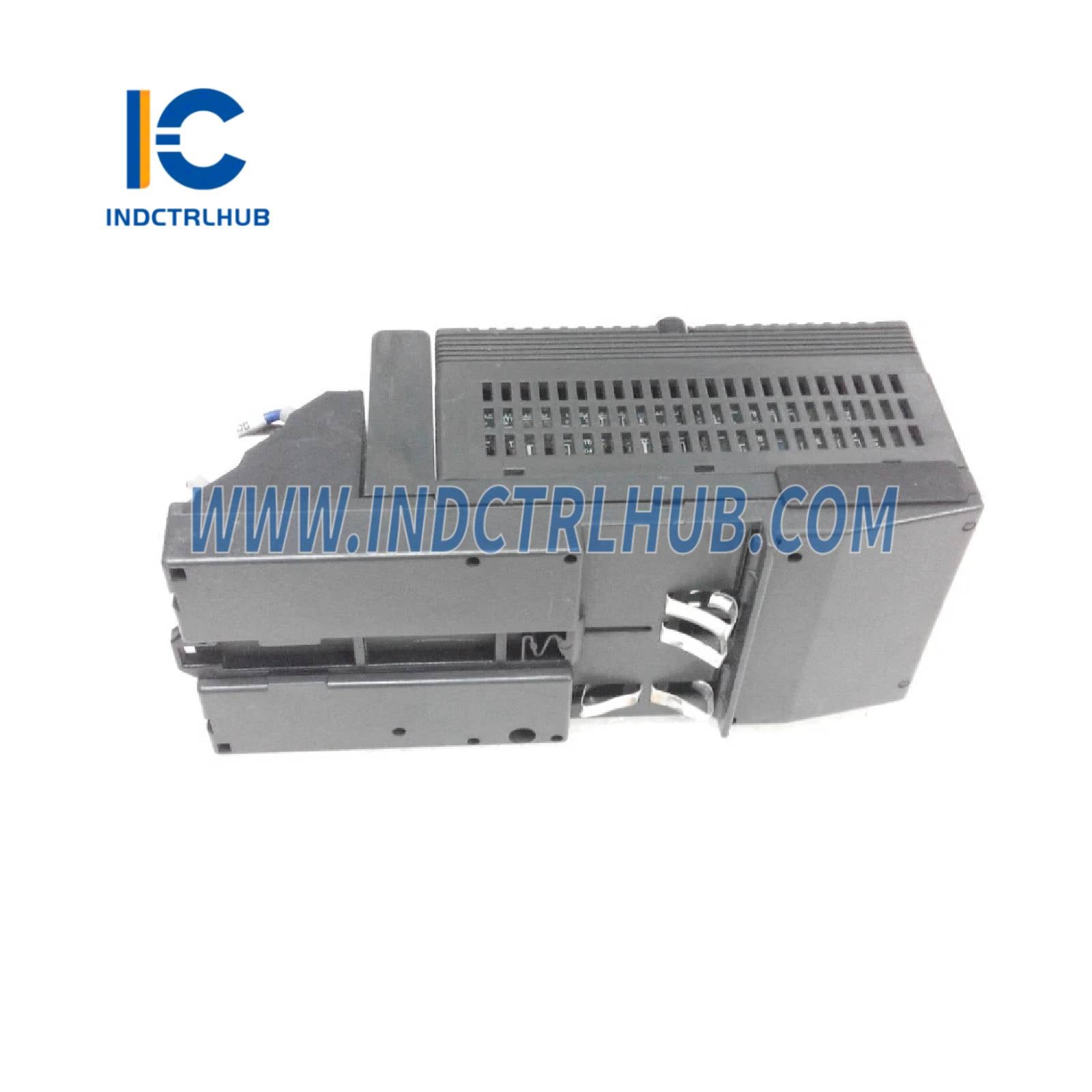

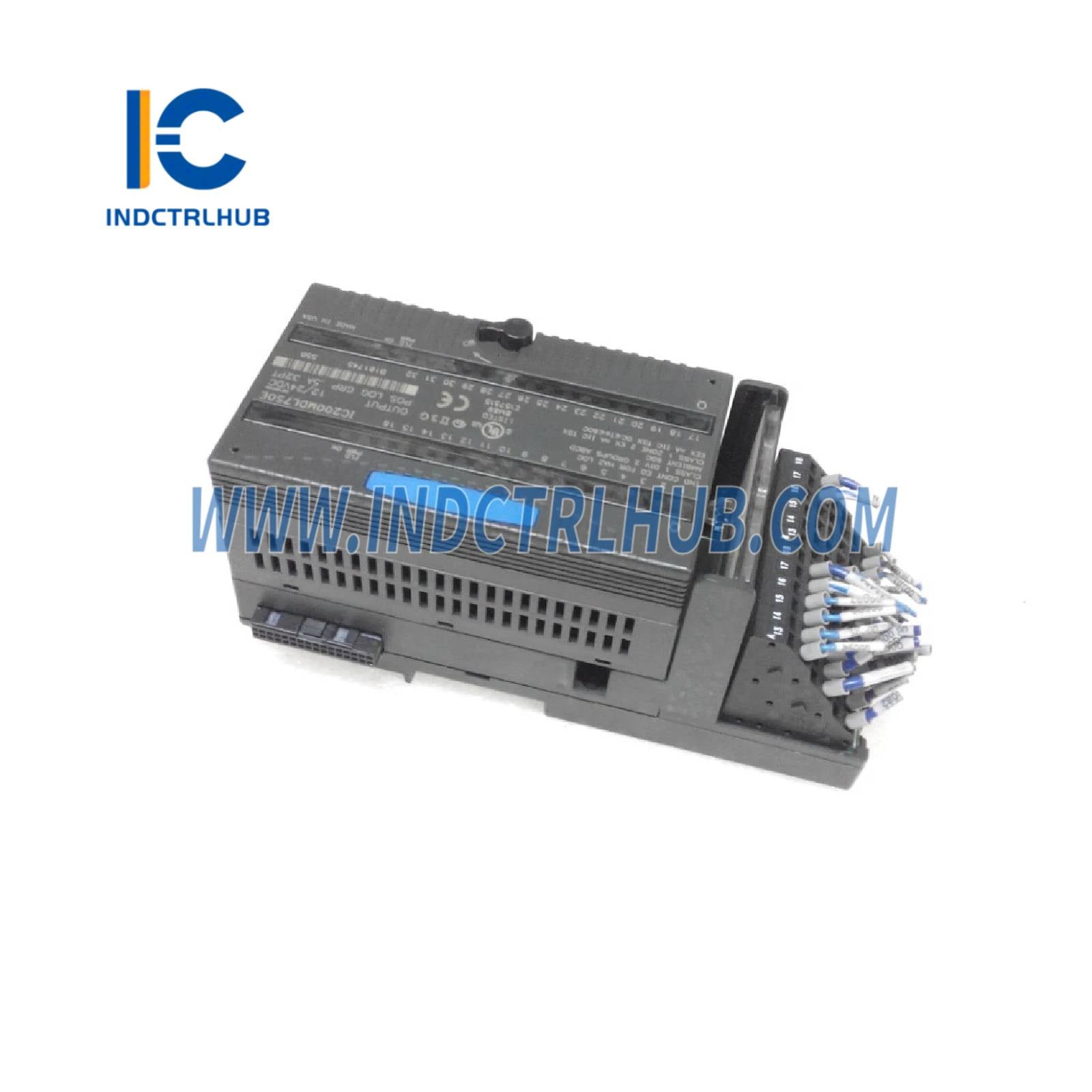

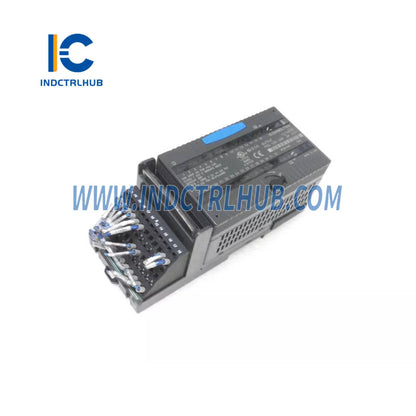

GE IC200CHS025F VersaMax Compact I/O Carrier

Quantity

General Electric IC200CHS025F VersaMax Compact I/O Carrier

Manufacturer: General Electric (now under Emerson Automation)
Series: VersaMax
Model/Part Number: IC200CHS025F
Description: Compact Spring-Style I/O Carrier for connecting I/O modules in industrial automation systems

The General Electric IC200CHS025F is a compact spring-style I/O carrier module from the VersaMax series, originally manufactured by GE Fanuc and now managed by Emerson Automation. Designed for industrial automation, it provides a platform for connecting up to 32 input/output points and four common/power connections, facilitating reliable signal interfacing in applications such as manufacturing, process control, and substation automation. The "-F" revision indicates a specific hardware or firmware update.

Specification	Details
Model	IC200CHS025F
Series	VersaMax
Type	Compact I/O Carrier (Spring-Style)
Terminals	36 IEC spring-style terminals (A1–A18, B1–B18)
I/O Support	Up to 32 I/O points, 4 common/power connections
Voltage Range	0–264 VAC
Current Rating	2 A per point, 8 A per power/ground connection
Wire Size	Single wire: AWG #14–#22 (solid or stranded copper); Two wires: AWG #18 (same type/size)
Wire Temperature Rating	90°C (194°F)
Transient Voltage	Up to 300 VAC without damage
Terminal Torque	0.37–0.5 lb-ft
Mounting	7.5 x 35 mm DIN rail or panel mount
Installation Features	Latch hole for module fastening, carrier-to-carrier mating connectors, keying mechanism
Operating Temperature	0°C to +60°C (32°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% (non-condensing)
Weight	0.3 kg (0.66 lbs)
Dimensions	6 x 18 x 17.2 cm (2.4 x 7.1 x 6.8 in)
Certifications	CE, UL

Manufacturer: General Electric (now under Emerson Automation)
Series: VersaMax
Model/Part Number: IC200CHS025F
Description: Compact Spring-Style I/O Carrier for connecting I/O modules in industrial automation systems

The General Electric IC200CHS025F is a compact spring-style I/O carrier module from the VersaMax series, originally manufactured by GE Fanuc and now managed by Emerson Automation. Designed for industrial automation, it provides a platform for connecting up to 32 input/output points and four common/power connections, facilitating reliable signal interfacing in applications such as manufacturing, process control, and substation automation. The "-F" revision indicates a specific hardware or firmware update.

Specification	Details
Model	IC200CHS025F
Series	VersaMax
Type	Compact I/O Carrier (Spring-Style)
Terminals	36 IEC spring-style terminals (A1–A18, B1–B18)
I/O Support	Up to 32 I/O points, 4 common/power connections
Voltage Range	0–264 VAC
Current Rating	2 A per point, 8 A per power/ground connection
Wire Size	Single wire: AWG #14–#22 (solid or stranded copper); Two wires: AWG #18 (same type/size)
Wire Temperature Rating	90°C (194°F)
Transient Voltage	Up to 300 VAC without damage
Terminal Torque	0.37–0.5 lb-ft
Mounting	7.5 x 35 mm DIN rail or panel mount
Installation Features	Latch hole for module fastening, carrier-to-carrier mating connectors, keying mechanism
Operating Temperature	0°C to +60°C (32°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% (non-condensing)
Weight	0.3 kg (0.66 lbs)
Dimensions	6 x 18 x 17.2 cm (2.4 x 7.1 x 6.8 in)
Certifications	CE, UL
