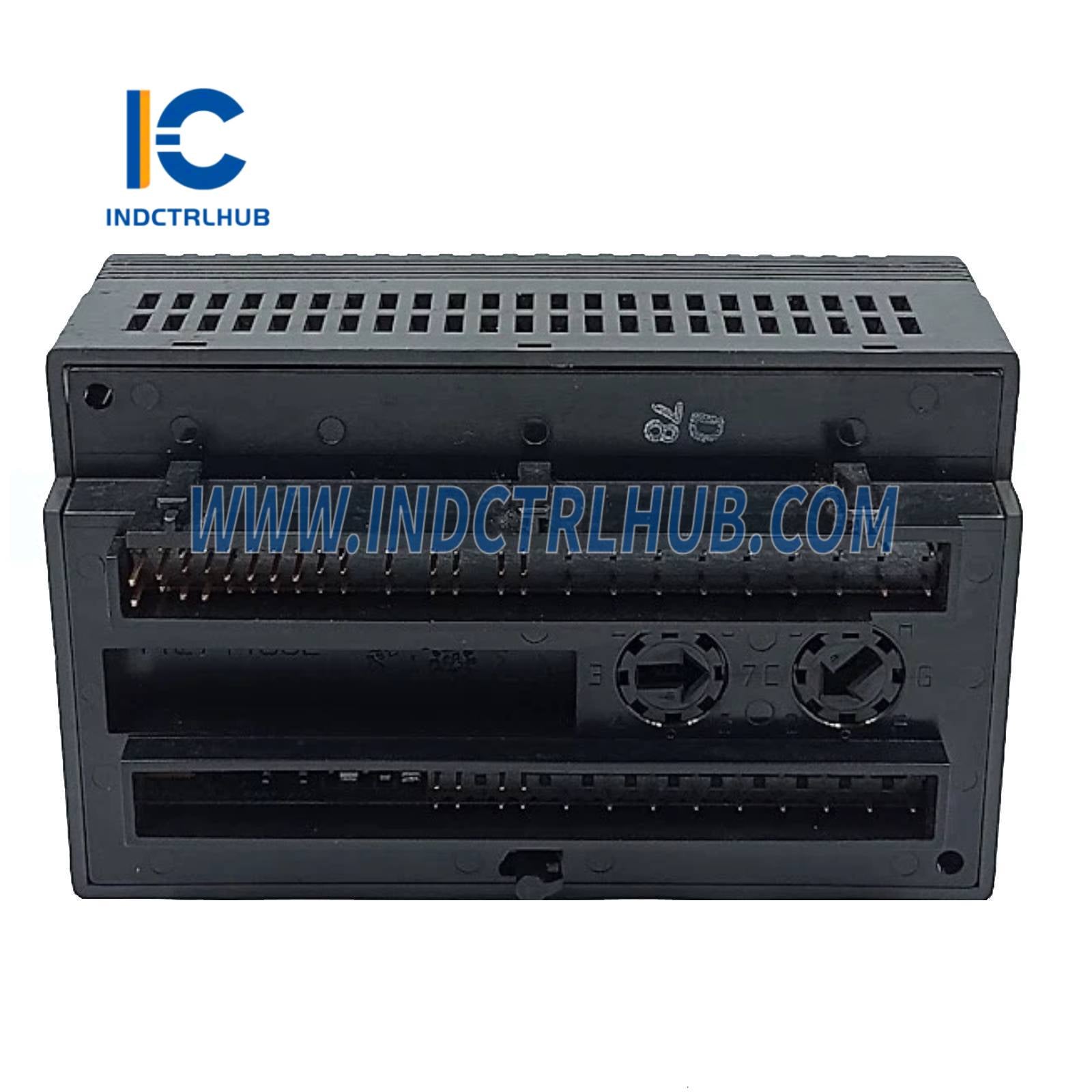

GE IC200ALG331-GD 4-Channel Analog Output Module

GE IC200ALG331-GD 4-Channel Analog Output Module

  • Manufacturer: General Electric

  • Product No.: IC200ALG331-GD

  • Condition:1000 in stock

  • Product Type: 4-Channel Analog Output Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details



Parameter Details
Manufacturer General Electric
Model/Part Number IC200ALG331-GD
Description 4-Channel Analog Output Module (Voltage/Current, High-Accuracy, Revision GD)

Product Overview



Parameter Details
Part Number IC200ALG331-GD
Product Name IC200ALG331 VersaMax 4-Channel Analog Output Module
Application Precision control of voltage and current loops in critical industrial automation, process control, valve/damper positioning, and SCADA systems
Compatibility GE VersaMax I/O system; mounts on any VersaMax carrier (IC200ACCxxx); supports CPU/NIU via backplane; compatible with PACSystems RX3i, RSTi-EP, VersaMax Micro/Nano; supports IEC 61850-9-2 LE process bus
Function Generates four independent analog outputs (voltage or current, selectable per channel) with 16-bit resolution, HART 7 full pass-through, ultra-fast update, process bus streaming, and SIL 2 safety capability (Revision GD)

Functional Specifications



Parameter Details
Output Channels 4 single-ended, sourcing outputs (voltage or current, software/jumper selectable per channel)
Output Types - Voltage: 0_10 V, ±10 V - Current: 4_20 mA, 0_20 mA
Resolution 16-bit (0.31 mV or 0.61 µA per LSB)
Accuracy ±0.05% of full scale at 25°C; ±0.1% over full temperature range
Update Rate 4 ms for all 4 channels (1 ms per channel sequential)
Load Capability - Voltage: _ 2 kΩ (5 mA max) - Current: 0_1000 Ω @ 24 V DC; compliance up to 30 V
Loop Power External 24 V DC (19.2_30 V); HART 7 fully compliant
HART Pass-Through Yes _ bidirectional HART 7 (multivariable, device config, diagnostics, burst mode, asset management)
Process Bus (IEC 61850-9-2 LE) Yes _ sampled values (SV) streaming over Ethernet (optional firmware mode)
Open Loop Detection Yes _ current mode: load < 50 Ω or > 1.2 kΩ; voltage mode: < 500 Ω; per-channel alarm
Short Circuit Protection Yes _ current limit at 28 mA (current mode); voltage foldback (voltage mode)
Isolation 1500 V RMS field-to-backplane; 250 V RMS channel-to-channel
Settling Time < 1.2 ms to 0.1% of final value
Slew Rate Configurable 0.1_250 mA/ms or V/ms
Scaling & Linearization User-defined units, 32-point custom table per channel, clamp limits, ramp/soak, output fallback (safe state)
Diagnostics Open loop, short circuit, overrange, HART device health, loop voltage/resistance, output drift, self-test, watchdog, field power loss
Safety Certification IEC 61508 SIL 2 capable (with certified application program)
Power Supply +5 V DC @ 180 mA, +3.3 V DC @ 120 mA (backplane)
Power Consumption 1.2 W maximum
External Power 24 V DC @ 160 mA (isolated loop/field supply)
Communication Ports Dual Gigabit Ethernet (RJ45, switched) _ supports firmware, config, HART, OPC UA, process bus, REST API
LED Indicators OK (green), Fault (red), 4x Active (green), HART Comm (yellow, blinking), SV Stream (blue), Field Power (green)
Configuration Proficy Machine Edition (PME) 10.5+, web server, USB-C front port, OPC UA server, REST API, SNMP monitoring
Firmware Field-upgradable via Ethernet, USB-C, or PME
Operating Temperature Range -40°C to +70°C (extended)
Storage Temperature Range -40°C to +85°C
Humidity 5% to 95% non-condensing
Vibration IEC 60068-2-6 (10g, 10_500 Hz)
Shock IEC 60068-2-27 (50g, 11 ms)
Mounting Snaps onto VersaMax carrier base (IC200ACCxxx)
Dimensions 4.33" x 2.60" x 1.77" (110 mm x 66 mm x 45 mm)
Weight 0.50 lb (0.23 kg)
Enclosure Rating IP20
Revision GD Enhancements 16-bit resolution, 4 ms update, dual Gigabit Ethernet, SIL 2, REST/SNMP, mixed V/I per channel, enhanced EMC, faster settling
Standards Compliance IEC 61131-2, IEC 61508 SIL 2, CE, UL, CSA, Class I Div 2, ATEX/IECEx Zone 2, HART 7 Registered, IEC 61850-9-2, RoHS 3, IEC 61000-6-2/4, EN 61326-1 (industrial EMC)
