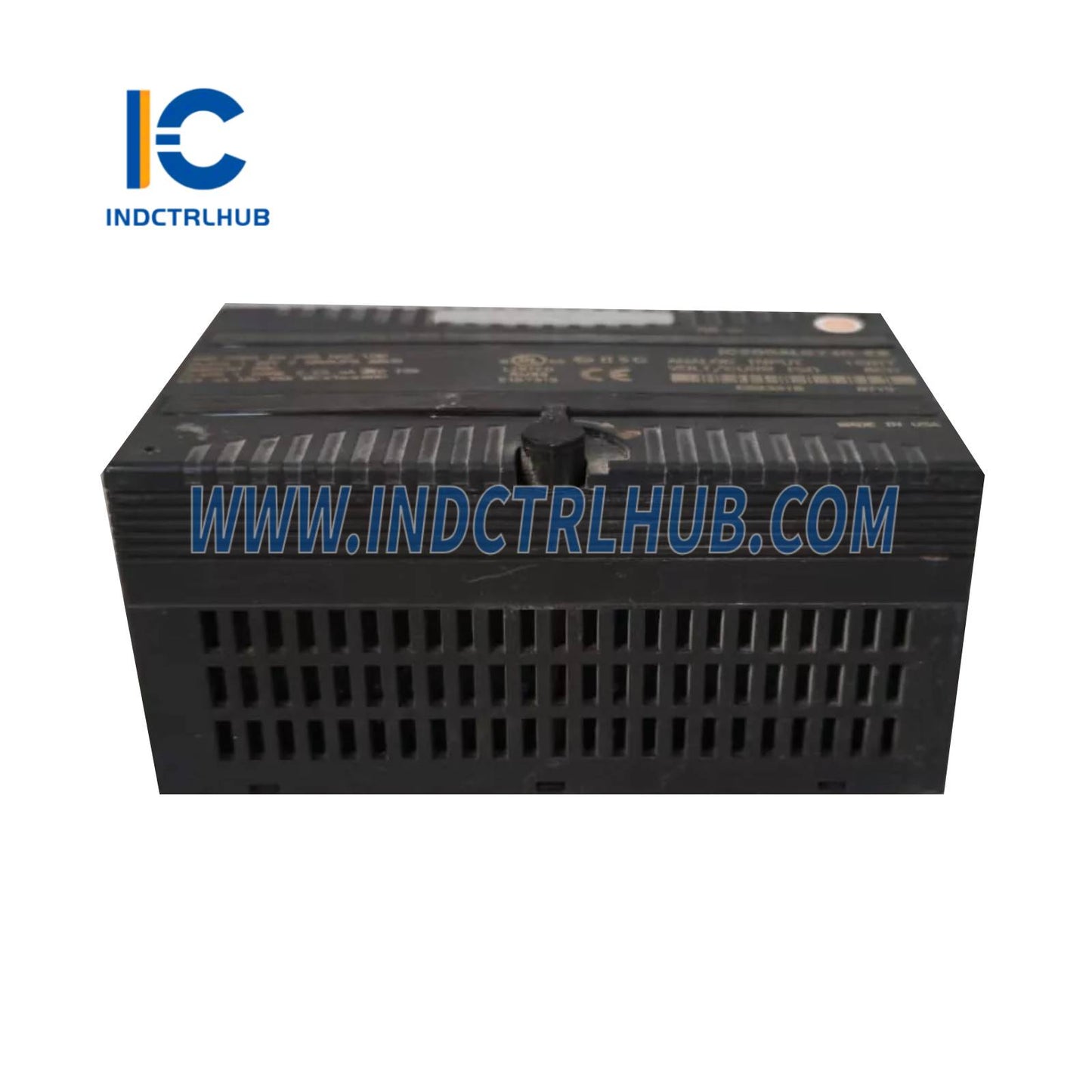

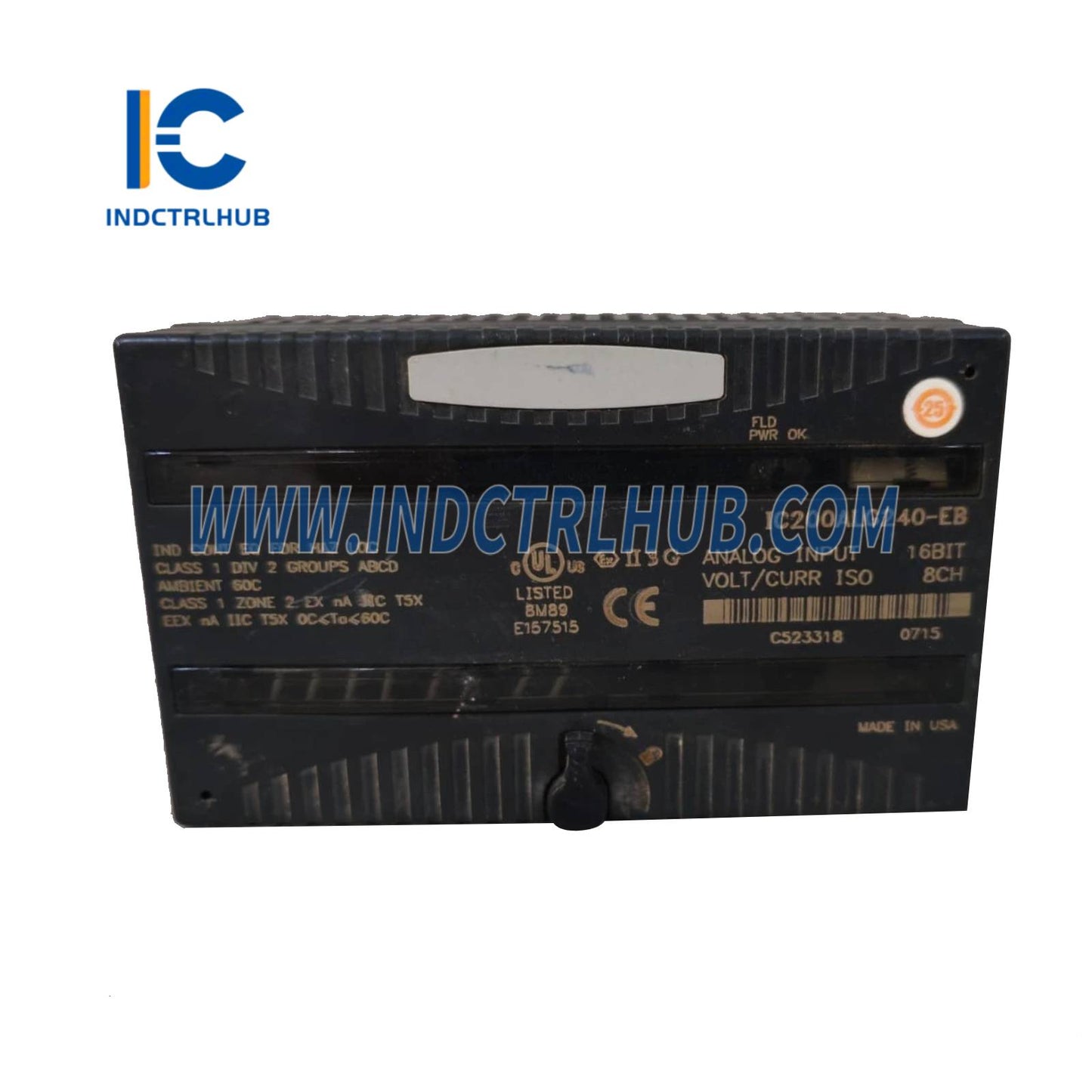

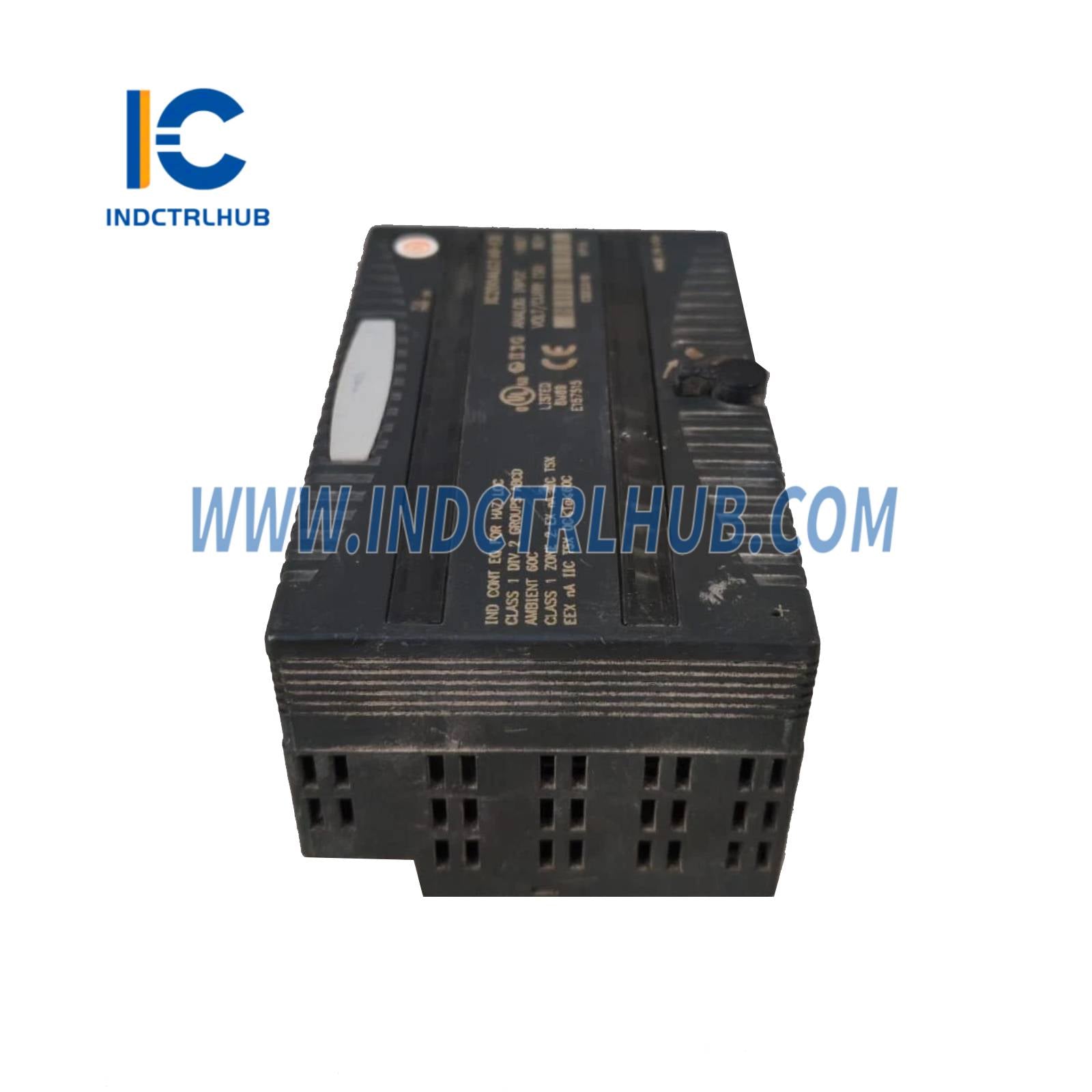

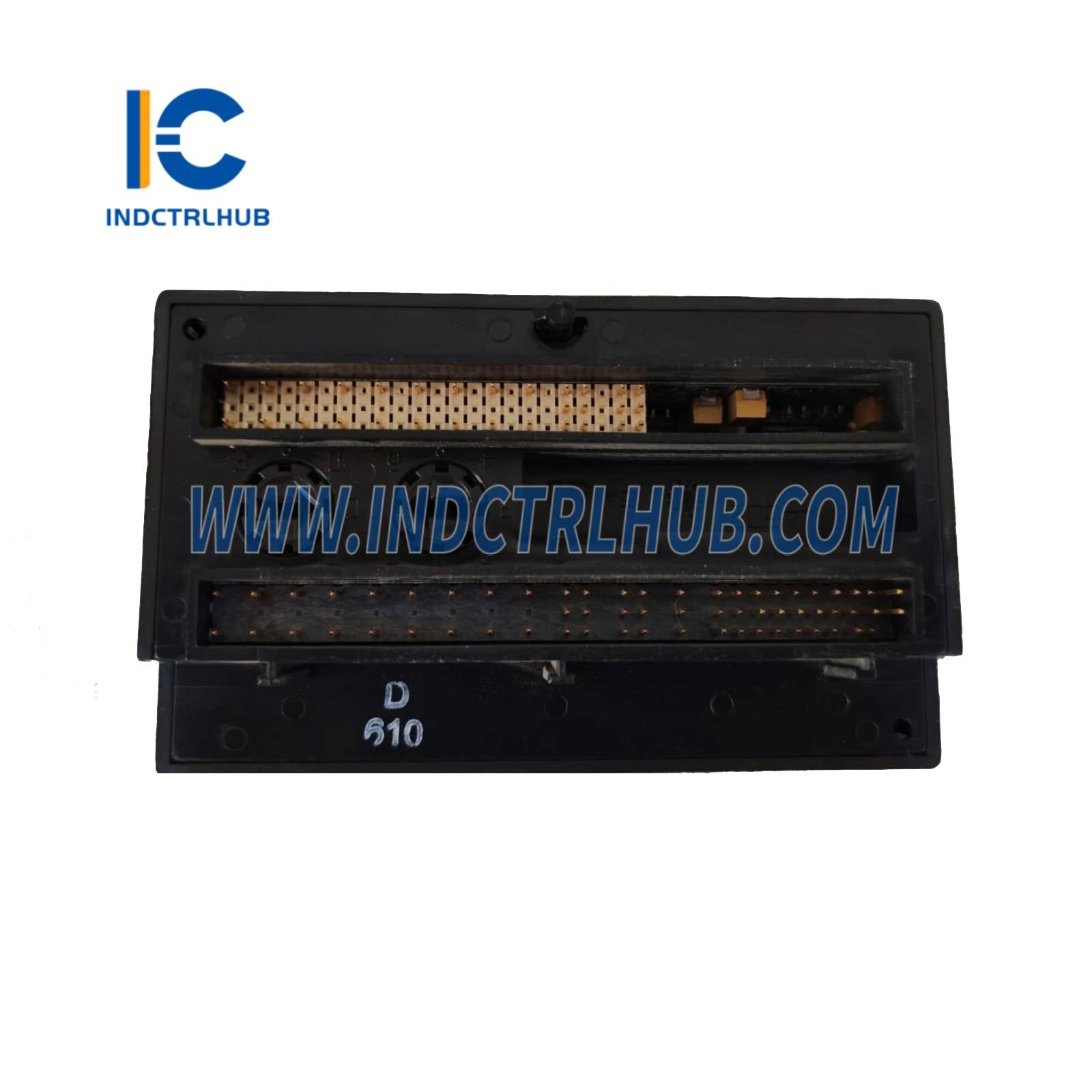

GE IC200ALG240-EB（IC200ALG240）VersaMax Analog Input Module

Quantity

General Electric IC200ALG240-EB VersaMax Analog Input Module

Manufacturer: General Electric (now under Emerson Automation)
Series: VersaMax
Model/Part Number: IC200ALG240-EB (IC200ALG240)
Description: 8-Channel, 16-Bit Voltage/Current Analog Input Module for industrial automation systems

The General Electric IC200ALG240-EB is an 8-channel, 16-bit analog input module from the VersaMax series, originally manufactured by GE Fanuc and now managed by Emerson Automation. Designed for industrial automation, it processes signals from up to eight isolated voltage or current inputs, offering high-resolution data acquisition for applications in manufacturing, process control, and industrial systems. The "-EB" revision indicates specific firmware or hardware updates.

Specification	Details
Model	IC200ALG240-EB
Series	VersaMax
Type	Analog Input Module
Channels	8 isolated, single-ended, one group
Voltage Range	±10 VDC (bipolar)
Current Range	4–20 mA
Resolution	16 bits; 381 nA (current mode), 381 µV (voltage mode)
Accuracy	±0.1% at 25°C
Update Rate	20 ms max at 50 Hz filter; 16.7 ms max at 60 Hz filter
Input Filter	Programmable notches at 50 Hz or 60 Hz
Isolation	1500 VAC (user input to logic, frame ground), 250 VAC continuous

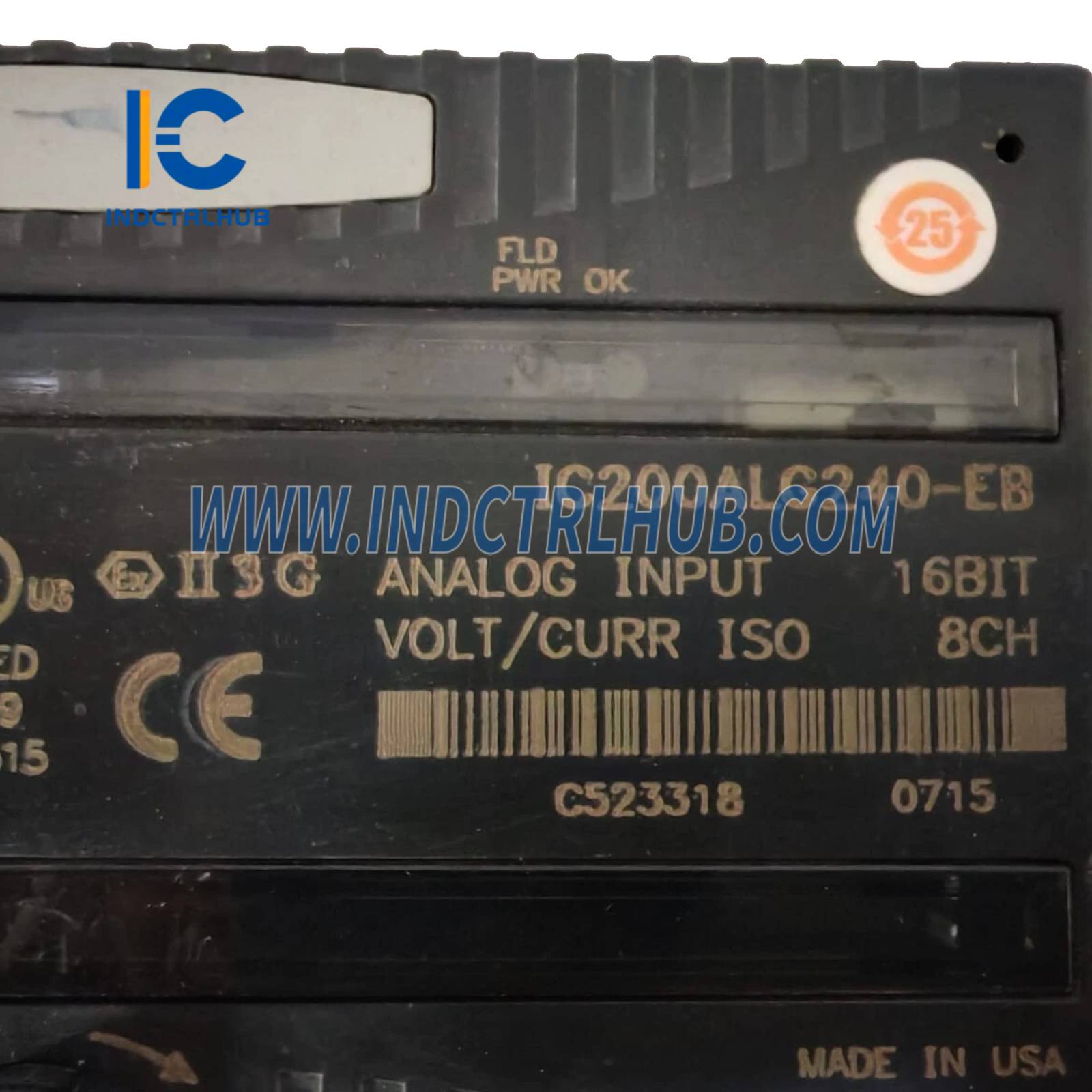

LED Indicators	FLD PWR (field power present), OK (backplane power present)
Power Consumption	15 mA from 5 V bus, 120 mA from 3.3 V bus
External Power Supply	19.5–30 VDC (for current mode), 100 mA max (plus load currents)
Diagnostics	High/low limit, open wire, loss of field power, non-volatile memory faults
Operating Temperature	0°C to +60°C (32°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% (non-condensing)
Weight	0.3 kg (0.66 lbs)
Dimensions	11 x 5 x 6.68 cm (4.3 x 2 x 2.63 in), excluding carrier/connector height
Mounting	DIN rail or panel mount on VersaMax carrier
Certifications	CE, UL
Compatibility	PLC CPU firmware v1.20 or later, EtherNet NIU EBI001 (all versions)

Manufacturer: General Electric (now under Emerson Automation)
Series: VersaMax
Model/Part Number: IC200ALG240-EB (IC200ALG240)
Description: 8-Channel, 16-Bit Voltage/Current Analog Input Module for industrial automation systems

The General Electric IC200ALG240-EB is an 8-channel, 16-bit analog input module from the VersaMax series, originally manufactured by GE Fanuc and now managed by Emerson Automation. Designed for industrial automation, it processes signals from up to eight isolated voltage or current inputs, offering high-resolution data acquisition for applications in manufacturing, process control, and industrial systems. The "-EB" revision indicates specific firmware or hardware updates.

Specification	Details
Model	IC200ALG240-EB
Series	VersaMax
Type	Analog Input Module
Channels	8 isolated, single-ended, one group
Voltage Range	±10 VDC (bipolar)
Current Range	4–20 mA
Resolution	16 bits; 381 nA (current mode), 381 µV (voltage mode)
Accuracy	±0.1% at 25°C
Update Rate	20 ms max at 50 Hz filter; 16.7 ms max at 60 Hz filter
Input Filter	Programmable notches at 50 Hz or 60 Hz
Isolation	1500 VAC (user input to logic, frame ground), 250 VAC continuous
LED Indicators	FLD PWR (field power present), OK (backplane power present)
Power Consumption	15 mA from 5 V bus, 120 mA from 3.3 V bus
External Power Supply	19.5–30 VDC (for current mode), 100 mA max (plus load currents)
Diagnostics	High/low limit, open wire, loss of field power, non-volatile memory faults
Operating Temperature	0°C to +60°C (32°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% (non-condensing)
Weight	0.3 kg (0.66 lbs)
Dimensions	11 x 5 x 6.68 cm (4.3 x 2 x 2.63 in), excluding carrier/connector height
Mounting	DIN rail or panel mount on VersaMax carrier
Certifications	CE, UL
Compatibility	PLC CPU firmware v1.20 or later, EtherNet NIU EBI001 (all versions)
