Product Description

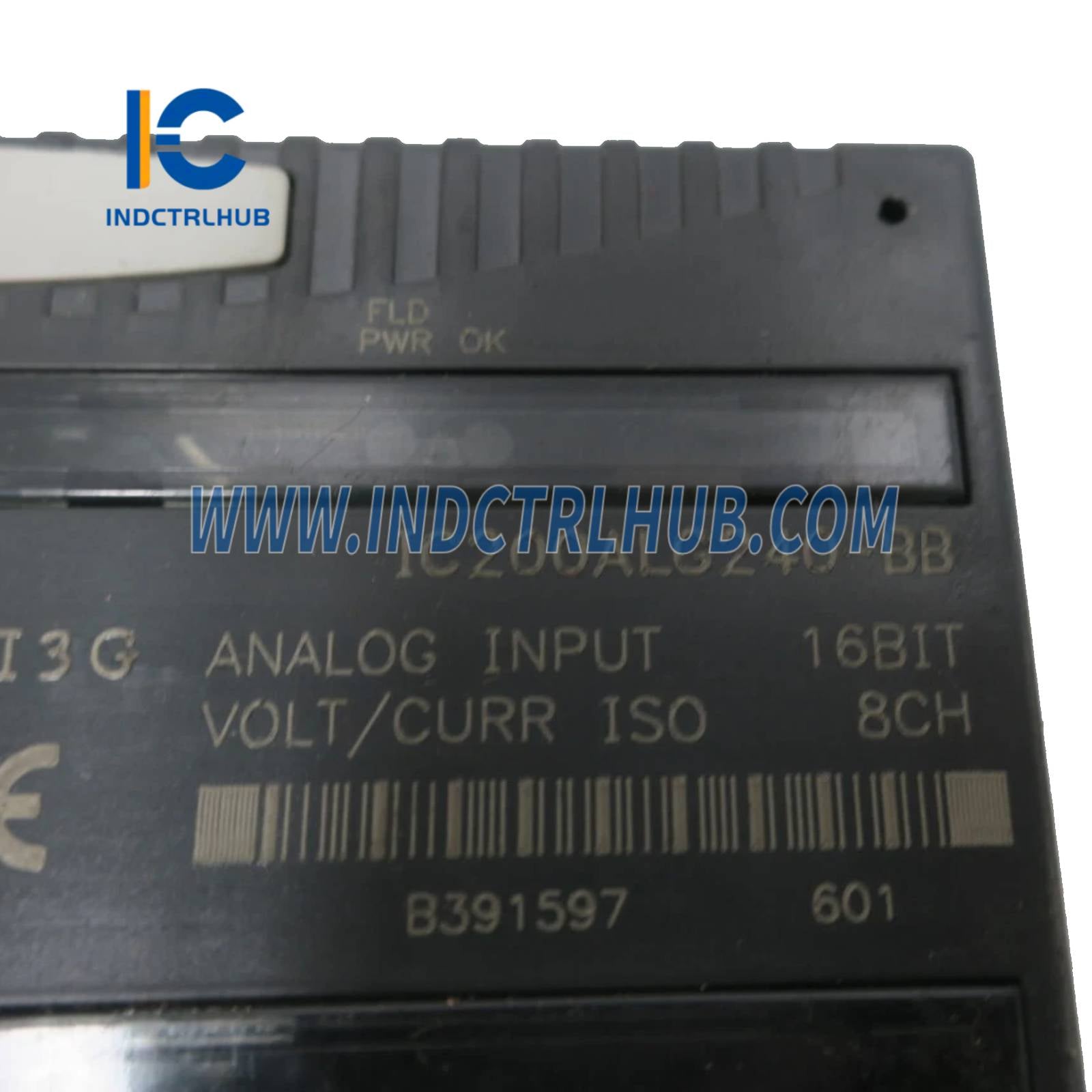

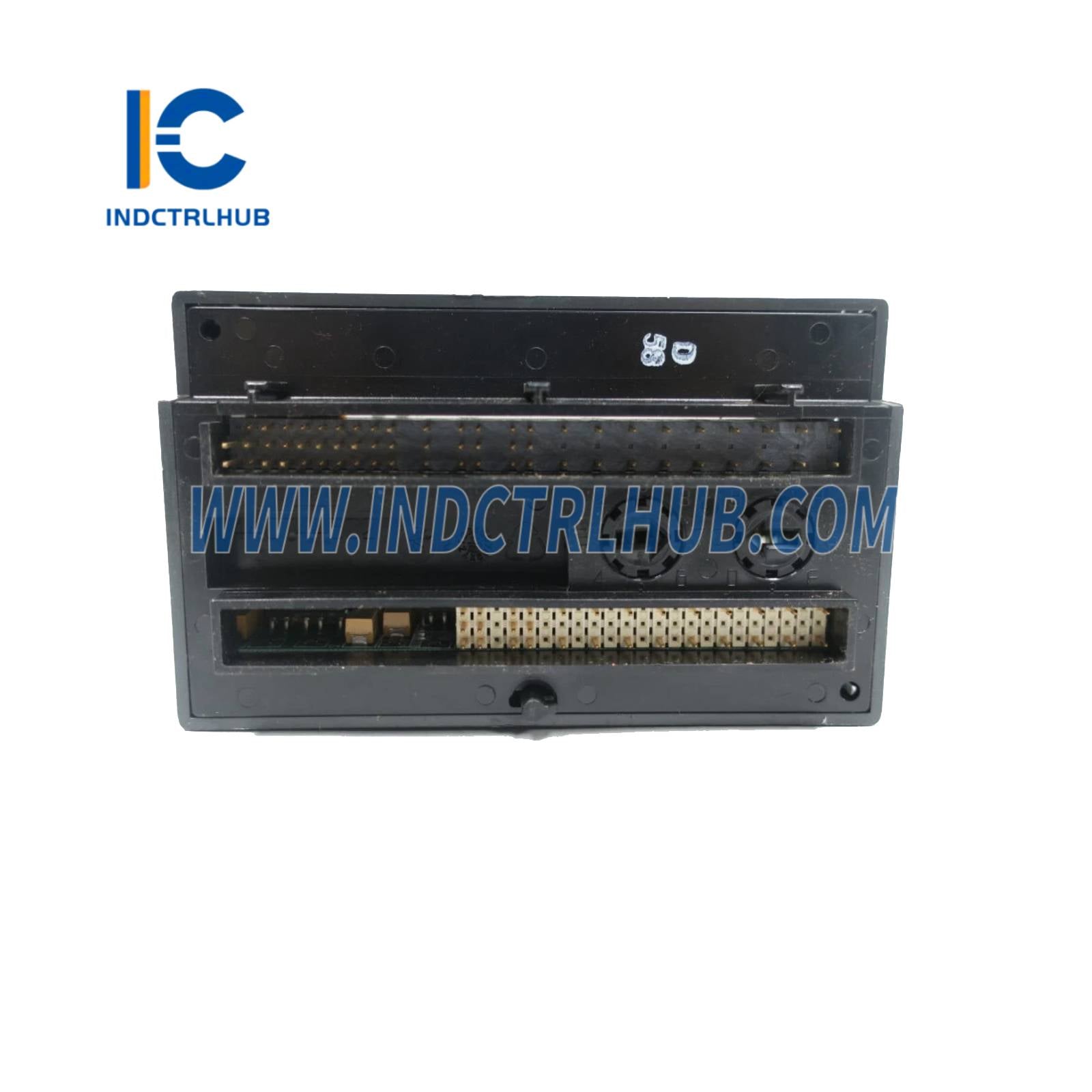

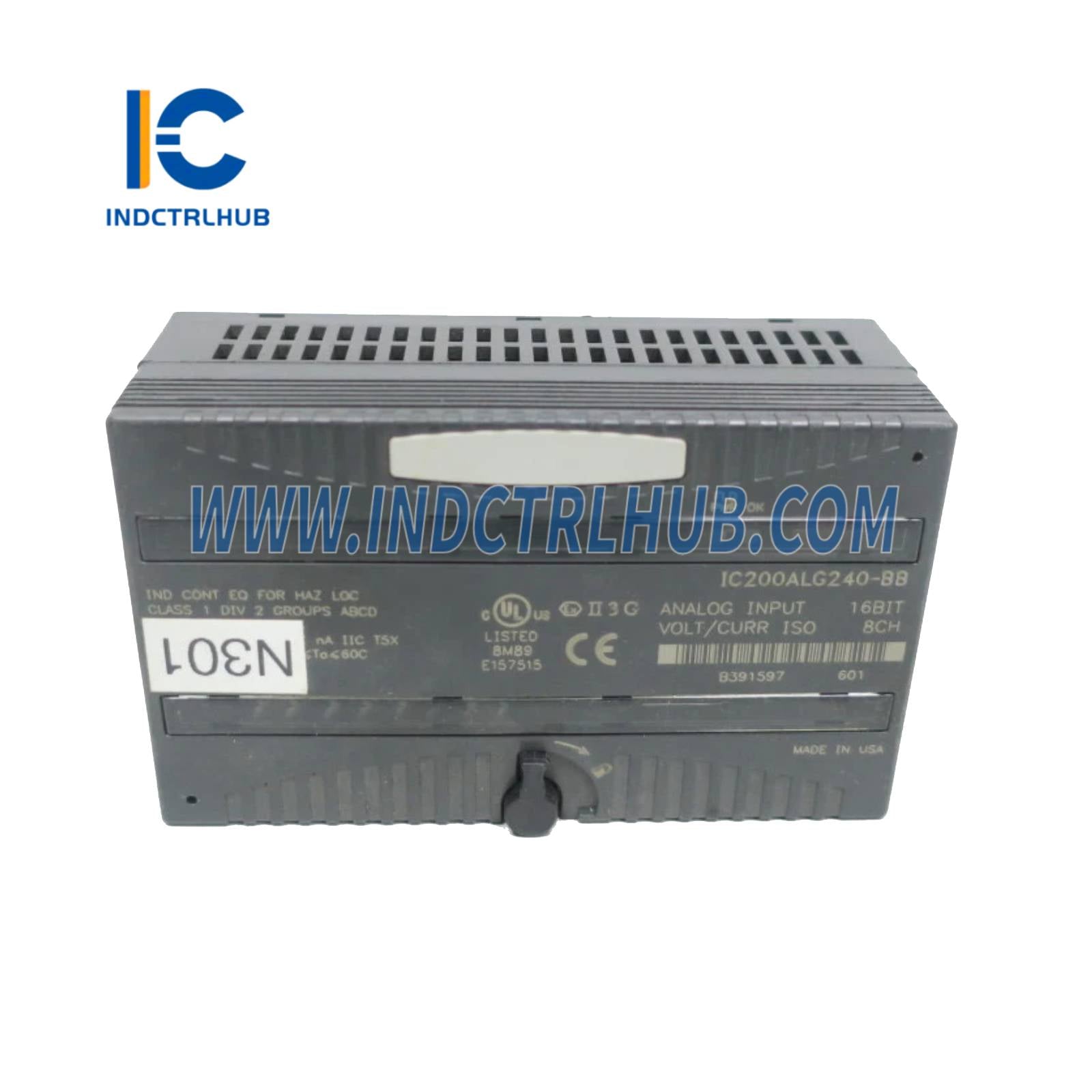

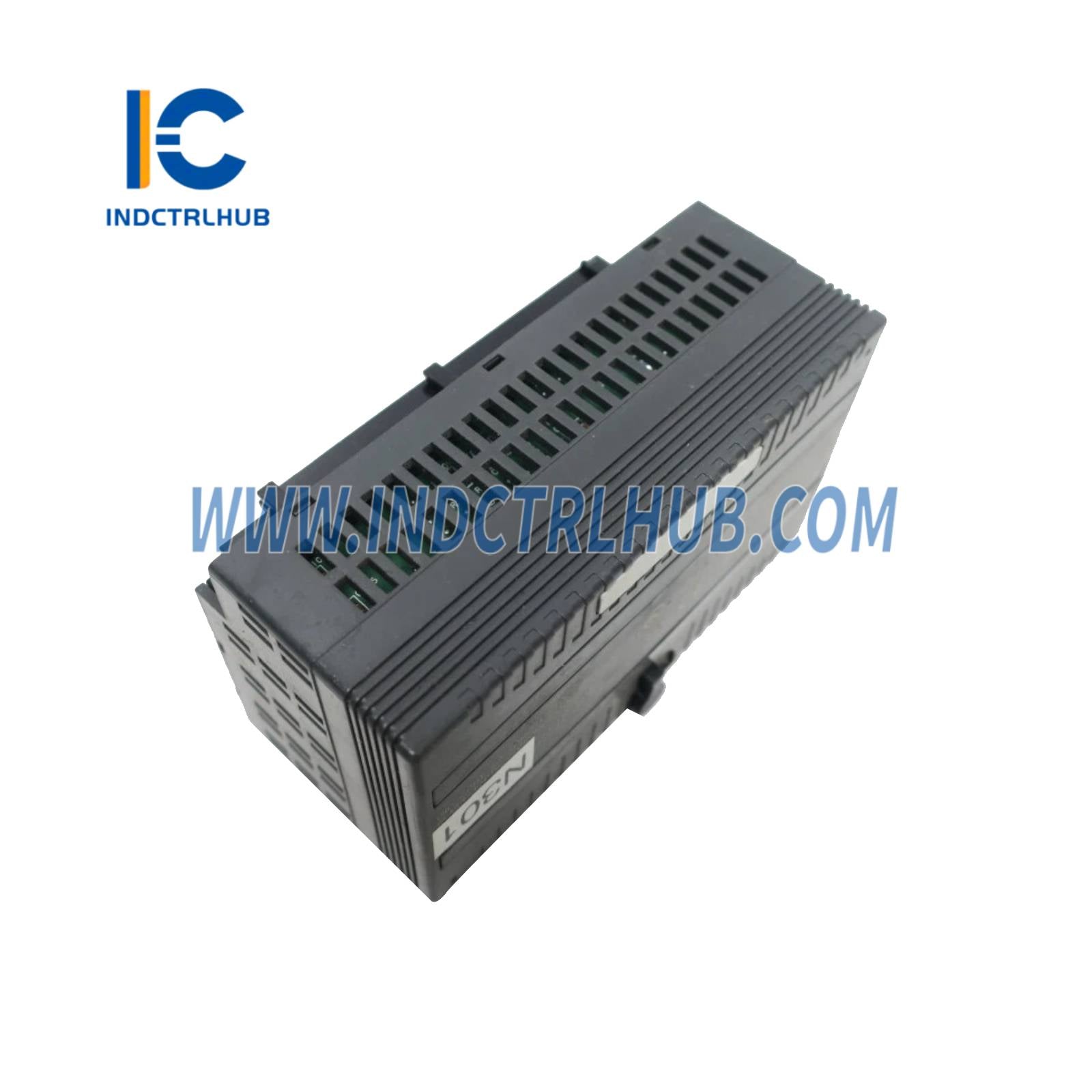

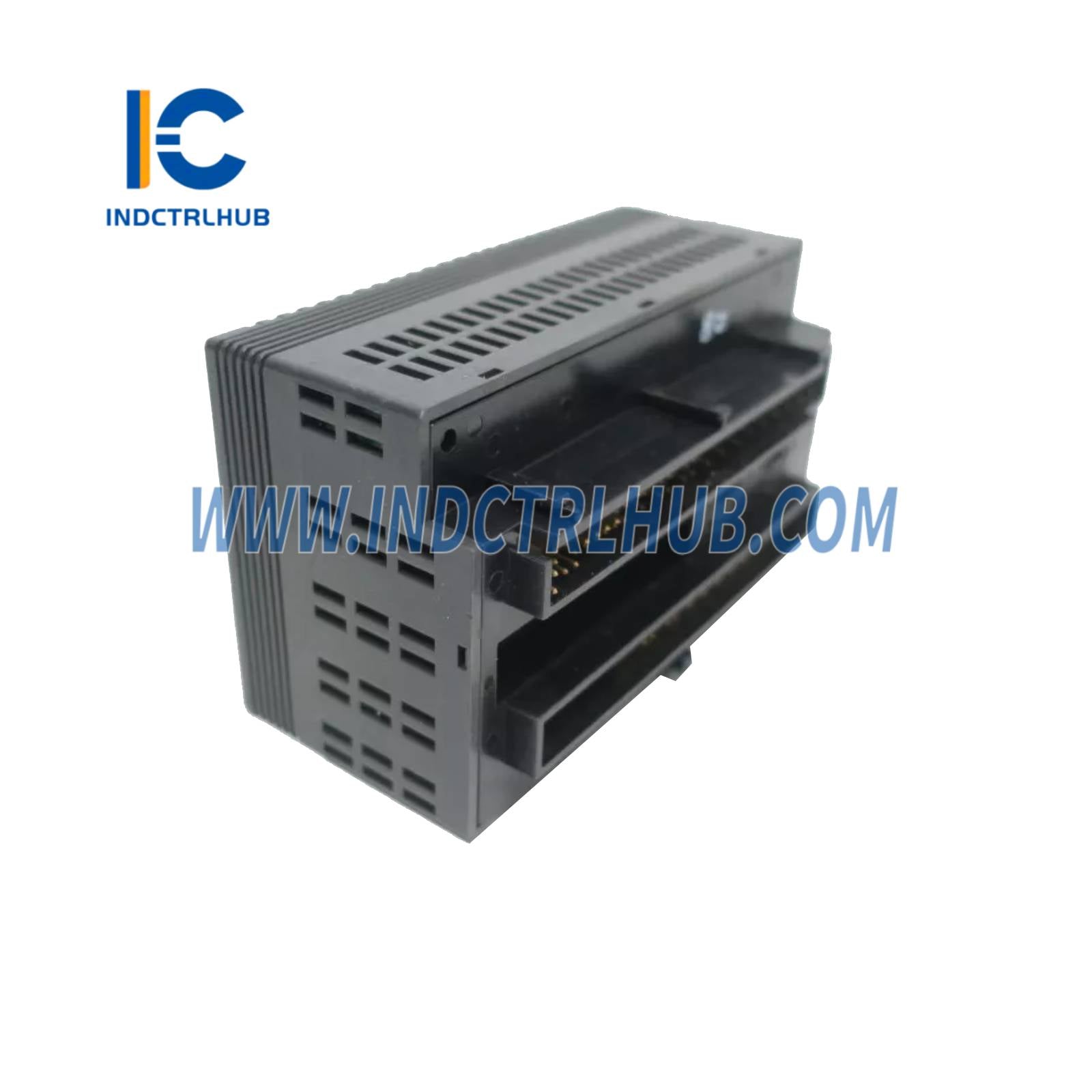

General Electric IC200ALG240-BB Analog Input Module
Product Overview
- Description: The General Electric IC200ALG240-BB is an analog input module designed for use with GE Fanuc VersaMax PLC systems. It provides eight isolated analog input channels for processing signals such as voltage or current from sensors and transducers in industrial automation applications, including manufacturing, power distribution, and oil and gas. The module supports high-accuracy data acquisition for process control and monitoring. It differs from GE’s RTU master module (HE693RTM705C) and Multilin relays (869-E-P5-P5-B5-H-S-S-A-L-N-M-M-P-F-B-SE-N-N-B-N).
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | VersaMax |
| Model/Part Number | IC200ALG240-BB |
| Model Type | Analog Input Module |
| Function | Processes analog input signals for PLC control |
| Display | LED indicators (status, power) |
| Inputs | 8 isolated analog inputs (voltage: ±10 V, 0–10 V; current: 4–20 mA) |
| Outputs | Digital data to VersaMax PLC |
| Communication Interfaces | VersaMax backplane interface |
| Signal Conditioning | Internal signal isolation and analog-to-digital conversion |
| Accuracy | ±0.3% of full scale at 25°C |
| Redundancy | Non-redundant |
| Diagnostics | LED status indicators, fault reporting to PLC |
| Compatibility | GE Fanuc VersaMax PLC systems |
| Power Supply | 5 VDC (from VersaMax backplane), 24 VDC (external for current loops) |
| Power Consumption | 100 mA at 5 VDC, 50 mA at 24 VDC max |
| Environmental Specifications | Operating Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in PLC rack) |
| Dimensions | 110 mm (H) x 50 mm (W) x 66 mm (D) |
| Weight | 0.2 kg |
| Mounting | DIN-rail or panel mount in VersaMax rack |
| Certifications | CE, UL, cULus, RoHS |
