| Specification |
Details |

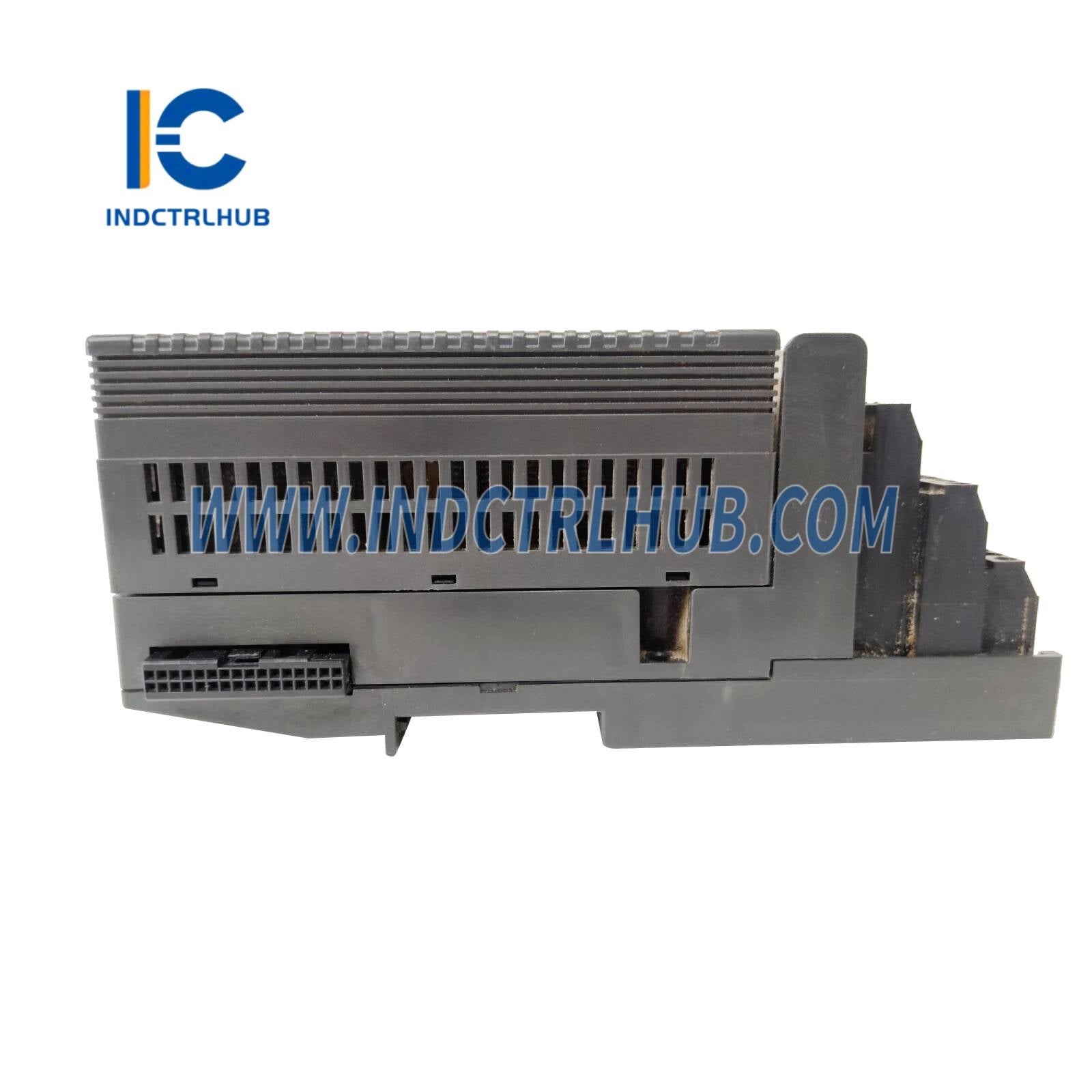

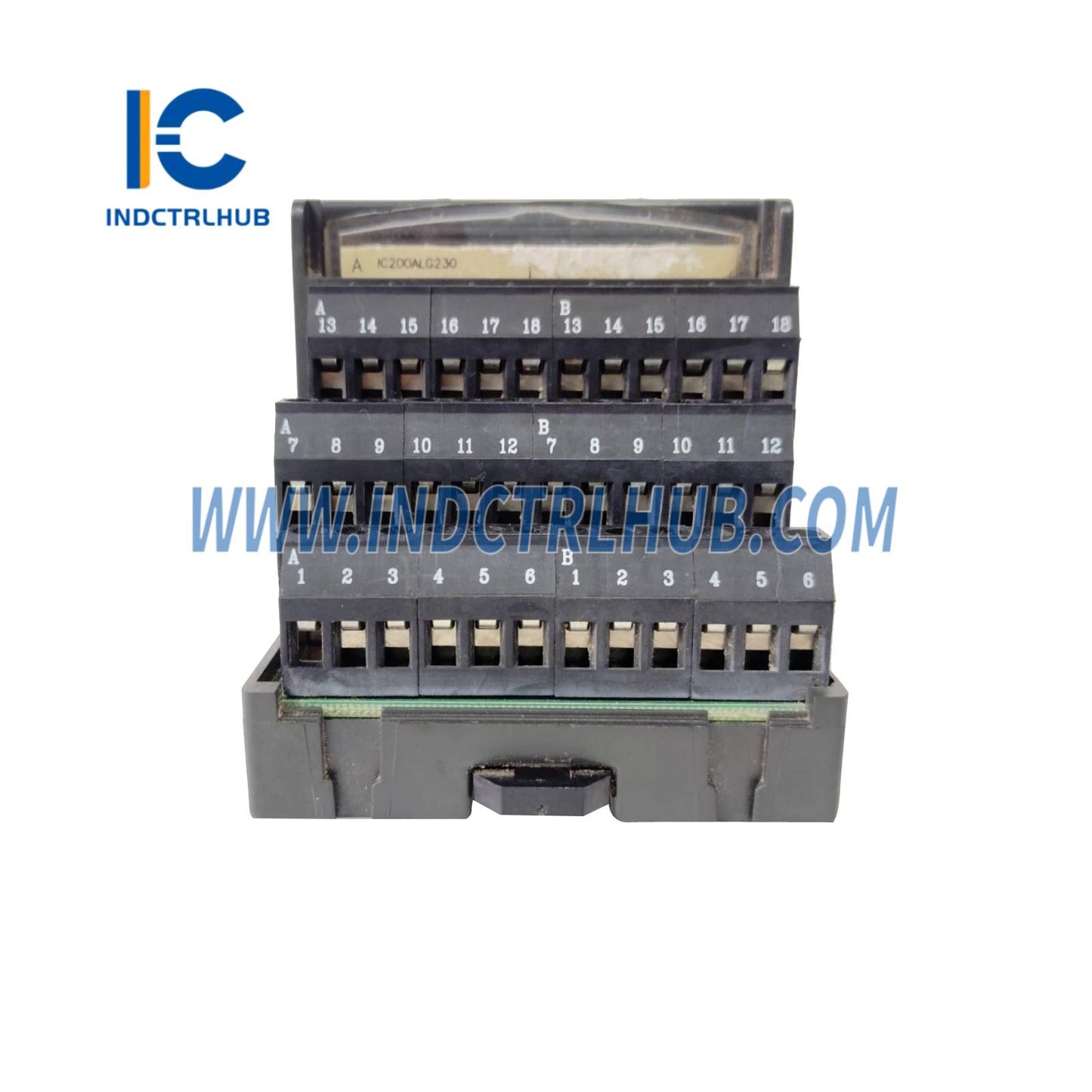

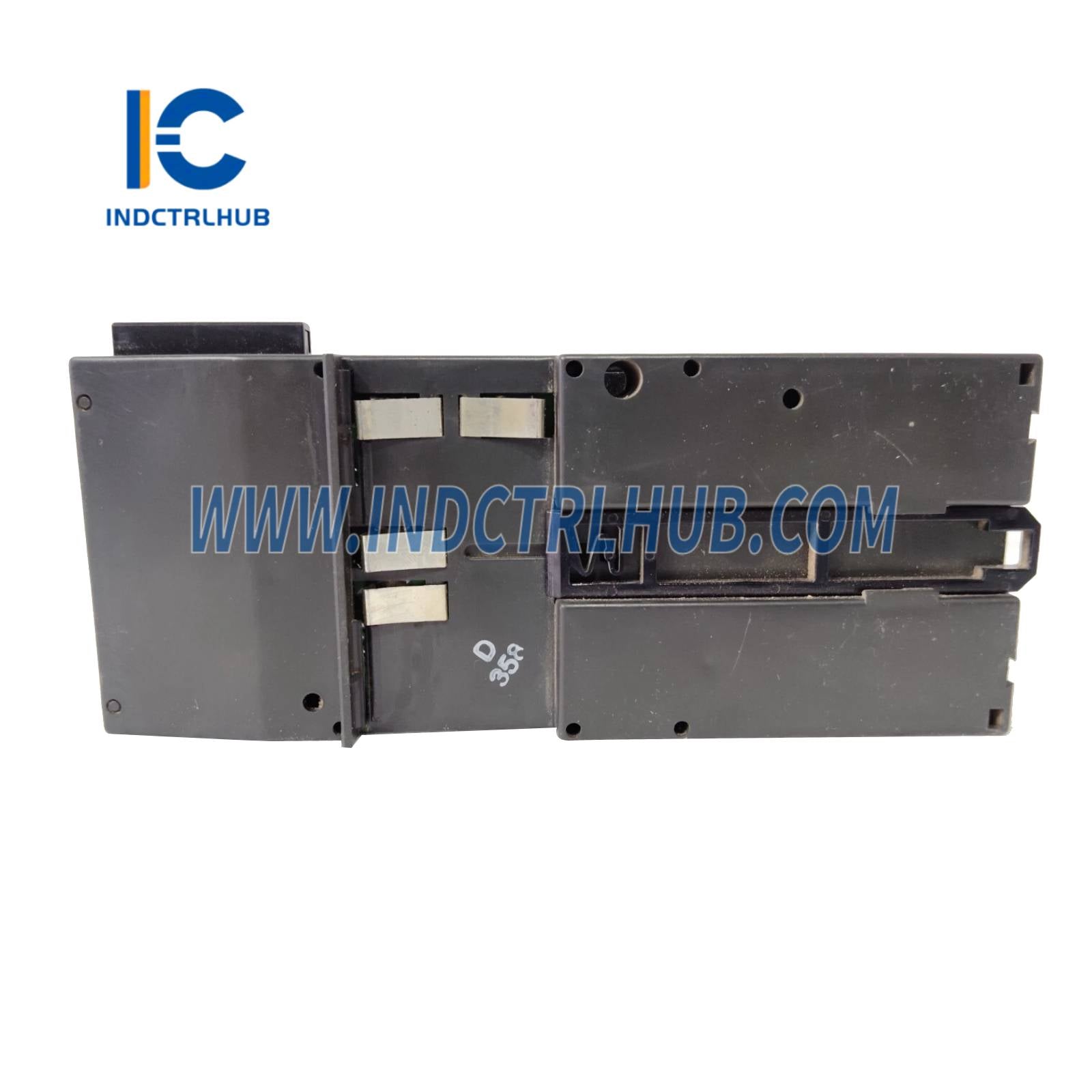

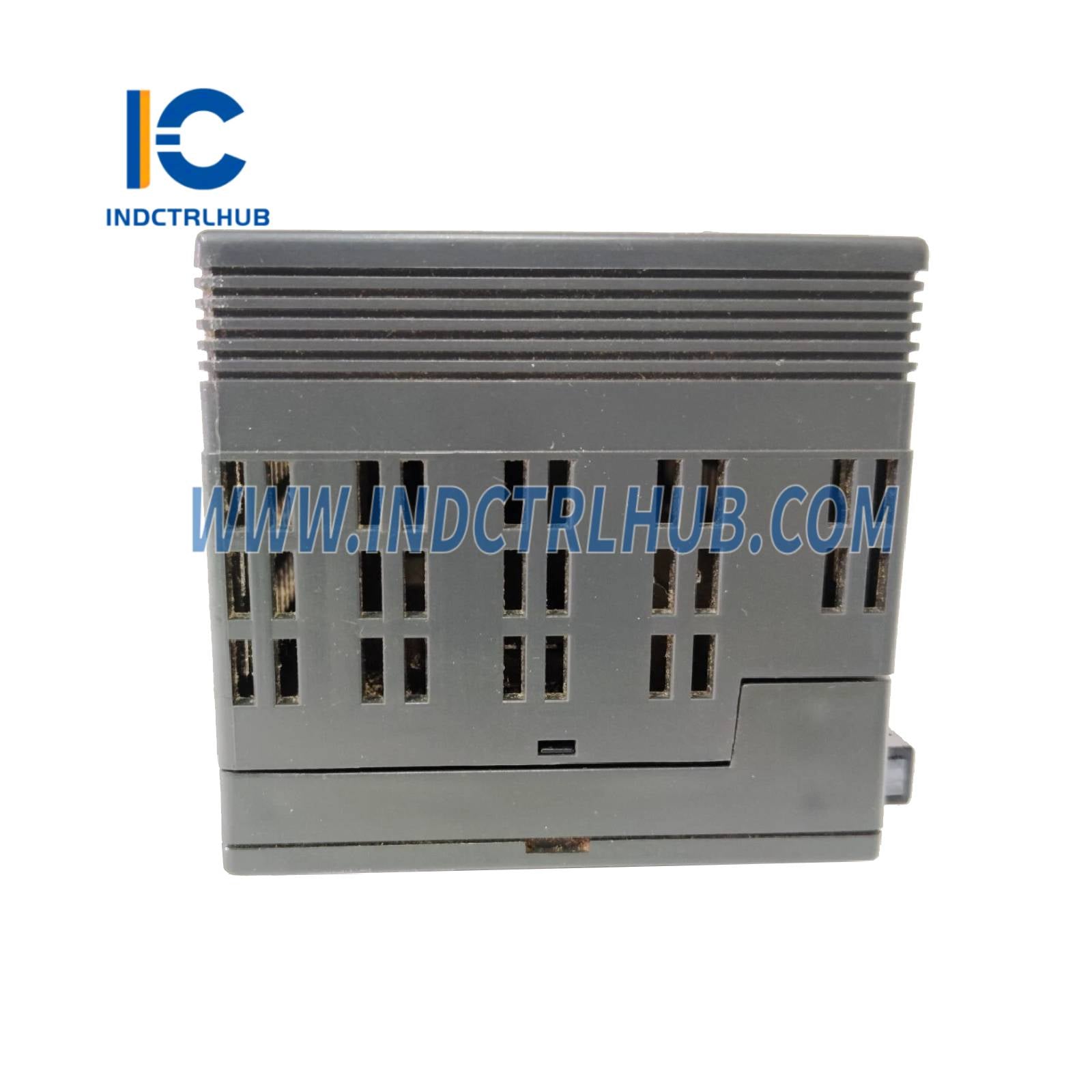

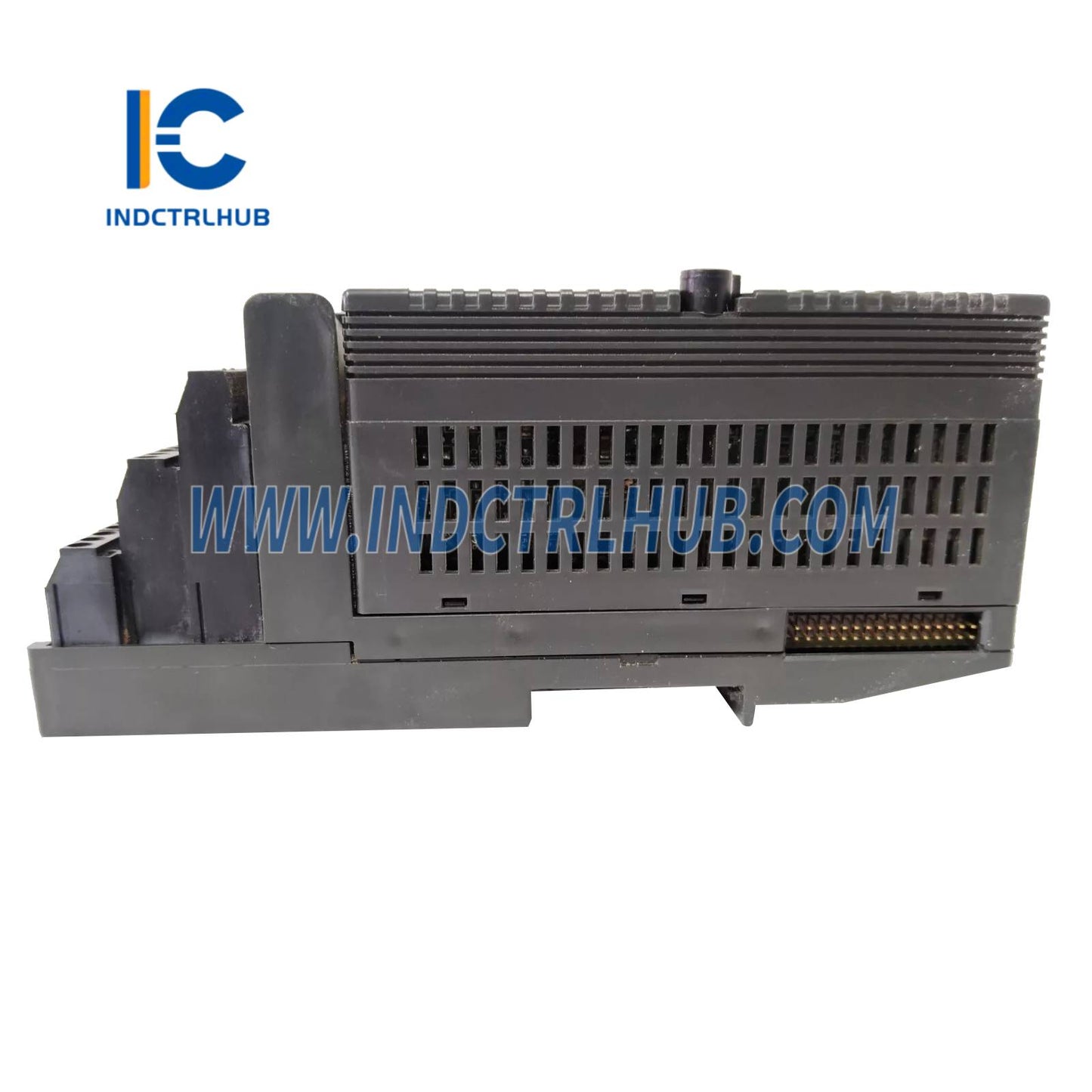

| Model |
IC200ALG230L |
| Series |
VersaMax |
| Type |
Analog Input Module |
| Channels |
4 single-ended, one group |
| Voltage Range |
-10 to +10 VDC (bipolar), 0 to +10 VDC (unipolar) |
| Current Range |
4–20 mA |
| Resolution |
12 bits; 4 µA = 8 counts (current), 2.5 mV = 8 counts (voltage) |
| Update Rate |
0.4 ms |
| Input Filter Response |
5.0 ms |
| Isolation |
User input to logic (optical) and frame ground; 250 VAC continuous, 1500 VAC for 1 minute |
| LED Indicators |
INT PWR (internally-generated field power present), OK (backplane power present) |
| Backplane Power Consumption |
125 mA maximum from 5 V bus |
| Jumpers |
Two jumpers for configuring voltage/current and unipolar/bipolar modes |
| Operating Temperature |
0°C to +60°C (32°F to +140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Weight |
0.3 kg (0.66 lbs) |
| Dimensions |
11 x 5 x 6.6 cm (4.3 x 2 x 2.6 in) |
| Mounting |
DIN rail or panel mount on VersaMax carrier |
| Certifications |
CE, UL |
| Module ID |
FFFF9004 |
