Product Description
General Information
- Manufacturer: General Electric
- Model/Part Number: HYDRANM2

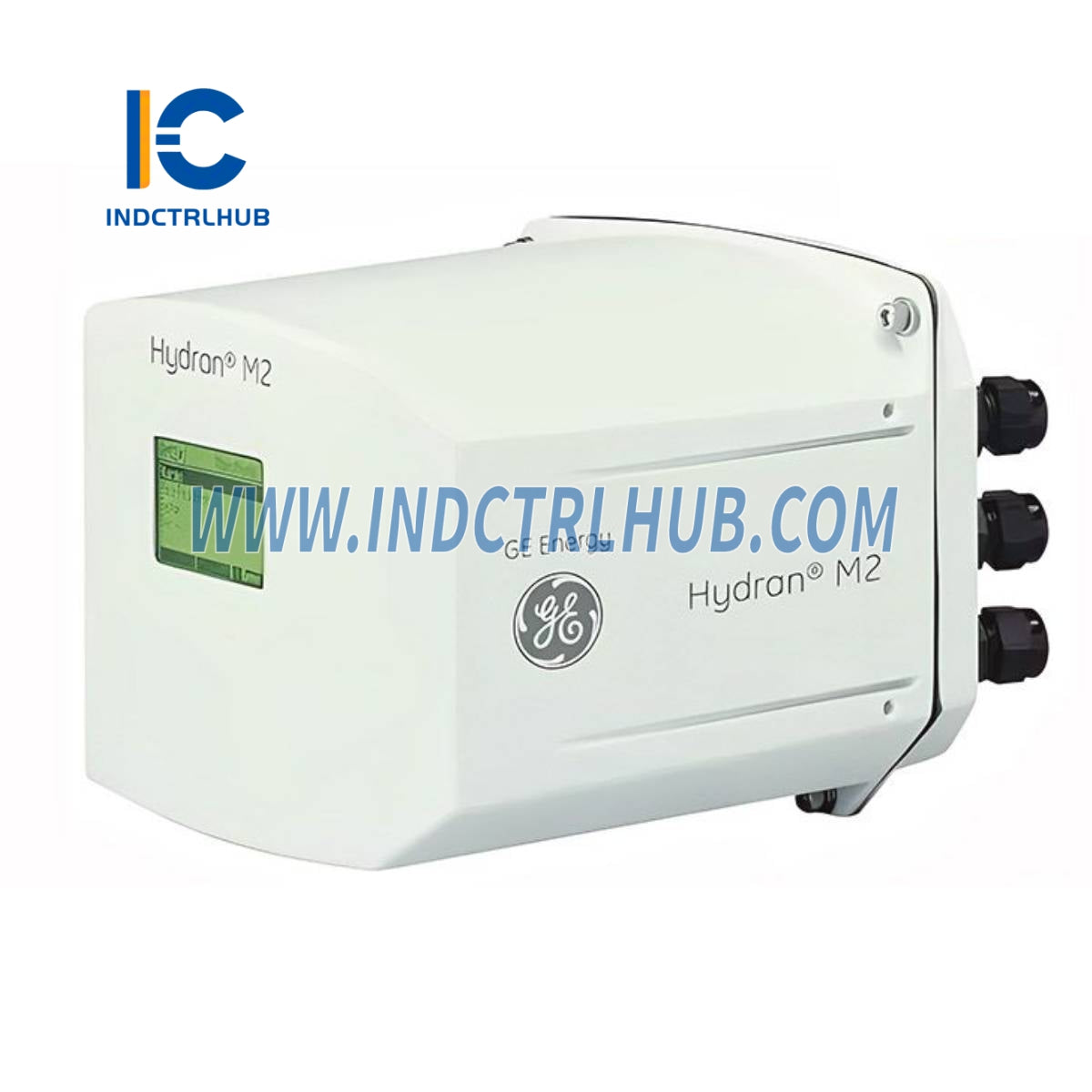

- Description: The General Electric HYDRANM2 is an advanced, compact, and permanently mounted online transformer monitoring device from GE’s Hydran series, designed to detect developing fault conditions in transformers. It provides continuous real-time monitoring of dissolved gases (such as hydrogen, carbon monoxide, ethylene, and acetylene) and moisture levels in transformer oil, alerting users to potential issues to minimize the risk of unplanned outages. This device is critical for transformer health management in power generation and distribution systems.
Technical Specifications
| Specification | Details |
|---|---|
| Type | Online Transformer Monitoring Device |
| Series | Hydran |
| Monitoring Capabilities | Dissolved gases (H2, CO, C2H4, C2H2), moisture in oil (%RH, ppm) |
| Communication | RS-485 standard, optional TCP/IP (copper or fiber) |
| Power Requirements | 24 V DC nominal |
| Operating Temperature | -40°C to +55°C |
| Weight | 3 kg (6.6 lbs) |
| Application | Transformer health monitoring in power generation and distribution |
