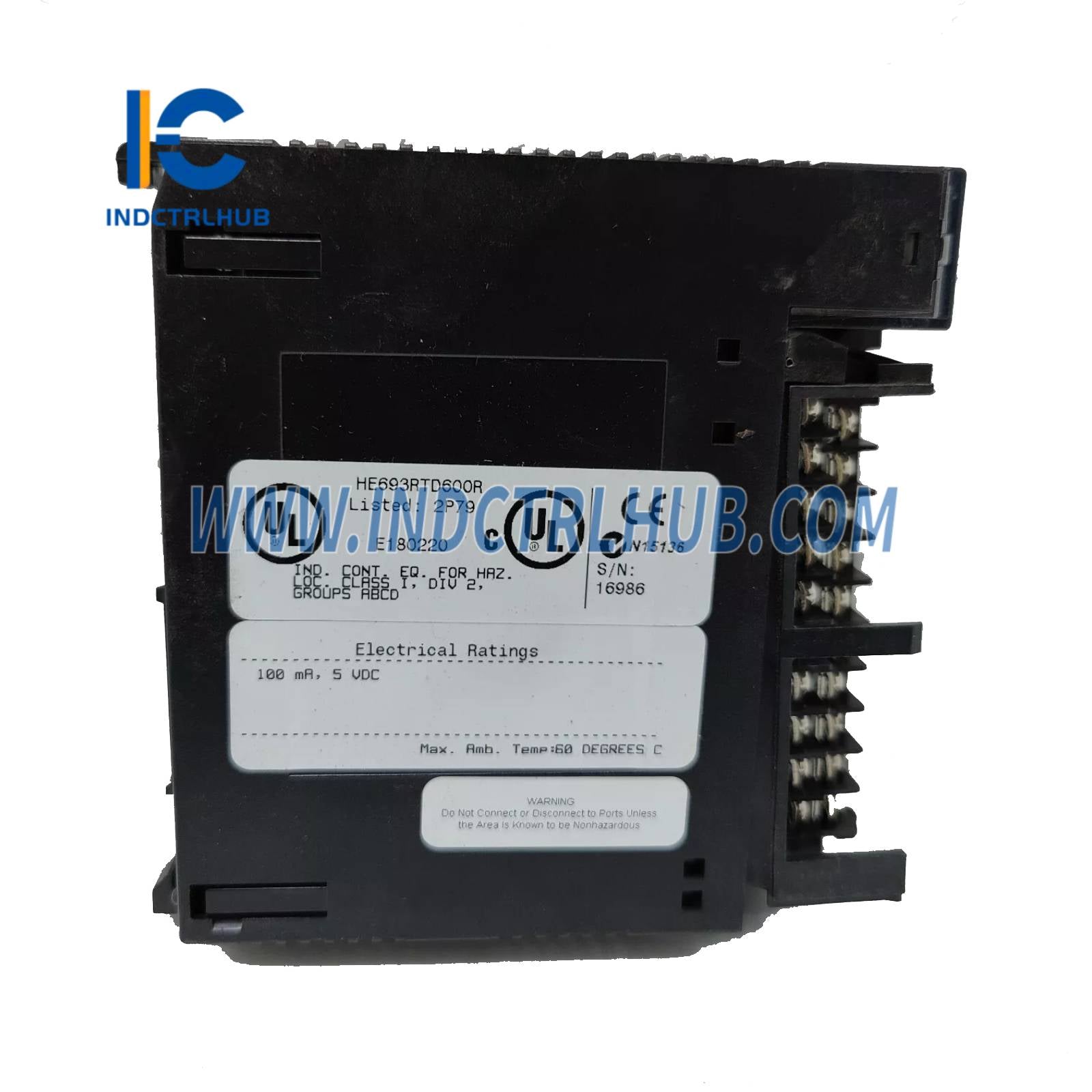

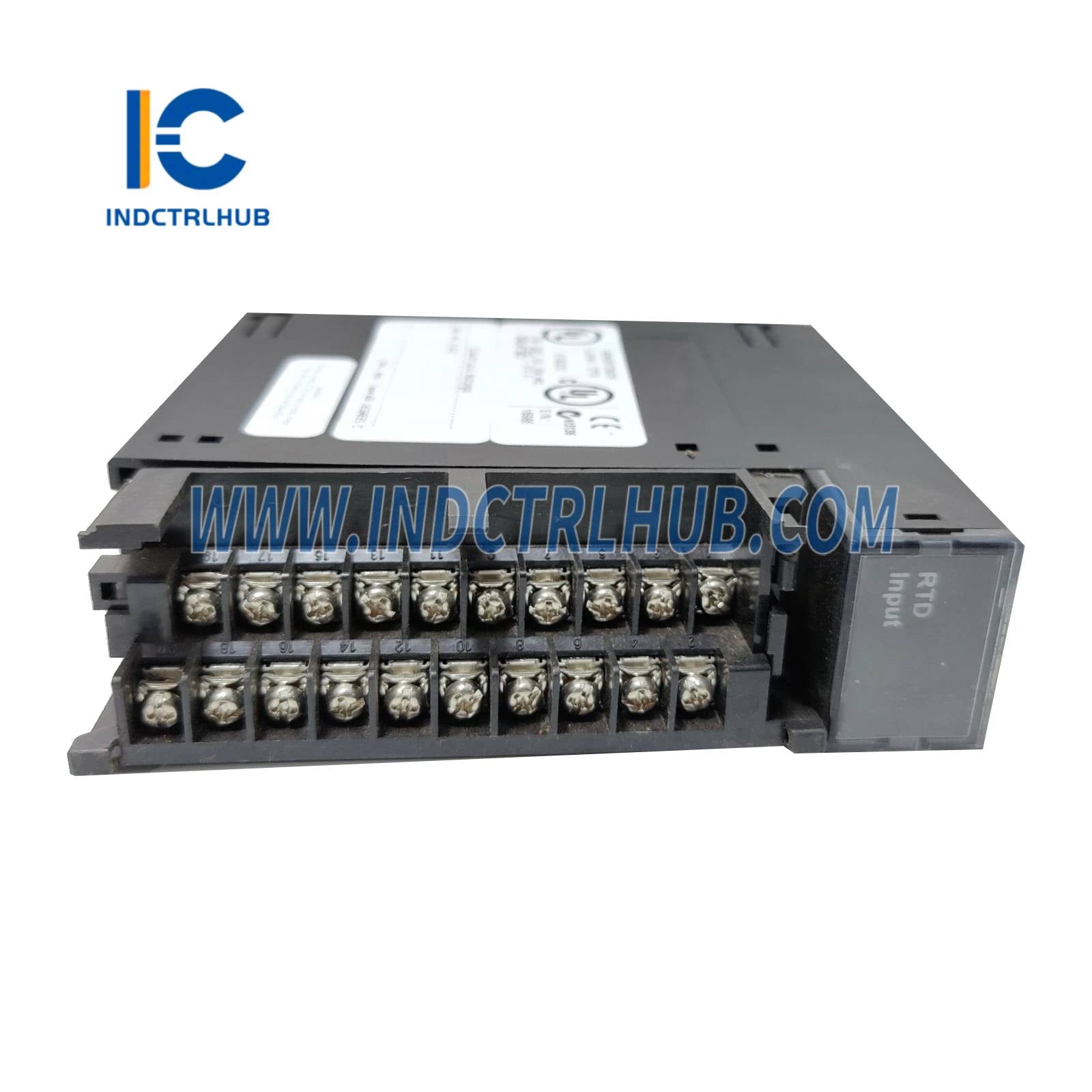

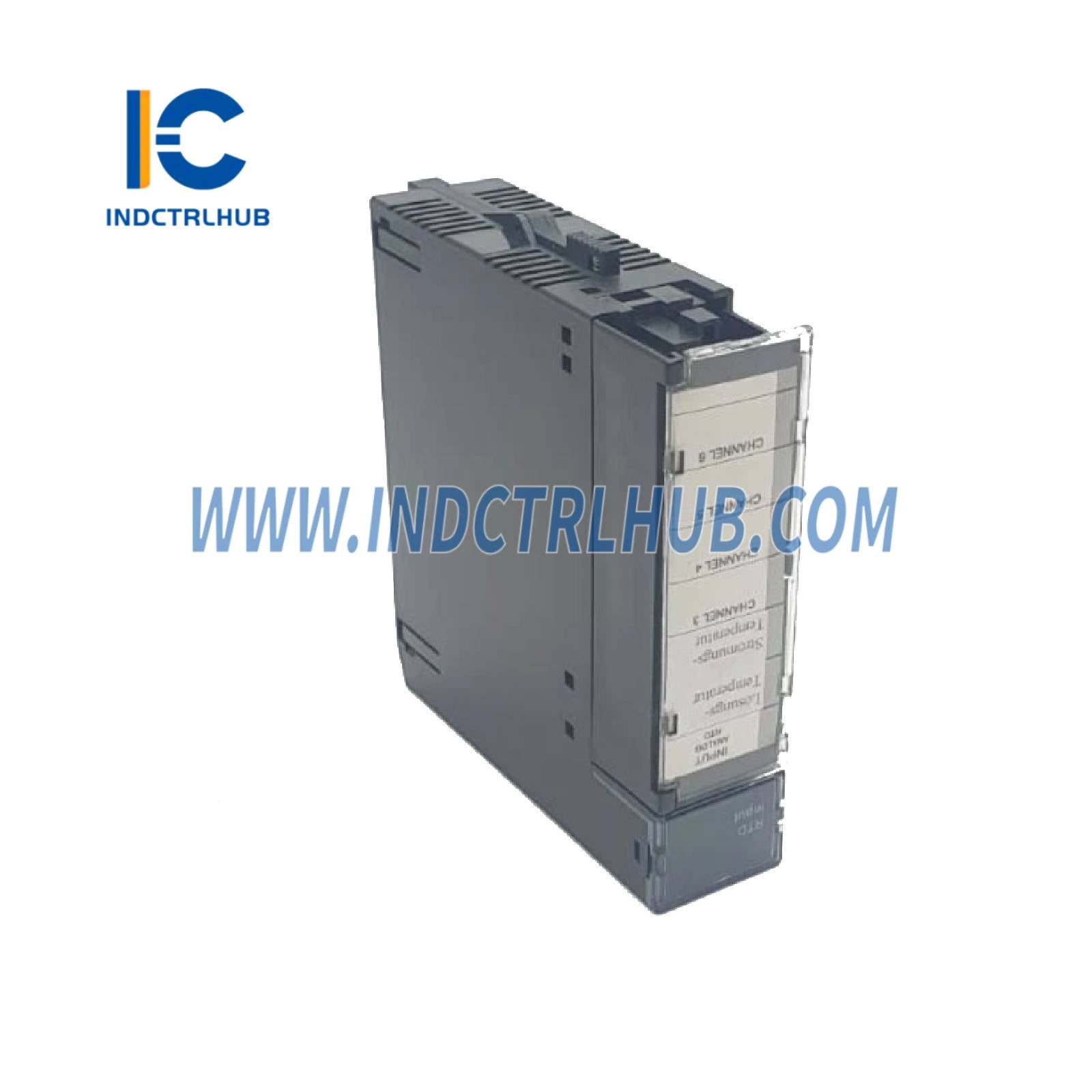

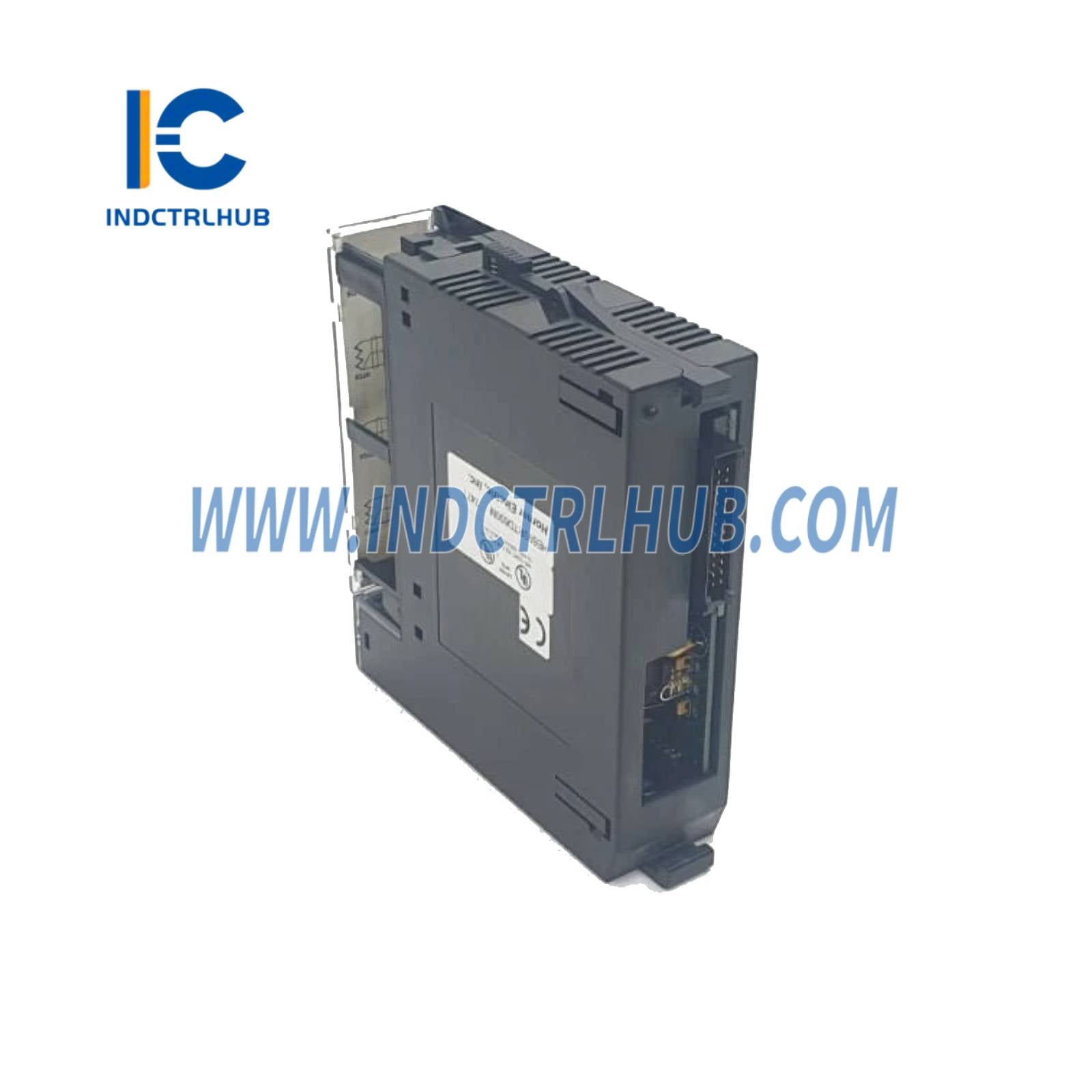

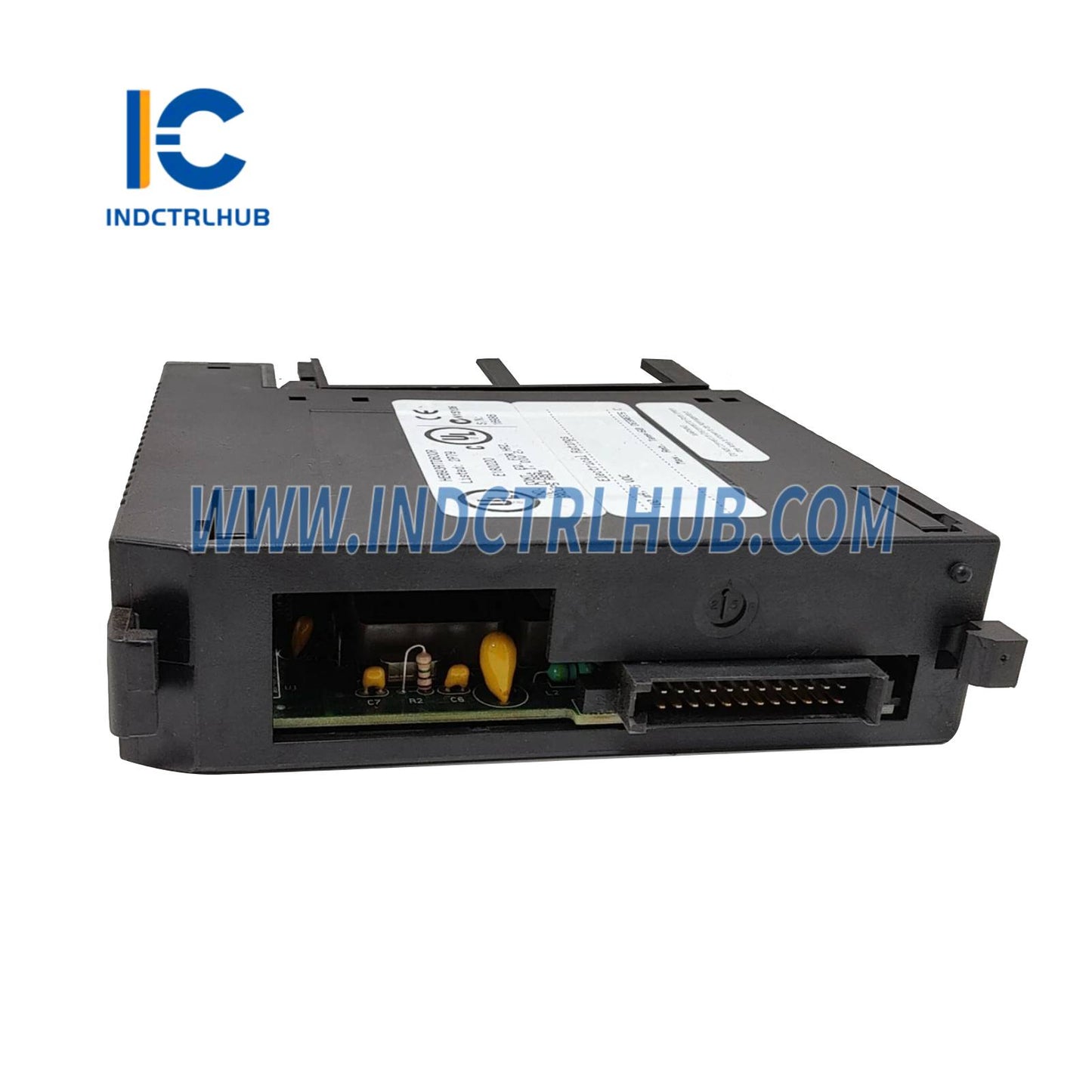

General Electric HE693RTD600 RTD Input Module

Manufacturer: General Electric (designed by Horner Electric)
Series: Series 90-30
Model/Part Number: HE693RTD600
Description: 6-Channel RTD Input Module for direct connection of RTD temperature sensors to PLC systems

The General Electric HE693RTD600 is a 6-channel RTD (Resistance Temperature Detector) Input Module from the Series 90-30, designed by Horner Electric. It allows direct connection of RTD temperature sensors to a programmable logic controller (PLC) without external signal processing, such as transducers or transmitters. The module performs all analog and digital processing, delivering temperature values to the PLC’s 90-30 %AI input table, suitable for industrial automation applications like manufacturing, process control, and HVAC systems.

Specification	Details
Model	HE693RTD600
Series	GE Fanuc Series 90-30
Type	RTD Input Module
Number of Channels	6 (3-wire configuration)
Supported RTD Types	PT-90 (MIL-7990), PT-100 (alpha=0.00385, 0.003902, 0.03906), Ni-120, Cu-10, Cu-50, Cu-53, Cu-100, Pt-1000, TD5R, Linear Resistance
Temperature Range	-100°C to +850°C (Pt-100)
Power Consumption	75 mA @ 5 VDC (typical)
I/O Points Required	6 %AI
Input Impedance	>1000 MΩ
Fault Protection	Zener Diode Clamp
A/D Conversion Type	16-bit, Integrating
Update Time	50 channels per second
Average RTD Current (PT-100)	330 µA
Channel-to-Channel Tracking	0.1°C
Resolution	0.5°C or 0.5°F increments
Accuracy	±0.5°C typical; ±1.0°C for Cu-10 and TD5R
Operating Temperature	0°C to +60°C (32°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% (non-condensing)
Weight	0.28 kg (0.62 lbs)
Dimensions	3.5 x 13 x 13.5 cm (1.4 x 5.1 x 5.3 in)
Mounting	Plugs into Series 90-30 PLC baseplate
Certifications	CE, UL

Manufacturer: General Electric (designed by Horner Electric)
Series: Series 90-30
Model/Part Number: HE693RTD600
Description: 6-Channel RTD Input Module for direct connection of RTD temperature sensors to PLC systems

The General Electric HE693RTD600 is a 6-channel RTD (Resistance Temperature Detector) Input Module from the Series 90-30, designed by Horner Electric. It allows direct connection of RTD temperature sensors to a programmable logic controller (PLC) without external signal processing, such as transducers or transmitters. The module performs all analog and digital processing, delivering temperature values to the PLC’s 90-30 %AI input table, suitable for industrial automation applications like manufacturing, process control, and HVAC systems.

Specification	Details
Model	HE693RTD600
Series	GE Fanuc Series 90-30
Type	RTD Input Module
Number of Channels	6 (3-wire configuration)
Supported RTD Types	PT-90 (MIL-7990), PT-100 (alpha=0.00385, 0.003902, 0.03906), Ni-120, Cu-10, Cu-50, Cu-53, Cu-100, Pt-1000, TD5R, Linear Resistance
Temperature Range	-100°C to +850°C (Pt-100)
Power Consumption	75 mA @ 5 VDC (typical)
I/O Points Required	6 %AI
Input Impedance	>1000 MΩ
Fault Protection	Zener Diode Clamp
A/D Conversion Type	16-bit, Integrating
Update Time	50 channels per second
Average RTD Current (PT-100)	330 µA
Channel-to-Channel Tracking	0.1°C
Resolution	0.5°C or 0.5°F increments
Accuracy	±0.5°C typical; ±1.0°C for Cu-10 and TD5R
Operating Temperature	0°C to +60°C (32°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% (non-condensing)
Weight	0.28 kg (0.62 lbs)
Dimensions	3.5 x 13 x 13.5 cm (1.4 x 5.1 x 5.3 in)
Mounting	Plugs into Series 90-30 PLC baseplate
Certifications	CE, UL
