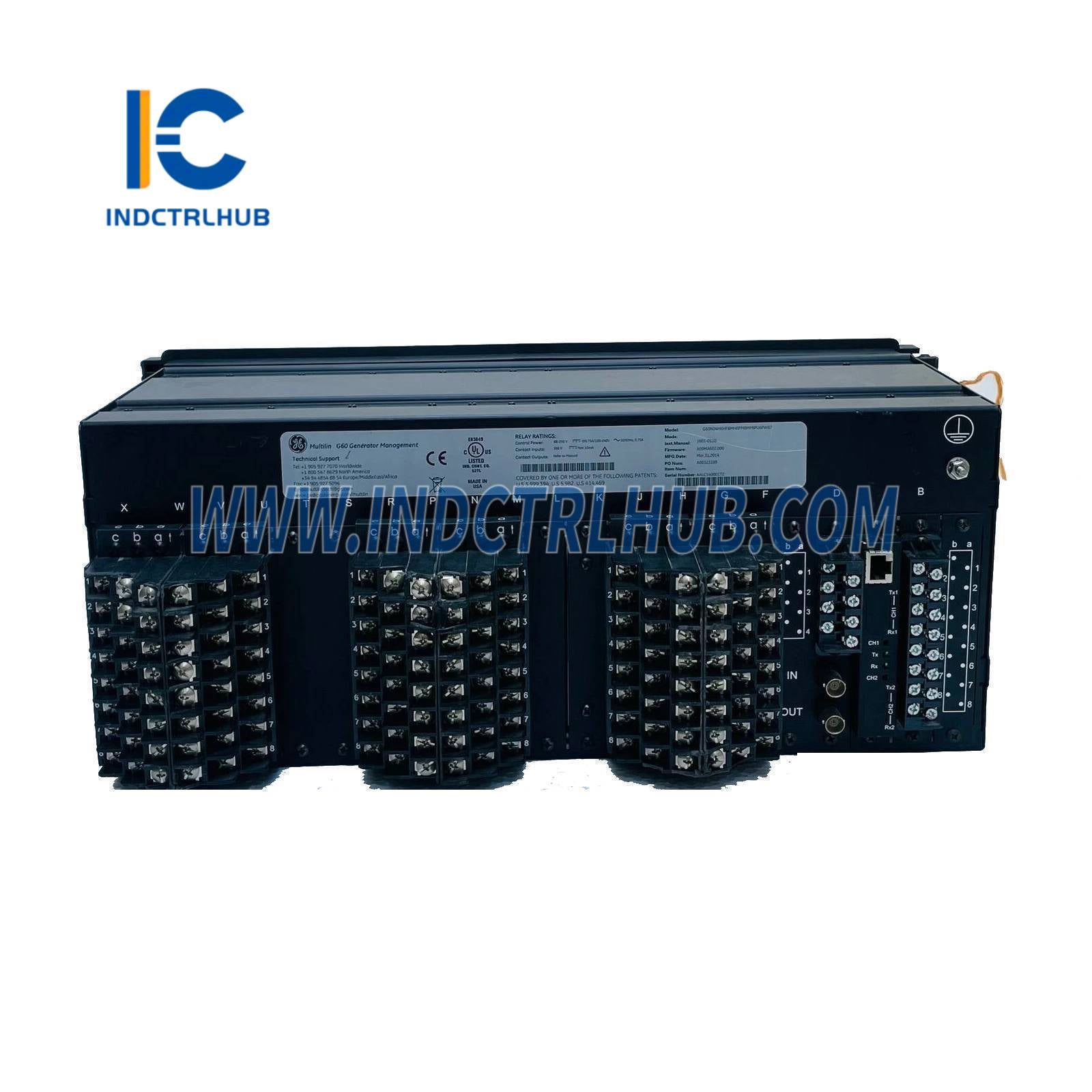

GE G60-G01-VFL-F8F-H6EM8F-PXX Transformer Protection and Control Relay

GE G60-G01-VFL-F8F-H6EM8F-PXX Transformer Protection and Control Relay

  • Manufacturer: General Electric

  • Product No.: G60-G01-VFL-F8F-H6EM8F-PXX

  • Condition:1000 in stock

  • Product Type: Transformer Protection and Control Relay

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details



Parameter Details
Manufacturer General Electric
Model/Part Number G60-G01-VFL-F8F-H6EM8F-PXX
Description Transformer Protection and Control Relay

Product Overview



Parameter Details
Part Number G60-G01-VFL-F8F-H6EM8F-PXX
Product Name G60 Transformer Protection System
Application Comprehensive protection, control, monitoring, and diagnostics for multi-winding power transformers in utility and industrial applications
Compatibility Integrates with GE Multilin Universal Relay (UR) series and substation automation systems; supports IEC 61850 Edition 2, DNP3, Modbus TCP, and Profibus DP
Function Provides advanced protection including differential, overcurrent, and thermal modeling; includes metering, event recording, and IEC 61850 GOOSE messaging

Functional Specifications



Parameter Details
Protection Functions Transformer differential (87T), restricted earth fault (87G), overcurrent (50/51), ground fault (50N/51N), thermal overload (49), over/under voltage (27/59), frequency (81O/U), breaker failure (50BF), synchrocheck (25)
Measurement Capabilities Current, voltage, power, frequency, power factor; supports up to 6 three-phase current inputs and 3 three-phase voltage inputs; harmonic analysis up to 63rd order
Binary Inputs/Outputs 32 binary inputs, 24 output contacts (configurable via I/O modules)
Communication Interfaces 4x Ethernet ports (IEC 61850, DNP3, Modbus TCP), 2x serial ports (RS-485, IEC 60870-5-103), IRIG-B time synchronization, redundant fiber-optic Ethernet option
Power Supply 24_48 V DC (low-voltage range)
Display Enhanced graphical color LCD with multilingual support
Event Recording 1024 events with 1 ms resolution; oscillography up to 64 samples/cycle, 32 records
Metering Accuracy ANSI C12.20 Class 0.2 (energy), ±0.1% (power, current, voltage)
Operating Temperature Range -40°C to +85°C
Dimensions 19" rack mount (6U height, 177 mm x 483 mm x 220 mm)
Weight 7.5 kg
Mounting 19" rack or panel mount
Protection Rating IP54 front panel
Standards Compliance IEC 60255, IEEE C37.91, IEC 61850 Edition 2, CE, UL, CSA, KEMA Type Tested
View full details

Product Description

Product Details



Parameter Details
Manufacturer General Electric
Model/Part Number G60-G01-VFL-F8F-H6EM8F-PXX
Description Transformer Protection and Control Relay

Product Overview



Parameter Details
Part Number G60-G01-VFL-F8F-H6EM8F-PXX
Product Name G60 Transformer Protection System
Application Comprehensive protection, control, monitoring, and diagnostics for multi-winding power transformers in utility and industrial applications
Compatibility Integrates with GE Multilin Universal Relay (UR) series and substation automation systems; supports IEC 61850 Edition 2, DNP3, Modbus TCP, and Profibus DP
Function Provides advanced protection including differential, overcurrent, and thermal modeling; includes metering, event recording, and IEC 61850 GOOSE messaging

Functional Specifications



Parameter Details
Protection Functions Transformer differential (87T), restricted earth fault (87G), overcurrent (50/51), ground fault (50N/51N), thermal overload (49), over/under voltage (27/59), frequency (81O/U), breaker failure (50BF), synchrocheck (25)
Measurement Capabilities Current, voltage, power, frequency, power factor; supports up to 6 three-phase current inputs and 3 three-phase voltage inputs; harmonic analysis up to 63rd order
Binary Inputs/Outputs 32 binary inputs, 24 output contacts (configurable via I/O modules)
Communication Interfaces 4x Ethernet ports (IEC 61850, DNP3, Modbus TCP), 2x serial ports (RS-485, IEC 60870-5-103), IRIG-B time synchronization, redundant fiber-optic Ethernet option
Power Supply 24_48 V DC (low-voltage range)
Display Enhanced graphical color LCD with multilingual support
Event Recording 1024 events with 1 ms resolution; oscillography up to 64 samples/cycle, 32 records
Metering Accuracy ANSI C12.20 Class 0.2 (energy), ±0.1% (power, current, voltage)
Operating Temperature Range -40°C to +85°C
Dimensions 19" rack mount (6U height, 177 mm x 483 mm x 220 mm)
Weight 7.5 kg
Mounting 19" rack or panel mount
Protection Rating IP54 front panel
Standards Compliance IEC 60255, IEEE C37.91, IEC 61850 Edition 2, CE, UL, CSA, KEMA Type Tested
