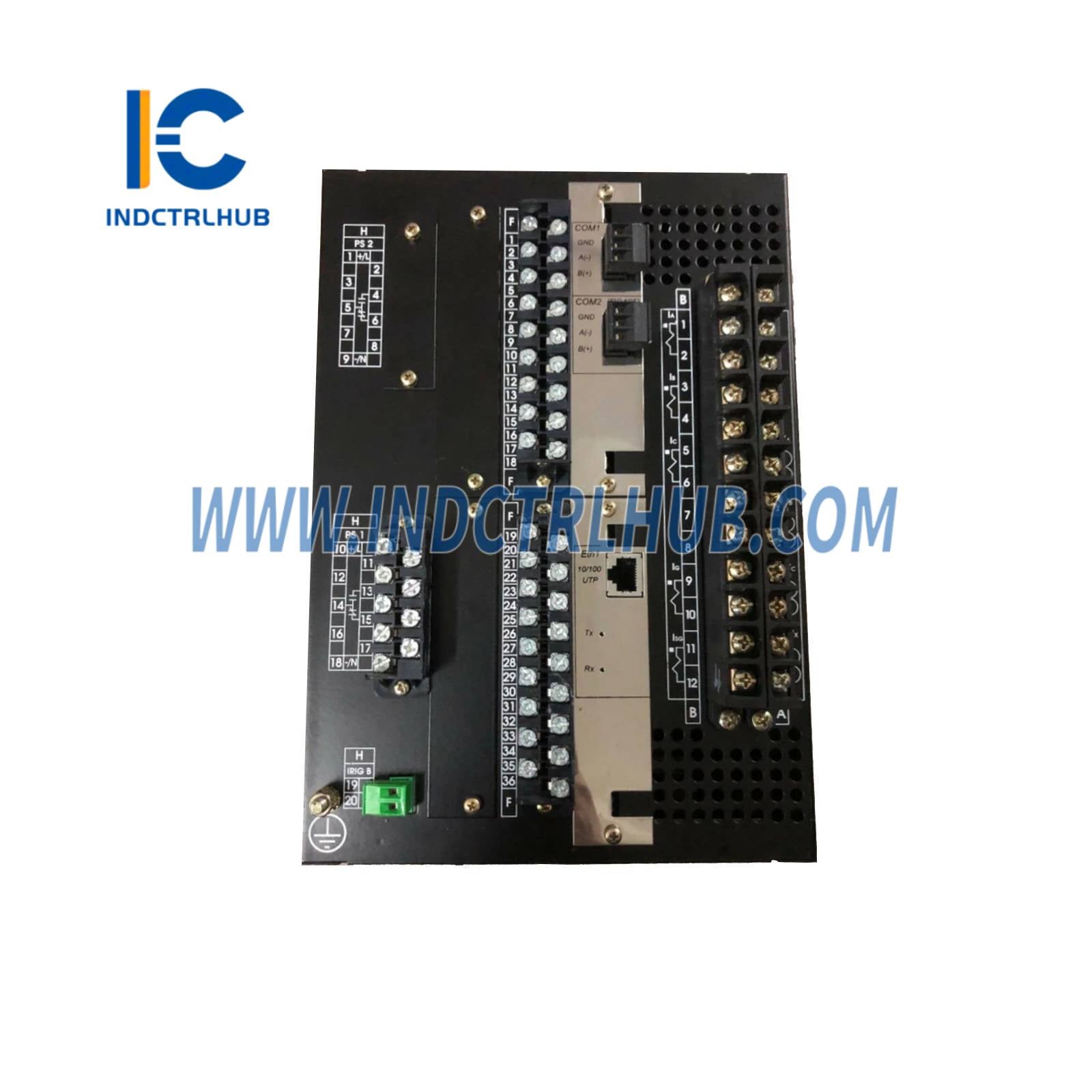

GE F650NFLF2G5HIP6E Digital Bay Controller/Feeder Protection Relay
GE F650NFLF2G5HIP6E Digital Bay Controller/Feeder Protection Relay
Manufacturer: General Electric
Product No.: F650NFLF2G5HIP6E
Condition:1000 in stock
Product Type: Digital Bay Controller/Feeder Protection Relay
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | General Electric |
| Model/Part Number | F650NFLF2G5HIP6E |
| Description | Digital Bay Controller/Feeder Protection Relay |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | F650NFLF2G5HIP6E |
| Product Name | F650 Digital Bay Controller |
| Application | Protection, control, monitoring, metering, and event recording for feeders, busbars, transformers, and capacitor banks in power distribution and transmission systems |
| Compatibility | Integrates with GE Multilin systems; supports substation automation via IEC 61850 (Edition 2) |
| Function | High-speed protection and control for feeder management and bay control applications; supports digital I/O expansion |
Functional Specifications
| Parameter | Details |
|---|---|
| Auxiliary Power Supply | 110-250 V DC / 120-230 V AC (working range 88-300 V DC / 96-250 V AC) |
| Power Consumption | 30 W DC / 30 VA AC, 50/60 Hz |
| Display | Basic Display |
| Communication Interfaces | Rear serial port 1: Redundant RS-485; Rear Ethernet port 2: 10/100 Base-TX; Protocols: Modbus RTU/TCP/IP, DNP 3.0 Level 2, IEC 60870-5-103, IEC 60870-5-104, IEC 61850 (Edition 2) |
| Digital I/O | I/O board slot F: 16 binary inputs, 10 binary outputs (configurable); I/O board slot G: 16 binary inputs, 8 binary outputs |
| Protection Functions | Overcurrent (50/51), ground fault (50N/51N), directional overcurrent (67), voltage (27/59), thermal overload (49), breaker failure (50BF), under/over frequency (81), recloser (79), synchrocheck (25) |
| Measurement Capabilities | Current, voltage, power, energy, frequency, power factor; supports three-phase, residual, and neutral measurements with event recording |
| Metering Accuracy | ANSI C12.20 Class 0.5 (energy), ±0.2% (power) |
| Event Recording | 479 events with 1 ms resolution; oscillography up to 32 samples/cycle |
| Operating Temperature Range | -40°C to +85°C |
| Dimensions | 19" rack mount (4U height, 177 mm x 177 mm x 144 mm) |
| Weight | 4.95 kg |
| Mounting | 19" rack or panel mount |
| Protection Rating | IP54 front panel |
| Standards Compliance | IEC 60255, ANSI/IEEE C37.2, IEC 61850, CE, UL, CSA |
