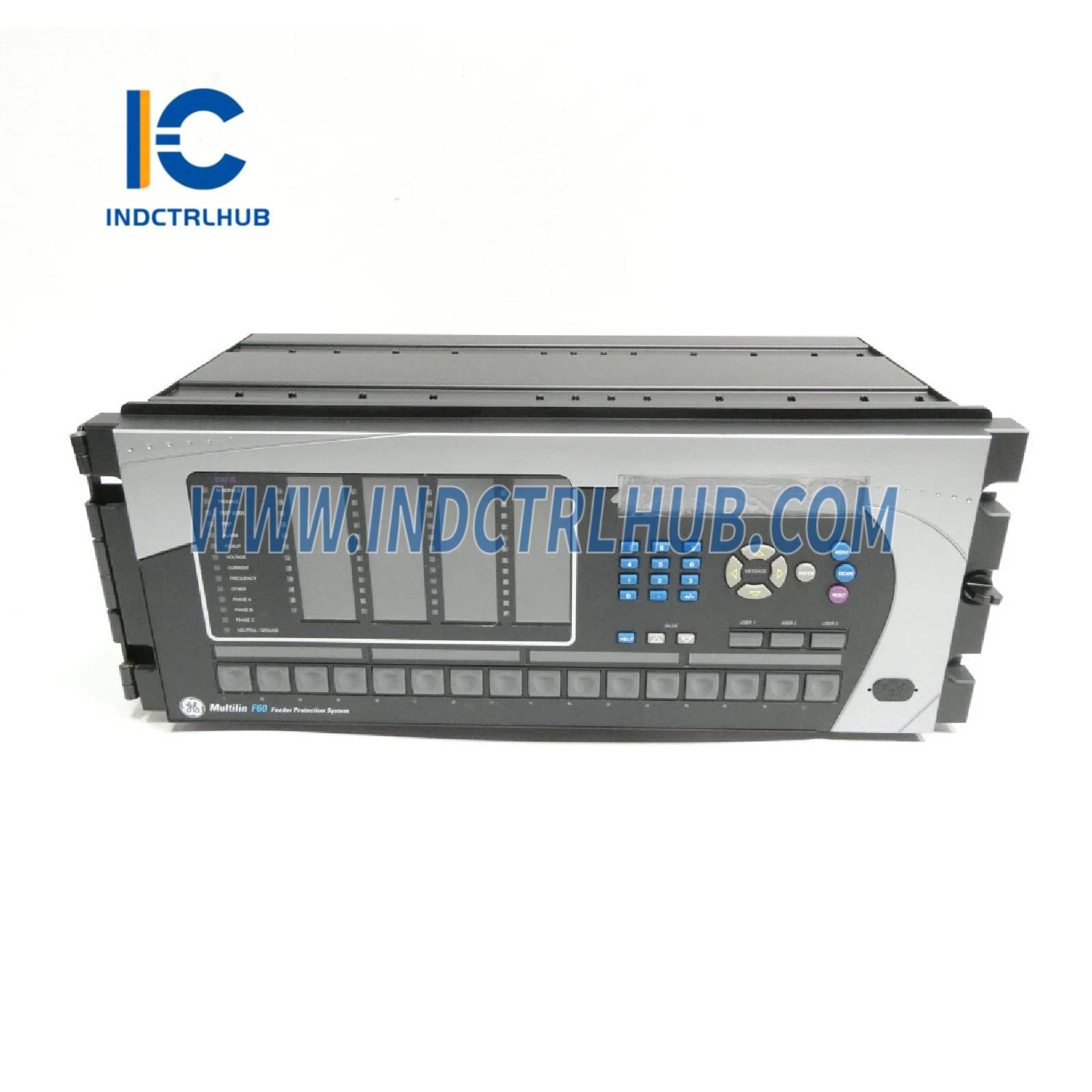

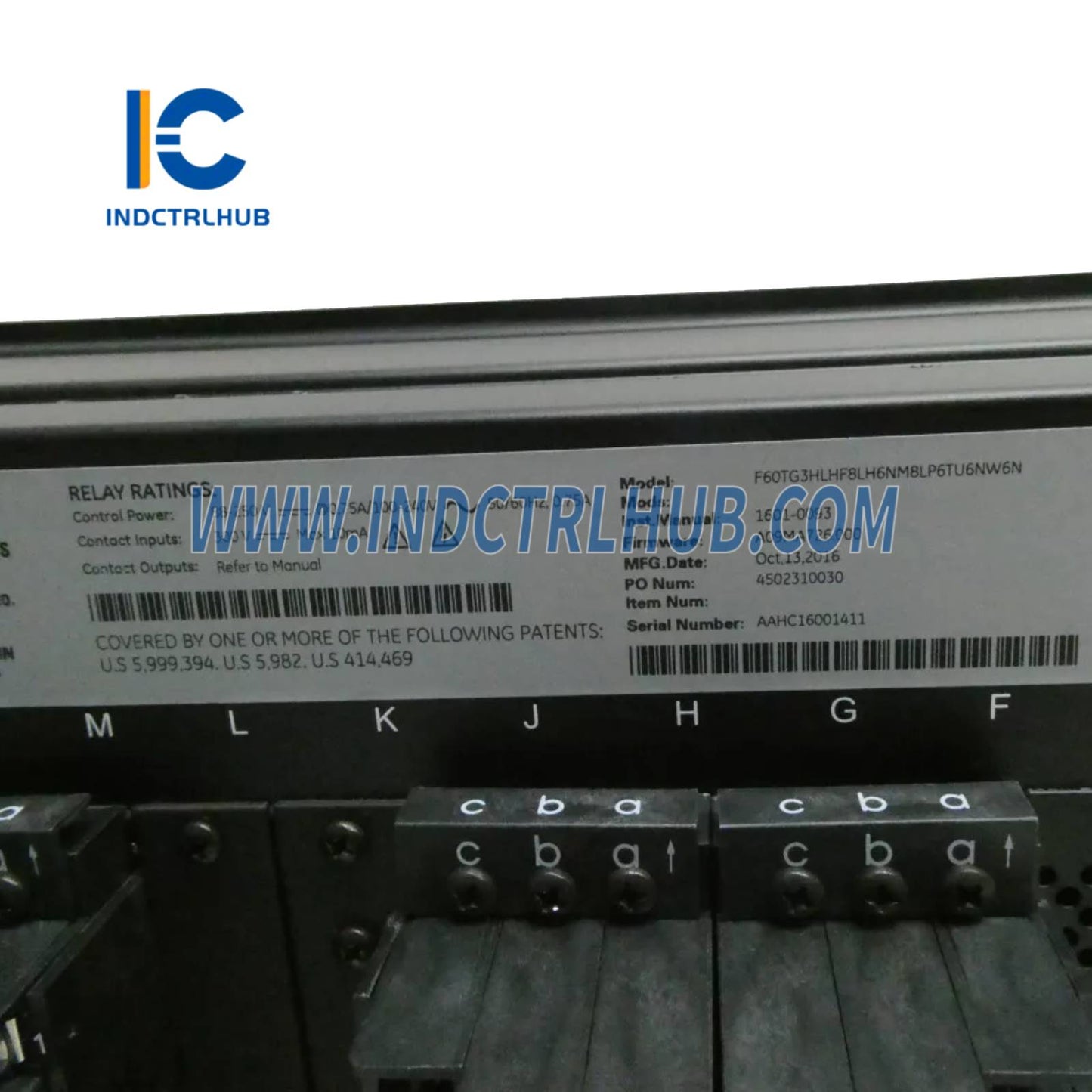

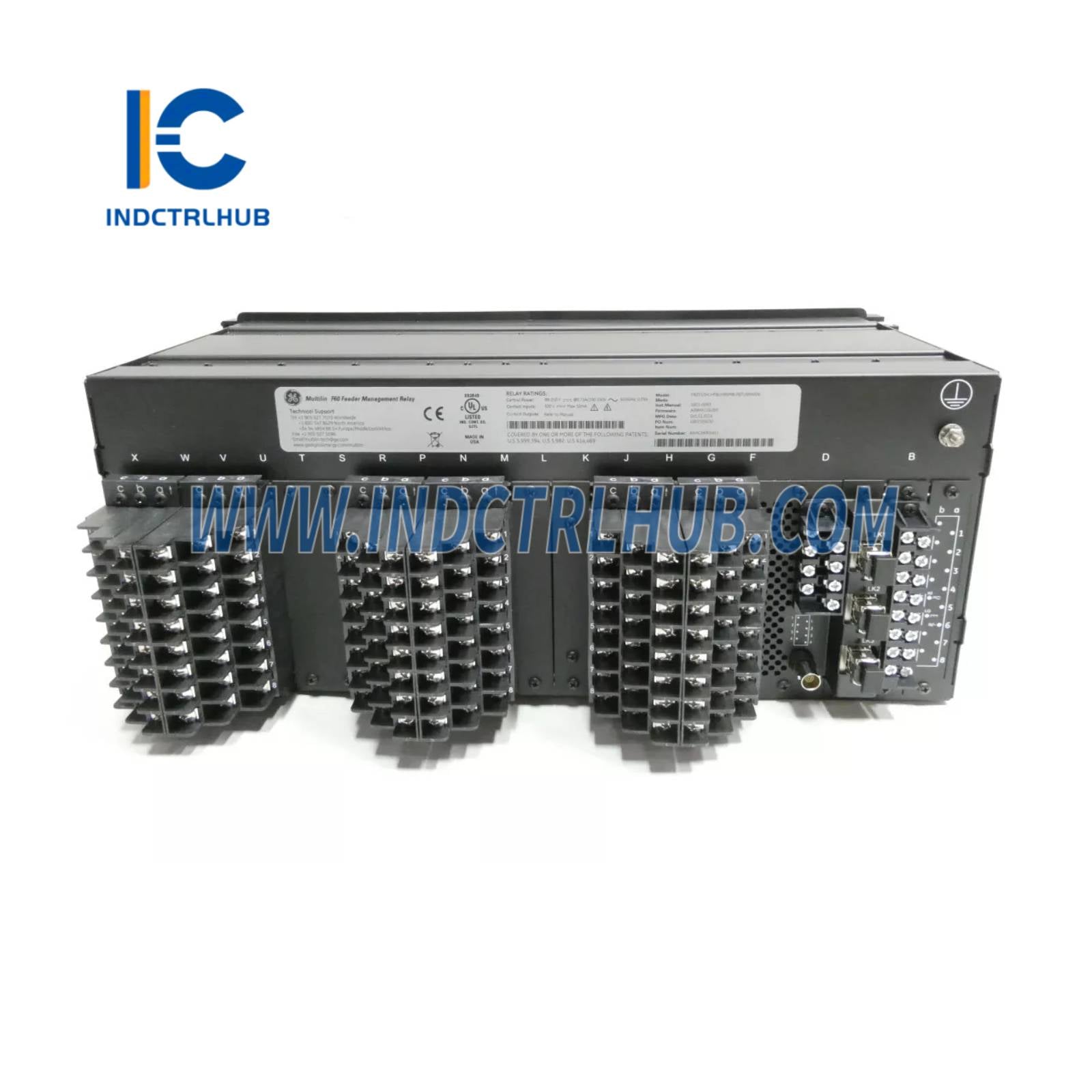

| Specification |
Details |
| Model |
F60 |
| Series |
Multilin UR |
| Type |
Feeder Protection Relay (Microprocessor-Based) |
| Control Power |
High: 125–250 VDC, 100–240 VAC, 50/60 Hz; Low: 24–48 VDC |
| Contact Inputs |
Up to 300 VDC, 10 mA |
| CT Inputs |
1 A or 5 A (configurable) |
| VT Inputs |
Up to 4, configurable |
| Protection Features |
Time overcurrent, instantaneous overcurrent, directional overcurrent, high-impedance fault detection, downed conductor detection, transient ground fault detection (TGFD), over/under voltage, over/under frequency, breaker failure, load encroachment |
| Metering Capabilities |
Current, voltage, power, energy, frequency, harmonics, synchrophasors (IEEE C37.118, IEC 61850-90-5) |
| Communication Ports |
Three 100Mbps Ethernet (fiber/copper), RS485, RS232, USB; Protocols: IEC 61850 Ed. 1/2, Modbus TCP/IP, DNP3.0, IEC 60870-5-104, IEEE 1588, PRP/HSR |
| Digital I/O |
Configurable, up to high-density I/O options; Form-A, Form-C outputs |
| Programmable Logic |
FlexLogic for custom control schemes |
| Display |
Enhanced or standard front panel with LCD, programmable pushbuttons, LEDs |
| Event Recording |
Sequence of events, oscillography, data logger |
| Operating Temperature |
-40°C to +60°C (-40°F to +140°F) |
| Storage Temperature |
-40°C to +80°C (-40°F to +176°F) |
| Weight |
Approx. 10 kg (22 lbs) |

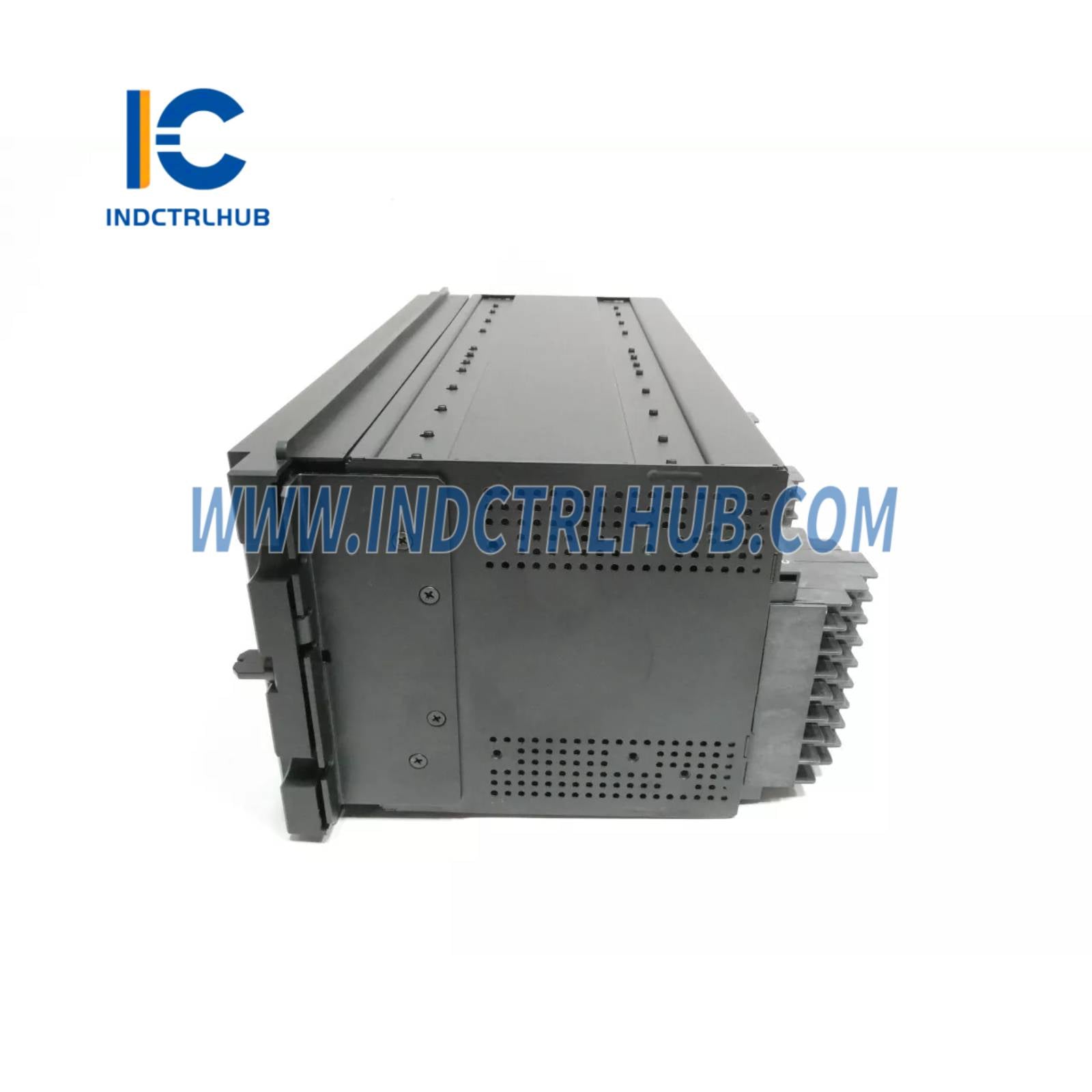

| Dimensions |
Horizontal: 48.3 x 13.3 x 28.2 cm (19 x 5.2 x 11.1 in); Vertical (3/4 size): 43.2 x 17.8 x 22.9 cm (17 x 7 x 9 in) |
| Mounting |
19-inch rack horizontal or 3/4-size vertical, removable faceplate |
| Certifications |
CE, CSA, UL, IEC |
| Software Compatibility |
EnerVista UR for setup, monitoring, and analysis; Viewpoint Engineer for graphical programming |
| Service Life |
20 years (post-June 2014 units in controlled environments) |
