Product Description
Product Overview

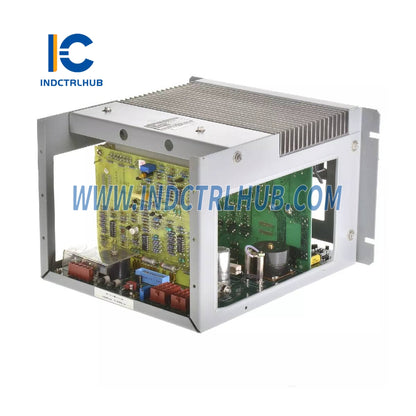

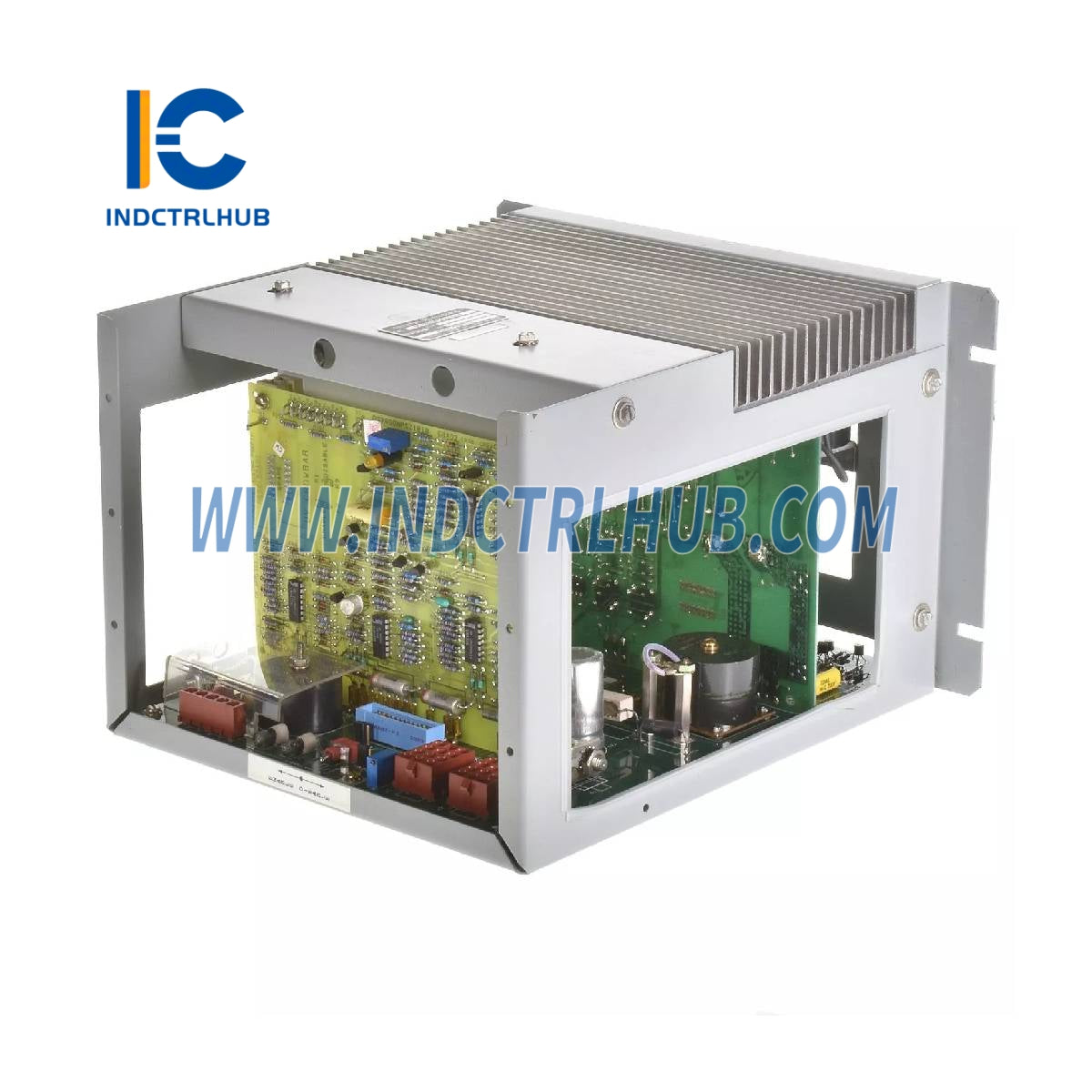

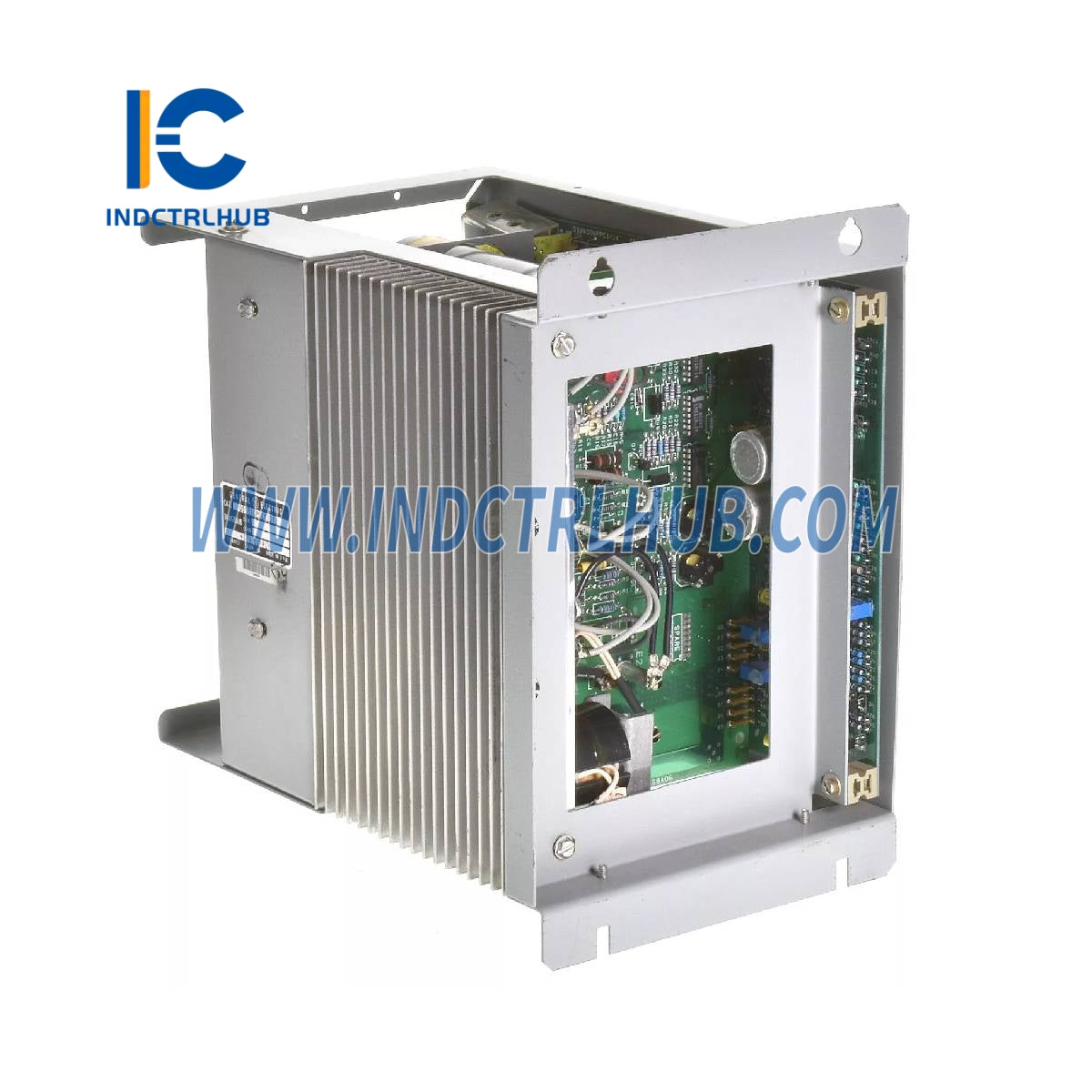

The General Electric DS3820PSCC1D1B is a Power Supply Module designed for the GE Speedtronic Mark IV Turbine Control System, a robust platform for managing gas and steam turbines in industrial settings. Manufactured by General Electric, a leader in industrial automation and power generation solutions, this module delivers regulated 28 VDC power to system components, ensuring stable operation in demanding environments like power plants and oil and gas facilities. It is part of the Mark IV DS3800 series, housed in a durable metal enclosure with multiple DS3800 boards, and supports the system’s high-performance requirements with efficient power distribution and heat dissipation features. The DS3820PSCC1D1B is critical for maintaining the reliability and uptime of turbine control operations.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric |
| Series | Mark IV Speedtronic |
| Model/Part Number | DS3820PSCC1D1B |
| Description | Power Supply Module |
| Input Voltage | 80-140 VDC |
| Output Voltage | 28 VDC regulated |
| Output Rails | +5 VDC, +15 VDC, -15 VDC |
| Connectors | 2 freestanding terminal strips |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| Dimensions | 254 mm H x 203 mm W x 152 mm D (10 in x 8 in x 6 in) |
| Weight | 8.62 kg (19 lb) |
