Product Description
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | General Electric |

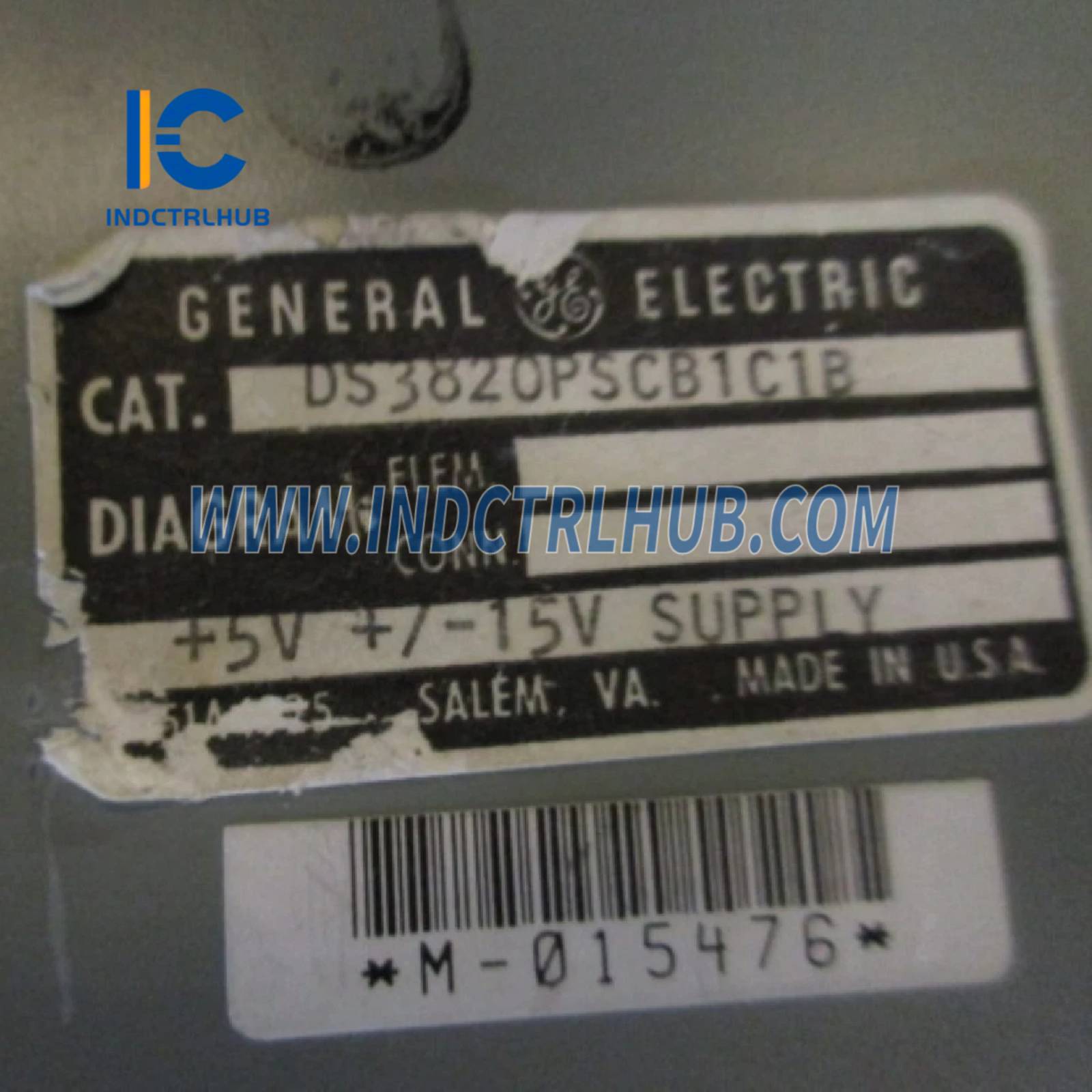

| Model/Part Number | DS3820PSCB1C1B |
| Description | Power Supply Module |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | DS3820PSCB1C1B |

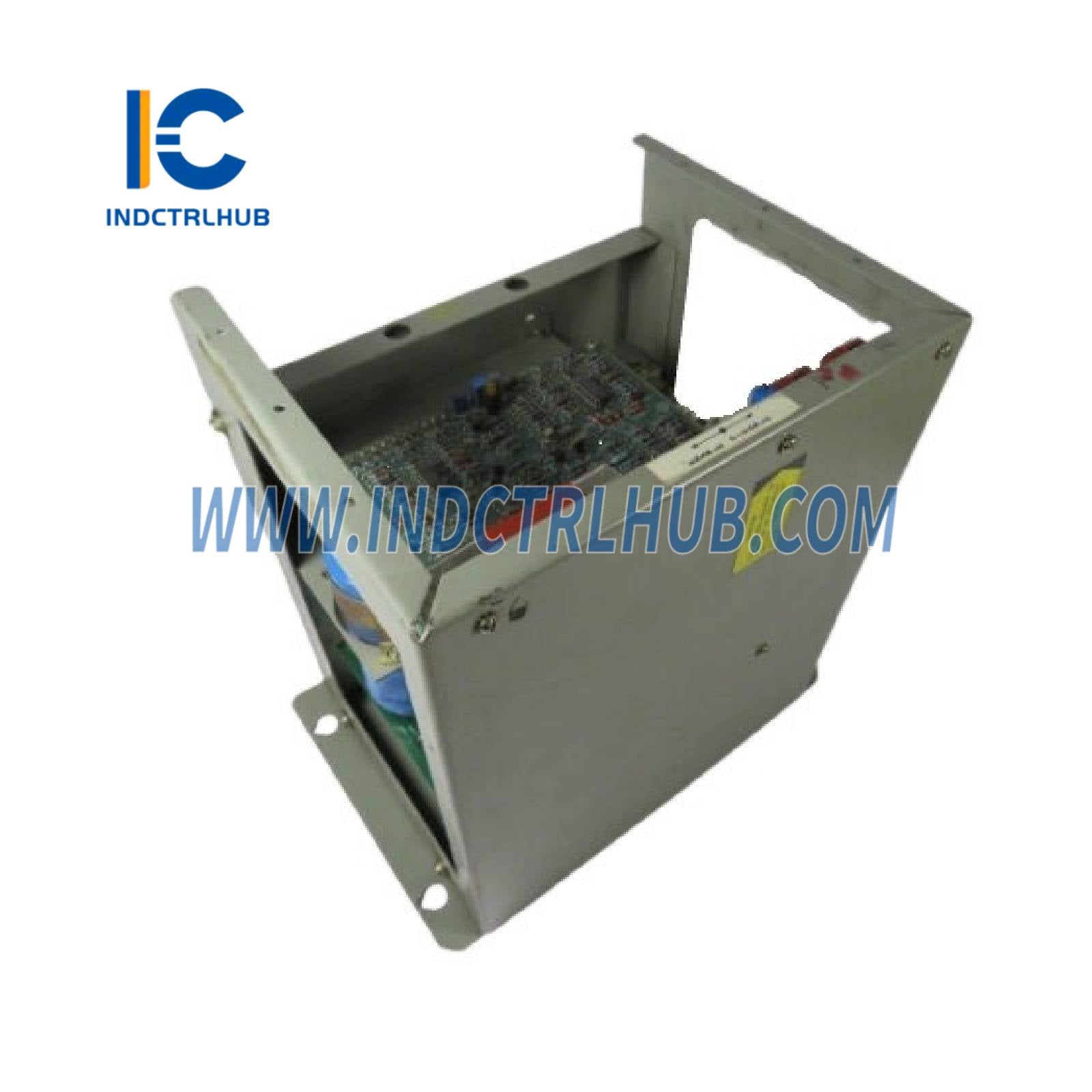

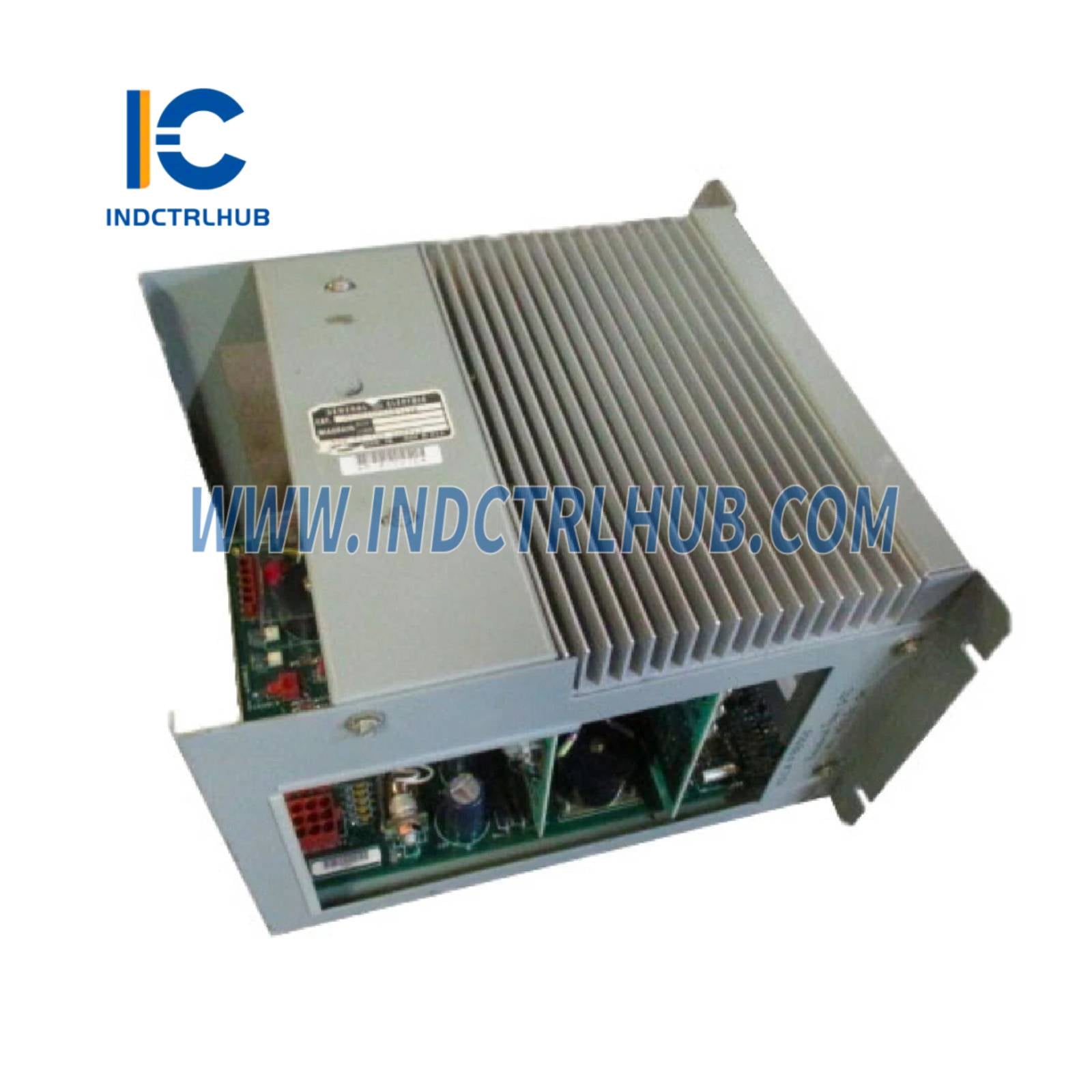

| Product Name | DS3820PSCB Power Supply Board |
| Application | Power supply for gas and steam turbine systems in Mark IV control systems |
| Compatibility | Designed for GE Speedtronic Mark IV turbine control systems; integrates with I/O modules and control processors |
| Function | Provides regulated power for control sequencing, temperature control, and startup automation |
Functional Specifications
| Parameter | Details |
|---|---|
| Type | Power supply module with +5V, +/-15V outputs |
| Input Voltage | 80-140 V DC |
| Output Voltage | +5 V, +15 V, -15 V DC |
| Output Current | Not specified (supports system requirements) |
| Power Rating | Not specified |
| Isolation | Not specified |
| Operating Temperature Range | -30°C to +65°C |
| Mounting | Rack mount in control cabinet |
| Dimensions | 19.5 cm x 28.5 cm x 29 cm (7.7" x 11.2" x 11.4") approximate |
| Weight | 6.42 kg (14.1 lb) |
| Protection Features | Fuse, circuit breaker, overvoltage, overcurrent protection |
| Standards Compliance | IEC 61131-2, CE, UL, CSA |
