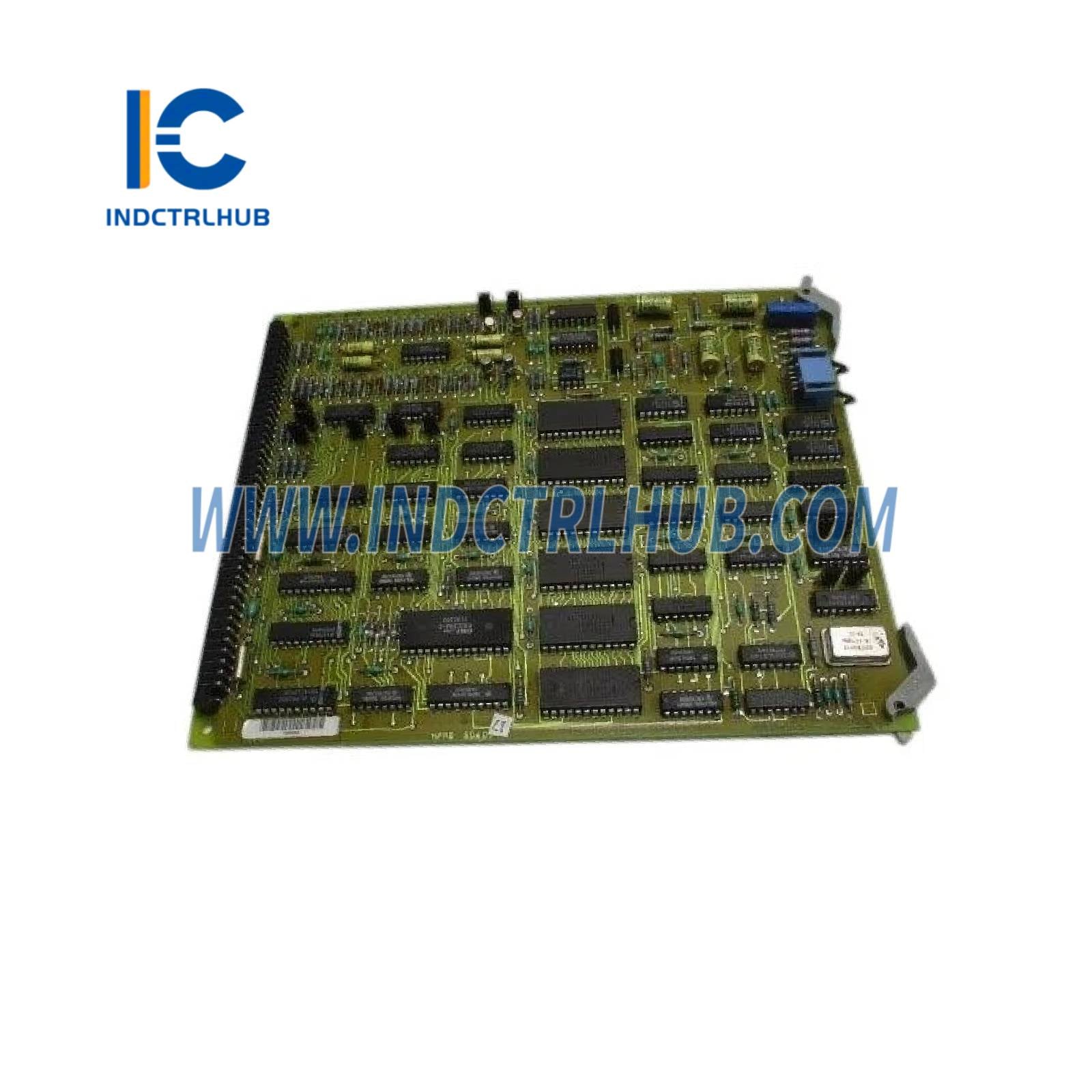

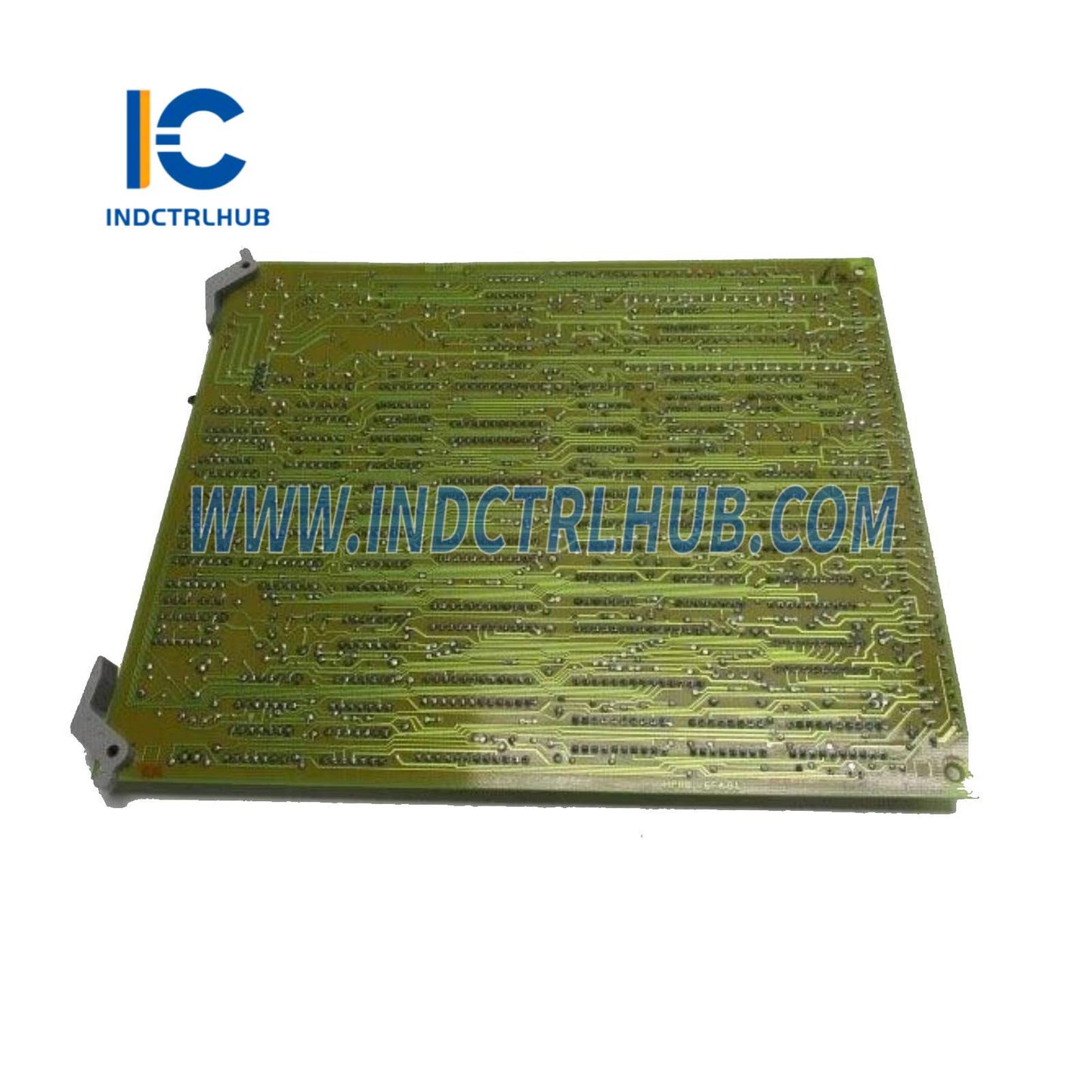

GE DS3800HPRB Processor Board

GE DS3800HPRB Processor Board

  • Manufacturer: General Electric

  • Product No.: DS3800HPRB

  • Condition:1000 in stock

  • Product Type: Processor Board

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details



Parameter Details
Manufacturer General Electric
Model/Part Number DS3800HPRB
Description Processor Board

Product Overview



Parameter Details
Part Number DS3800HPRB
Product Name DS3800HPRB Processor Board
Application Main control processor in turbine control systems for power generation
Compatibility Designed for GE Speedtronic Mark IV turbine control systems; central processor in the control rack
Function Executes real-time control algorithms, manages I/O communication, and performs system diagnostics

Functional Specifications



Parameter Details
Type Microprocessor-based control board
Processor Intel 8086 or equivalent 16-bit CPU
Clock Speed 8 MHz
Memory 64 KB EPROM, 32 KB RAM
I/O Interface Direct connection to backplane for analog/digital I/O modules
Communication Serial RS-232 for programming and diagnostics
Power Supply +5 V DC, ±12 V DC from system backplane
Power Consumption 12 W maximum
Operating Temperature Range 0°C to +60°C
Mounting Rack mount in Mark IV control panel
Dimensions 12.0" x 9.0" x 1.5" (305 mm x 229 mm x 38 mm) approximate
Weight 2.8 lb (1.27 kg)
Diagnostics LED status indicators, self-test routines, fault logging
Standards Compliance ANSI/IEEE C37.90, CE, UL recognized
View full details

Product Description

Product Details



Parameter Details
Manufacturer General Electric
Model/Part Number DS3800HPRB
Description Processor Board

Product Overview



Parameter Details
Part Number DS3800HPRB
Product Name DS3800HPRB Processor Board
Application Main control processor in turbine control systems for power generation
Compatibility Designed for GE Speedtronic Mark IV turbine control systems; central processor in the control rack
Function Executes real-time control algorithms, manages I/O communication, and performs system diagnostics

Functional Specifications



Parameter Details
Type Microprocessor-based control board
Processor Intel 8086 or equivalent 16-bit CPU
Clock Speed 8 MHz
Memory 64 KB EPROM, 32 KB RAM
I/O Interface Direct connection to backplane for analog/digital I/O modules
Communication Serial RS-232 for programming and diagnostics
Power Supply +5 V DC, ±12 V DC from system backplane
Power Consumption 12 W maximum
Operating Temperature Range 0°C to +60°C
Mounting Rack mount in Mark IV control panel
Dimensions 12.0" x 9.0" x 1.5" (305 mm x 229 mm x 38 mm) approximate
Weight 2.8 lb (1.27 kg)
Diagnostics LED status indicators, self-test routines, fault logging
Standards Compliance ANSI/IEEE C37.90, CE, UL recognized
