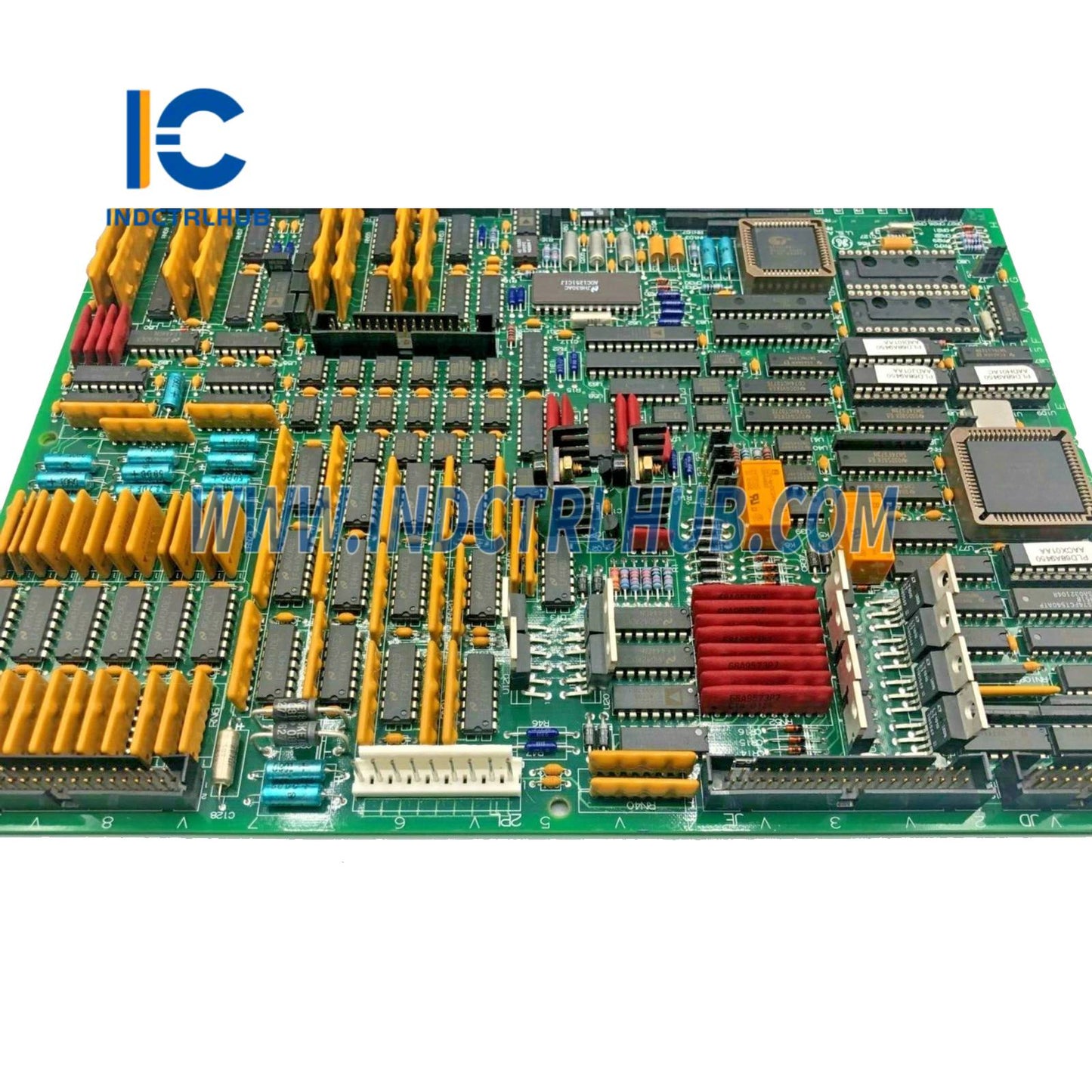

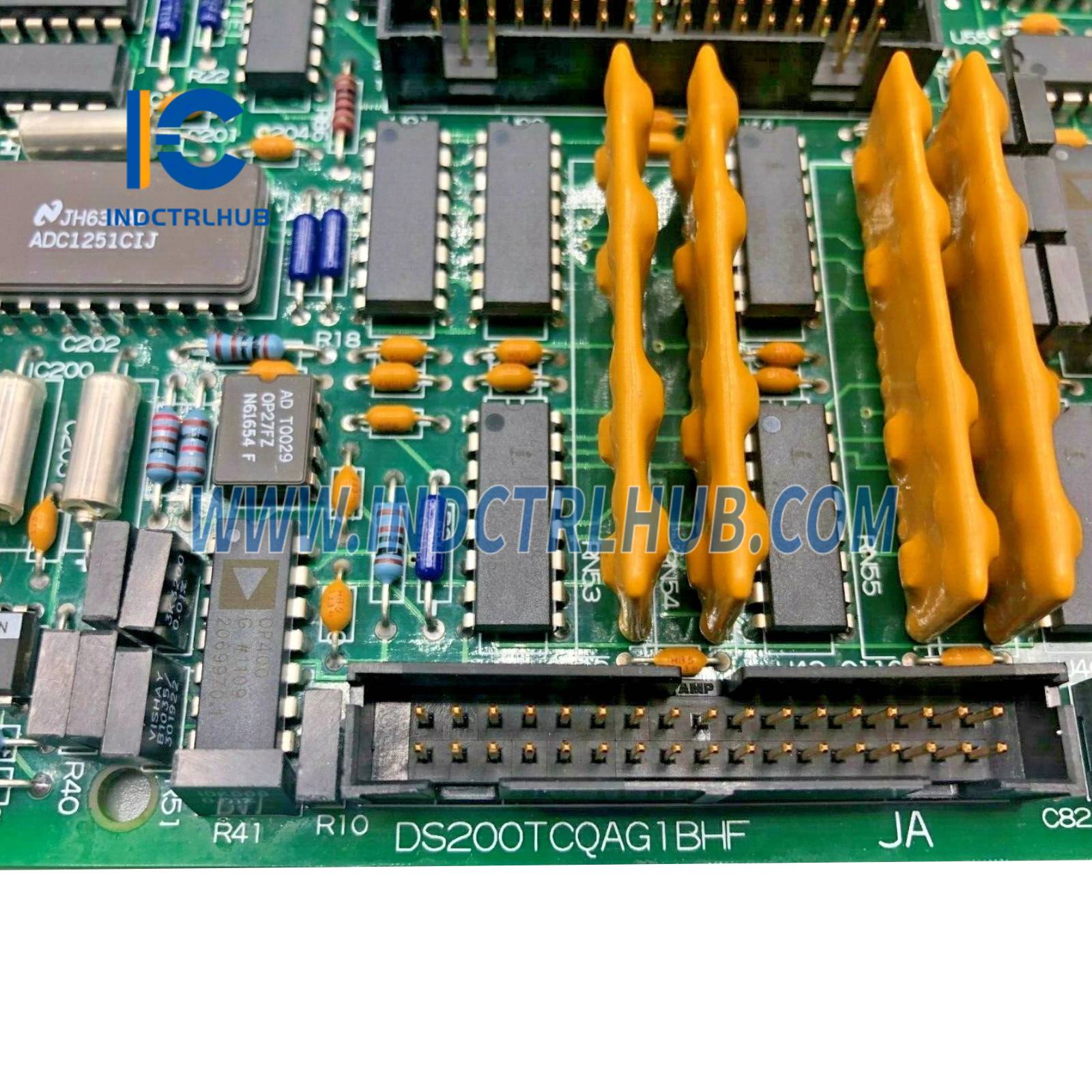

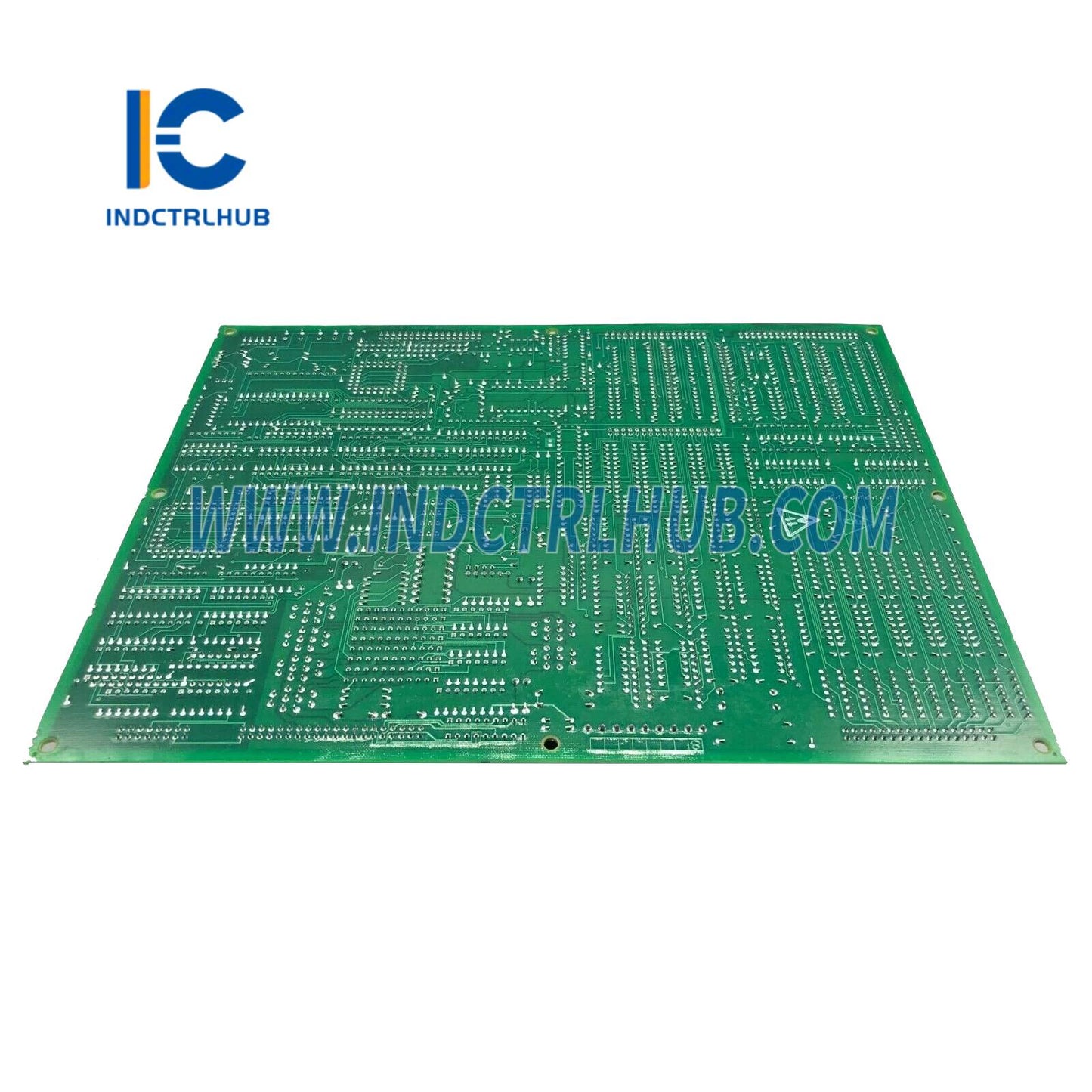

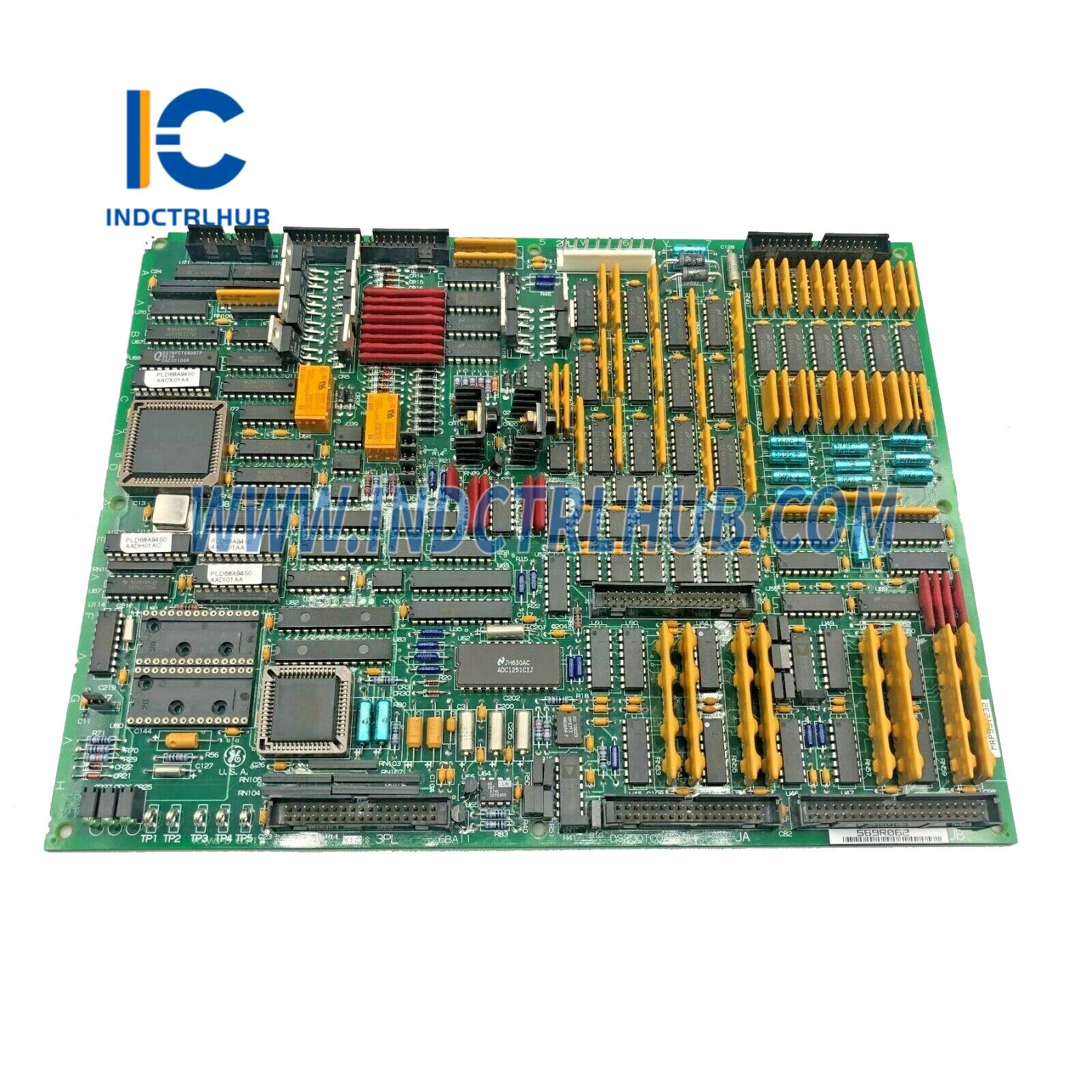

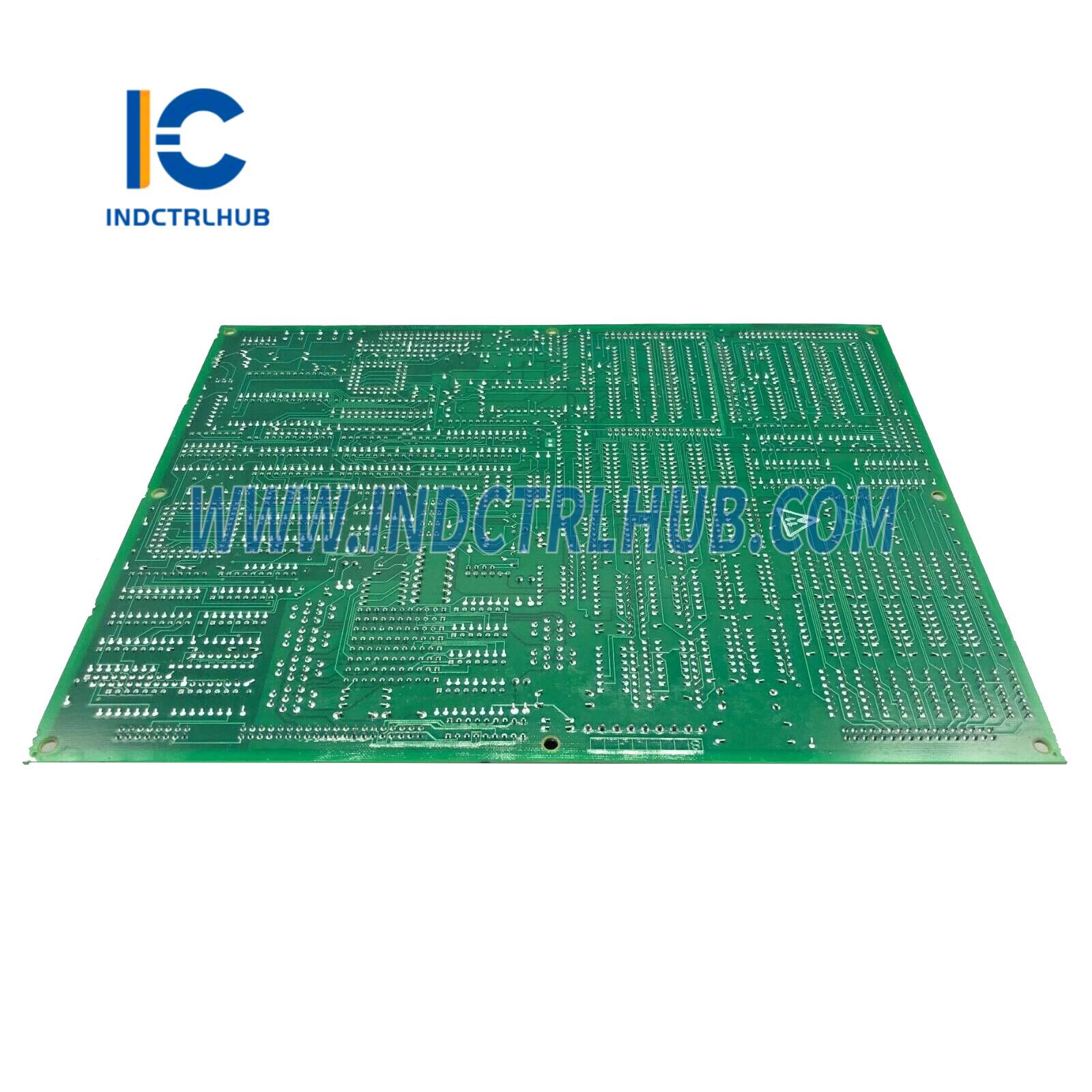

GE DS200TCQAG1B Analog I/O Board

GE DS200TCQAG1B Analog I/O Board

  • Manufacturer: General Electric

  • Product No.: DS200TCQAG1B

  • Condition:1000 in stock

  • Product Type: Analog I/O Board

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 800g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Electric DS200TCQAG1B Analog I/O Board

  • Manufacturer: General Electric
  • Series: Mark V Speedtronic
  • Model/Part Number: DS200TCQAG1B
  • Description: Analog I/O Board for processing analog input and output signals in turbine control systems

Overview

  • The General Electric DS200TCQAG1B is a microprocessor-based Analog I/O Board from the Mark V Speedtronic series, designed for processing analog input and output signals in gas and steam turbine control systems. Located in the Q11 and Q51 cores, it handles signals from terminal boards such as CTBA and TBQA, primarily used in power generation, oil and gas, and industrial automation applications.

Technical Specifications

Specification Details
Model DS200TCQAG1B
Series Mark V Speedtronic
Type Analog I/O Board (Printed Circuit Board)
Functional Acronym TCQA (Turbine Control Quad Analog)
Signal Types Analog inputs (thermocouples, 4–20 mA, RTDs, voltage signals), analog outputs (4–20 mA)
Connectors Multiple ribbon connectors (JAA, JBB, JCC, etc.), 2-pin and 3-pin connectors
Jumpers Configurable for signal scaling and hardware settings
Indicators LEDs for status monitoring
Communication IONET (serial communication to terminal boards)
PCB Coating Normal coating
Operating Temperature 0°C to +60°C (32°F to +140°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Weight 0.8 kg (1.8 lbs)
Dimensions 28 x 13 x 3 cm (11 x 5.1 x 1.2 in)
Mounting Panel mount within control cabinet, Q11/Q51 cores
Certifications CE, UL



View full details

Product Description

General Electric DS200TCQAG1B Analog I/O Board

  • Manufacturer: General Electric
  • Series: Mark V Speedtronic
  • Model/Part Number: DS200TCQAG1B
  • Description: Analog I/O Board for processing analog input and output signals in turbine control systems

Overview

  • The General Electric DS200TCQAG1B is a microprocessor-based Analog I/O Board from the Mark V Speedtronic series, designed for processing analog input and output signals in gas and steam turbine control systems. Located in the Q11 and Q51 cores, it handles signals from terminal boards such as CTBA and TBQA, primarily used in power generation, oil and gas, and industrial automation applications.

Technical Specifications

Specification Details
Model DS200TCQAG1B
Series Mark V Speedtronic
Type Analog I/O Board (Printed Circuit Board)
Functional Acronym TCQA (Turbine Control Quad Analog)
Signal Types Analog inputs (thermocouples, 4–20 mA, RTDs, voltage signals), analog outputs (4–20 mA)
Connectors Multiple ribbon connectors (JAA, JBB, JCC, etc.), 2-pin and 3-pin connectors
Jumpers Configurable for signal scaling and hardware settings
Indicators LEDs for status monitoring
Communication IONET (serial communication to terminal boards)
PCB Coating Normal coating
Operating Temperature 0°C to +60°C (32°F to +140°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Weight 0.8 kg (1.8 lbs)
Dimensions 28 x 13 x 3 cm (11 x 5.1 x 1.2 in)
Mounting Panel mount within control cabinet, Q11/Q51 cores
Certifications CE, UL
