Product Description
Product Overview

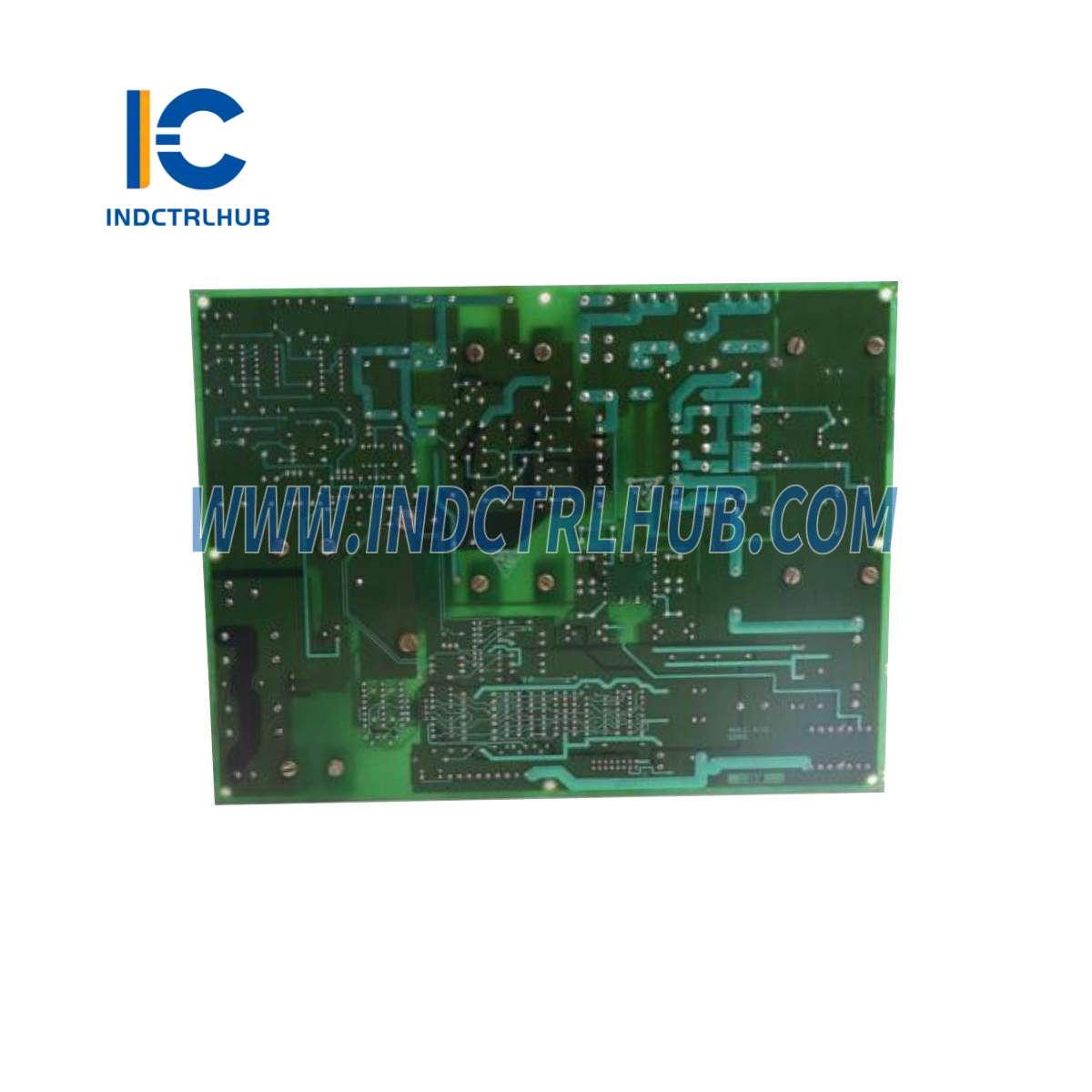

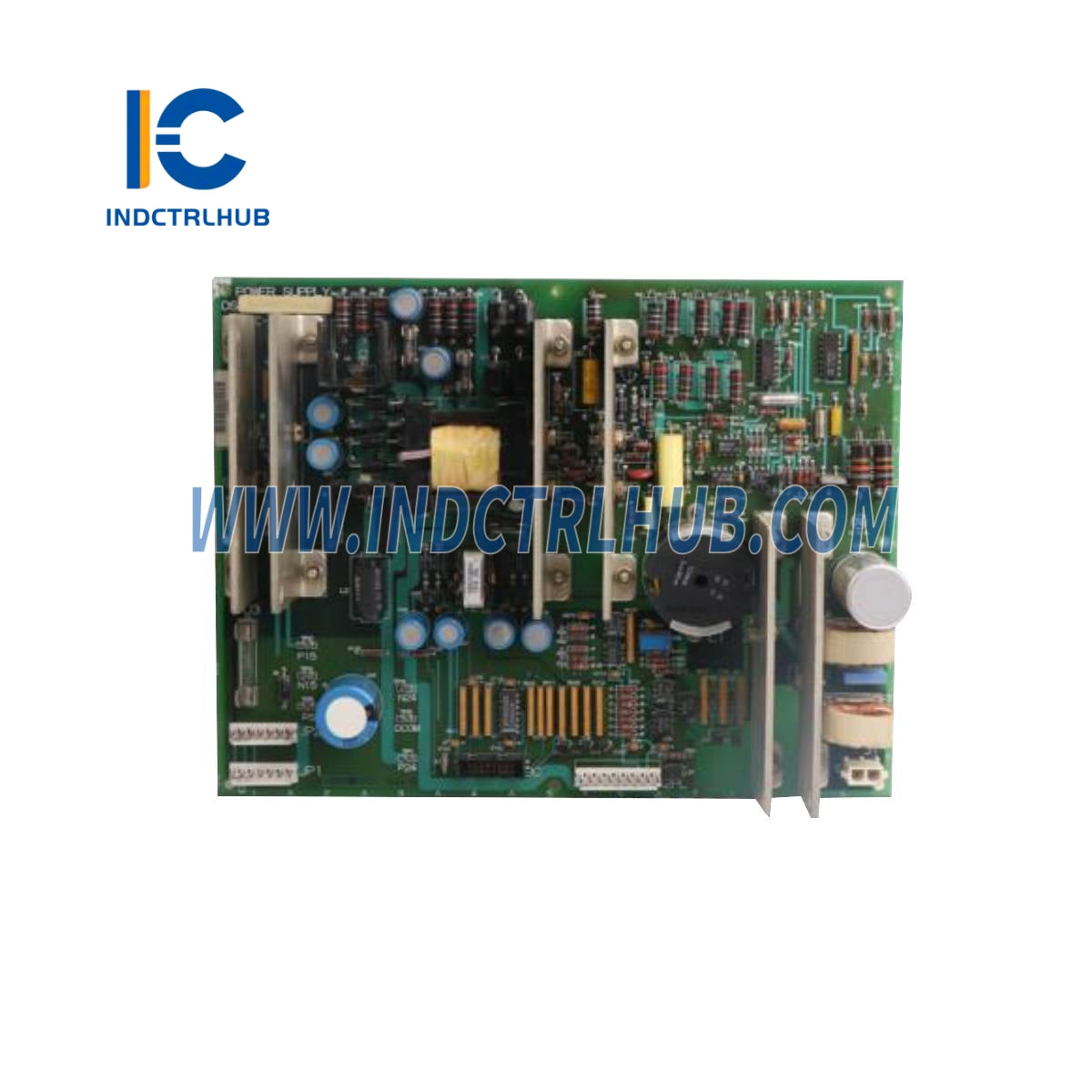

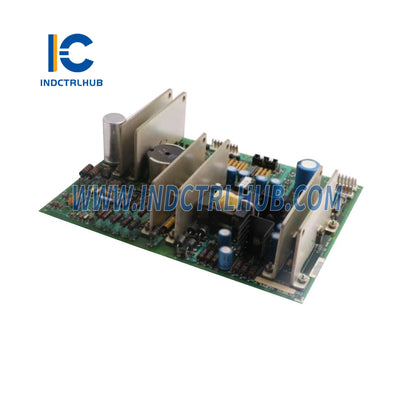

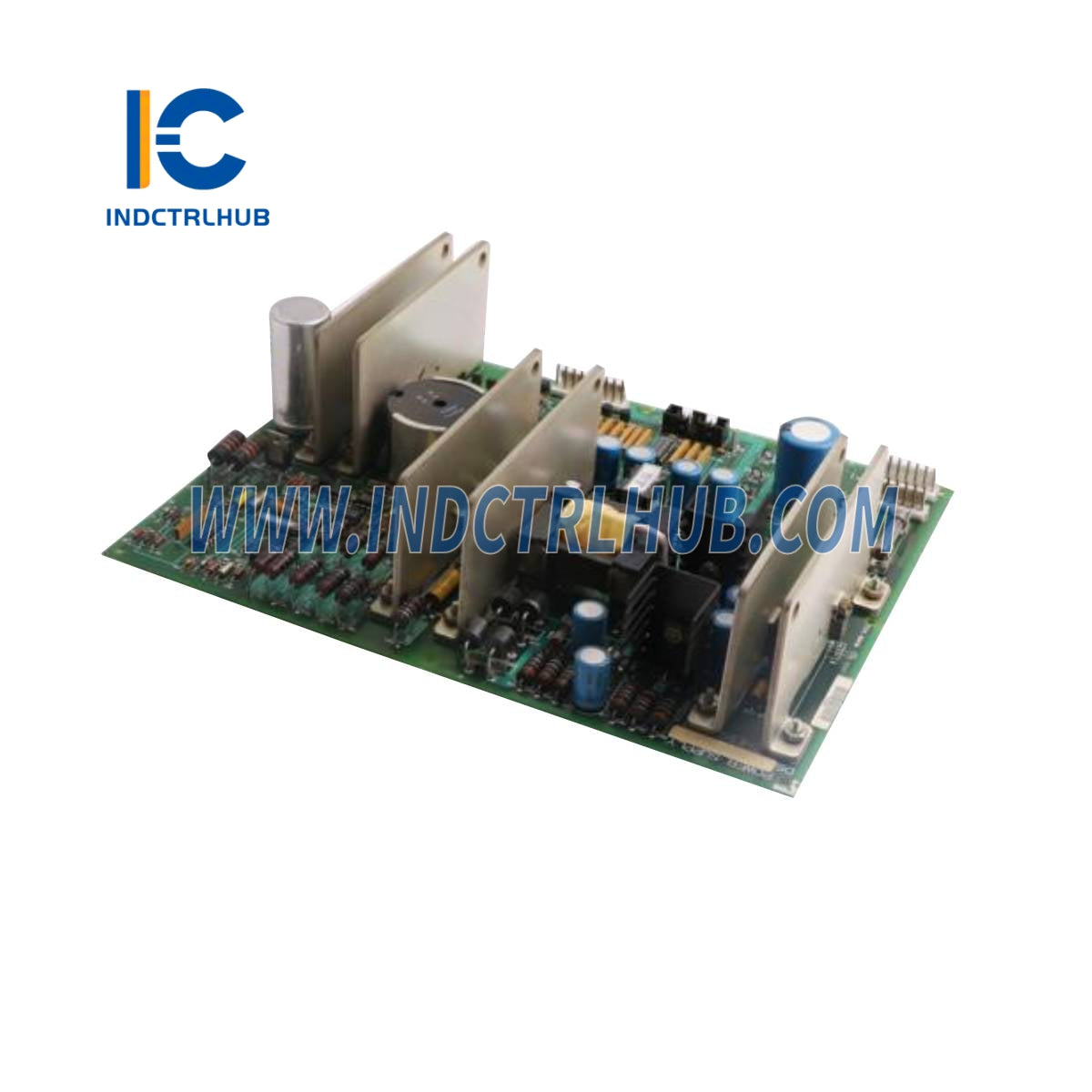

The General Electric DS200TCPSG1AME is a DC Input Power Supply Board designed for the GE Mark V Speedtronic System, a robust control platform used in industrial applications, particularly for managing gas and steam turbine systems. Manufactured by General Electric, a global leader in industrial automation and power solutions, this board resides within the core of the Mark V system and converts 125 VDC power from the core into various voltages required by other system components. It supports critical functions such as supplying power to microprocessors, RTDs (Resistance Temperature Detectors), and servo valve current outputs, ensuring reliable operation of turbine control processes. The DS200TCPSG1AME is deployed in power generation and heavy industrial environments, known for its durability and precision. The “AME” revision indicates three significant updates over the base DS200TCPSG1 model, enhancing performance and compatibility.
Technical Information
|
Item |
Specifications |
|
Manufacturer |
General Electric |
|
Series |
Mark V Speedtronic |
|
Model/Part Number |
DS200TCPSG1AME |
|
Description |
DC Input Power Supply Board |
|
Input Voltage |
125 VDC |
|
Output Voltages |
Multiple (e.g., 5 VDC, 15 VDC for microprocessors, RTDs, servo outputs) |
|
Connectors |
J1 (input), 2PL, JC, JP1, JP2 (output distribution) |
|
Fuses |
3 fuses for circuit protection |
|
Operating Temperature |
0 °C to +60 °C (32 °F to +140 °F) |
|
Dimensions |
283 mm H x 213 mm W x 30 mm D (11.14 in x 8.39 in x 1.18 in) |
|
Weight |
0.91 kg (2.0 lb) |
