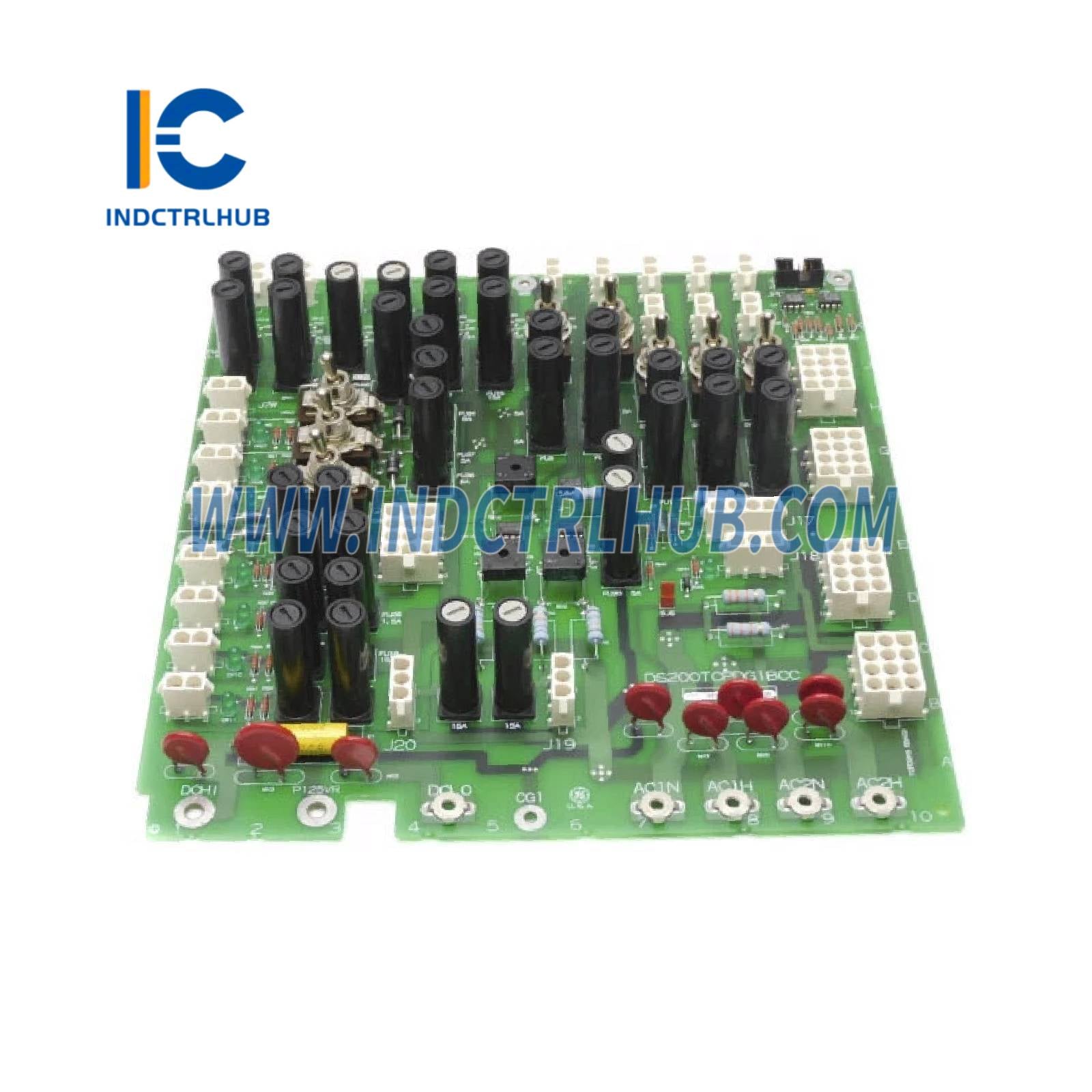

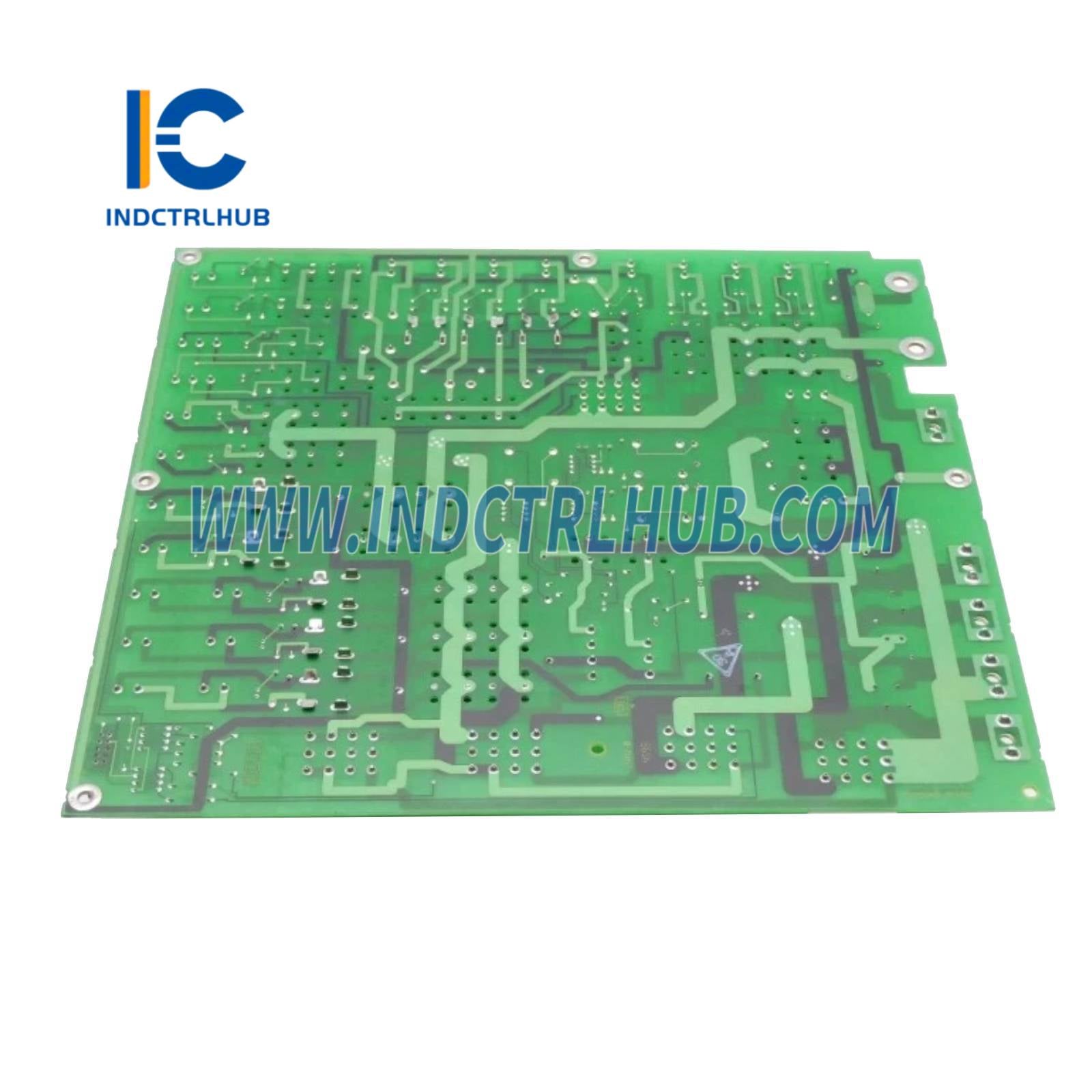

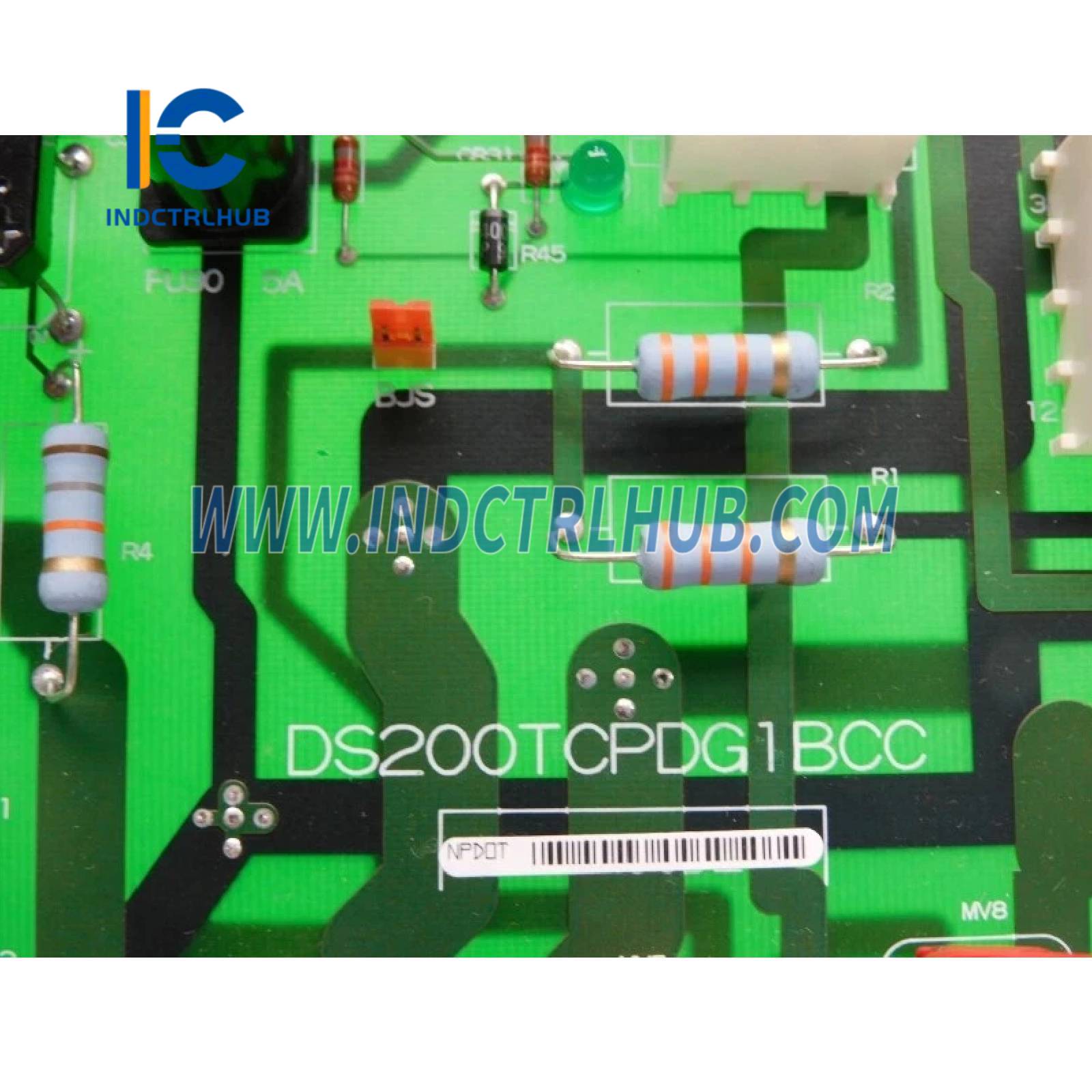

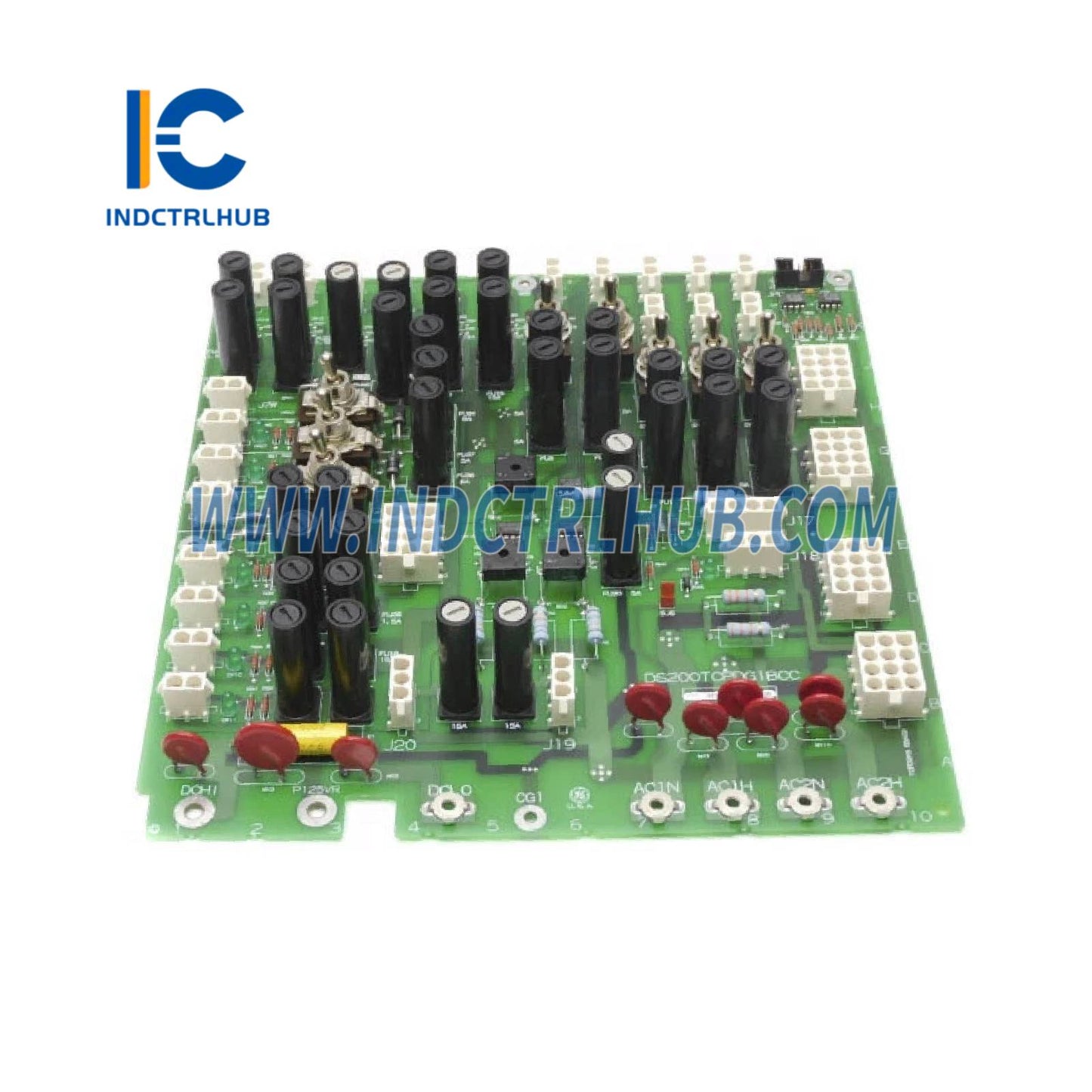

GE DS200TCPDG1BCC（DS200TCPDG1BEC） Power Distribution Board

GE DS200TCPDG1BCC（DS200TCPDG1BEC） Power Distribution Board

  • Manufacturer: General Electric

  • Product No.: DS200TCPDG1BCC

  • Condition:1000 in stock

  • Product Type: Power Distribution Board

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details



Parameter Details
Manufacturer General Electric
Model/Part Number DS200TCPDG1BCC（DS200TCPDG1BEC）
Description Power Distribution Board

Product Overview



Parameter Details
Part Number DS200TCPDG1BCC（DS200TCPDG1BEC）
Product Name DS200TCPDG1B Power Distribution Board
Application DC power distribution and signal interface for I/O modules in turbine control systems
Compatibility Designed for GE Speedtronic Mark V turbine control systems; located in <R>, , <T> cores; interfaces with TCPS power supplies and I/O boards
Function Distributes 125 V DC, 115 V AC, and 24 V DC power; provides signal isolation, filtering, and fault monitoring for reliable I/O operation

Functional Specifications



Parameter Details
Type Power distribution and signal interface board
Input Voltage 125 V DC (P125), 115 V AC (P115), 24 V DC (from TCPS)
Output Power 125 V DC at 10 A, 24 V DC at 5 A to I/O boards
Power Rails P125, N125, P24, N24, COM
Signal Isolation 1500 V AC between power and signal circuits
Fuse Protection Replaceable fuses on all power outputs
Monitoring Voltage monitoring with alarm outputs, LED indicators for power status
Connectors High-density ribbon cables to TCPS, TBQC, and I/O terminal boards
Power Consumption 5 W (board only)
Operating Temperature Range -30°C to +70°C
Mounting Rack mount in Mark V control panel (<R>, , or <T> core)
Dimensions 10.5" x 8.5" x 1.5" (267 mm x 216 mm x 38 mm) approximate
Weight 2.5 lb (1.13 kg)
Protection Features Overvoltage clamping, EMI filtering, short-circuit protection
Standards Compliance IEC 61131-2, CE, UL, CSA
View full details

Product Description

Product Details



Parameter Details
Manufacturer General Electric
Model/Part Number DS200TCPDG1BCC（DS200TCPDG1BEC）
Description Power Distribution Board

Product Overview



Parameter Details
Part Number DS200TCPDG1BCC（DS200TCPDG1BEC）
Product Name DS200TCPDG1B Power Distribution Board
Application DC power distribution and signal interface for I/O modules in turbine control systems
Compatibility Designed for GE Speedtronic Mark V turbine control systems; located in <R>, , <T> cores; interfaces with TCPS power supplies and I/O boards
Function Distributes 125 V DC, 115 V AC, and 24 V DC power; provides signal isolation, filtering, and fault monitoring for reliable I/O operation

Functional Specifications



Parameter Details
Type Power distribution and signal interface board
Input Voltage 125 V DC (P125), 115 V AC (P115), 24 V DC (from TCPS)
Output Power 125 V DC at 10 A, 24 V DC at 5 A to I/O boards
Power Rails P125, N125, P24, N24, COM
Signal Isolation 1500 V AC between power and signal circuits
Fuse Protection Replaceable fuses on all power outputs
Monitoring Voltage monitoring with alarm outputs, LED indicators for power status
Connectors High-density ribbon cables to TCPS, TBQC, and I/O terminal boards
Power Consumption 5 W (board only)
Operating Temperature Range -30°C to +70°C
Mounting Rack mount in Mark V control panel (<R>, , or <T> core)
Dimensions 10.5" x 8.5" x 1.5" (267 mm x 216 mm x 38 mm) approximate
Weight 2.5 lb (1.13 kg)
Protection Features Overvoltage clamping, EMI filtering, short-circuit protection
Standards Compliance IEC 61131-2, CE, UL, CSA
