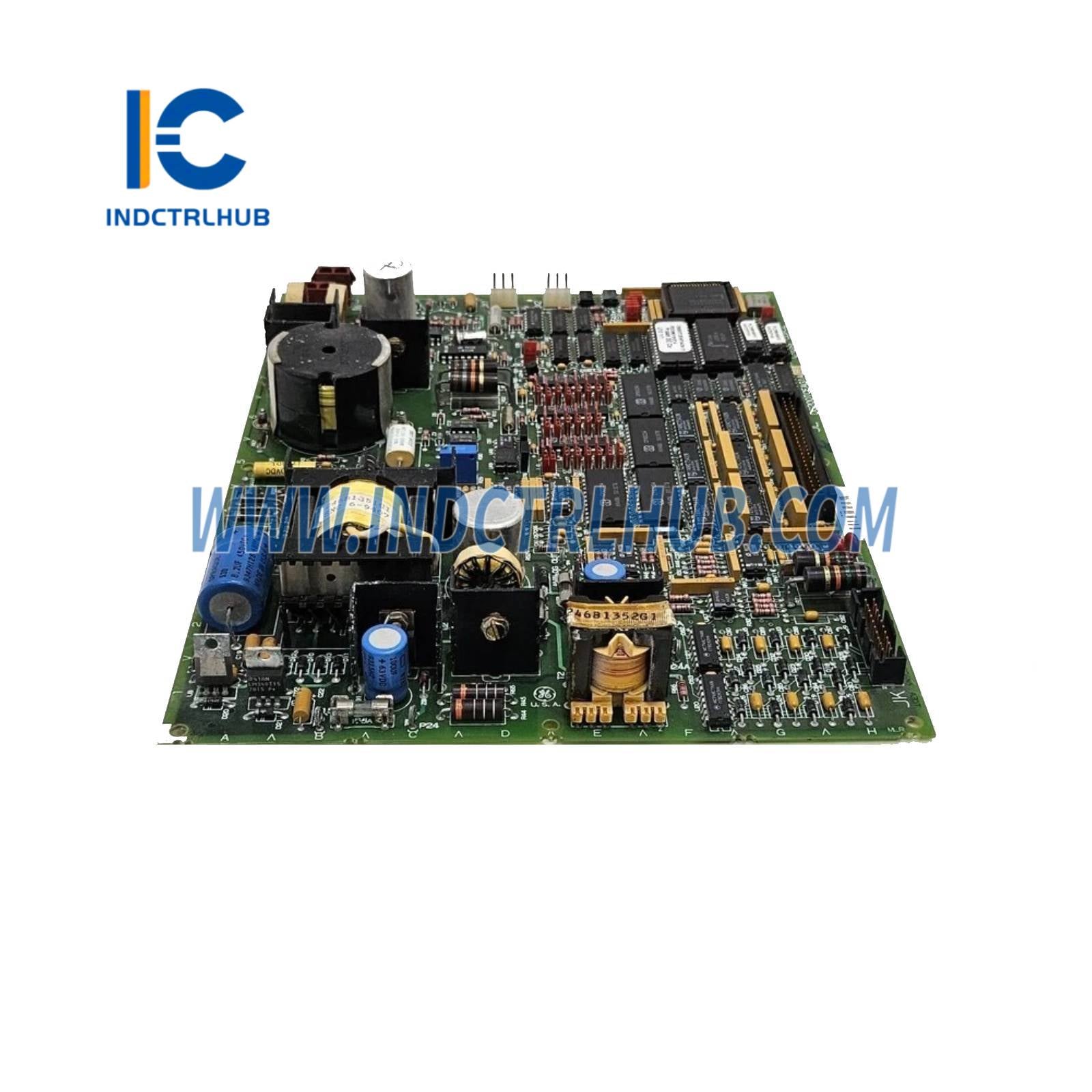

GE DS200TCEAG1A Emergency Overspeed Board
GE DS200TCEAG1A Emergency Overspeed Board
Manufacturer: General Electric
Product No.: DS200TCEAG1A
Condition:1000 in stock
Product Type: Emergency Overspeed Board
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | General Electric |
| Model/Part Number | DS200TCEAG1A |
| Description | Emergency Overspeed Board |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | DS200TCEAG1A |
| Product Name | DS200TCEAG1A Emergency Overspeed Board |
| Application | Overspeed protection and emergency trip control in turbine systems for power generation |
| Compatibility | Designed for GE Speedtronic Mark V turbine control systems; located in <R>, |
| Function | Monitors turbine speed, detects overspeed conditions, and initiates emergency shutdown; supports triple redundant voting logic |
Functional Specifications
| Parameter | Details |
|---|---|
| Type | Emergency overspeed protection board with triple modular redundancy |
| Speed Inputs | 3 independent speed sensor inputs (magnetic pickup or proximity probe) |
| Speed Range | 0_20,000 RPM configurable |
| Overspeed Trip Setpoints | Primary (110% of rated), emergency (115% of rated), configurable via software |
| Response Time | <10 ms from overspeed detection to trip output |
| Voting Logic | 2-out-of-3 voting for trip decision |
| Trip Outputs | 3 independent trip solenoid drivers (125 V DC, 10 A max) |
| Isolation | Optical isolation 1500 V AC between field and logic side |
| Test Functions | Online testing of speed channels and trip circuits |
| Power Supply | +5 V DC and +24 V DC from system backplane |
| Power Consumption | 15 W maximum |
| Operating Temperature Range | -30°C to +70°C |
| Mounting | Rack mount in Mark V control panel (<R>, |
| Dimensions | 10.5" x 8.5" x 1.5" (267 mm x 216 mm x 38 mm) approximate |
| Weight | 2.5 lb (1.13 kg) |
| Connectors | High-density ribbon cable to TCEA terminal board |
| Diagnostics | LED status indicators, fault logging via IONet, self-diagnostics |
| Standards Compliance | IEC 61508 SIL 3 capable, IEC 61131-2, CE, UL, CSA |
Product Description
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | General Electric |
| Model/Part Number | DS200TCEAG1A |
| Description | Emergency Overspeed Board |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | DS200TCEAG1A |
| Product Name | DS200TCEAG1A Emergency Overspeed Board |
| Application | Overspeed protection and emergency trip control in turbine systems for power generation |
| Compatibility | Designed for GE Speedtronic Mark V turbine control systems; located in <R>, |
| Function | Monitors turbine speed, detects overspeed conditions, and initiates emergency shutdown; supports triple redundant voting logic |
Functional Specifications
| Parameter | Details |
|---|---|
| Type | Emergency overspeed protection board with triple modular redundancy |
| Speed Inputs | 3 independent speed sensor inputs (magnetic pickup or proximity probe) |
| Speed Range | 0_20,000 RPM configurable |
| Overspeed Trip Setpoints | Primary (110% of rated), emergency (115% of rated), configurable via software |
| Response Time | <10 ms from overspeed detection to trip output |
| Voting Logic | 2-out-of-3 voting for trip decision |
| Trip Outputs | 3 independent trip solenoid drivers (125 V DC, 10 A max) |
| Isolation | Optical isolation 1500 V AC between field and logic side |
| Test Functions | Online testing of speed channels and trip circuits |
| Power Supply | +5 V DC and +24 V DC from system backplane |
| Power Consumption | 15 W maximum |
| Operating Temperature Range | -30°C to +70°C |
| Mounting | Rack mount in Mark V control panel (<R>, |
| Dimensions | 10.5" x 8.5" x 1.5" (267 mm x 216 mm x 38 mm) approximate |
| Weight | 2.5 lb (1.13 kg) |
| Connectors | High-density ribbon cable to TCEA terminal board |
| Diagnostics | LED status indicators, fault logging via IONet, self-diagnostics |
| Standards Compliance | IEC 61508 SIL 3 capable, IEC 61131-2, CE, UL, CSA |
