Product Description
Product Overview

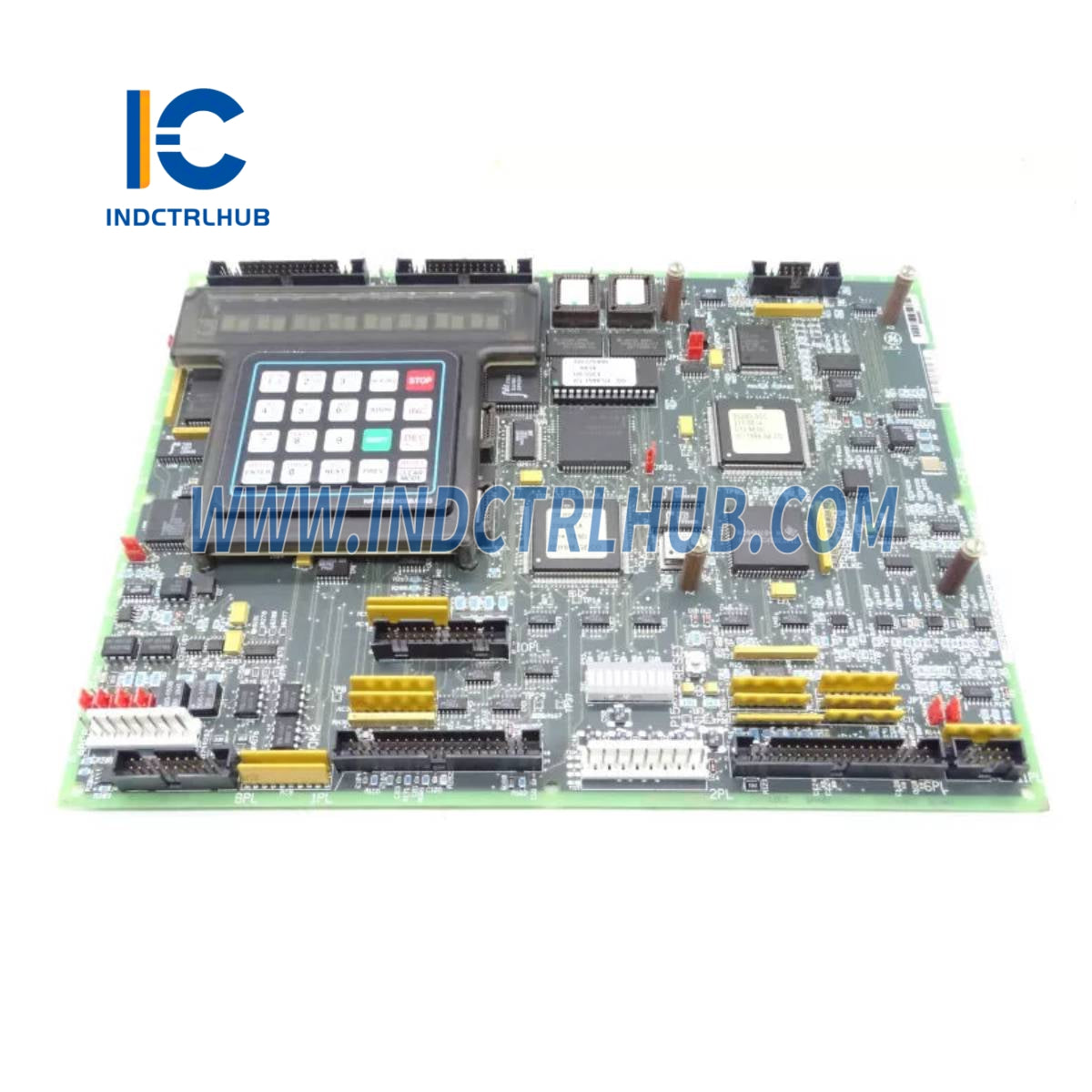

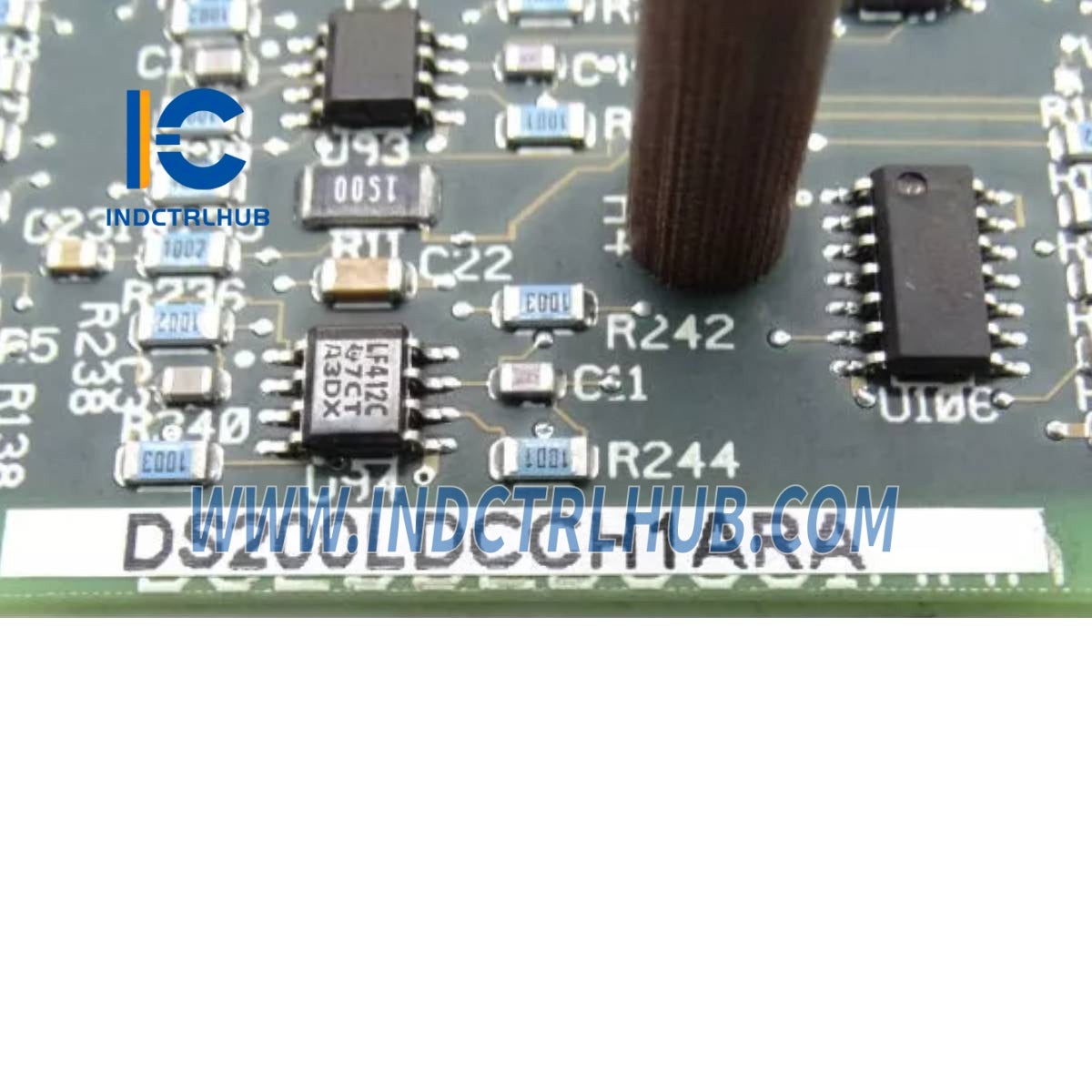

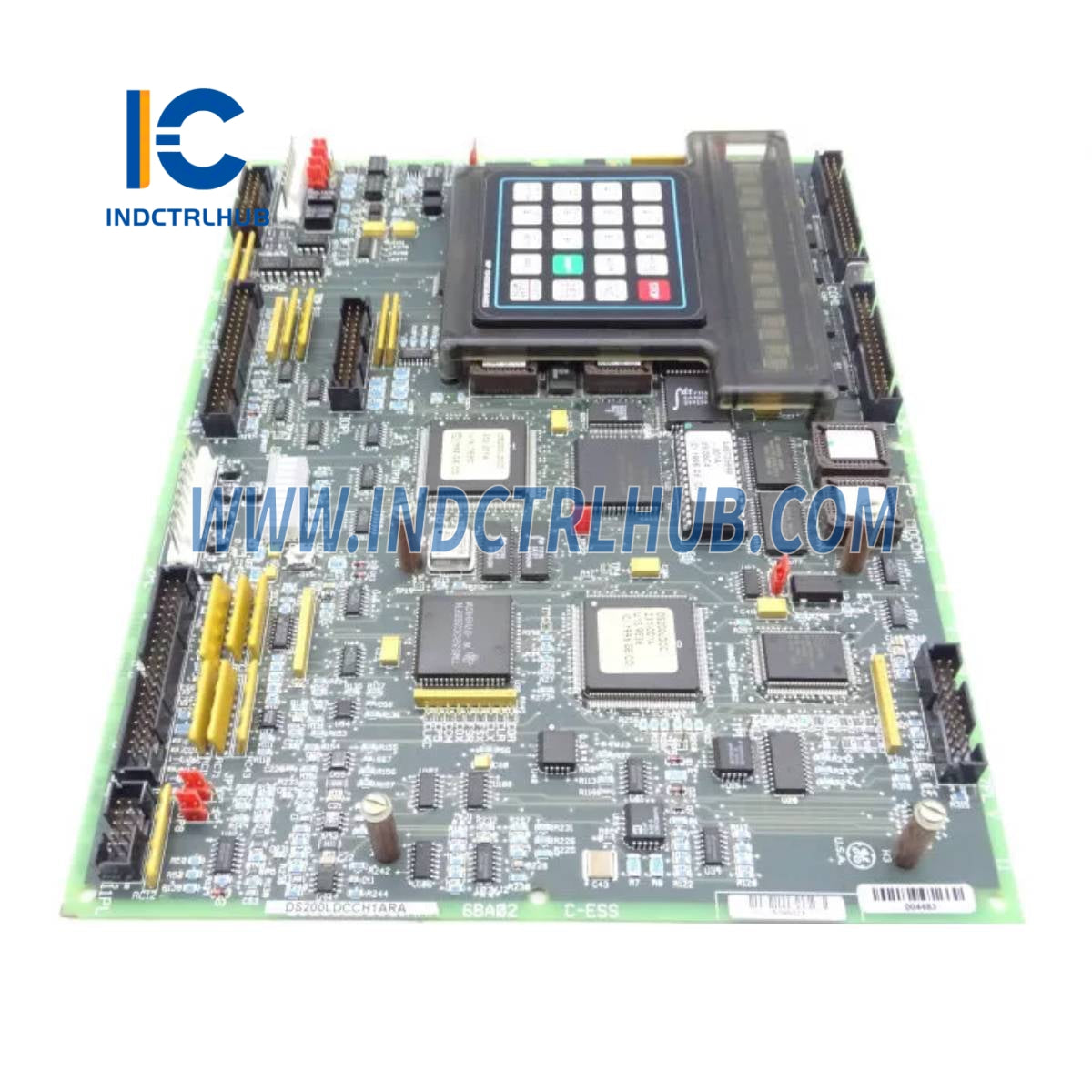

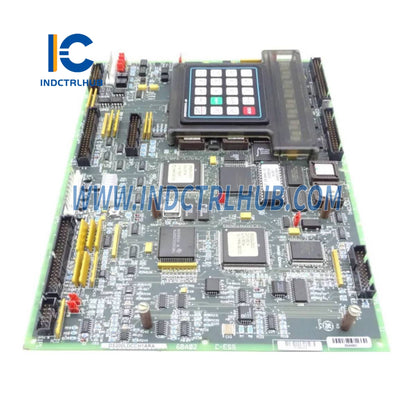

The General Electric DS200LDCCH1A is a Drive Control/LAN Communications Board designed for the GE Mark V Speedtronic System, a sophisticated control platform used in industrial applications, particularly for managing gas and steam turbine systems. Manufactured by General Electric, a global leader in industrial automation and power solutions, this board serves as the primary control and communication hub for the DIRECTO-MATIC 2000 family of drives and exciters within the Mark V series. It integrates four microprocessors to handle drive control, motor processing, I/O functions, and LAN communications, ensuring seamless operation and real-time data exchange in complex turbine control setups. The DS200LDCCH1A is deployed in power generation and heavy industrial environments, providing robust performance and reliability. As a legacy component, it remains critical for maintaining older Mark V systems.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | General Electric |
| Series | Mark V Speedtronic |
| Model/Part Number | DS200LDCCH1A |
| Description | Drive Control/LAN Communications Board |
| Input Voltage | 125 VDC |
| Microprocessors | 4 (DCP, LCP, MCP, CMP) |
| Inputs | 12 configurable inputs |
| Communication | LAN (DLAN+, DLAN, Genius Bus, CPL, C-Bus) |
| Display | 16-character alphanumeric |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| Dimensions | 283 mm H x 213 mm W x 30 mm D (11.14 in x 8.39 in x 1.18 in) |
| Weight | 0.91 kg (2.0 lb) |
