Product Description

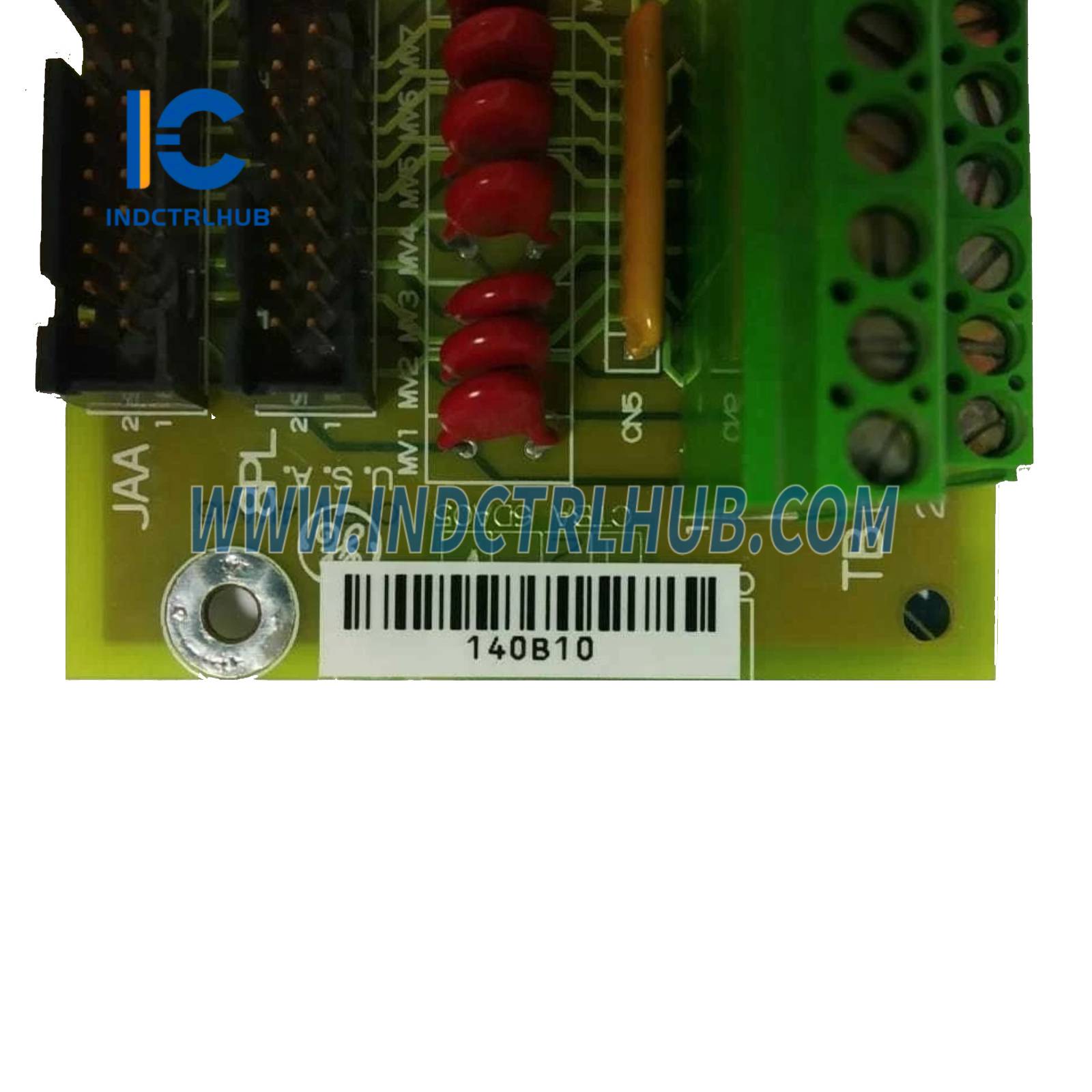

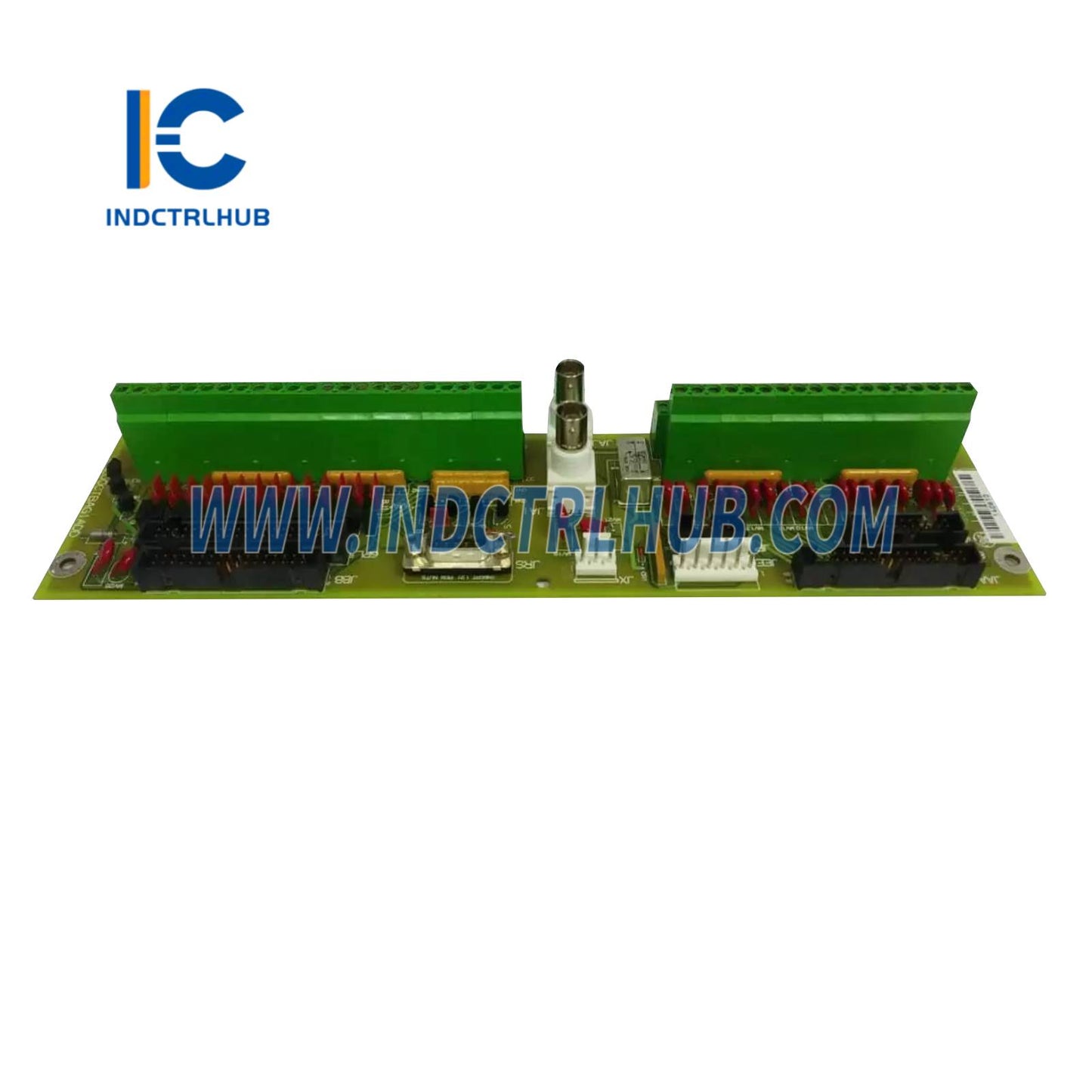

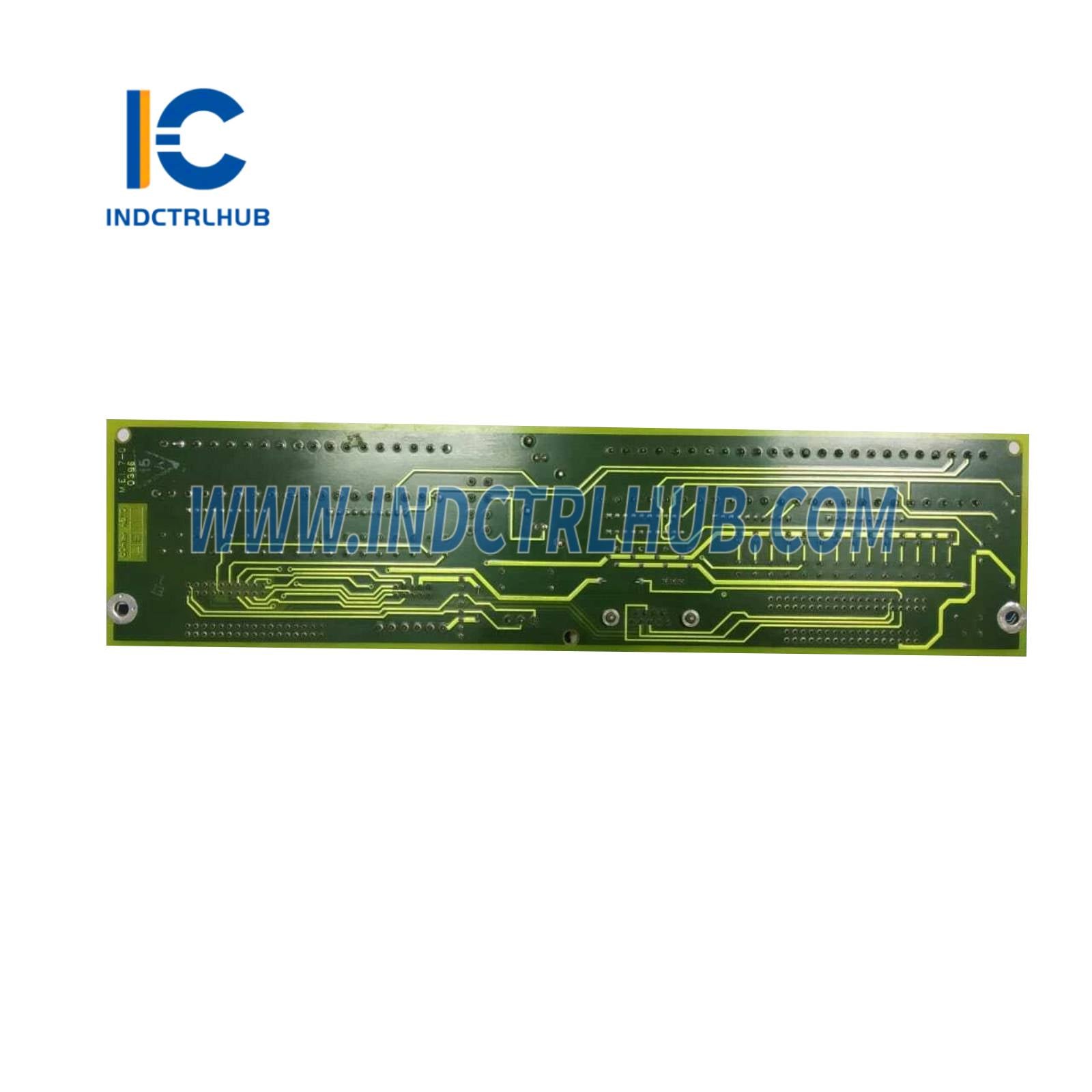

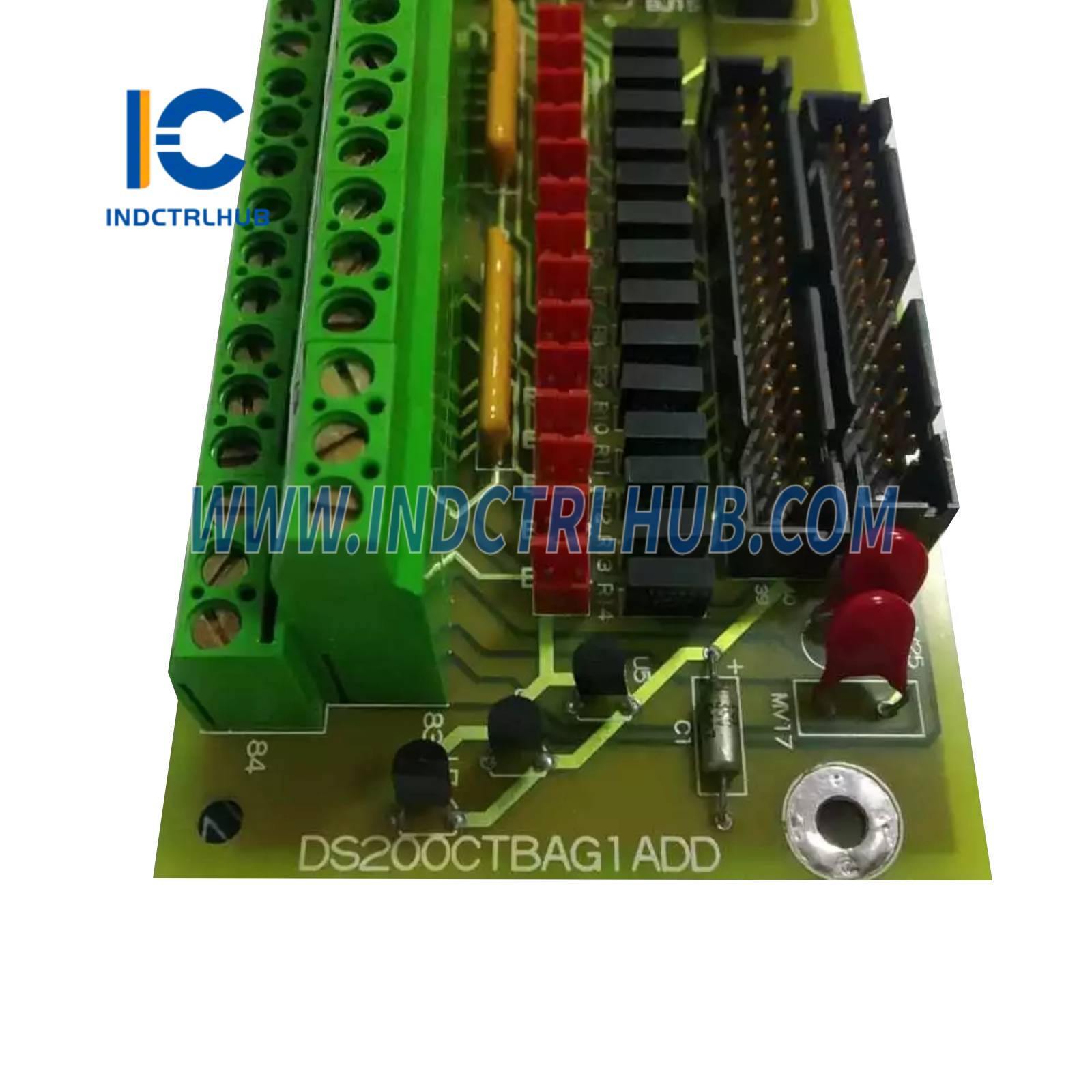

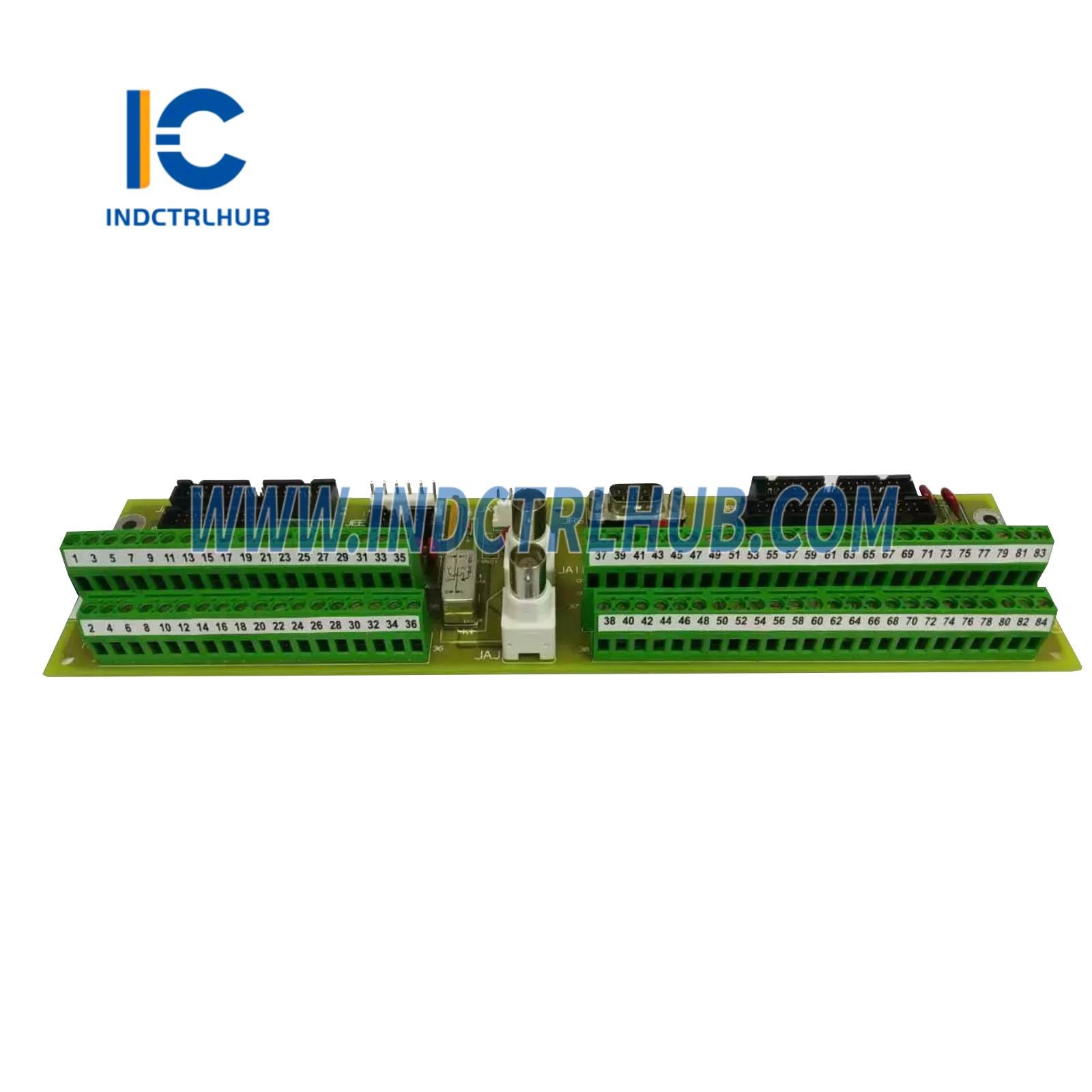

General Electric DS200CTBAG1A Analog Termination Module
- Manufacturer: General Electric
- Series: Mark V Speedtronic
- Model/Part Number: DS200CTBAG1A
- Description: Analog Termination Module for signal termination and processing in industrial control systems
Overview
- The General Electric DS200CTBAG1A is a microprocessor-based Analog Termination Module from the Mark V Speedtronic series, designed for precise signal termination and processing of analog inputs and outputs in industrial control systems. It serves as a critical component in programmable logic controllers (PLCs) and machine control systems, primarily used in gas and steam turbine management for power generation, oil and gas, and industrial automation applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | DS200CTBAG1A |
| Series | Mark V Speedtronic |
| Type | Analog Termination Module (Printed Wiring Terminal Board) |
| Functional Acronym | CTBA (Common Termination Board Analog) |
| Signal Types | Analog inputs and outputs |
| PCB Coating | Normal coating |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Weight | 0.5 kg (1.1 lbs) |
| Dimensions | 28 x 13 x 3 cm (11 x 5.1 x 1.2 in) |
| Mounting | DIN rail or panel mount within control cabinet |
| Certifications | CE, UL |
