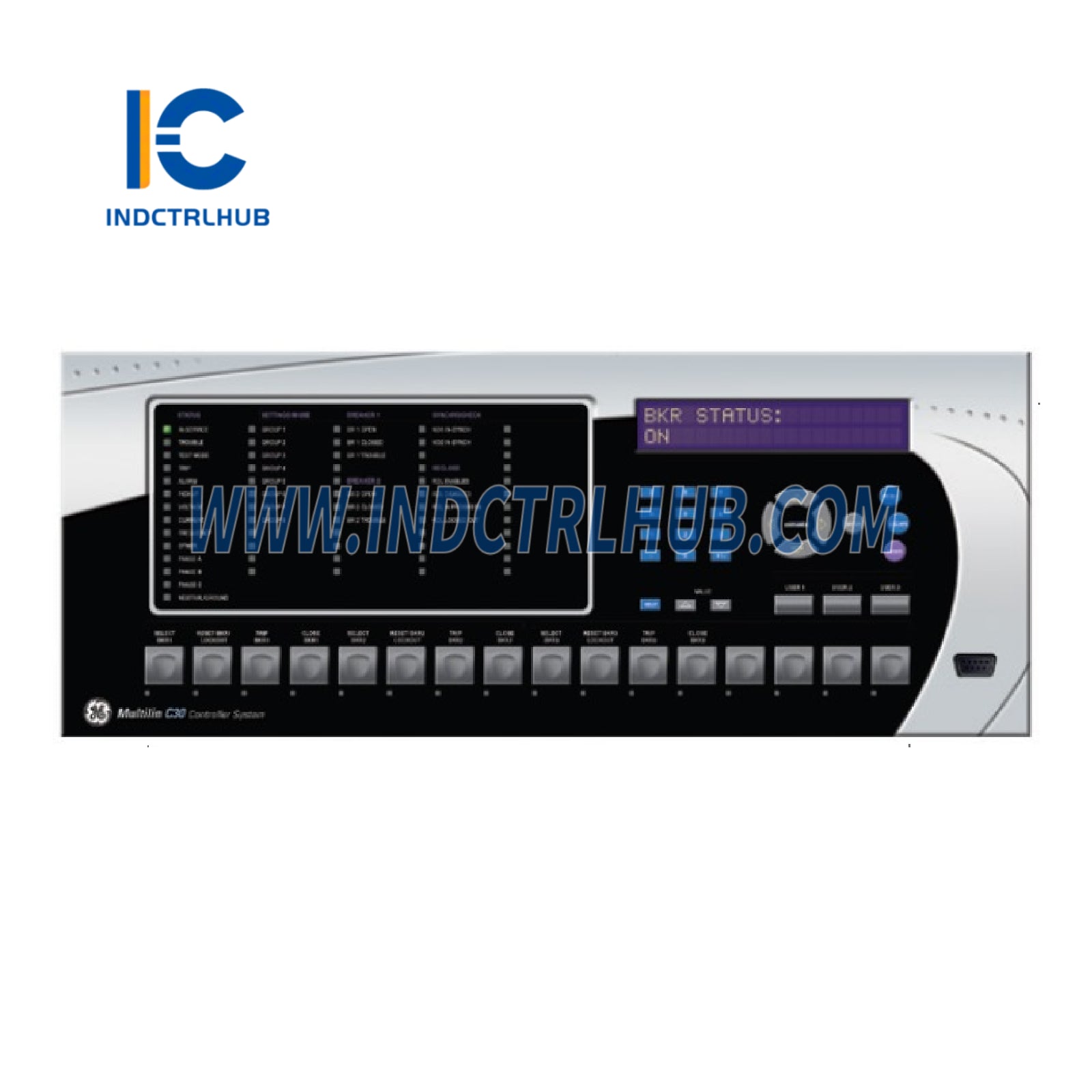

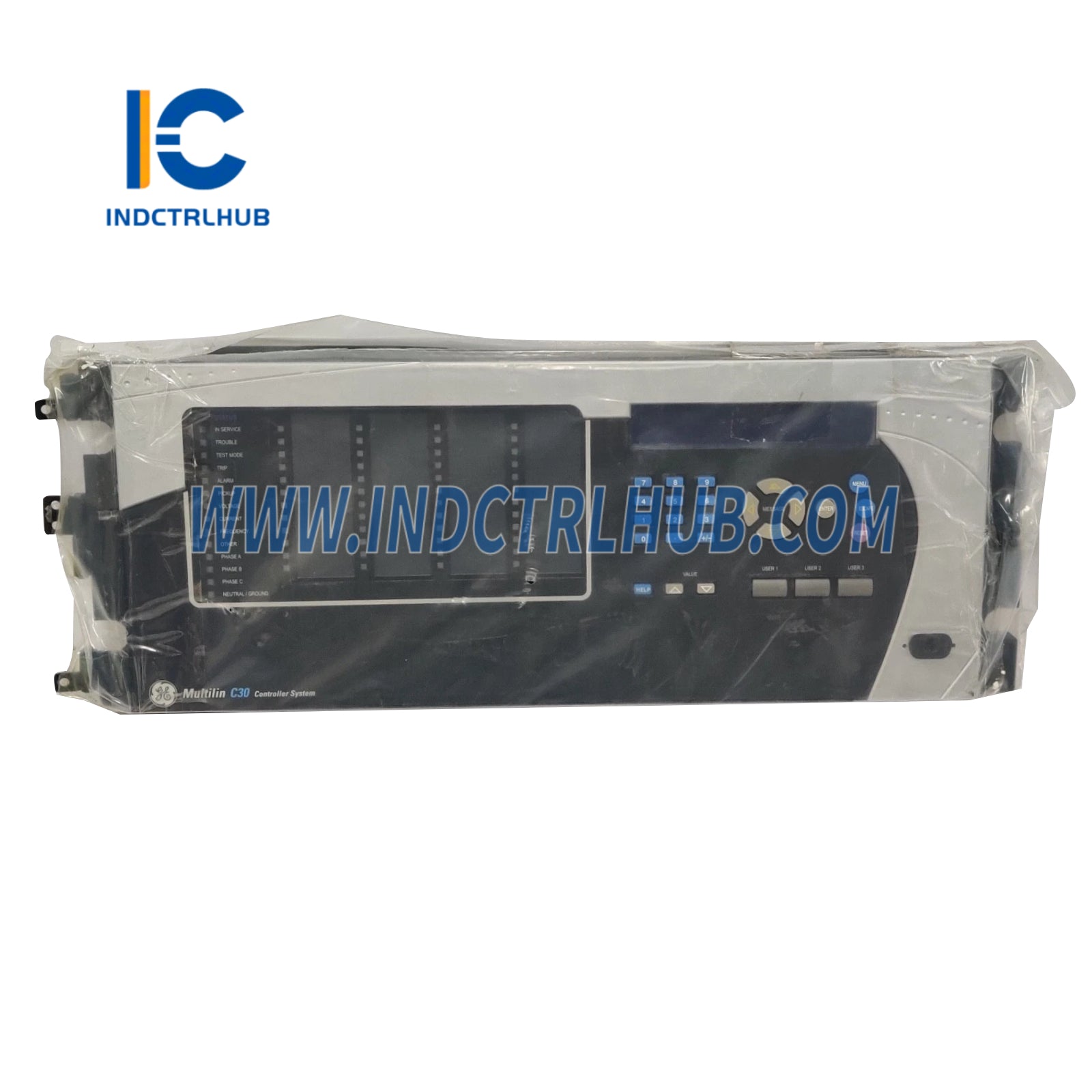

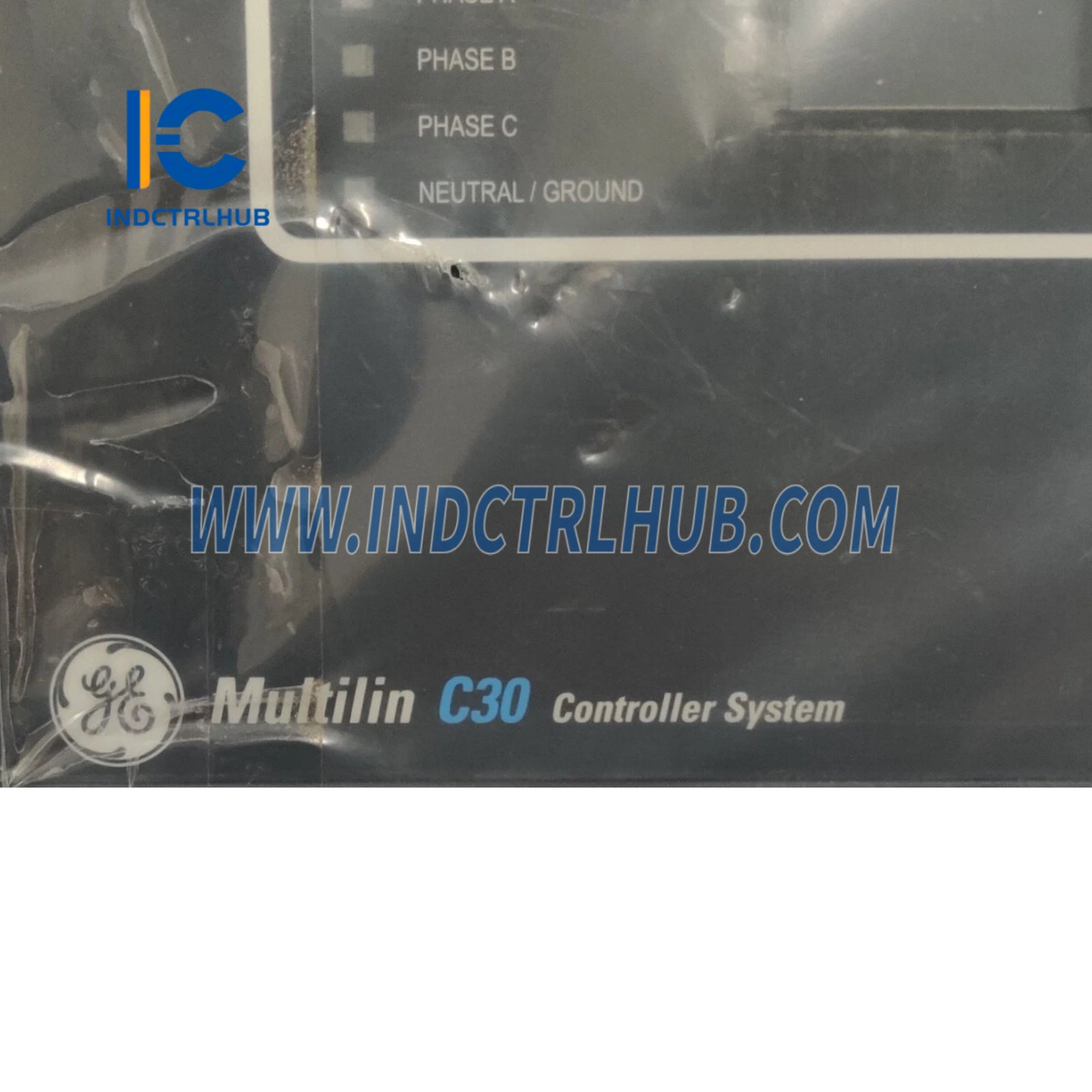

GE C30-K03-HKH-F6D-H6F-M67-P6C-U5F-W6T Controller System (PLC)

Quantity

Manufacturer: General Electric
Model/Part Number: C30-K03-HKH-F6D-H6F-M67-P6C-U5F-W6T
Description: The General Electric C30-K03-HKH-F6D-H6F-M67-P6C-U5F-W6T is a customized Controller System from the Multilin Universal Relay (UR) series, designed as a substation-hardened programmable logic controller (PLC) for advanced substation automation and control. This specific configuration includes tailored hardware and software options for bay control, I/O expansion, and communication, making it suitable for complex industrial power system applications requiring precise logic execution and robust connectivity.

Specification	Details
Type	Controller System (PLC)
Series	Multilin Universal Relay (UR)
Order Code Breakdown	C30: Base model K03: Software option (e.g., basic IEC 61850) HKH: High-voltage power supply (125–250 V DC, 100–240 V AC) F6D: CPU with 3 Ethernet ports (fiber/copper mix) H6F: Enhanced faceplate with color display M67: 6 Form-A outputs, 7 digital inputs P6C: 6 Form-C outputs U5F: 8 RTD inputs W6T: 6 CT/VT inputs
I/O Capacity	7 digital inputs, 12 relay outputs (6 Form-A, 6 Form-C), 8 RTD inputs, 6 CT/VT inputs
Communication	3 Ethernet ports (IEEE 1588 support), RS485
Supported Protocols	IEC 61850, DNP 3.0, Modbus TCP, IEC 60870-5-104
Control Power	125–250 V DC, 100–240 V AC, 50/60 Hz
Operating Temperature	-40°C to +60°C
Weight	5 kg (11 lbs)
Application	Substation automation, bay control, I/O expansion

Product Description

Manufacturer: General Electric
Model/Part Number: C30-K03-HKH-F6D-H6F-M67-P6C-U5F-W6T
Description: The General Electric C30-K03-HKH-F6D-H6F-M67-P6C-U5F-W6T is a customized Controller System from the Multilin Universal Relay (UR) series, designed as a substation-hardened programmable logic controller (PLC) for advanced substation automation and control. This specific configuration includes tailored hardware and software options for bay control, I/O expansion, and communication, making it suitable for complex industrial power system applications requiring precise logic execution and robust connectivity.

Specification	Details
Type	Controller System (PLC)
Series	Multilin Universal Relay (UR)
Order Code Breakdown	C30: Base model K03: Software option (e.g., basic IEC 61850) HKH: High-voltage power supply (125–250 V DC, 100–240 V AC) F6D: CPU with 3 Ethernet ports (fiber/copper mix) H6F: Enhanced faceplate with color display M67: 6 Form-A outputs, 7 digital inputs P6C: 6 Form-C outputs U5F: 8 RTD inputs W6T: 6 CT/VT inputs
I/O Capacity	7 digital inputs, 12 relay outputs (6 Form-A, 6 Form-C), 8 RTD inputs, 6 CT/VT inputs
Communication	3 Ethernet ports (IEEE 1588 support), RS485
Supported Protocols	IEC 61850, DNP 3.0, Modbus TCP, IEC 60870-5-104
Control Power	125–250 V DC, 100–240 V AC, 50/60 Hz
Operating Temperature	-40°C to +60°C
Weight	5 kg (11 lbs)
Application	Substation automation, bay control, I/O expansion
