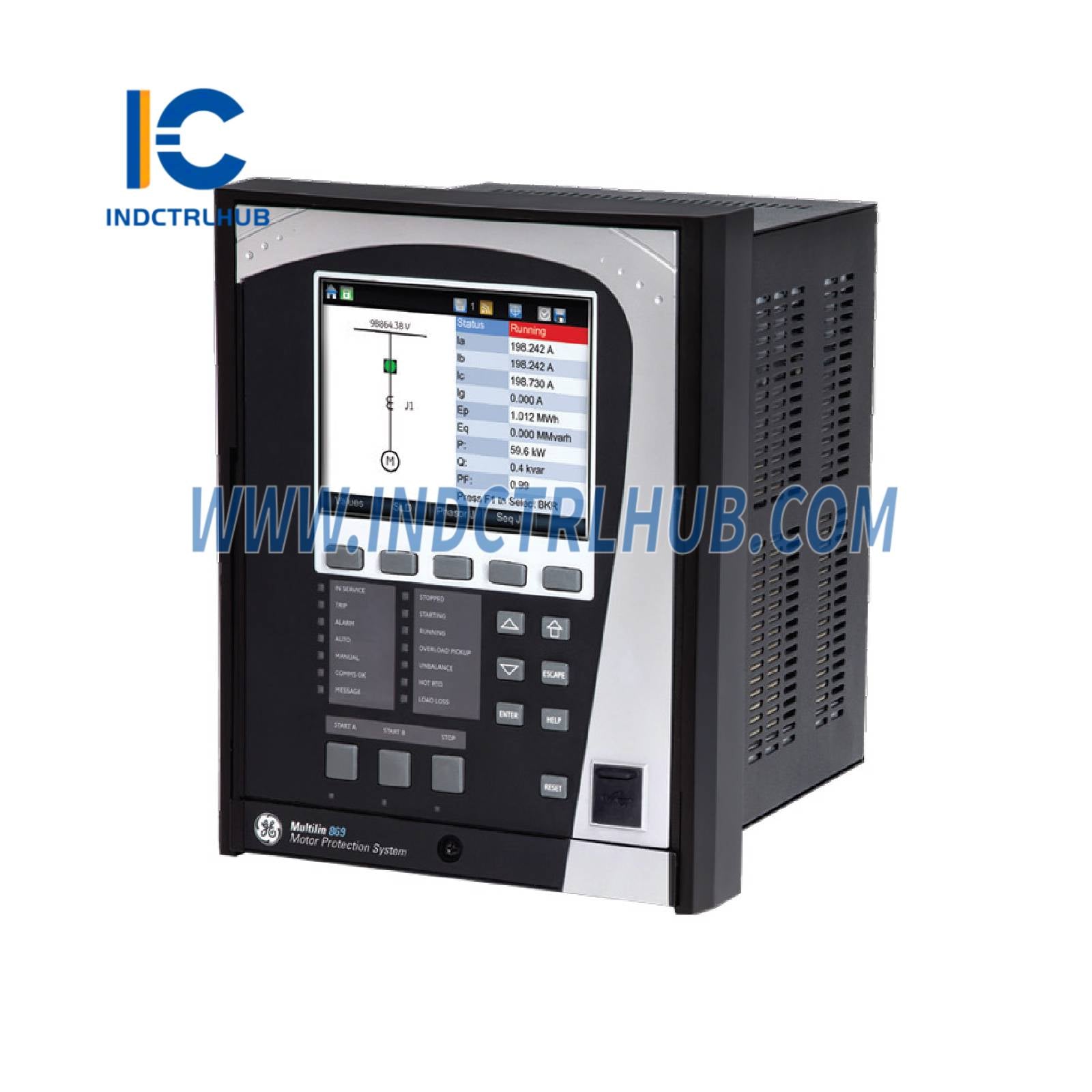

GE 869-E-P5-P5-B5-H-SN-A-N-N-M-M-S-F-B-SE-N-N-B-4 Motor Protection Relay

GE 869-E-P5-P5-B5-H-SN-A-N-N-M-M-S-F-B-SE-N-N-B-4 Motor Protection Relay

  • Manufacturer: General Electric

  • Product No.: 869-E-P5-P5-B5-H-SN-A-N-N-M-M-S-F-B-SE-N-N-B-4

  • Condition:1000 in stock

  • Product Type: Motor Protection Relay

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 8600g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Electric 869-E-P5-P5-B5-H-SN-A-N-N-M-M-S-F-B-SE-N-N-B-4 Motor Protection Relay

  • Manufacturer: General Electric
  • Series: Multilin 869
  • Model/Part Number: 869-E-P5-P5-B5-H-SN-A-N-N-M-M-S-F-B-SE-N-N-B-4
  • Description: Motor Protection Relay for comprehensive protection and management of medium to large motors

Overview

  • The General Electric Multilin 869-E-P5-P5-B5-H-SN-A-N-N-M-M-S-F-B-SE-N-N-B-4 is a microprocessor-based Motor Protection Relay from the Multilin 869 series, designed for protection, control, and monitoring of medium to large motors in industrial applications such as oil and gas, mining, and power generation. It offers advanced protection, diagnostics, and communication capabilities for synchronous and induction motors.

Technical Specifications

Specification Details
Model 869-E-P5-P5-B5-H-SN-A-N-N-M-M-S-F-B-SE-N-N-B-4
Series Multilin 869
Type Motor Protection Relay (Microprocessor-Based)
Phase Current Transformer (CT) Secondary 5 A (P5)
Ground Current Transformer (CT) Secondary 5 A (P5)
Bus Current Transformer (CT) Secondary 5 A (B5)
Control Power High Input (H): 110–250 VDC, 110–230 VAC, 50/60 Hz
Speed Option Not Included (SN)
Analog Outputs None (A)
Analog Inputs Not Included (N)
RTD Inputs 8 RTDs, 3-wire (M)
Voltage Inputs Included (M)
Language English (E)
Keypad Standard (S)
Digital Inputs/Outputs 7 Inputs, 5 Outputs (2 Form A, 3 Form C) (F)
Pushbuttons 3 (B)
Communication (Slot J) Ethernet (Copper and Fiber - ST), Modbus TCP/IP, DNP3.0, IEC 61850 (SE)
Communication (Slot K) Not Included (N)
Conformal Coating Not Included (N)
Front Port USB (B)
Security Basic (4)
Protection Features Thermal overload, overcurrent, ground fault, under/over voltage, under/over frequency, differential protection, RTD-based thermal protection
Metering Capabilities Current, voltage, power, energy, frequency, harmonics, temperature
Event Recording Data logger, oscillography, sequence of events
Operating Temperature -40°C to +60°C (-40°F to +140°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Weight 8.6 kg (19 lbs)
Dimensions 22.4 x 17.7 x 25.5 cm (8.8 x 7 x 10 in)
Mounting Draw-out design, metal case
Certifications CE, CSA, UL, IEC
Software Compatibility EnerVista 869 for setpoint configuration, monitoring, and analysis
