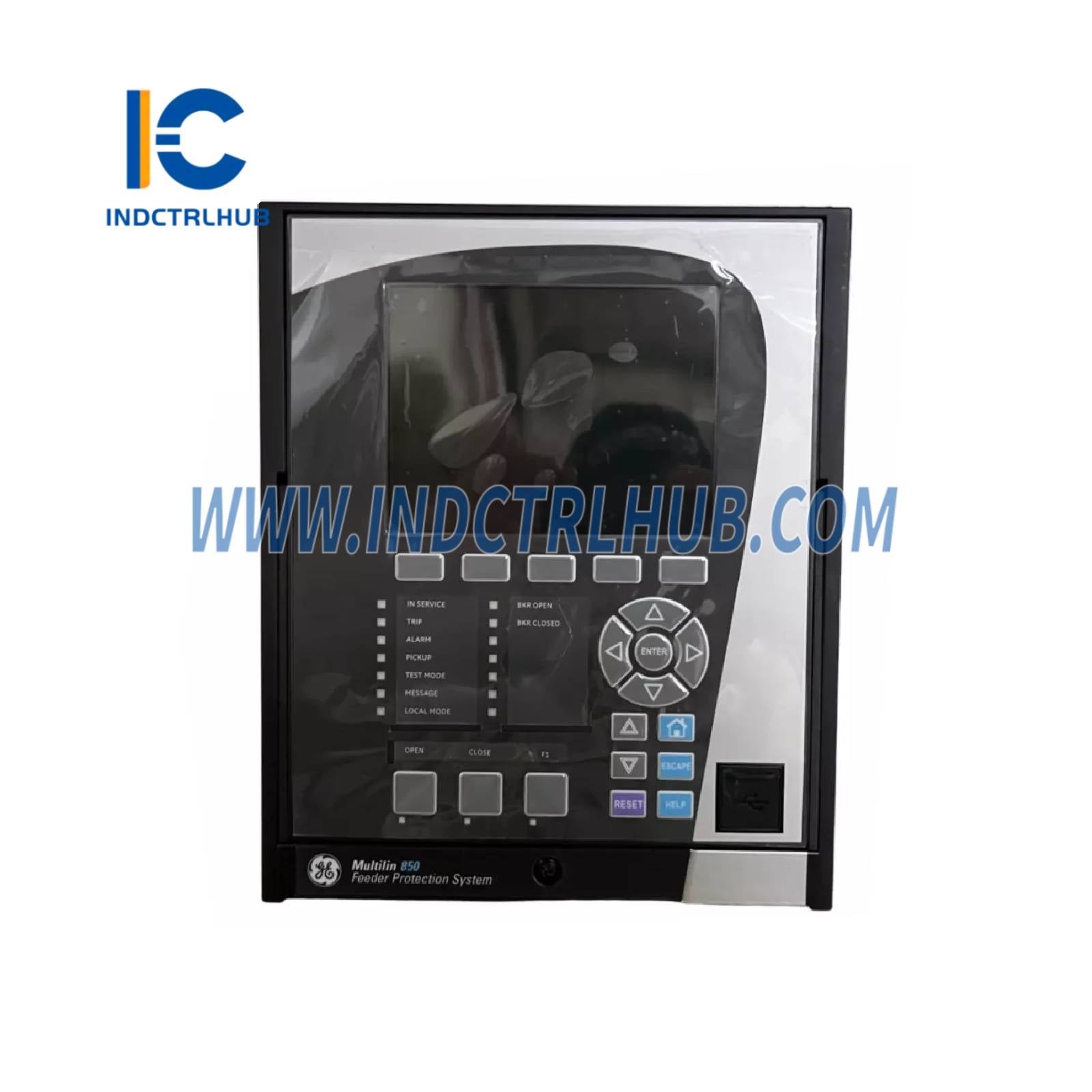

GE 850-E-P5-NN-G5-H-N-N-A-A-N-A-A-S-F-B-1E-C-N-B-4 Feeder Protection Relay

GE 850-E-P5-NN-G5-H-N-N-A-A-N-A-A-S-F-B-1E-C-N-B-4 Feeder Protection Relay

  • Manufacturer: General Electric

  • Product No.: 850-E-P5-NN-G5-H-N-N-A-A-N-A-A-S-F-B-1E-C-N-B-4

  • Condition:1000 in stock

  • Product Type: Feeder Protection Relay

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 8000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Electric 850-E-P5-NN-G5-H-N-N-A-A-N-A-A-S-F-B-1E-C-N-B-4 Feeder Protection Relay

  • Manufacturer: General Electric
  • Series: Multilin 850
  • Model/Part Number: 850-E-P5-NN-G5-H-N-N-A-A-N-A-A-S-F-B-1E-C-N-B-4
  • Description: Feeder Protection Relay for management, protection, and control of distribution feeders

Overview

  • The General Electric Multilin 850-E-P5-NN-G5-H-N-N-A-A-N-A-A-S-F-B-1E-C-N-B-4 is a microprocessor-based feeder protection relay from the Multilin 850 series, designed for management, protection, and control of underground and overhead medium-voltage feeders in distribution and industrial networks. It offers high-performance protection, programmable logic, and advanced communication options for industrial and utility applications.

Technical Specifications

Specification Details
Model 850-E-P5-NN-G5-H-N-N-A-A-N-A-A-S-F-B-1E-C-N-B-4
Series Multilin 850
Type Feeder Protection Relay (Microprocessor-Based)
Phase Current Transformer (CT) Secondary 5 A (P5)
Ground Current Transformer (CT) Secondary 5 A (G5)
Control Power High Input (HI): 110–250 VDC, 110–230 VAC, 50/60 Hz
Language English (E)
Arc Flash Detection Not Included (NN)
Digital Inputs 7 (Slot F)
Output Relays 2 Form A, 3 Form C (Slot F)
Analog Outputs None (A)
Analog Inputs None (N)
RTD Inputs None (A)
Communication (Slot J) Ethernet (Copper and Fiber - MTRJ), Modbus TCP/IP, DNP3.0, IEC 60870-5-104 (1E)
Communication (Slot K) RS485, Modbus RTU, DNP3.0 (C)
Keypad Standard (S)
Pushbuttons 3 (B)
Conformal Coating Not Included (N)
Front Port USB (B)
Security Basic (4)
Protection Features Overcurrent, ground fault, over/under voltage, over/under frequency, breaker failure, thermal overload
Metering Capabilities Current, voltage, power, energy, frequency, harmonics
Event Recording Data logger, oscillography, sequence of events
Operating Temperature -40°C to +60°C (-40°F to +140°F)
Storage Temperature -40°C to +80°C (-40°F to +176°F)
Weight 8 kg (17.6 lbs)
Dimensions 22 x 18 x 25 cm (8.7 x 7.1 x 9.8 in)
Mounting Draw-out design, metal case
Certifications CE, CSA, UL
Software Compatibility EnerVista 850 for setpoint configuration, monitoring, and analysis



View full details

Product Description

General Electric 850-E-P5-NN-G5-H-N-N-A-A-N-A-A-S-F-B-1E-C-N-B-4 Feeder Protection Relay

  • Manufacturer: General Electric
  • Series: Multilin 850
  • Model/Part Number: 850-E-P5-NN-G5-H-N-N-A-A-N-A-A-S-F-B-1E-C-N-B-4
  • Description: Feeder Protection Relay for management, protection, and control of distribution feeders

Overview

  • The General Electric Multilin 850-E-P5-NN-G5-H-N-N-A-A-N-A-A-S-F-B-1E-C-N-B-4 is a microprocessor-based feeder protection relay from the Multilin 850 series, designed for management, protection, and control of underground and overhead medium-voltage feeders in distribution and industrial networks. It offers high-performance protection, programmable logic, and advanced communication options for industrial and utility applications.

Technical Specifications

Specification Details
Model 850-E-P5-NN-G5-H-N-N-A-A-N-A-A-S-F-B-1E-C-N-B-4
Series Multilin 850
Type Feeder Protection Relay (Microprocessor-Based)
Phase Current Transformer (CT) Secondary 5 A (P5)
Ground Current Transformer (CT) Secondary 5 A (G5)
Control Power High Input (HI): 110–250 VDC, 110–230 VAC, 50/60 Hz
Language English (E)
Arc Flash Detection Not Included (NN)
Digital Inputs 7 (Slot F)
Output Relays 2 Form A, 3 Form C (Slot F)
Analog Outputs None (A)
Analog Inputs None (N)
RTD Inputs None (A)
Communication (Slot J) Ethernet (Copper and Fiber - MTRJ), Modbus TCP/IP, DNP3.0, IEC 60870-5-104 (1E)
Communication (Slot K) RS485, Modbus RTU, DNP3.0 (C)
Keypad Standard (S)
Pushbuttons 3 (B)
Conformal Coating Not Included (N)
Front Port USB (B)
Security Basic (4)
Protection Features Overcurrent, ground fault, over/under voltage, over/under frequency, breaker failure, thermal overload
Metering Capabilities Current, voltage, power, energy, frequency, harmonics
Event Recording Data logger, oscillography, sequence of events
Operating Temperature -40°C to +60°C (-40°F to +140°F)
Storage Temperature -40°C to +80°C (-40°F to +176°F)
Weight 8 kg (17.6 lbs)
Dimensions 22 x 18 x 25 cm (8.7 x 7.1 x 9.8 in)
Mounting Draw-out design, metal case
Certifications CE, CSA, UL
Software Compatibility EnerVista 850 for setpoint configuration, monitoring, and analysis
