Product Description
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 8125-DI-DC |

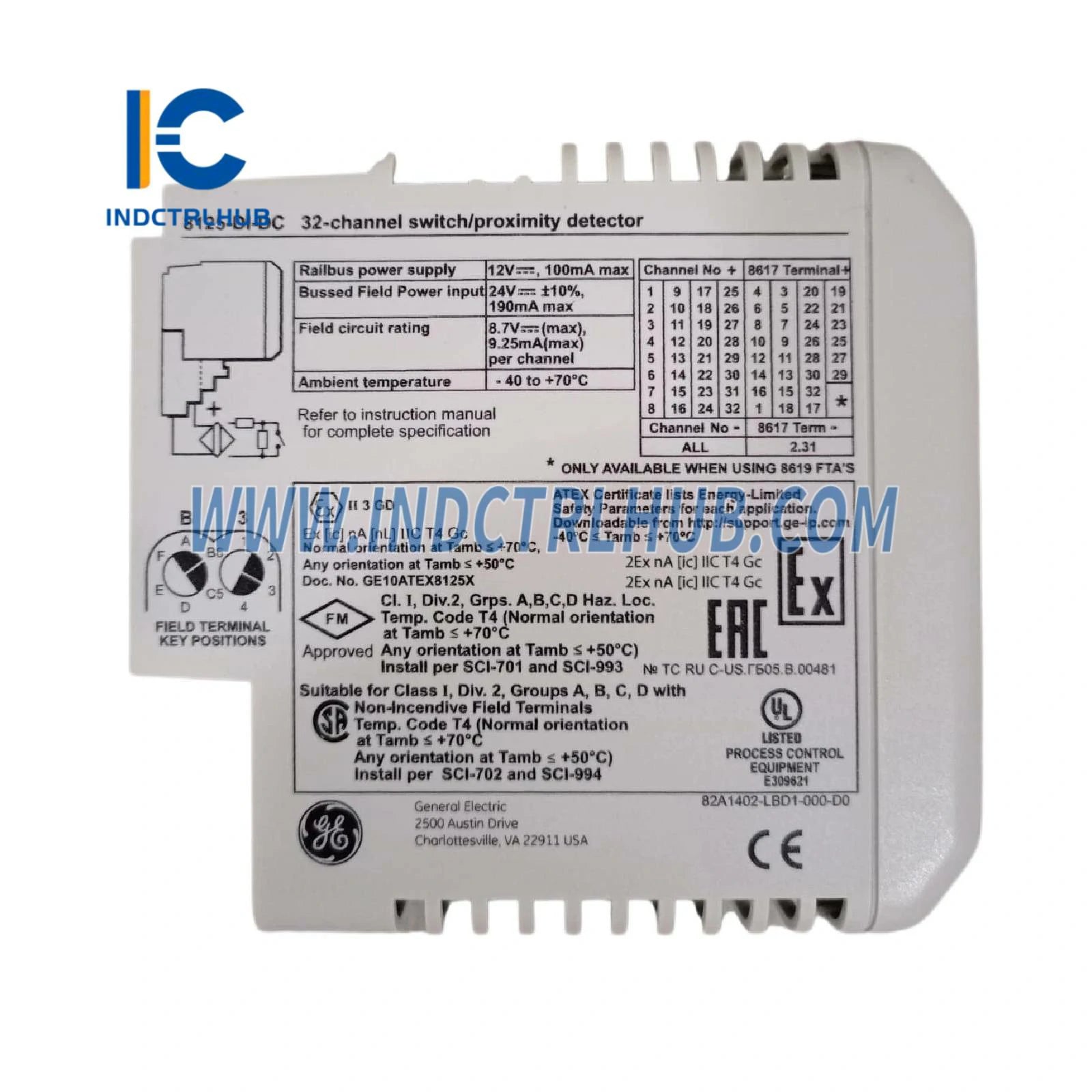

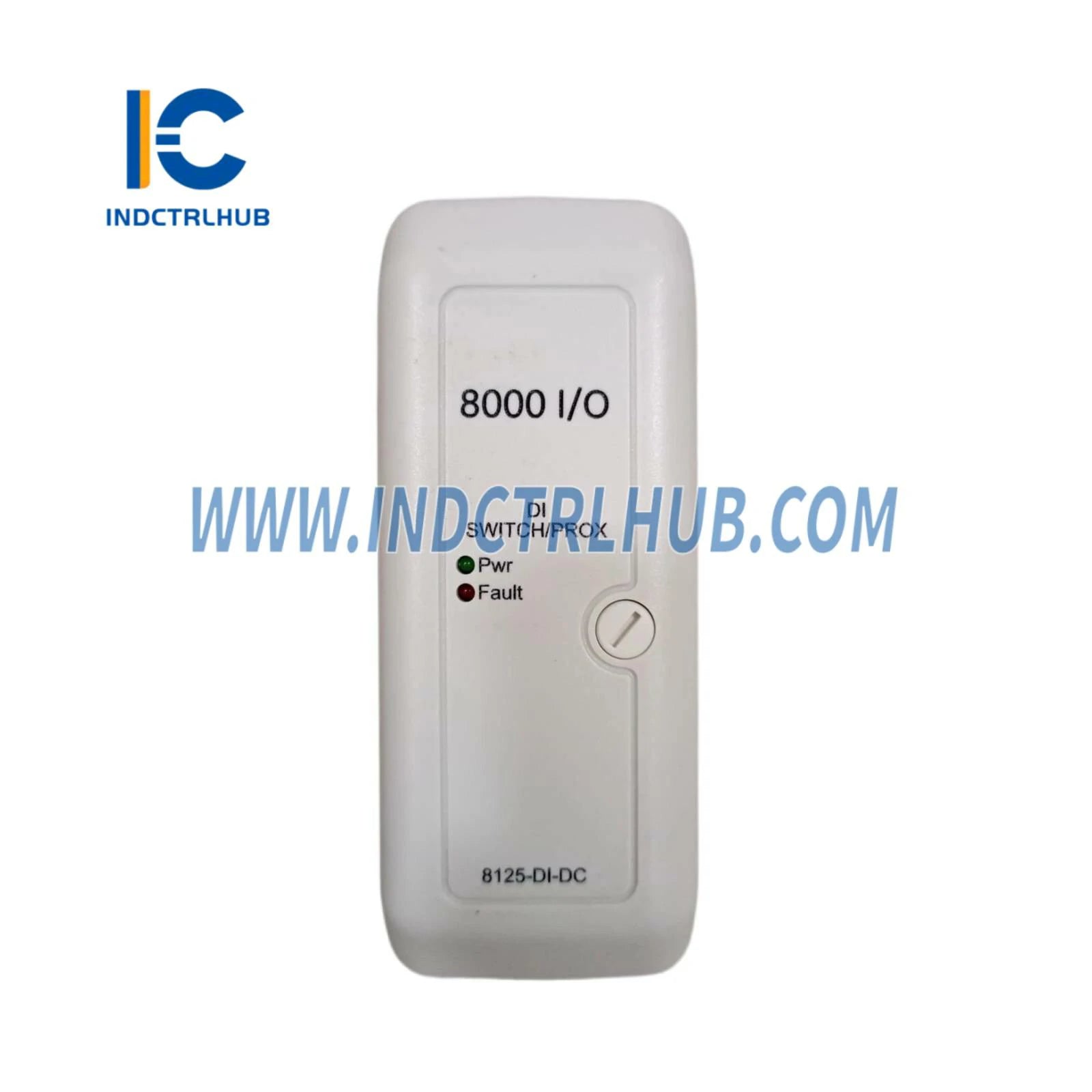

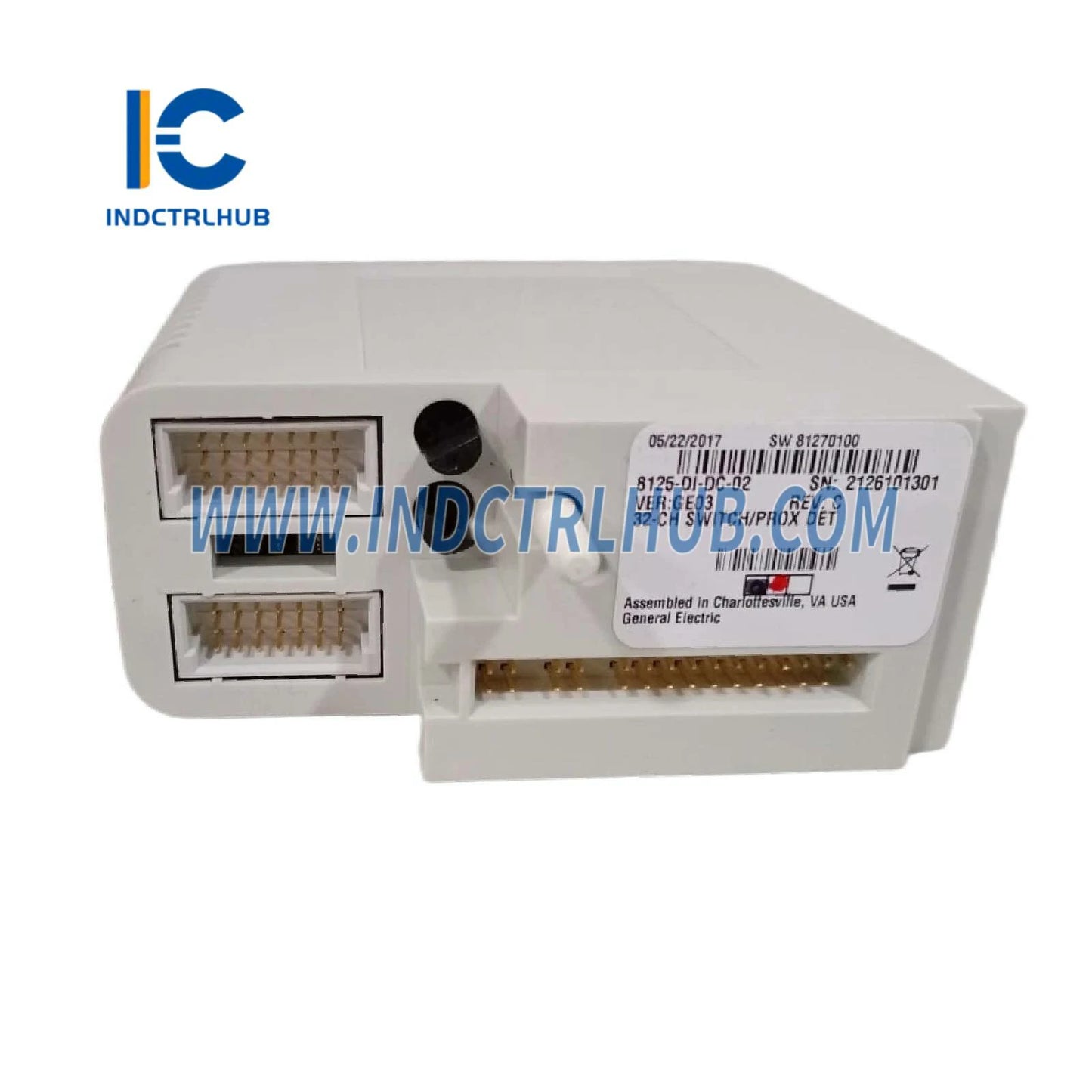

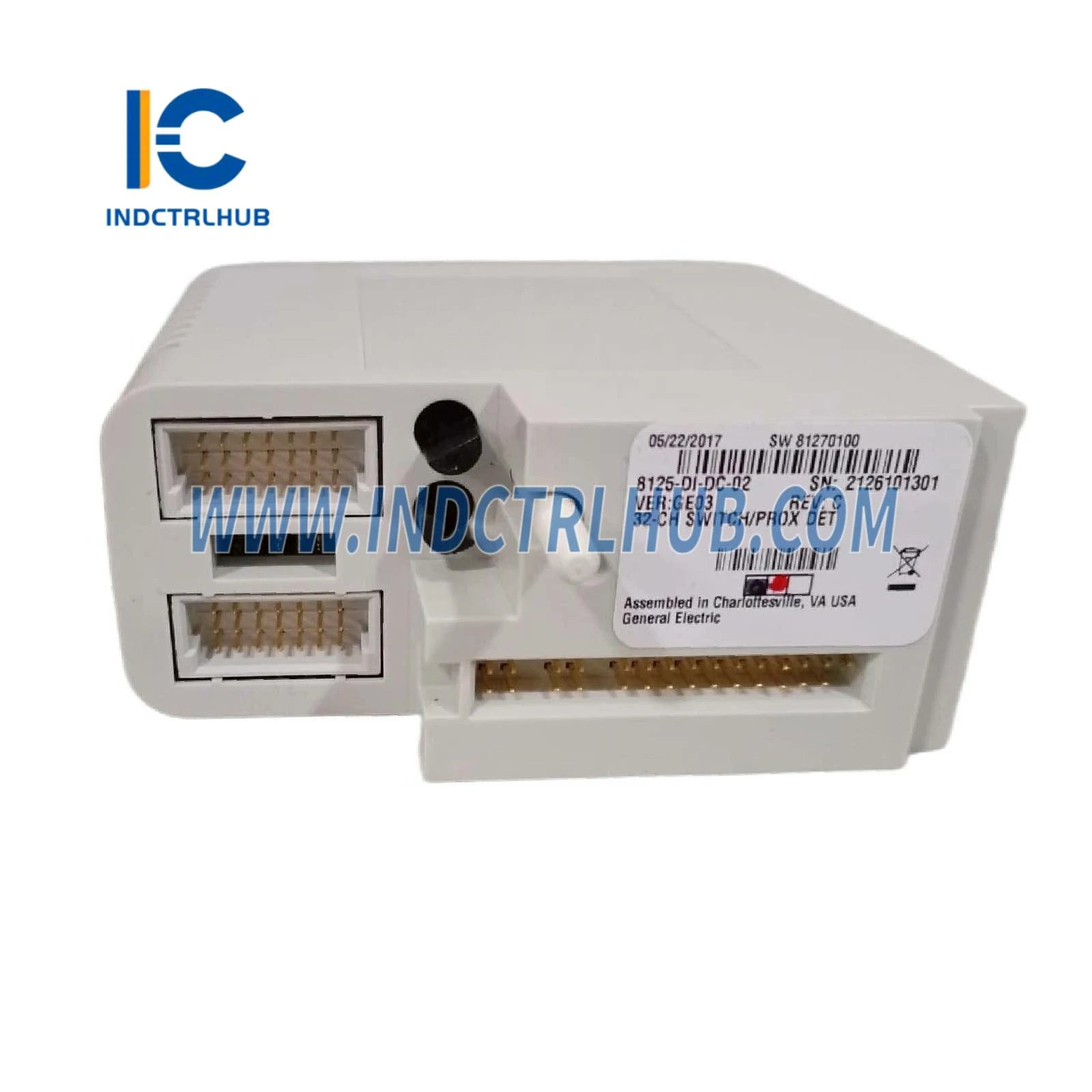

| Product Name | PAC8000 32-Channel Digital Input Module |
| Application | Digital signal acquisition for industrial automation and process control systems, suitable for general-purpose and hazardous area applications |
| Compatibility | PAC8000 I/O system; integrates with controllers, carriers, and fieldbus systems |
| Function | Provides high-density 32-channel non-isolated digital inputs powered by the module for reliable status monitoring and control |
Functional Specifications
| Parameter | Details |
|---|---|
| Number of Channels | 32 |
| Input Type | Non-isolated digital inputs |
| Input Voltage | 24 V DC (module-powered) |
| Response Time | <1 ms |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
| Dimensions | Standard PAC8000 module size (approximate: 100 mm x 50 mm x 150 mm) |
| Weight | Approximately 0.5 kg |
| Certifications | CE marked; RoHS compliant; suitable for hazardous areas (ATEX/IECEx) |
| Standards Compliance | IEC 61131-2 compliant for programmable controllers |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | 8125-DI-DC (32-channel DI, non-isolated, module-powered) |
| Available Options | Variants for isolated inputs or hazardous area certification; compatible with PAC8000 series |
| Customization | Fieldbus integration or extended temperature range available upon request |
