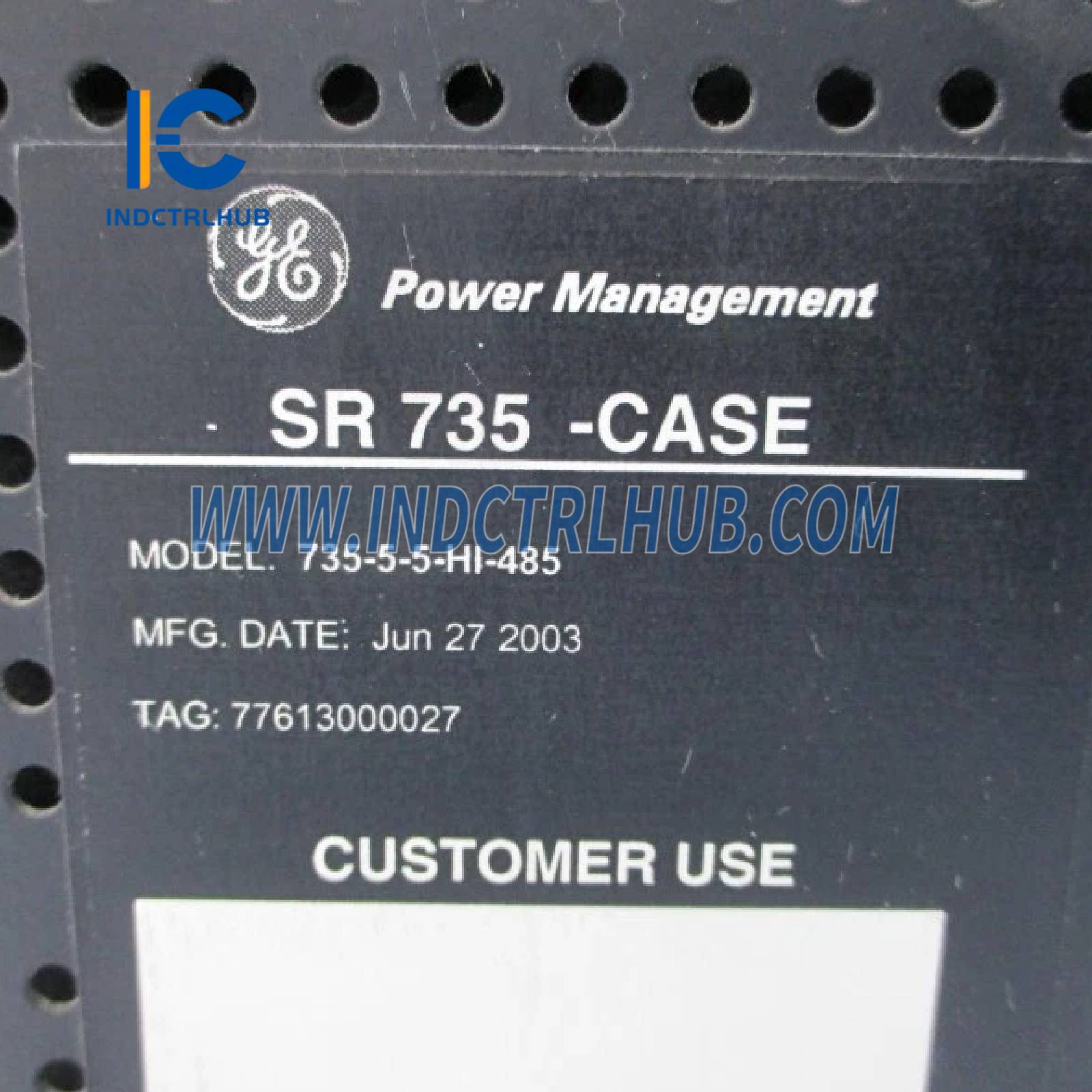

GE 735-5-5-HI-485 Feeder Protection Relay

GE 735-5-5-HI-485 Feeder Protection Relay

  • Manufacturer: General Electric

  • Product No.: 735-5-5-HI-485

  • Condition:1000 in stock

  • Product Type: Feeder Protection Relay

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 7300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Electric 735-5-5-HI-485 Feeder Protection Relay

  • Manufacturer: General Electric
  • Series: Multilin SR735
  • Model/Part Number: 735-5-5-HI-485
  • Description: Microprocessor-based feeder protection relay for control and monitoring of electrical power distribution systems

Overview

  • The General Electric Multilin 735-5-5-HI-485 is a microprocessor-based feeder protection relay from the SR735 series, designed for protection, control, and monitoring of electrical distribution networks. It provides comprehensive overcurrent protection for feeders at any voltage level, suitable for industrial and utility applications.

Technical Specifications

Specification Details
Model 735-5-5-HI-485
Series Multilin SR735
Type Feeder Protection Relay (Microprocessor-Based)
Phase Current Transformer (CT) Secondary 5 A
Ground Current Transformer (CT) Secondary 5 A
Control Power High Input (HI): 90–300 VDC, 70–265 VAC, 50/60 Hz
Communication RS485 2-wire, Modbus RTU protocol
Protection Features Three-phase timed overcurrent (51), phase instantaneous overcurrent (50), ground timed overcurrent (51G), ground instantaneous overcurrent (50G)
Curve Shapes Definite Time, Moderately Inverse, Normal Inverse, Very Inverse, Extremely Inverse
Metering Capabilities Current, true RMS sensing
Event Recording Records last 5 trips with time, date, cause, and parameters
Operating Temperature -40°C to +60°C (-40°F to +140°F)
Storage Temperature -40°C to +80°C (-40°F to +176°F)
Enclosure NEMA 4X, dust, water, and corrosion resistant
Weight 7.3 kg (16.1 lbs)
Dimensions 21.7 x 23 x 25 cm (8.5 x 9.1 x 9.8 in)
Mounting Draw-out design, SR735 metal case
Certifications CE, CSA, UL



View full details

Product Description

General Electric 735-5-5-HI-485 Feeder Protection Relay

  • Manufacturer: General Electric
  • Series: Multilin SR735
  • Model/Part Number: 735-5-5-HI-485
  • Description: Microprocessor-based feeder protection relay for control and monitoring of electrical power distribution systems

Overview

  • The General Electric Multilin 735-5-5-HI-485 is a microprocessor-based feeder protection relay from the SR735 series, designed for protection, control, and monitoring of electrical distribution networks. It provides comprehensive overcurrent protection for feeders at any voltage level, suitable for industrial and utility applications.

Technical Specifications

Specification Details
Model 735-5-5-HI-485
Series Multilin SR735
Type Feeder Protection Relay (Microprocessor-Based)
Phase Current Transformer (CT) Secondary 5 A
Ground Current Transformer (CT) Secondary 5 A
Control Power High Input (HI): 90–300 VDC, 70–265 VAC, 50/60 Hz
Communication RS485 2-wire, Modbus RTU protocol
Protection Features Three-phase timed overcurrent (51), phase instantaneous overcurrent (50), ground timed overcurrent (51G), ground instantaneous overcurrent (50G)
Curve Shapes Definite Time, Moderately Inverse, Normal Inverse, Very Inverse, Extremely Inverse
Metering Capabilities Current, true RMS sensing
Event Recording Records last 5 trips with time, date, cause, and parameters
Operating Temperature -40°C to +60°C (-40°F to +140°F)
Storage Temperature -40°C to +80°C (-40°F to +176°F)
Enclosure NEMA 4X, dust, water, and corrosion resistant
Weight 7.3 kg (16.1 lbs)
Dimensions 21.7 x 23 x 25 cm (8.5 x 9.1 x 9.8 in)
Mounting Draw-out design, SR735 metal case
Certifications CE, CSA, UL
