Product Description

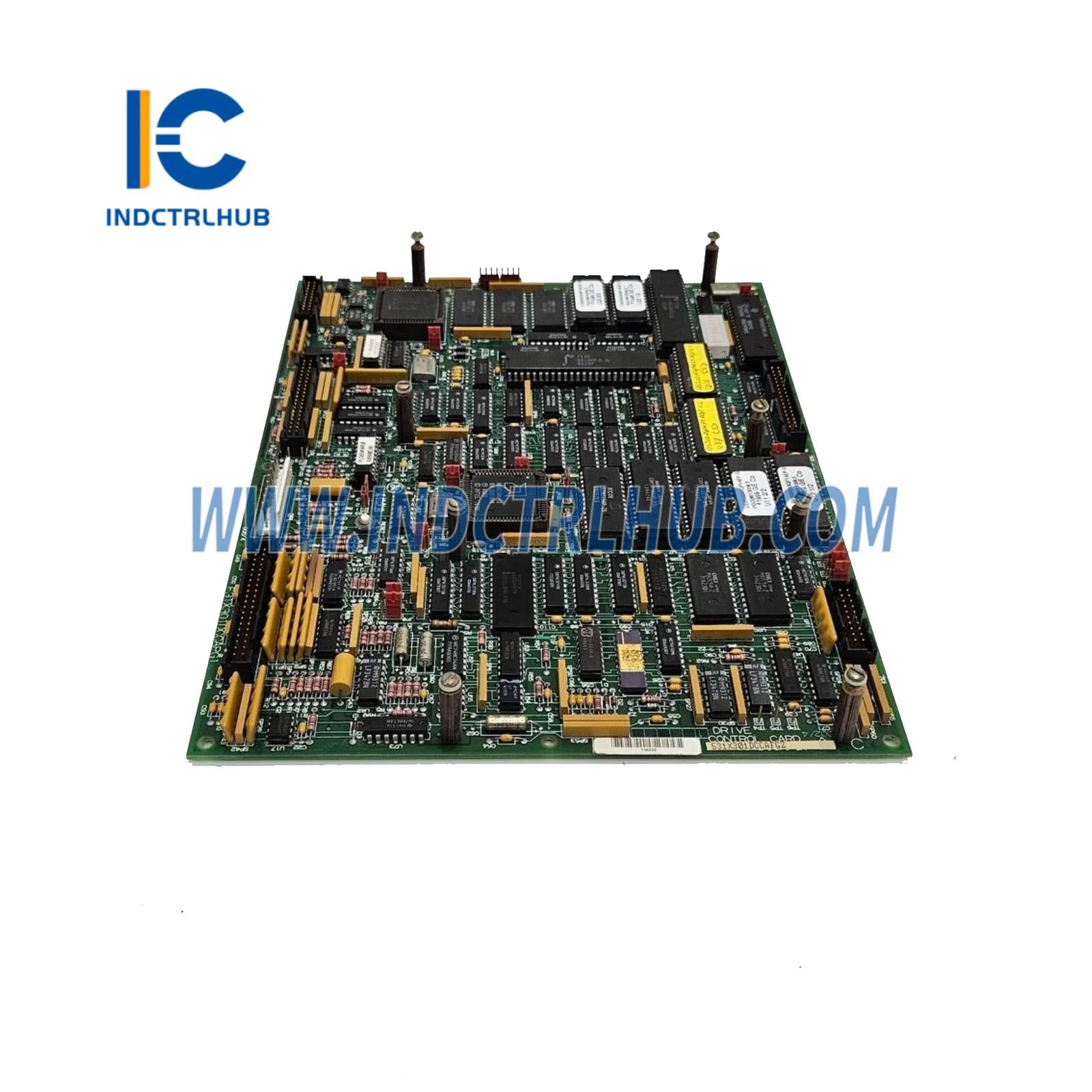

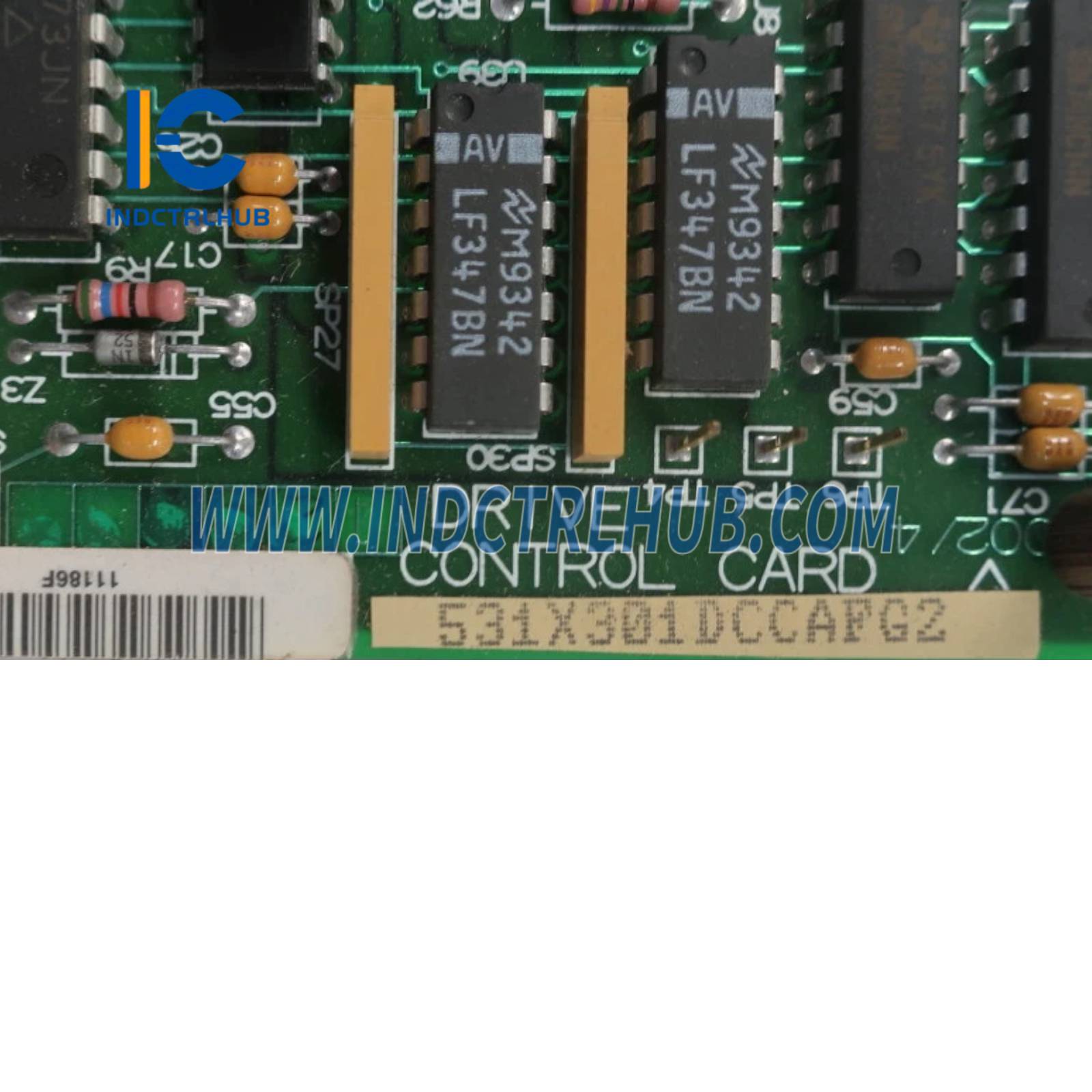

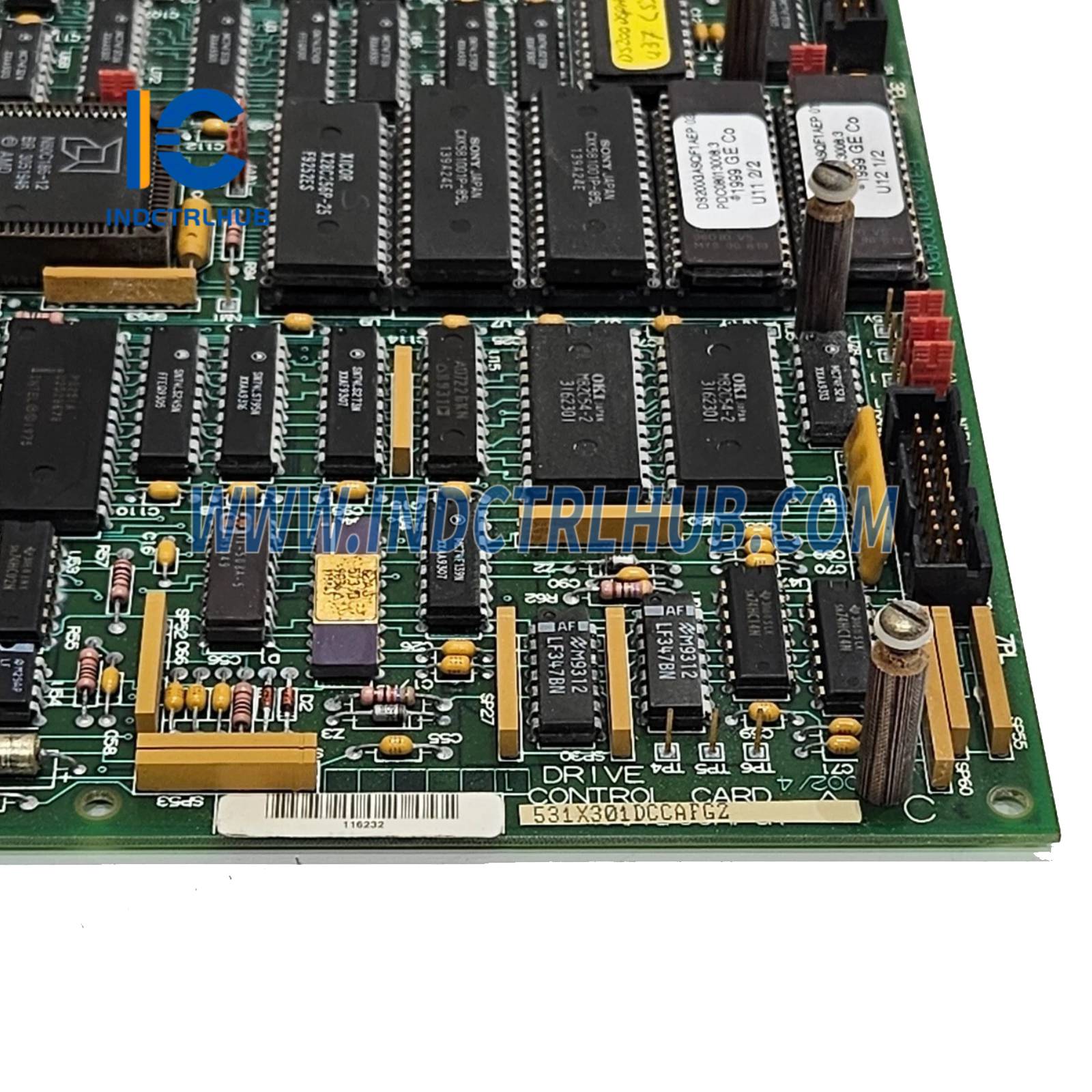

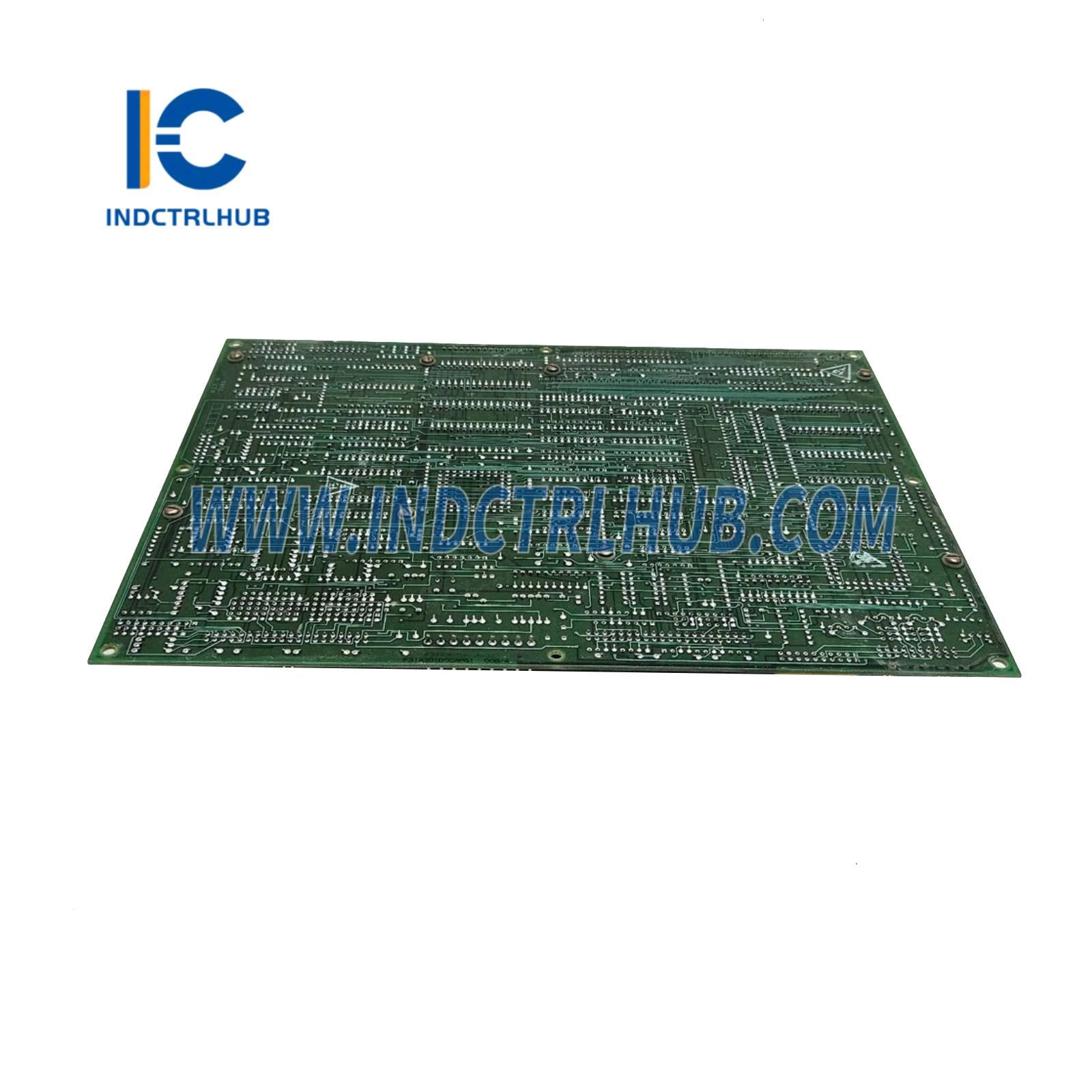

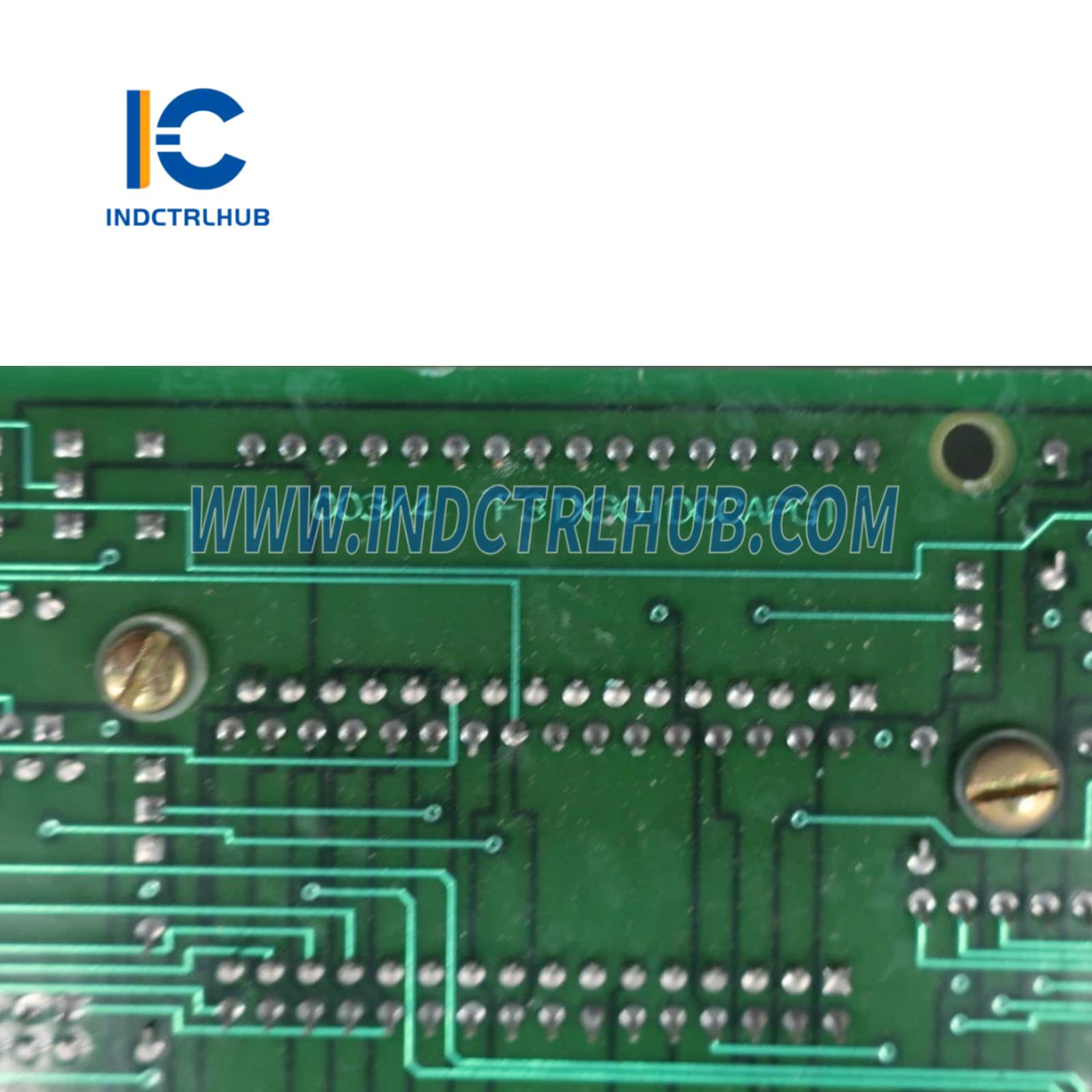

General Electric 531X301DCCAFG2 Drive Control Card
Product Overview
- Description: The General Electric 531X301DCCAFG2 is a drive control card used in GE’s DC drive systems
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | General Electric |
| Series | 531X Series (DC Drive Systems) |
| Model/Part Number | 531X301DCCAFG2 |
| Model Type | Drive Control Card |
| Function | Controls DC motor speed, torque, and fault monitoring |
| Display | LED indicators (status and fault) |
| Inputs | Analog and digital inputs for speed reference, feedback signals |
| Outputs | Control signals for motor drive, relay outputs for alarms |
| Communication Interfaces | Proprietary GE drive system interface |
| Signal Conditioning | Internal signal processing for motor feedback and control |
| Accuracy | ±1% for speed regulation |
| Redundancy | Non-redundant |
| Diagnostics | Fault detection, LED status indicators |
| Compatibility | GE DC300 drive systems, other 531X series components |
| Power Supply | 24 VDC (from drive system backplane) |
| Power Consumption | 5 W max |
| Environmental Specifications | Operating Temperature: 0°C to +50°C Storage Temperature: -40°C to +70°C Relative Humidity: 5% to 95% non-condensing |
| Enclosure | IP20 (open, mounted in drive cabinet) |
| Dimensions | 200 mm (H) x 100 mm (W) x 30 mm (D) |
| Weight | 0.4 kg |
| Mounting | Plugs into GE DC drive system slot |
| Certifications | CE, UL, cULus |
