Product Description

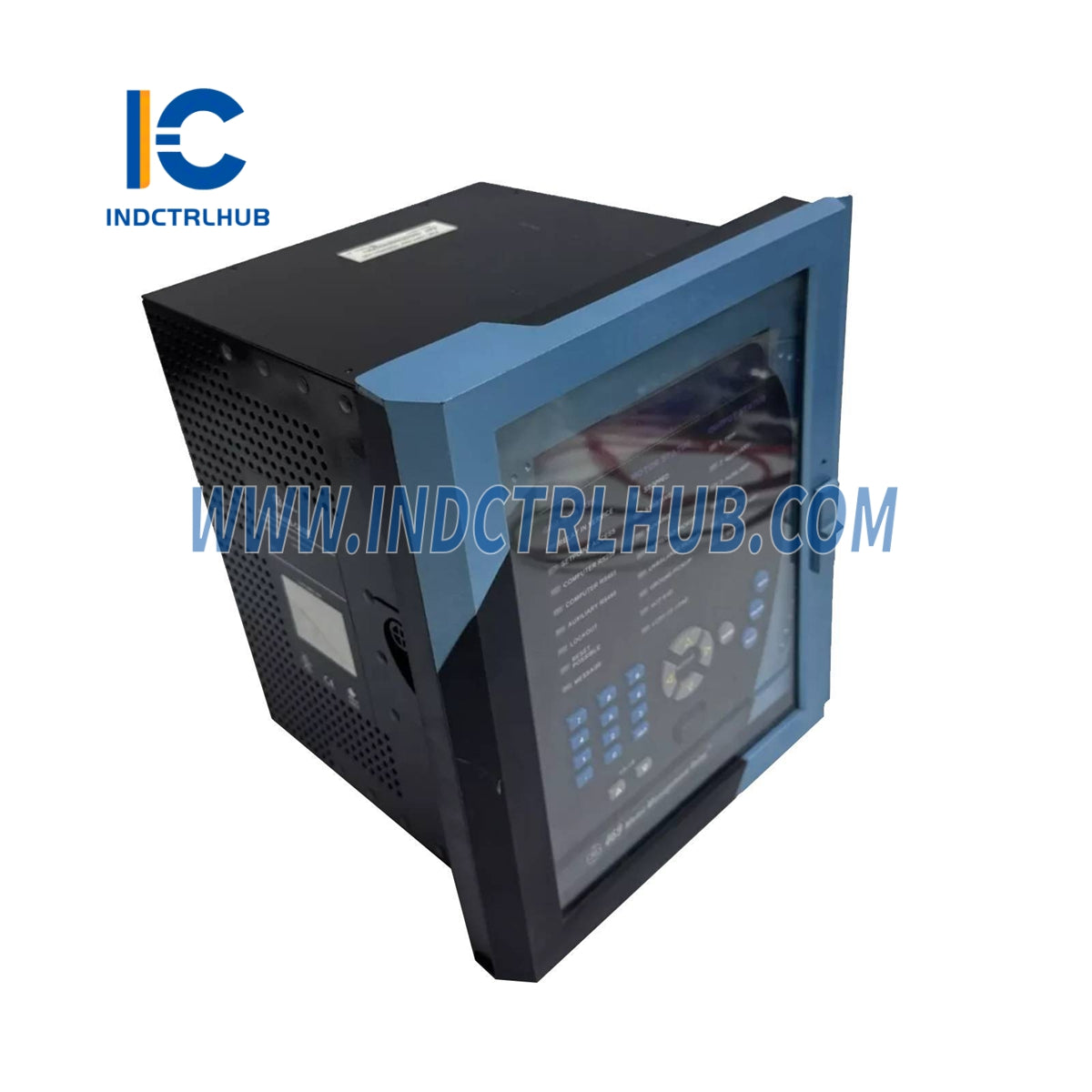

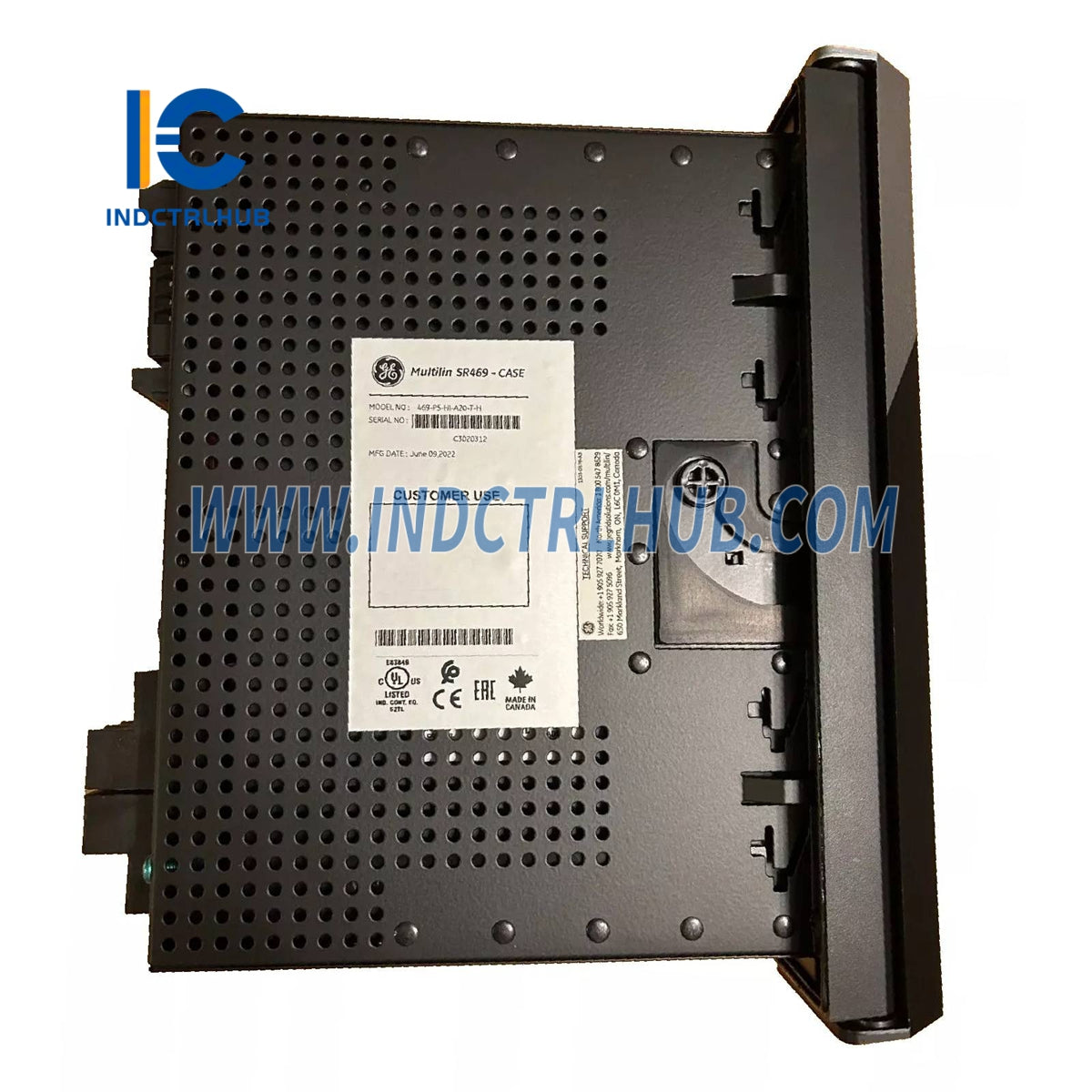

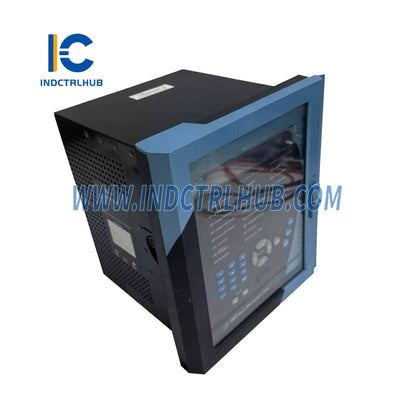

🔹 Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
General Electric (GE Multilin) |
|
Model/Part Number |
469-P5-HI-A20-T-H |
|
Description |
Motor Management Relay from the GE Multilin 469 Series for medium-to-large motors. Provides advanced protection, control, and monitoring with Ethernet and harsh environment coating. |
|
Key Features |
5A phase CT input, high control power, 4–20 mA analog outputs, Ethernet comms, conformal coating, thermal protection, enhanced LCD display |
🔹 Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
469-P5-HI-A20-T-H |
|
Product Type |
Motor Management Relay |
|
Series |
Multilin 469 |
|
Phase CT Secondaries |
5 A (P5) |
|
Control Power |
High (HI): 90–300 VDC / 70–265 VAC, 48–62 Hz |
|
Analog Outputs |
4–20 mA (A20) |
|
Ethernet Port |
10Base-T (T) |
|
Conformal Coating |
Yes, harsh environment (H) |
|
Communication |
RS232 (front), 2× RS485 (rear), Modbus RTU, Modbus TCP/IP over Ethernet |
|
Display |

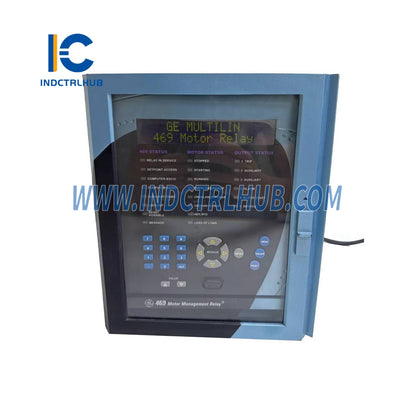

40-character enhanced LCD display |
|
Operating Temperature |
-40°C to 60°C (-40°F to 140°F) |
|
Weight |
Approx. 4.5 kg (10 lbs) with case |

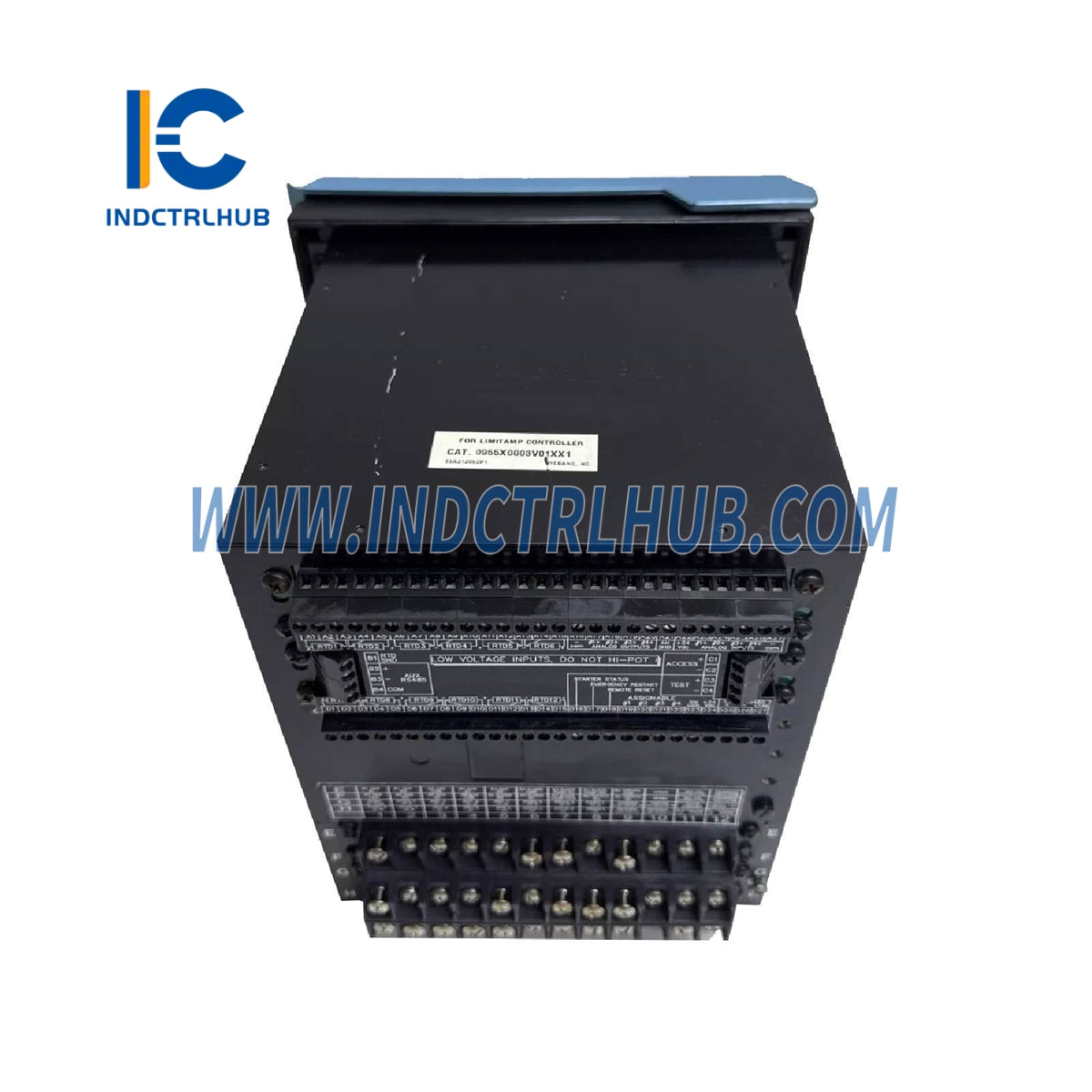

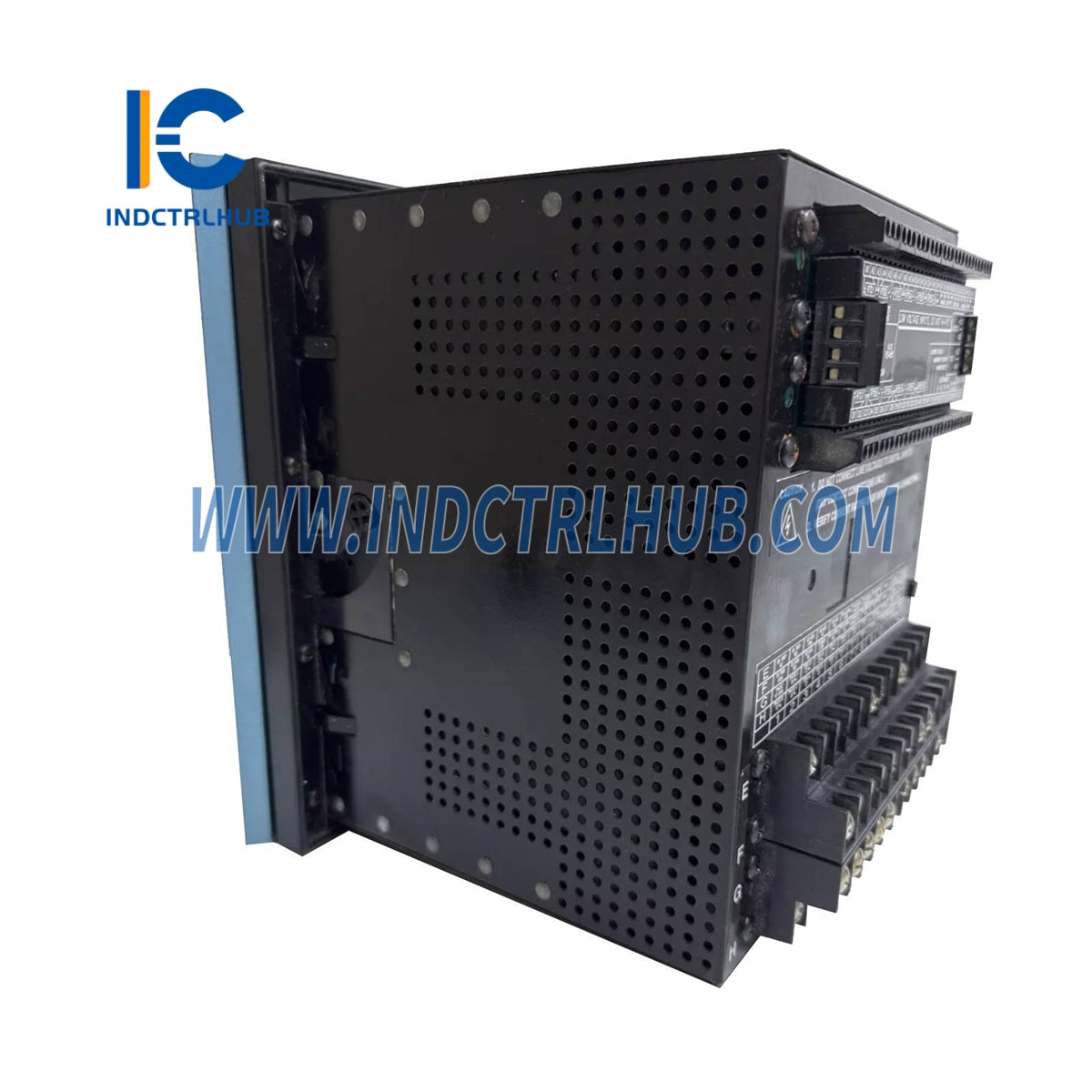

🔹 External Connection Options
|
Connection Type |
Details |
|---|---|
|
Supported Connections |

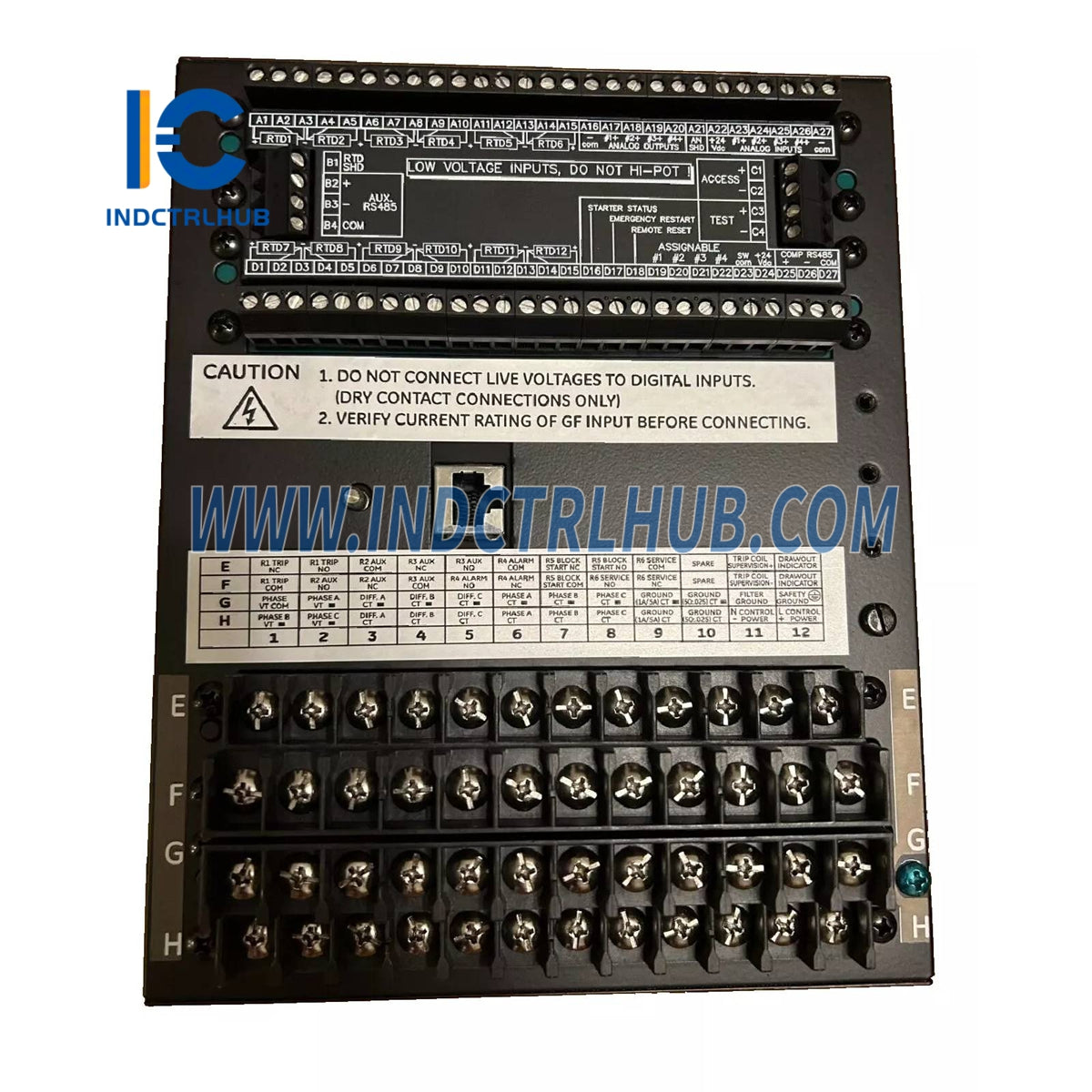

RS232 front port (PC with EnerVista 469), 2× RS485 rear ports, 10Base-T Ethernet for network access |
🔹 Functional Features
|
Feature |
Details |
|---|---|
|
Protection |
Thermal overload, overcurrent, torque, undervoltage/overvoltage, ground fault |
|
Monitoring |
Real-time metering of voltage, current, power; waveform capture, event and fault recording |
|
Control |
6 programmable output relays for trips, alarms, and motor control logic |
|
Software |
Integrated with EnerVista 469 software for setup, diagnostics, and real-time visualization |
🔹 Model and Configuration
|
Category |
Details |
|---|---|
|
Base Model |
469 |
|
Configuration |
P5: 5 A CT inputsHI: High voltage power supplyA20: 4–20 mA analog outputsT: EthernetH: Harsh environment coating |
