| Specification |
Details |

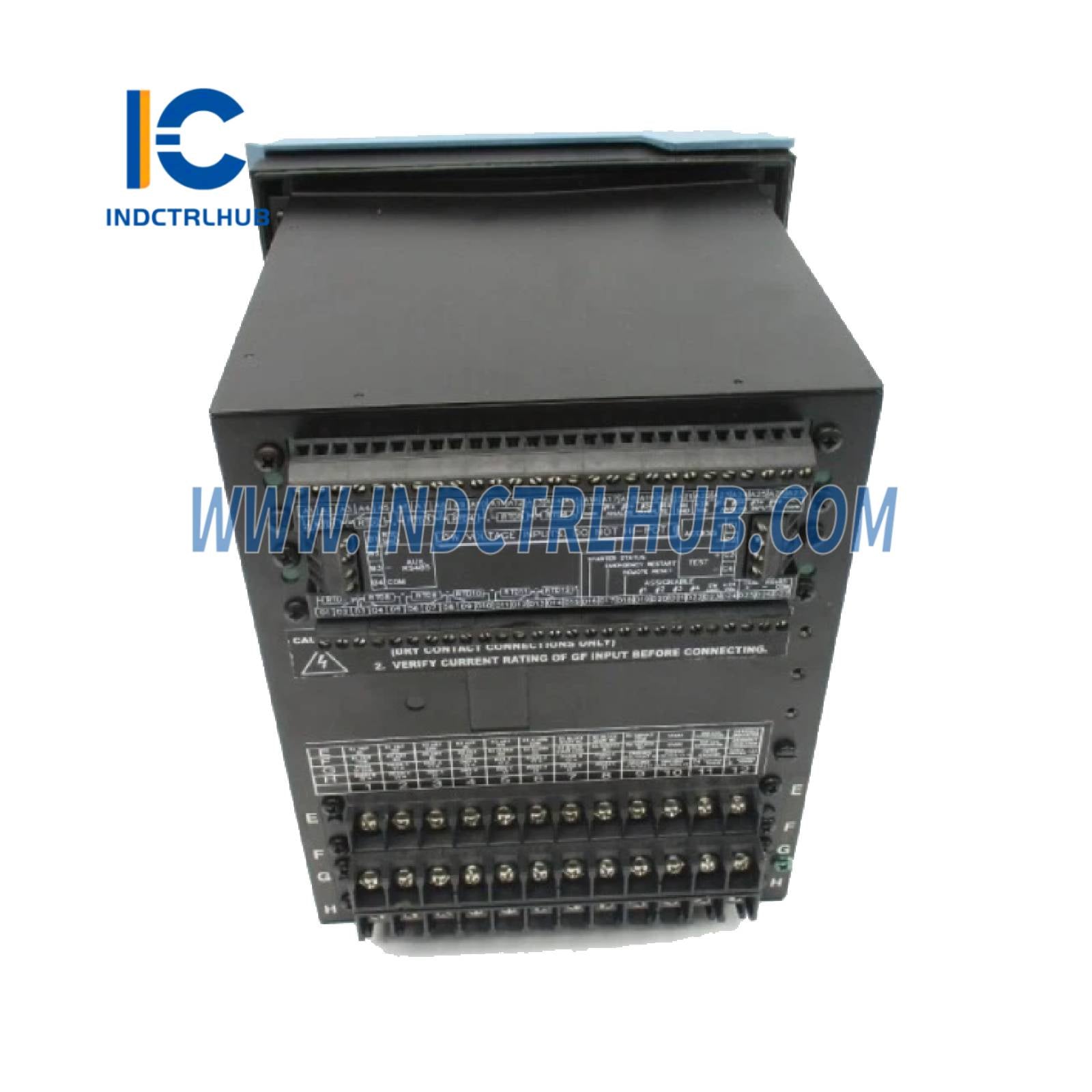

| Model |
469-P5-HI-A20 |
| Series |
Multilin 469 |
| Type |
Motor Management Relay (Microprocessor-Based) |
| Phase Current Transformer (CT) Secondary |
5 A (P5) |
| Control Power |
High Input (HI): 90–300 VDC, 70–265 VAC, 48–62 Hz |
| Analog Outputs |
Four 4–20 mA (A20) |
| Display |

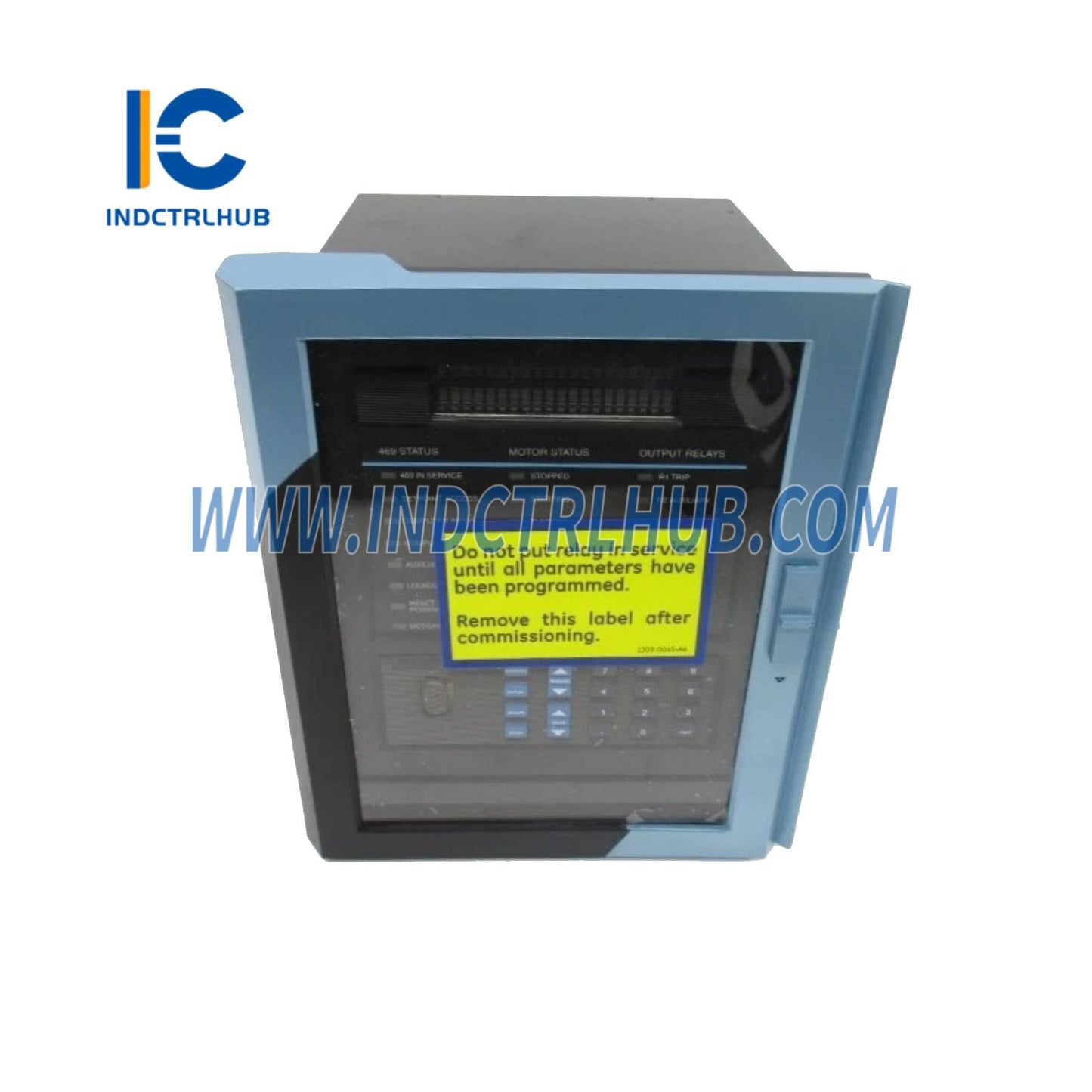

Standard 40-character LCD |
| Communication Ports |

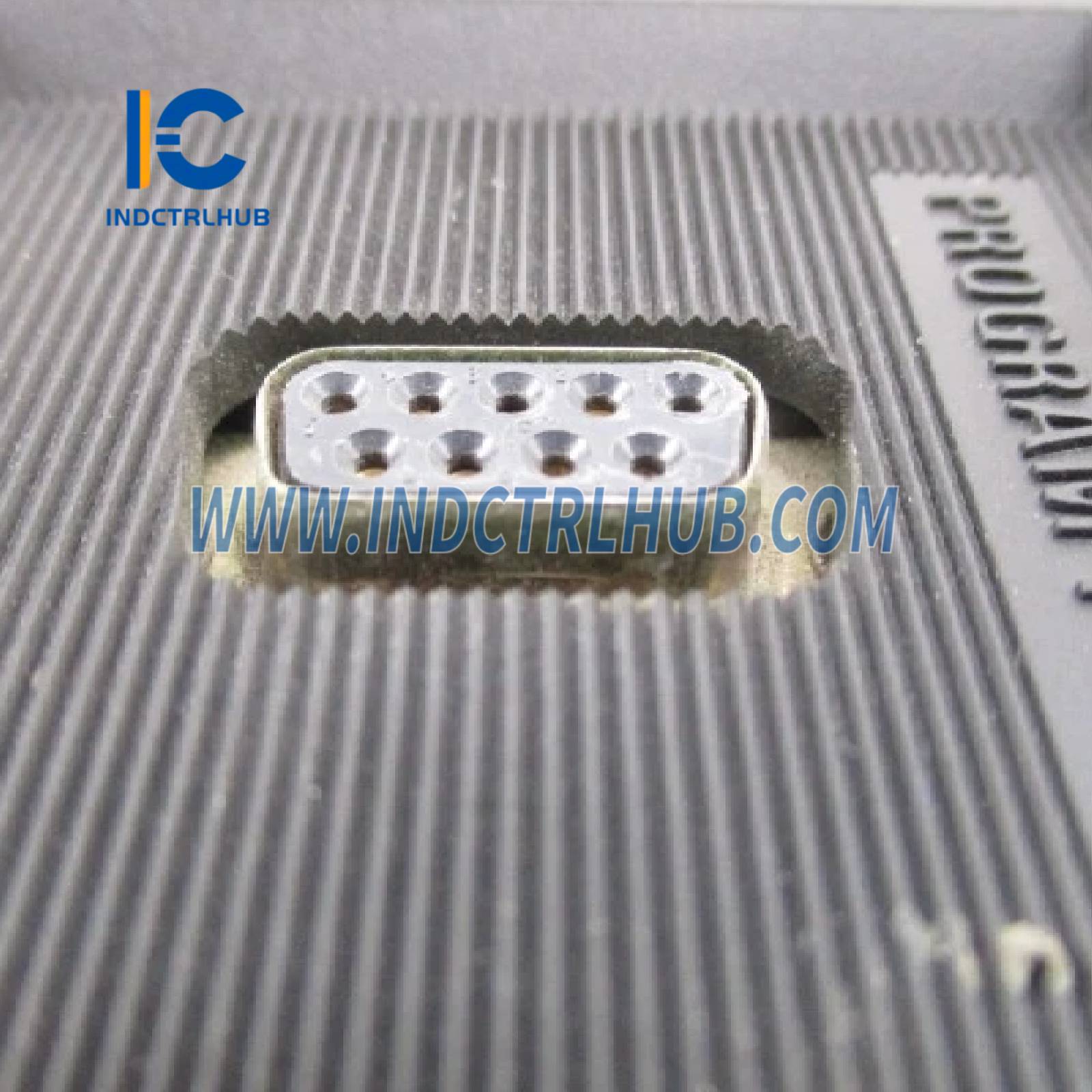

1 RS232 (front), 2 RS485 (rear), Modbus RTU protocol |
| Protection Features |
Thermal overload, torque protection, mechanical jam, current unbalance, ground fault, undervoltage/overvoltage, undercurrent, stator differential, RTD biasing |
| Metering Capabilities |
Voltage, current, power, frequency, demand, energy, motor load, thermal capacity |
| RTD Inputs |
Multiple 3-wire RTDs (100 Ω Platinum, 120 Ω Nickel, 100 Ω Nickel, 10 Ω Copper) |

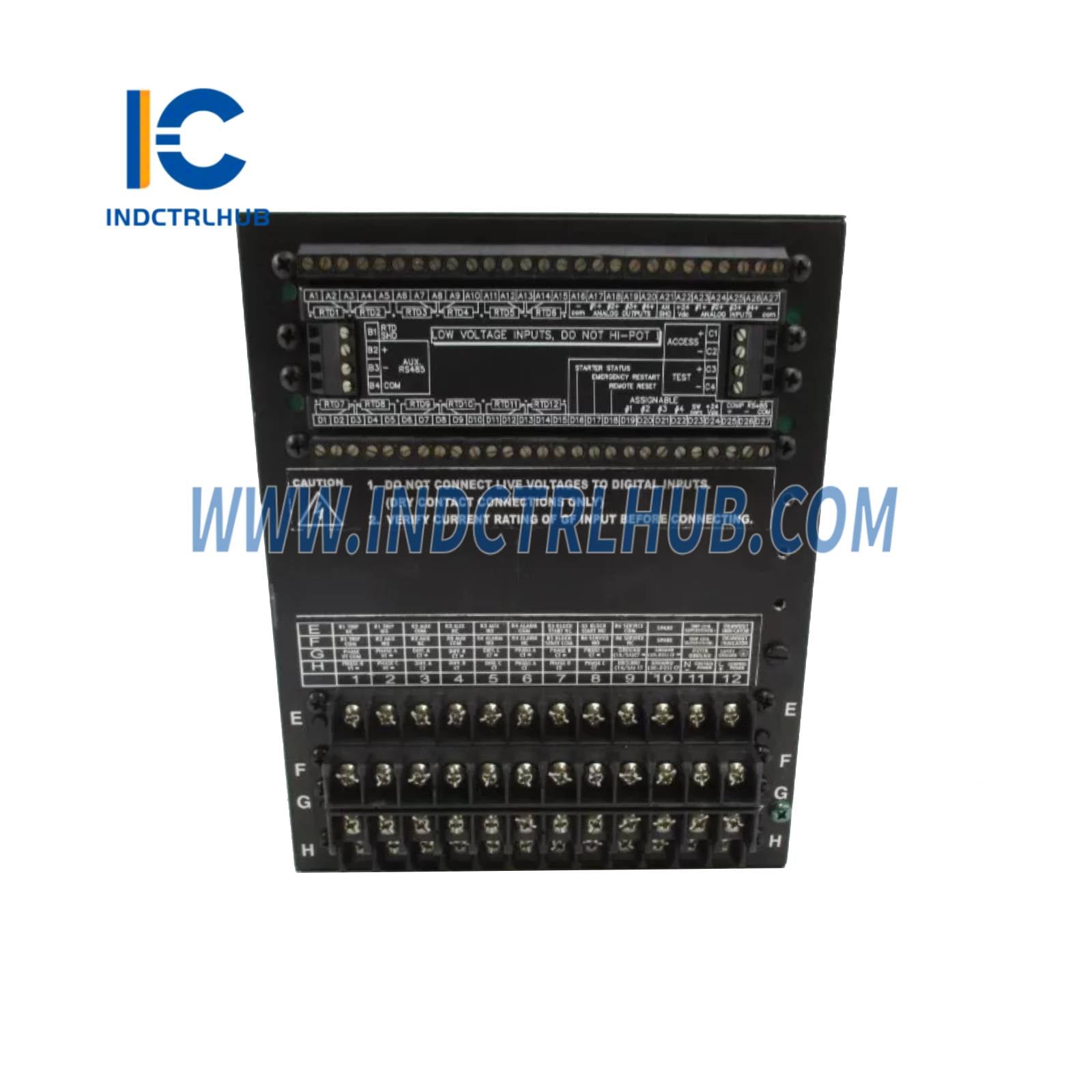

| Output Relays |
6 (for trips, alarms, start blocks), 10–30 A contact rating |
| Ground CT Inputs |
Two (one for GE power management, one for standard ground CT) |
| VT Inputs |
Supports delta or wye configuration |
| Event Recording |
Logs last 256 events with time, date, cause, and system parameters |
| Operating Temperature |
-40°C to +60°C (-40°F to +140°F), LCD may be affected below -20°C |
| Storage Temperature |
-40°C to +80°C (-40°F to +176°F) |
| Protection Rating |
IP40 (front), IP20 (rear, estimated) |
| Weight |
Approximately 7.32 kg (16.14 lbs) with case |
| Dimensions |
Approximately 21.8 x 22.8 x 25 cm (8.6 x 9.0 x 9.8 in) with case |

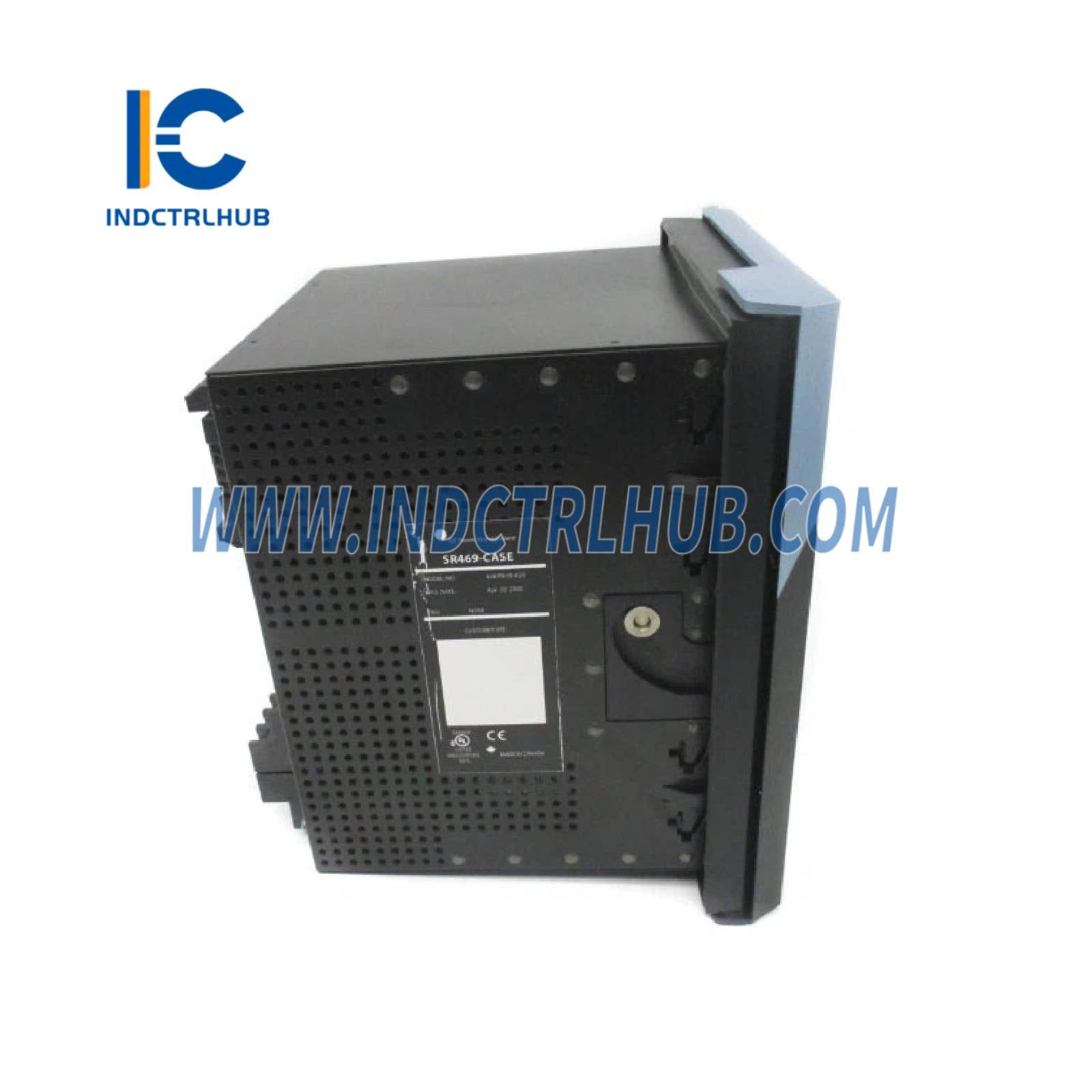

| Mounting |

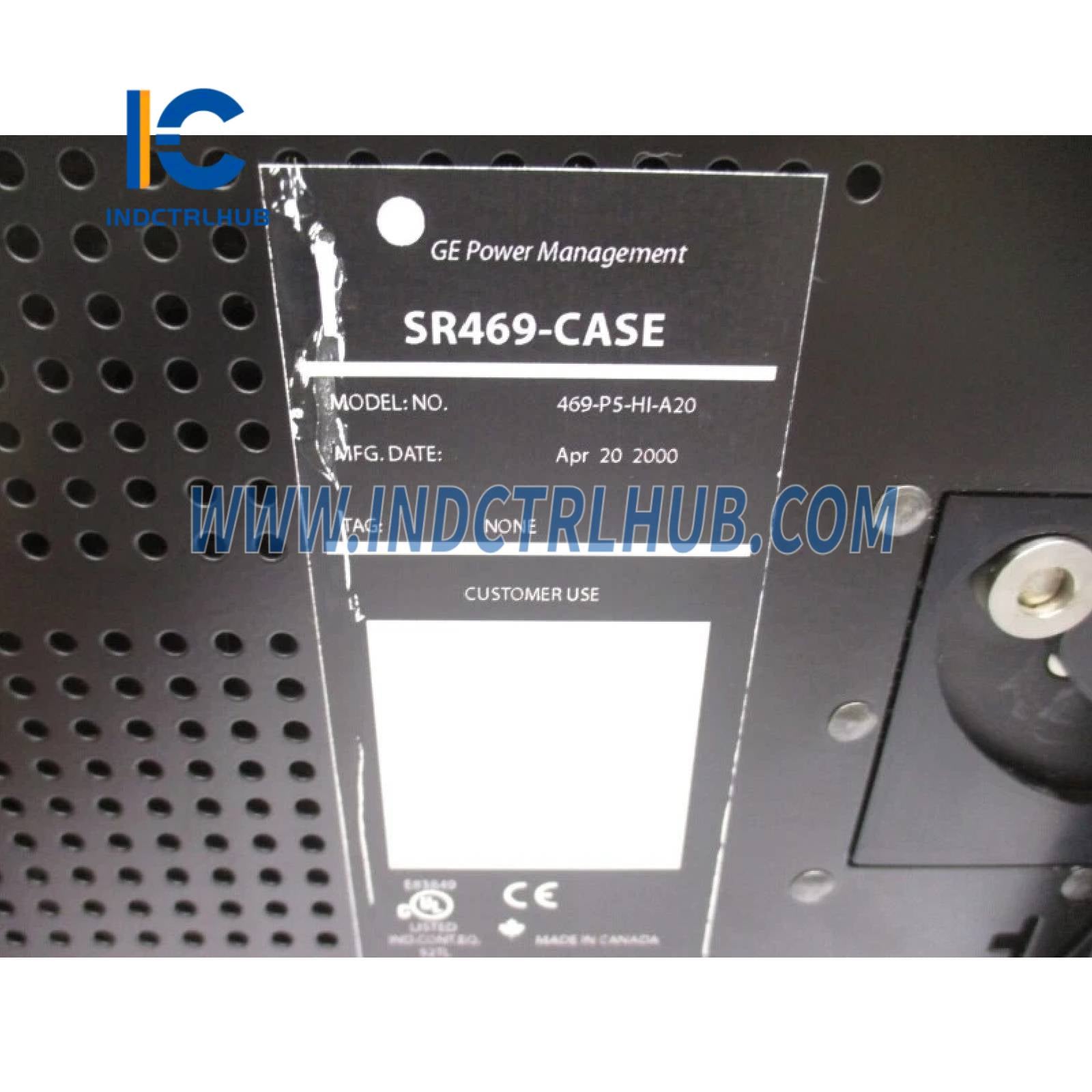

Draw-out design, SR469 case (metal, mountable) |
| Certifications |
CE marked, CSA, UL (depending on configuration) |
| Software Compatibility |
EnerVista 469 for setpoint configuration, data logging, and analysis |
