Product Description
Product Overview

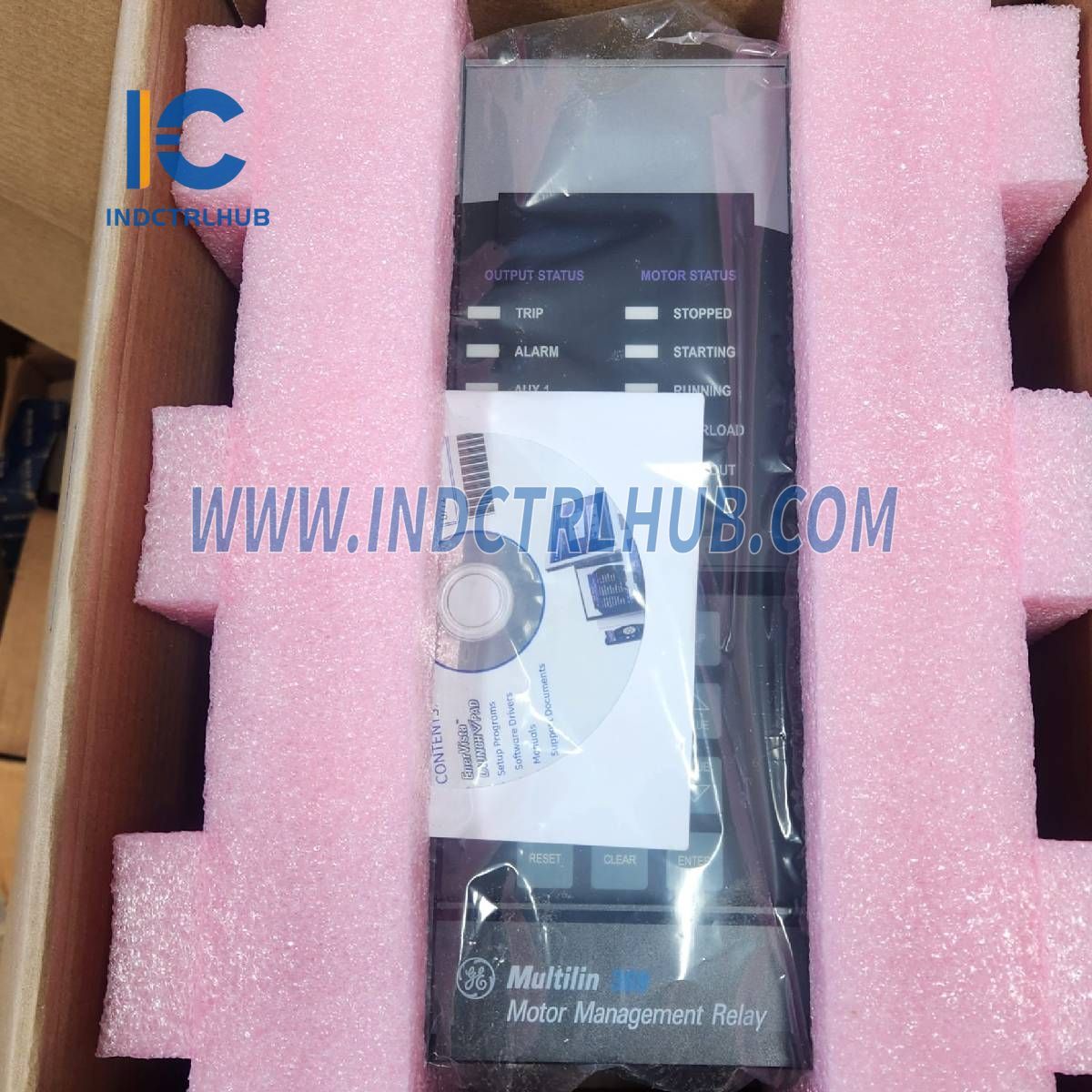

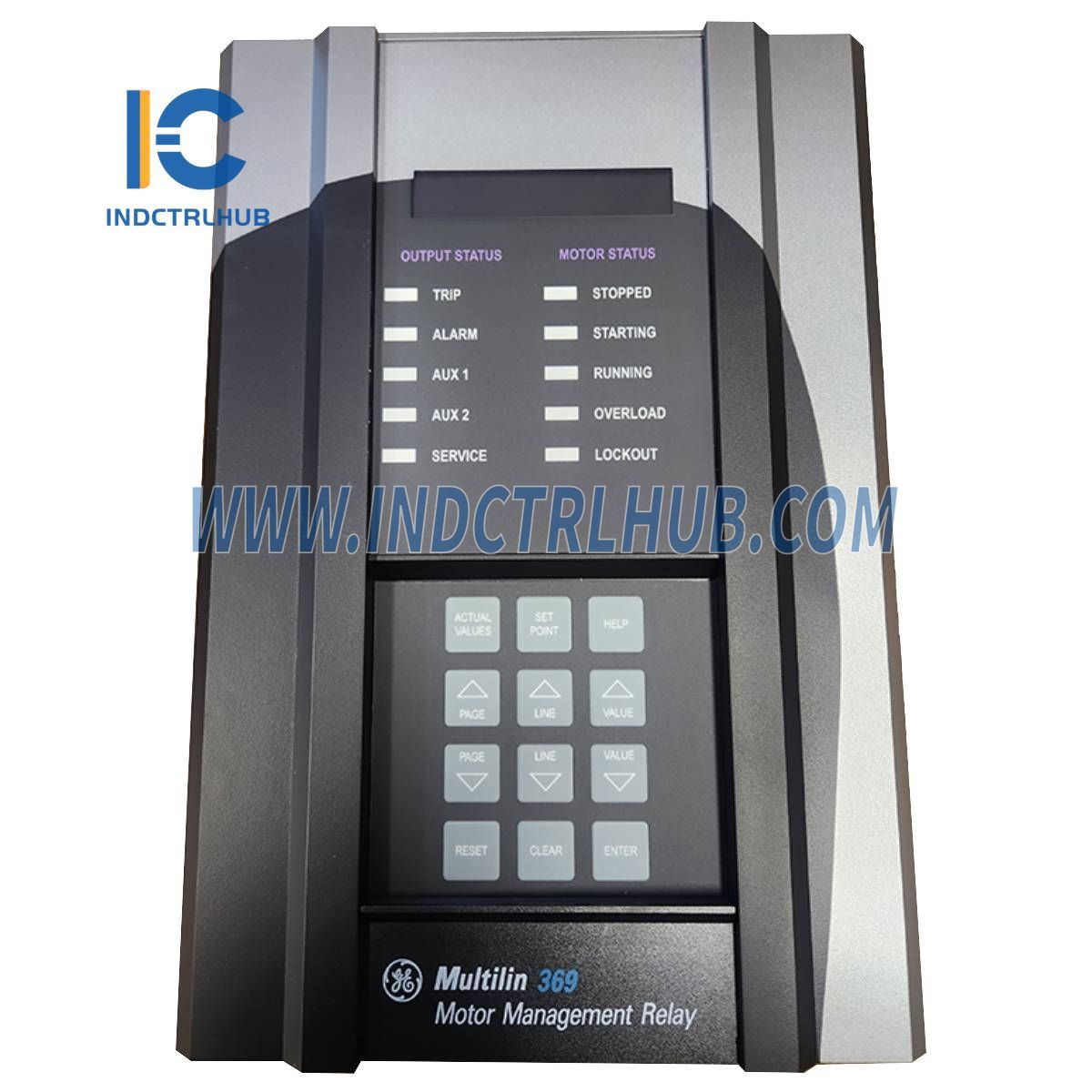

The General Electric 369-HI-R-M-0-P-0-E is a Motor Management Relay from the Multilin 369 series, designed to protect and manage three-phase motors and their associated mechanical systems. This digital relay offers advanced monitoring, control, and protection features for medium-sized motors, commonly used in industrial applications such as oil & gas, manufacturing, and power generation. It includes built-in 12 RTD inputs, an optional metering package, and enhanced diagnostics with an improved faceplate, making it a robust solution for motor health monitoring and fault prevention.
Technical Specifications
The 369-HI-R-M-0-P-0-E has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | 369-HI-R-M-0-P-0-E |
| Manufacturer | General Electric (GE Multilin) |
| Description | Motor Management Relay |
| Series | 369 Multilin |
| Control Power | High (HI): 50-300 V DC / 60-265 V AC, 50/60 Hz |
| RTD Inputs | 12 built-in Resistance Temperature Detectors (R) |
| Metering Package | Optional metering included (M) |
| Enhanced Diagnostics | Included with enhanced faceplate (E) |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Weight | Approximately 4.54 kg (10 lbs) |
Additional Details
The 369-HI-R-M-0-P-0-E includes the following additional information based on its standard use and model code breakdown:
| Category | Details |
|---|---|
| Function | Protects and monitors three-phase motors with adaptive technology |
| Mounting | Panel-mounted, typically in a DEMO metal carry case |
| Compatibility | Works with GE EnerVista 369 software via RS232/RS485 ports |
| Features | 12 RTD inputs, metering (kW, kvar, kVA, etc.), enhanced diagnostics, event recording, pre-trip alarms |
| Certifications | Meets industrial standards (e.g., UL, CE) |
| Part Type | New, surplus, or refurbished |
Model Code Breakdown

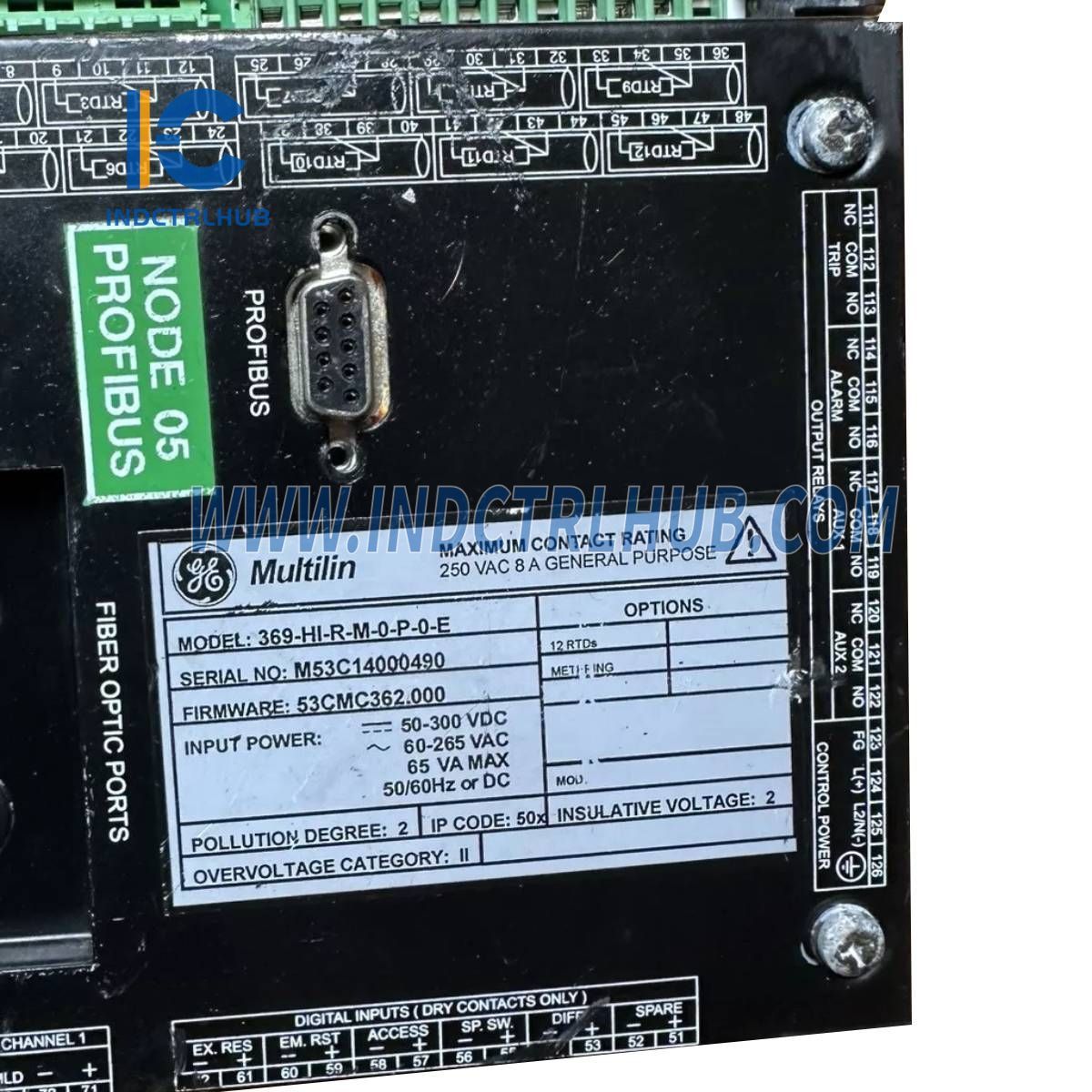

The part number 369-HI-R-M-0-P-0-E indicates the following configuration:
| Code | Description |
|---|---|
| 369 | Base model: 369 Motor Management Relay |
| HI | High control power: 50-300 V DC / 60-265 V AC |
| R | 12 built-in RTD inputs |
| M | Optional metering package included |
| 0 | No optional fiber optic port |
| P | Profibus protocol interface included |
| 0 | No harsh environment conformal coating |
| E | Enhanced diagnostics with enhanced faceplate |
