Product Description
Product Details
| Parameter | Details |
|---|---|
| Manufacturer | General Electric |
| Model/Part Number | 329A3529P001 |
| Description | Velocity Transducer Sensor |
Product Overview
| Parameter | Details |
|---|---|
| Part Number | 329A3529P001 |

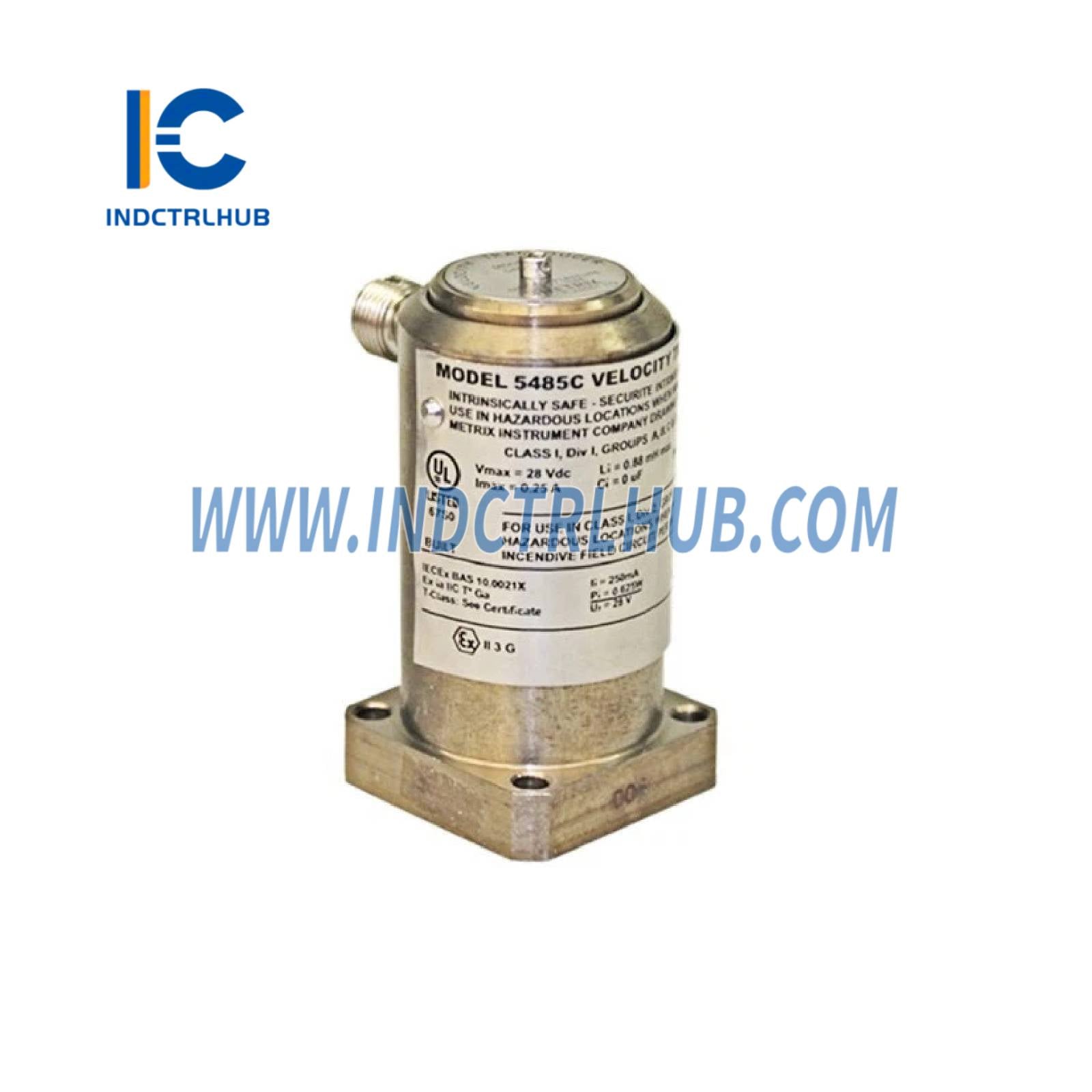

| Product Name | Model 5485C Velocity Transducer |
| Application | Vibration monitoring in gas turbines for condition assessment and maintenance |
| Compatibility | Designed for GE LM1600, LM2500, LM6000 gas turbines; interfaces with turbine control and monitoring systems |
| Function | Measures mechanical vibration velocity, supports high-temperature environments for reliable turbine protection |
Functional Specifications
| Parameter | Details |
|---|---|
| Sensor Type | Electromagnetic velocity transducer |
| Measurement Range | 0-100 mV/in/s (standard sensitivity) |
| Frequency Response | 3.5 Hz to 1 kHz (±3 dB) |
| Temperature Range | -40°C to +375°C (probe tip) |
| Output | 100 mV/in/s at 10 Hz |
| Mounting | Threaded (1/4-28 UNF standard) |
| Cable Length | Flexible armored cable (customizable) |
| Protection Rating | IP65 (dust-tight, water-resistant) |
| Standards Compliance | API 670, ISO 10816, CE marked |
