Product Description
Product Details
|
Manufacturer |
FUJI |
|---|---|
|
Model/Part Number |

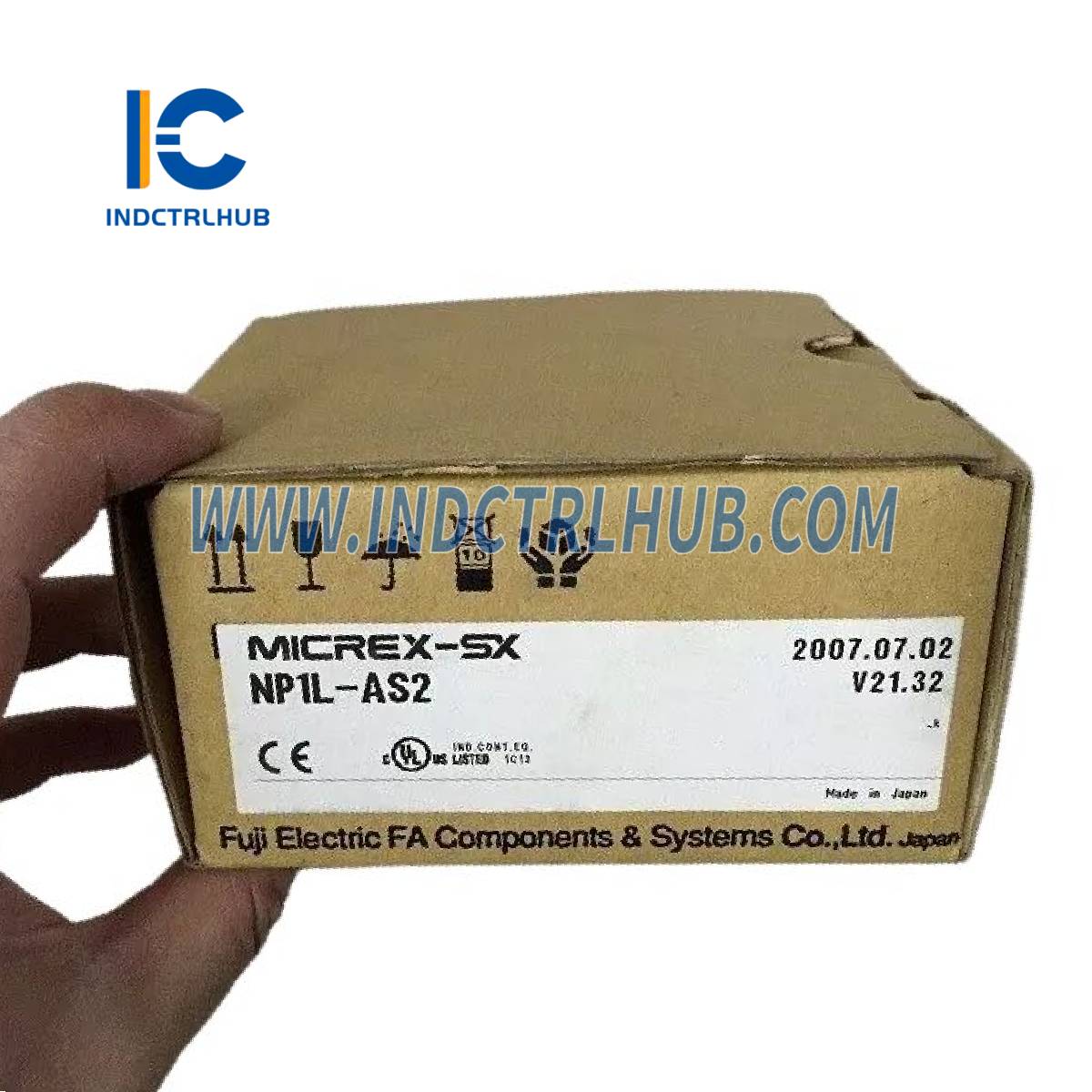

NP1L-AS2 |
|
Description |
AS-interface V2.1 Master Module |
Specifications
|
Item |
Specification |
|---|---|
|
Number of SX Bus Connectable Modules |
Max. 19/configuration Max. 12/configuration |
|
Number of Connectable Slaves |
31/master module 62/master module |
|
Total Cable Length |
100m (Max. 300m with repeater) |
|
Applicable Cable |
AS-i flat cable, standard cable |
|
Connection Method |
Screw terminal block (M3.5), 3-pole |
|
Refresh Time |
Max. 5ms Max. 10ms |
|
Error Check |
FCS (Frame Check Sequence) CRC-16 |
|
Number of I/O Points |
Max. 12 Total Points Max. 43 Total Points |
|
Isolation Method |
Photocoupler |
|
Dielectric Strength |
445V AC for 1 minute (between connector pins and frame ground) |
|
Insulation Resistance |
10MΩ or more with 500V DC megger (between connector pins and frame ground) |
|
Occupied Words |
26 words/master module 42 words/master module |
|
Occupied Slot |
1 slot |
|
Internal Current Consumption |
24V DC, 100mA or less |
