Product Details
|
Manufacturer |
FUJI |
|---|---|
|
Model/Part Number |
NP1AXH4-PT |
|
Description |

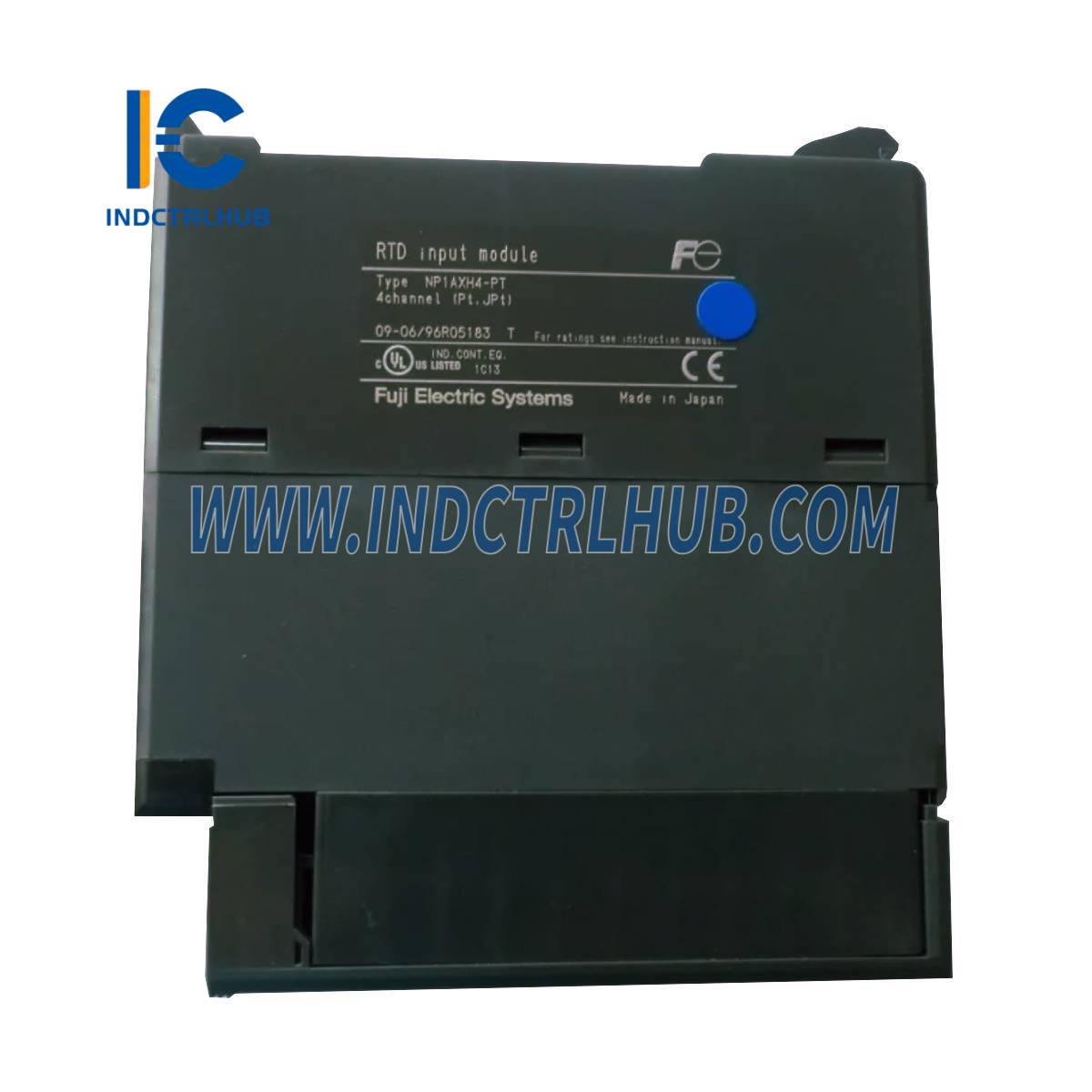

Analog I/O Module |
Specifications
|
Item |
Specification |
|---|---|
|
Type |
NP1AXH4-PT |
|
Number of Input Channels |
4 channels |
|
Applicable Resistance Thermometer Element |
Platinum resistance thermometer element (Pt100, JPt100) |
|
Accuracy (Full Scale) |
±0.3, ±1 Digit (Ambient temperature: 18 to 28°C) ±0.7, ±1 Digit (Ambient temperature: 0 to 55°C) |
|
Resistance of Input Wiring |
1 Ω or less |
|
Sampling Interval |
500ms/4 channels |
|
Input Filtering Time |
Hardware (time constant): 50ms Digital filter time: 1 to 100s (adjustable in 1-second increments) |
|
Wire Connections |
External wire connections |
|
Terminal Block |
Detachable screw terminal block (M3), 20 poles |
|
Applicable Wire Size |
AWG#22-18 (Shielded twisted pair wire, stranded wick line) |
|
Status Indication |
ONL: Normal (Green LED) ERR: Abnormal (Red LED) |
|
Isolation Method |
Photocoupler |
|
Dielectric Strength |
500V AC for 1 minute (between I/O terminals and frame ground) |
|
Insulation Resistance |
10MΩ or more with 500V DC megger |
|
Internal Current Consumption |
24V DC, 150mA or less |
|
Occupied Words |
16 words (Input: 8 words, Output: 8 words) |
