Product Description

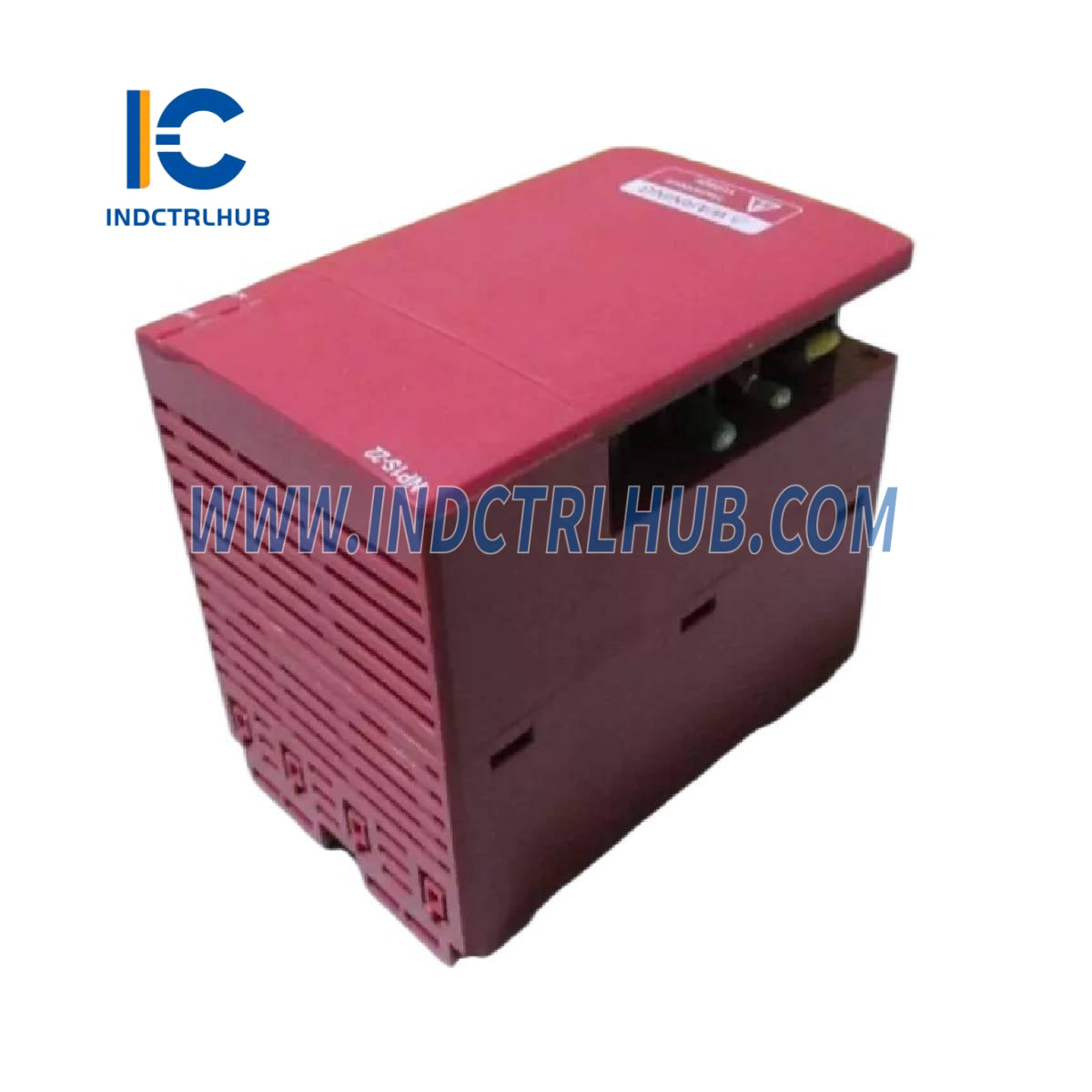

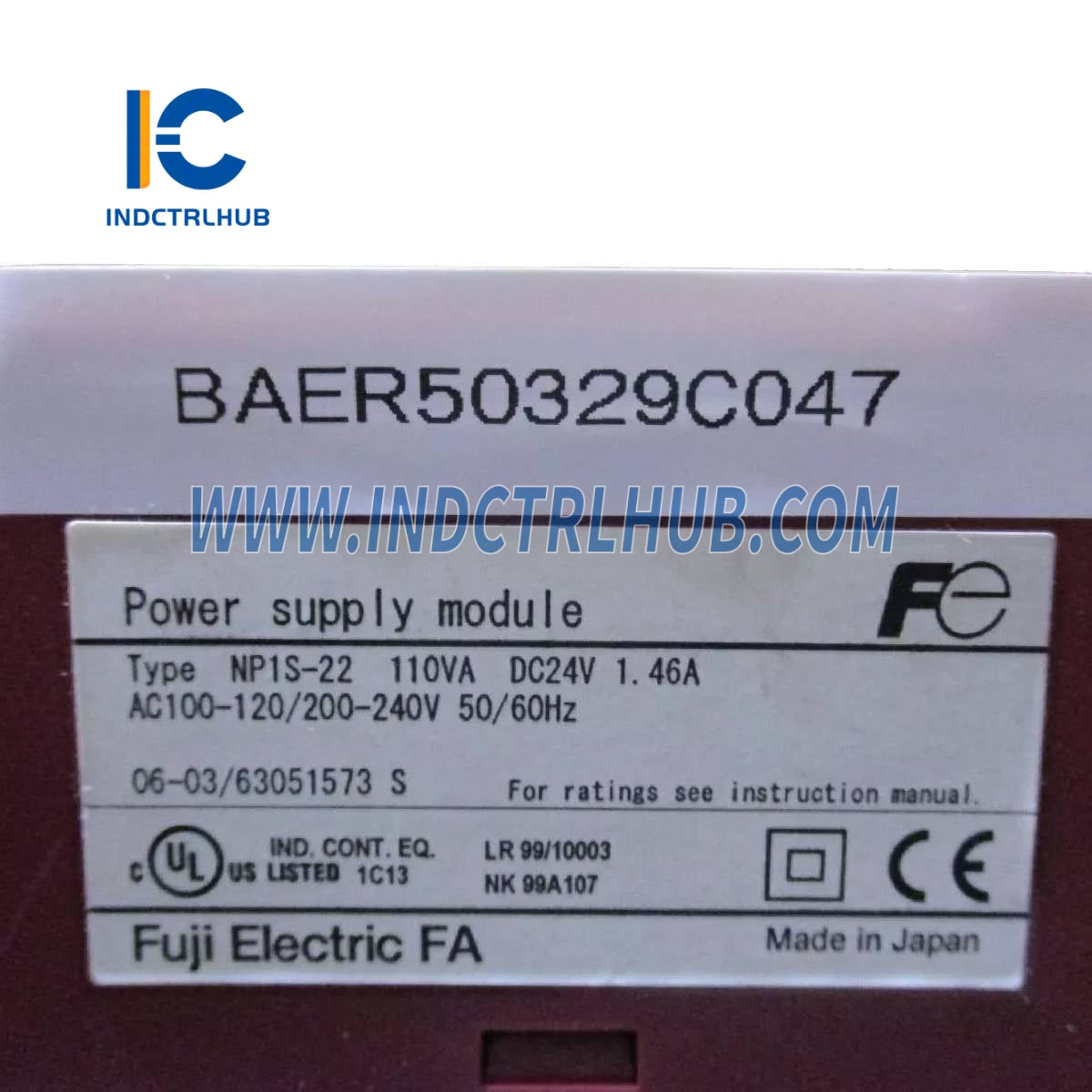

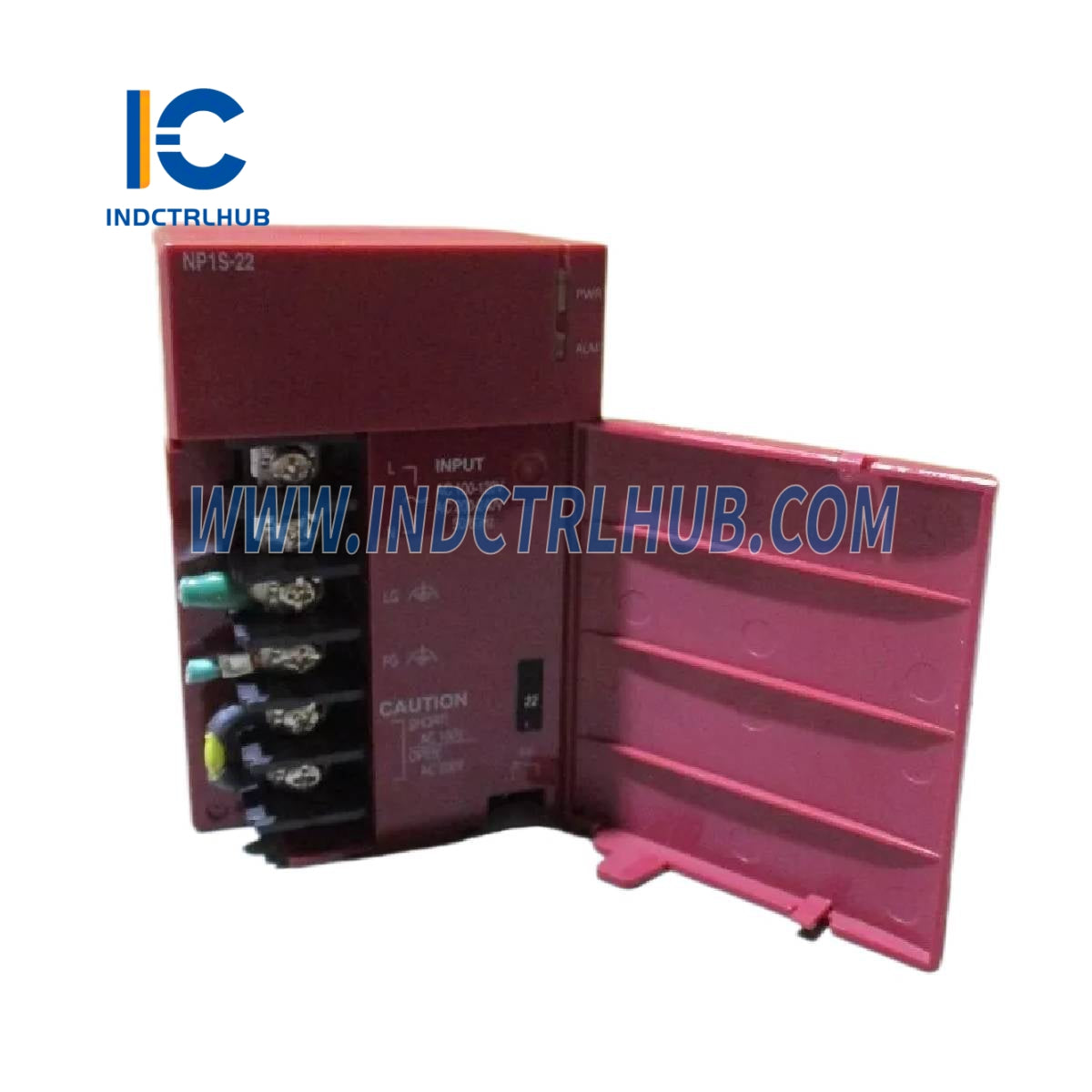

Fuji Electric NP1S-22 Power Supply Module
Product Overview
- The Fuji Electric NP1S-22 is a Power Supply Module designed for the MICREX-SX SPH Series programmable logic controllers (PLCs). This single-phase power supply provides stable 24 VDC output for PLC systems, supporting reliable operation in industrial automation applications such as manufacturing, process control, and factory automation. It features a built-in fuse for overcurrent protection and is designed for redundancy in critical systems.
Technical Specifications
- The NP1S-22 has the following specifications based on industry documentation from sources like Topbrands PLC and Kempston Controls:
| Specification | Details |
|---|---|
| Model/Part Number | NP1S-22 |
| Manufacturer | Fuji Electric |
| Description | Power Supply Module |
| Series | MICREX-SX SPH Series |
| Input Voltage | 100–240 VAC, single-phase |
| Input Frequency | 50/60 Hz |
| Input Power | 110 VA |
| Output Voltage | 24 VDC |
| Output Current | 2.2 A |
| Output Power | 52.8 W |
| Efficiency | 85% |
| Protection | Built-in fuse for overcurrent protection |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Dimensions | 90 x 30 x 60 mm |
| Weight | Approx. 0.4 kg |
Additional Details
- The NP1S-22 includes the following additional information based on its standard use and documentation from sources like Topbrands PLC, Kempston Controls, and Radwell:
- Function: Supplies stable 24 VDC power to MICREX-SX SPH Series PLC components, ensuring reliable operation of CPUs, I/O modules, and communication modules; supports redundancy configurations for enhanced system availability in critical applications.
- Compatibility: Compatible with MICREX-SX SPH Series PLCs, including CPU modules like NP1PU2-256E and communication modules like NP1L-OL2; integrates with base boards such as NP1BS-08.
